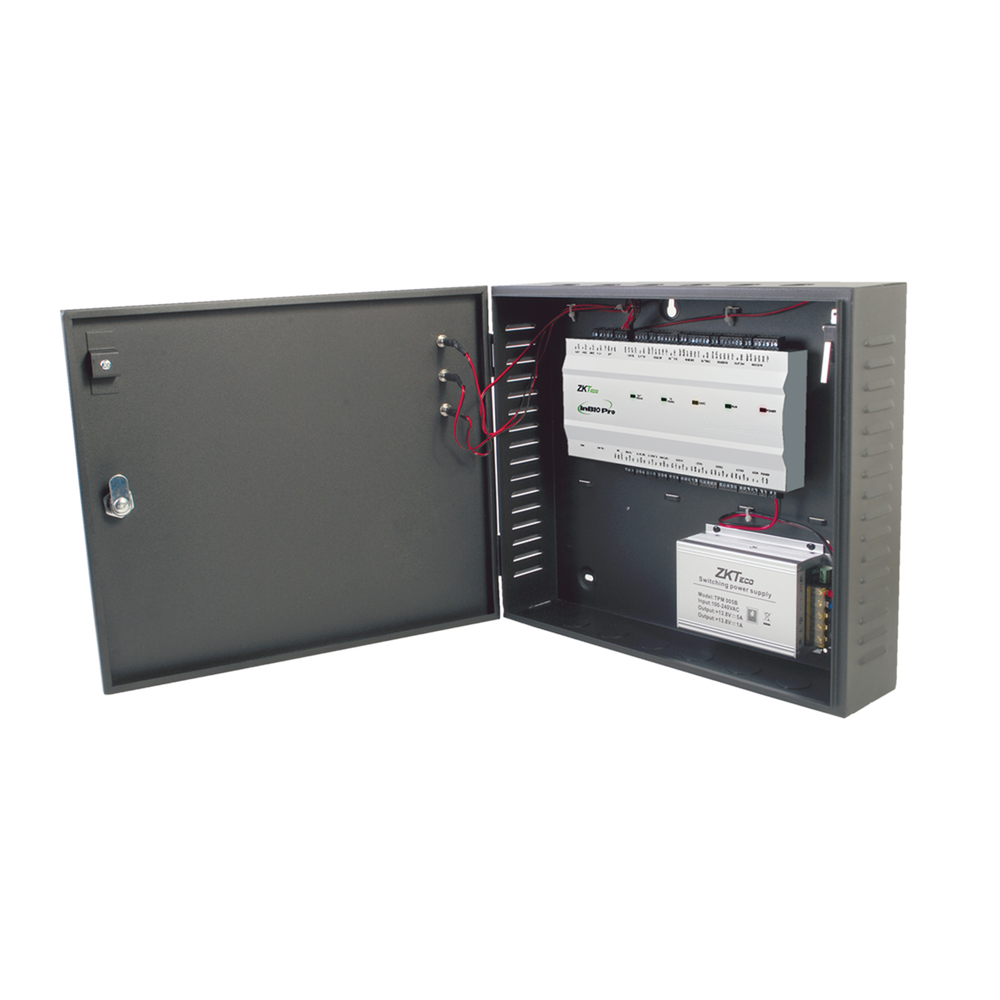

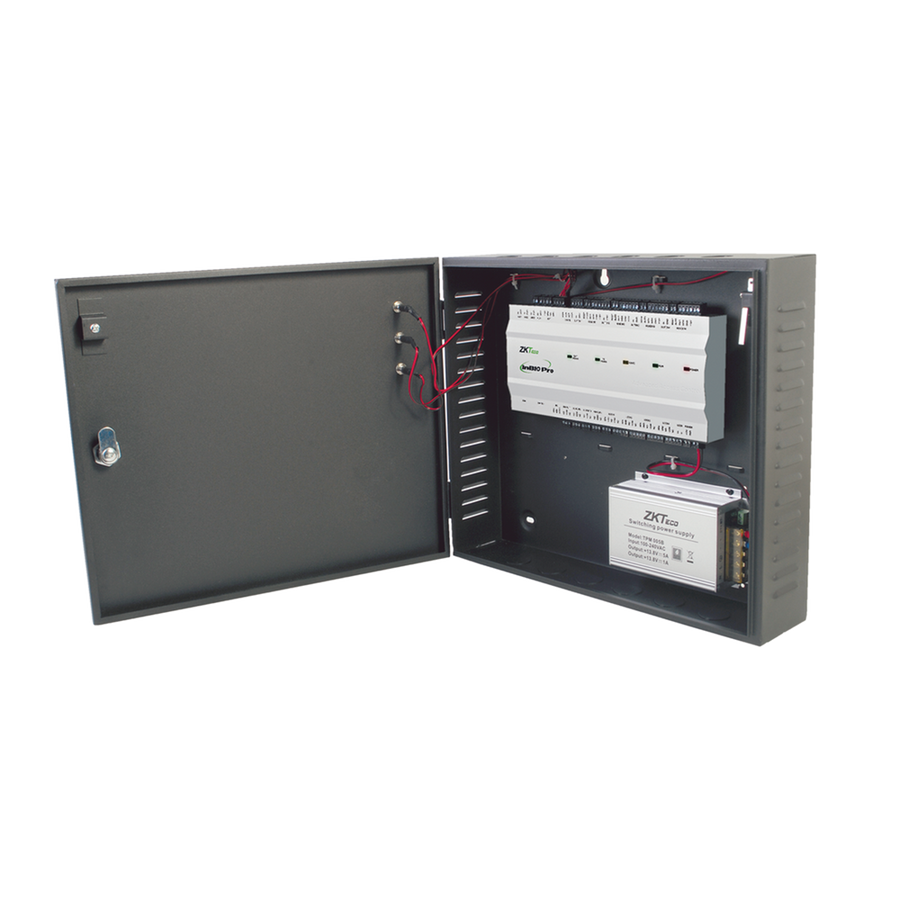

Zkteco INBIO-460PRO-20K Access Control Terminal 20K Fingerprint 30K Card

Functions:
• Access control

Capacity:
• Fingerprints: 20,000
• Cards: 30,000
• Events: 100,000
(Expandable event memory with SD memory card, up to 32GB)

Communication:
• TCP/IP
• Wiegand Multi-format input

Hardware:
• Metallic cabinet
• Includes the power of 12 Vdc / 5 A with charger

Access Control Functions:
• Access control by schedule and doors
• Combinable verification methods
- Fingerprint + Card (With reader F12)
• Multi-user verification
• Door lock
• Anti-pass

*Require ZKBIOSECURITY3.0

Connections:
• 4 Relay outputs NC/NO/COM for sheets
• 4 Auxiliar relay outputs NC/NO/COM
• Output button and magnetic sensor by the door

Power supply:
• 12 Vdc / 220mA

Compatible Lectors:
• Biometric lectors:
- Fingerprint and proximity reader F12 for Indoor / Outdoor
- Supports up to 4 F12 Readers (In and Out Reader)
- USB ZK4000 Reader for fingerprint registration
• Proximity:
- SYSKR600E and SYSKR601E
- Supports 1 reader per door
• Long-range readers:
- PRO6RF and PRO12RF

Additional Information:
• Operating temperature: 32 to 131ºF (0 to 55º C)
• Dimensions: 13.7" x 11.8" x 3.5" (350 x 300 x 90 mm)





*The sale of this equipment requires certification by the factory. For more information please contact the Engineering department.

*Note:
It only supports the software supplied with the computer or provided by EhubAmerica and as long as the same database engine that is included is used. Any other implementation to another version or another database is the responsibility of the integrator or developer in charge.

Key Features

• ADMS Push Technology With Automatic Synchronization
• Expandable Event Storage up to 32 GB With SD Card
• Compatible With ZKBioCVSecurity Web-Based Management Software
• Combined Fingerprint Plus Card Verification With F12 Reader
• 4 Relay Outputs NC/NO/COM for Door Control Systems
• Supports up to 8 F12 or FR1500 Readers for Access Points
