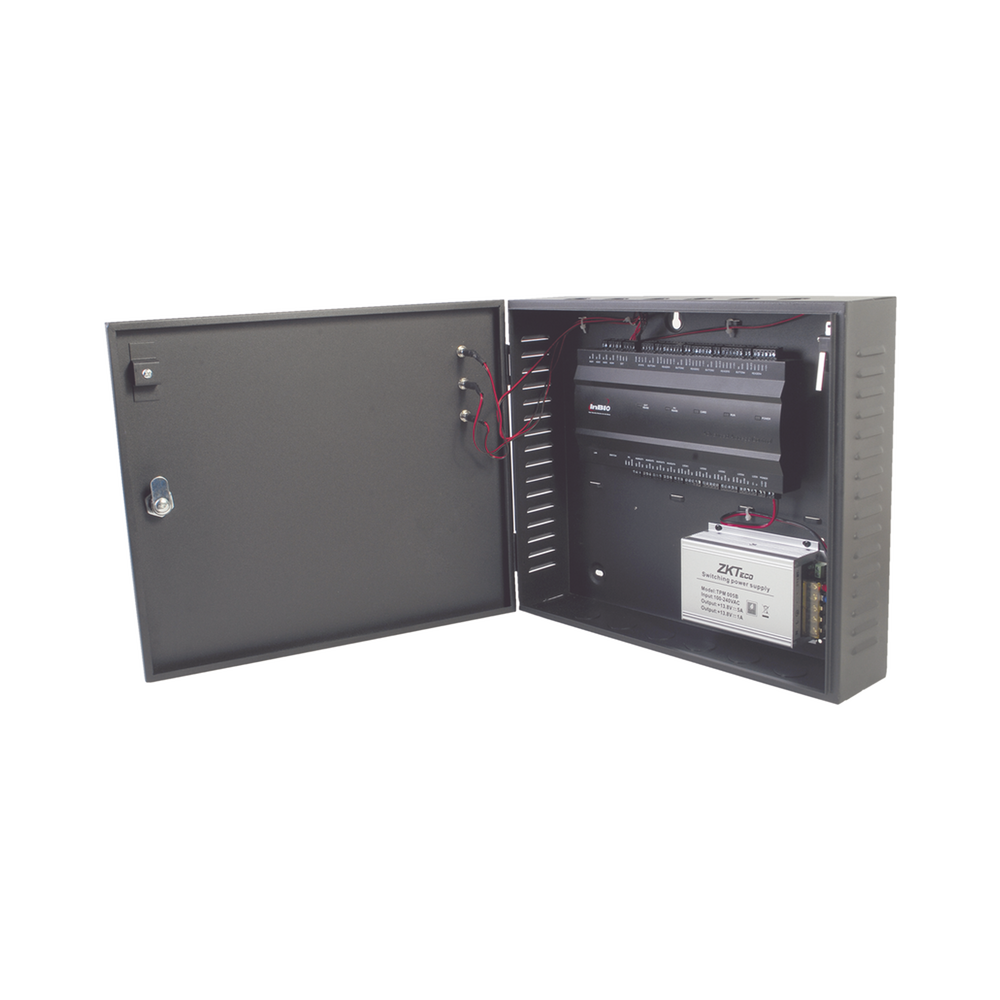

Zkteco INBIO460L 4-Door Access Control Terminal 3000 Fingerprint

Functions
• Access control

Capacity
• Fingerprints: 3,000
• Cards: 30,000
• Events: 100,000
(Event storage with SD Memory Card, up to 32 GB)

Communication
• TCP/IP
• Multi-format Wiegand input

Hardware
• Metallic cabinet with key

Control Access Functions
• Access control by schedule and doors
• Combinable verification methods:
- Fingerprint + Card (with the F12 reader)
• Multi-user verification
• Security access bypass (sequential doors)
• Anti-passback
• Allows only the management of 4 doors (does not allow management of 2 doors)

Compatible with software

Connections
• 4 relay outputs NC/NO/COM for locks
• 4 auxiliary relay outputs NC/NO/COM
• 4 auxiliary inputs
• Output button and magnetic sensor by the door

Power Supply
12 Vdc / 220 mA

Compatible Readers
• Biometric Readers:
- Fingerprint reader and F12 proximity for Indoor and Outdoor
- Supports up to eight F12 readers (In and Out reader)
- USB ZK4000 reader for fingerprint registration

Proximity
• SYSKR600E and SYSKr601E
• Supports 1 reader by the door

Long Range Readers
• PRO6RF and PRO12RF

Software
• Supports 50 panels with free License
• Based in Web Interface
• User-friendly and easy interface
• Compatible with mobile devices: iPhone, iPad, Android through client-server function

Important
• A camera license is required by each reader (each reader is associated with only one camera)
• The licenses are exclusives by the system and that integrate with the serial numbers of the PC and DVR used (are nontransferable)

Additional Information
• Operating temperature: 32 to 131ºF (0º to 55º C)
• Dimensions: 14.96 x 11.41 x 3.14" (380 x 290 x 80 mm).
• Includes Software of management in Spanish

*NOTE: It only supports the software supplied with the computer or provided by EhubAmerica and always when the same data motor base is used that is included. Any other implementation to other software or another version of the database is the responsibility of the integrator or developer in charge.

Key Features

• Expandable Memory up to 32 GB With SD Card Support
• TCP/IP and Multi-Format Wiegand Communication Protocols
• Compatible With up to 8 F12 Biometric Readers
• Multi-User Verification and Anti-Passback Security Features
• 4 Relay Outputs for Electric Strikes per Door
• 4 Auxiliary Inputs for Exit Buttons and Magnetic Sensors
