Intellinet 102124 60W USB-C Power Delivery Charger 3-Port USB-A

Technical Description

• Charging station solution with one USB-C Power Delivery (PD 3.0) and three USB-A charging ports
• Charges different devices simultaneously with ideal potential energy
• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device
• Three USB-A ports sharing 12 W to charge a portable device with each port supporting up to 2.4 A
• Overload, overcurrent and overheating protection
• Compact, portable and stylish design for easy travel

Standards and Certifications:

• USB 2.0
• PD 3.0
• FCC
• UL 62368
• CE
• RoHS
• WEEE

Ports:

• One USB-C with Power Delivery (PD 3.0)
• Three USB-A

General:

• AC input: 100 – 240 V; 50 – 60 Hz
• USB-C output: 5 – 20 V; maximum 3 A; 60 W
• Voltage/current settings (maximum):
• - USB-C: - 5 V / 3 A - 9 V / 3 A - 12 V / 3 A - 15 V / 3 A - 20 V / 3 A - USB-A: - up to 5 V / 2.4 A Input Characteristics
• AC rated voltage: 100 – 240 V
• Frequency range: 50 – 60 Hz (±1 Hz)
• Current: = 1 A at 100 VAC 60 HZ

Output Characteristics:

• Rated voltage: 5 / 9 / 12 / 15 / 20 V
• Current: 3 A maximum (at constant voltage mode)
• Rated power: 72 watts maximum
• Overshoot voltage: = 5%

Protection Characteristics:

• Short circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) - current limit: 150% (max)
• Overtemperature (OTP)

Physical:

• Dimensions: 9.1 x 7.5 x 2.75 cm (3.58 x 2.95 x 1.08 in)
• Weight: 0.22 kg (7.76 oz.)
• Housing: plastic
• Operating Environment:
• Operation Temperature: 0 – 30°C (32 – 86°F)
• Storage Temperature: -20 – 65°C (-4 – 149°F)
• Humidity (noncondensing): 10 – 90%

Package Contents:

• Power Delivery Charging Station - 72 W

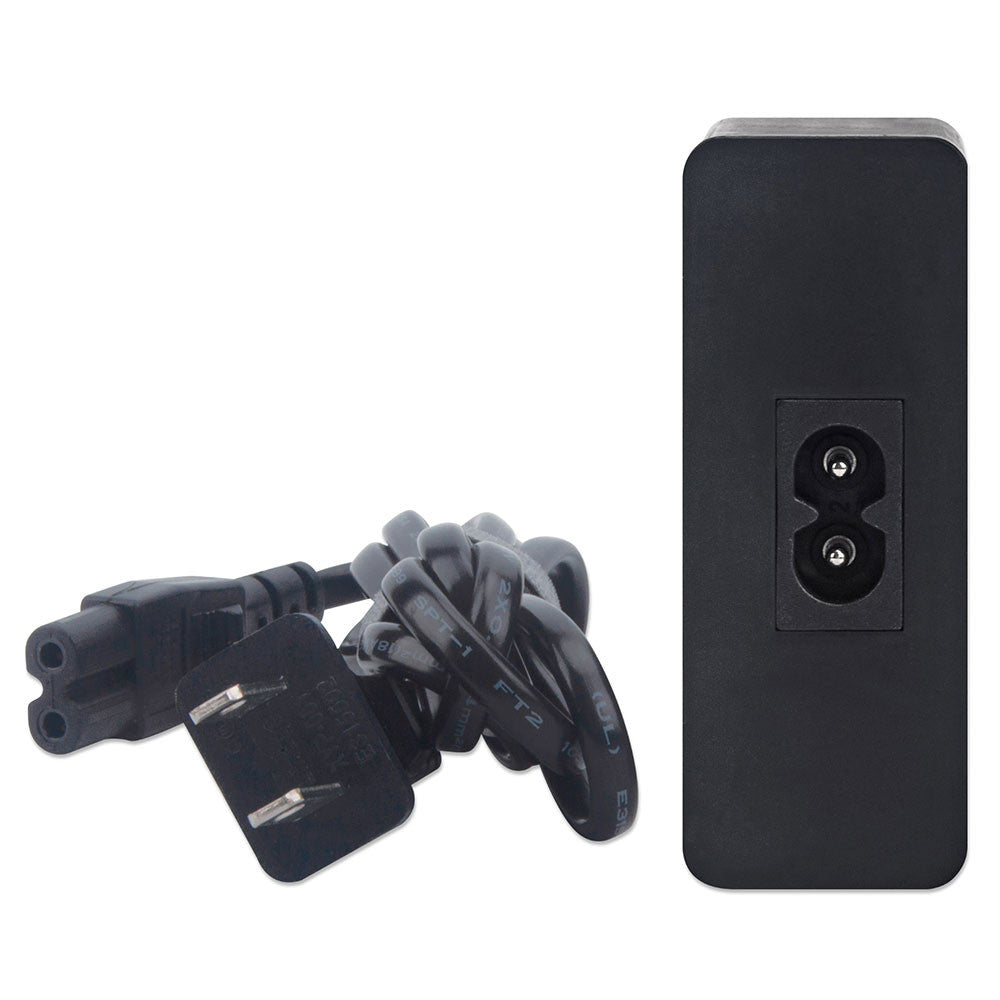

• Power Cord
• Quick Instruction Guide
