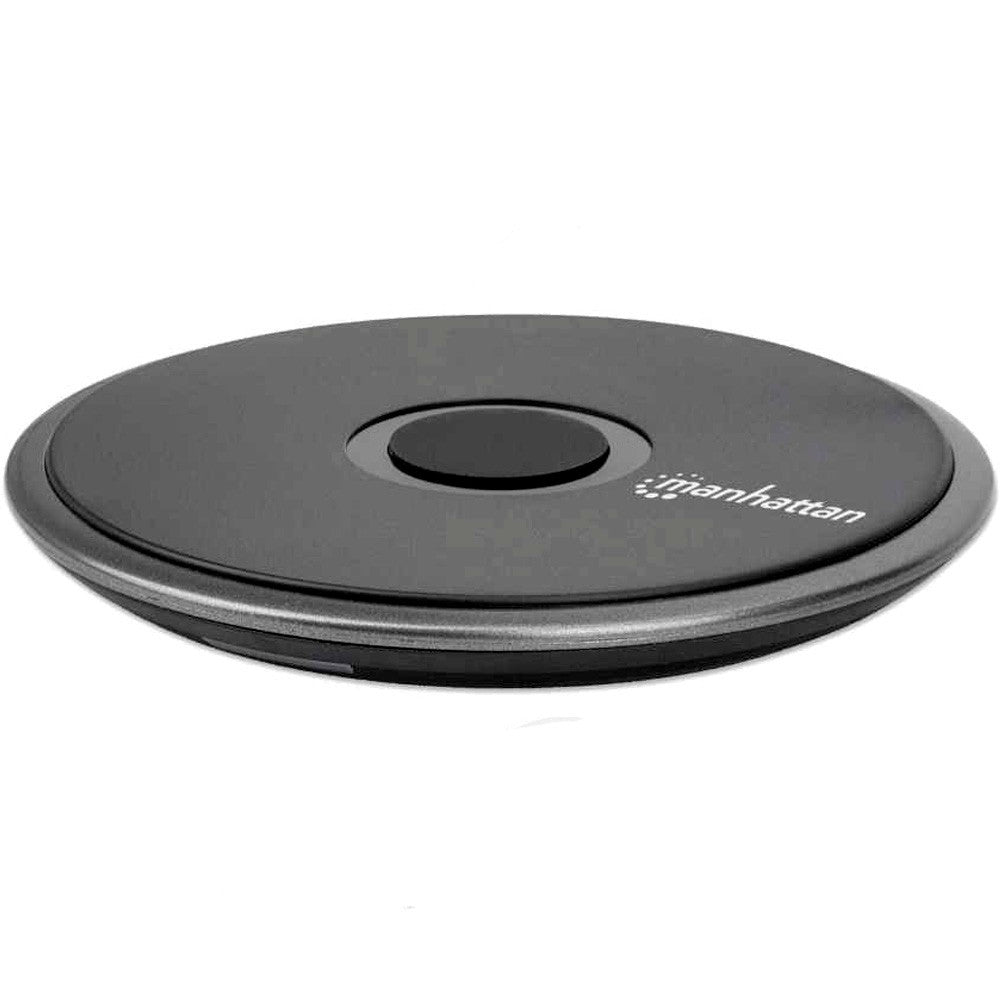

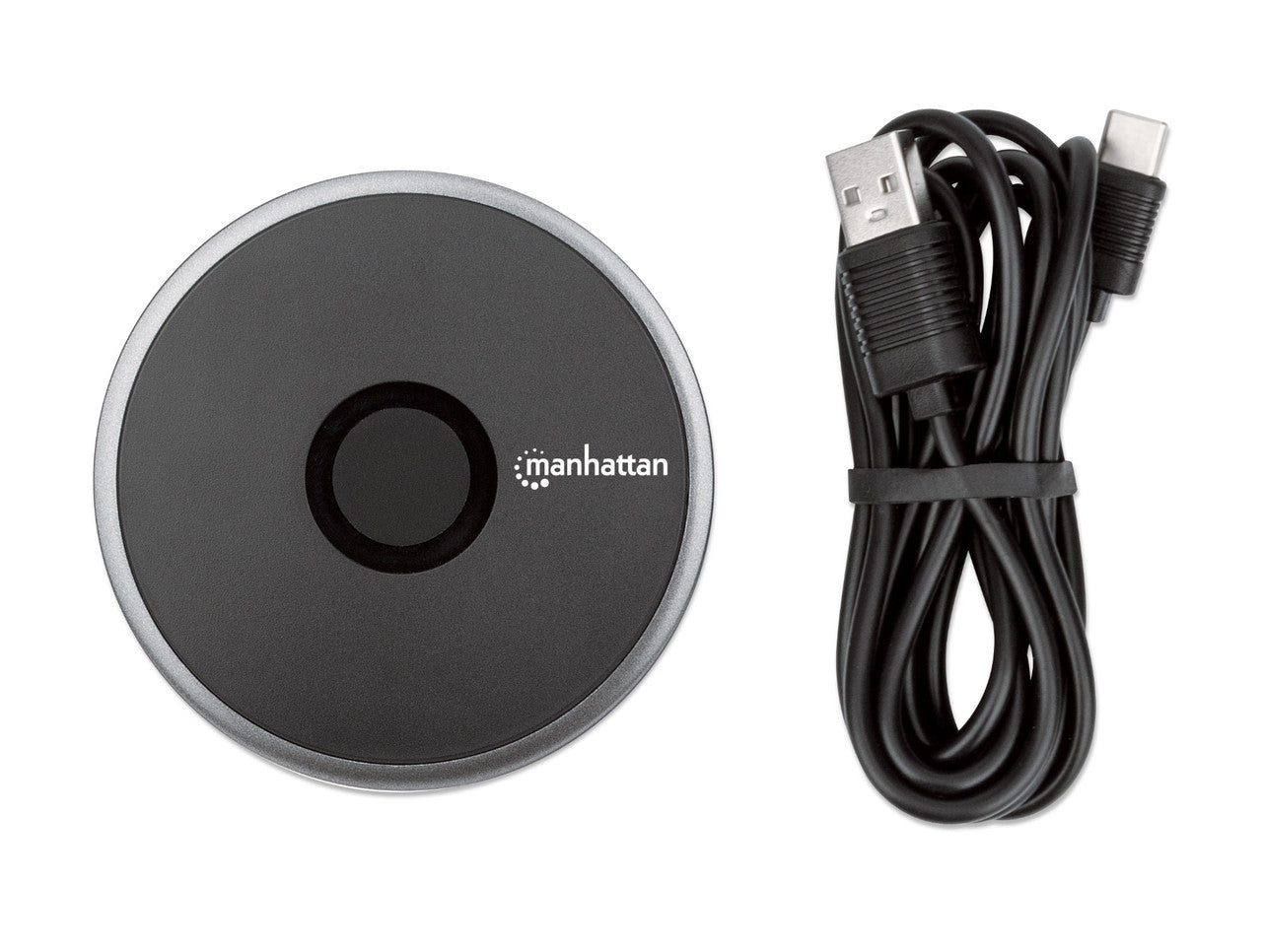

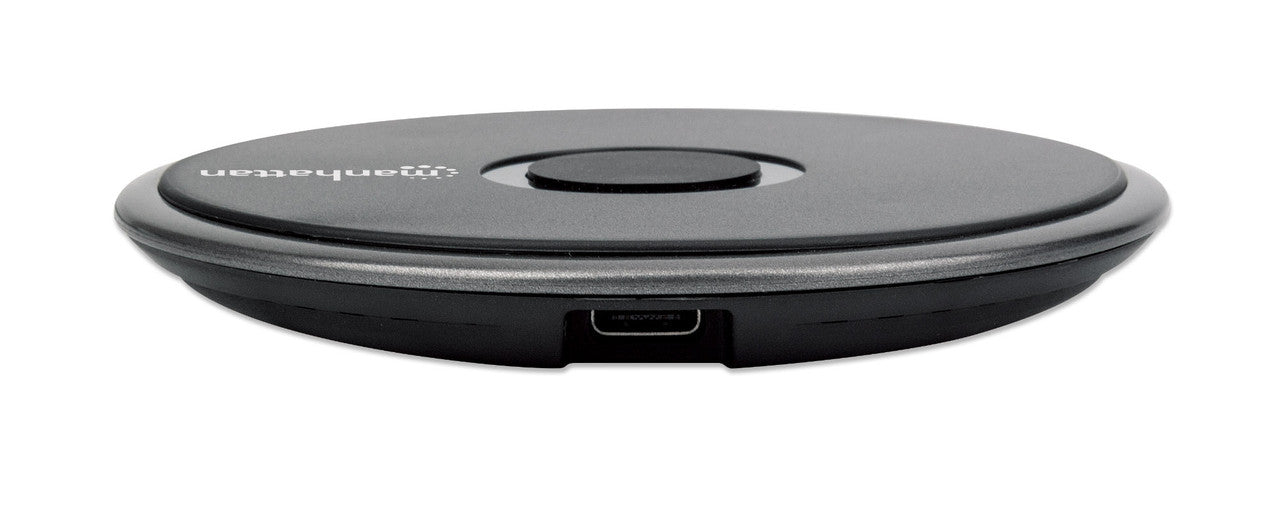

Intellinet 102186 10W Qi Wireless Charging Pad USB-C

PRODUCT OVERVIEW

Simple, Fast Phone Charging with the Manhattan Wireless Charging Pad

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• Qi-certified to ensure a safe charge for you and your devices
• Up to 10 W fast-charging of compatible smartphones and wireless-charging phone cases
• Built-in safety technology that shuts off power output when metal is detected to prevent interference or device damage
• LED indicators for easy status monitoring
• Overload, overcurrent and overheating protection
• Effective wireless charging through phone cases up to 5 mm thick*
• Compact, portable and stylish design for easy travel *External metallic accessories (such as credit cards, magnets, grips, and phone cases) will interfere with the charging technology
• Qi™
• CE
• RoHS
• FCC
• WEEE
• USB-C input: DC 5 V / 2 A – 9 V / 2 A
• Wireless power output: - Input at 5 V / 2 A: 5 W - Input at 9 V / 2 A: up to 10 W
• Wattage settings (maximum): - 5 W / 7.5 W / 10 W
• Charging distance: ≤ 10 mm
• Charging efficiency: ≤ 80%
• Short circuit (SCP) with auto-recovery mode

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 102186
• Product Type: Networking Accessories
• Qi-certified to ensure a safe charge for you and your devices
• Up to 10 W fast-charging of compatible smartphones and wireless-charging phone cases
• Built-in safety technology that shuts off power output when metal is detected to prevent interference or device damage
• LED indicators for easy status monitoring
• Overload, overcurrent and overheating protection
• Effective wireless charging through phone cases up to 5 mm thick*
• Compact, portable and stylish design for easy travel *External metallic accessories (such as credit cards, magnets, grips, and phone cases) will interfere with the charging technology
• Qi™
• CE
• RoHS
• FCC
• WEEE
• USB-C input: DC 5 V / 2 A – 9 V / 2 A
• Wireless power output: - Input at 5 V / 2 A: 5 W - Input at 9 V / 2 A: up to 10 W
• Wattage settings (maximum): - 5 W / 7.5 W / 10 W
• Charging distance: ≤ 10 mm
• Charging efficiency: ≤ 80%
• Short circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 150% (max)
• Over-temperature (OTP)
• Dimensions: 90 x 90 x 10.6 mm (3.54 x 3.54 x 0.42 in.)
• Weight: 0.059 kg (2.08 oz.)
• Housing: ABS + PC
• Operation Temperature: 0 – 30°C (32 – 86°F)
• Storage Temperature: -20 – 65°C (-4 – 149°F)
• Humidity (noncondensing): 10 – 90%
• 10 W Fast Charge Mode: - Samsung Galaxy S7 / S7 Edge / S8 / S8+ / S9 / S9+ / S10 or above - Samsung Note 8 / 9 / 10 or above
• 7.5 W Mode: - Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max or above

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
