Intellinet Manhattan 151542 HDMI to VGA Micro Converter with Audio, 1080p

Part number / SKU
151542

$25.92

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

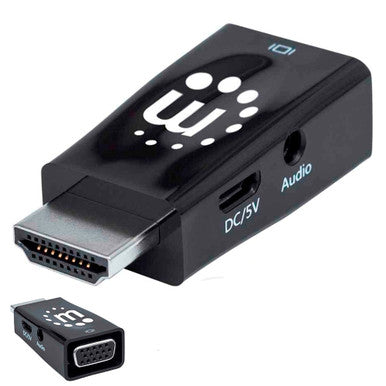

The Intellinet 151542 is an HDMI to VGA micro converter that connects a computer, laptop or other HDMI source to a VGA monitor or projector. Audio from the HDMI signal is output on a 3.5 mm jack.

It supports HDMI 1.3 with HDCP, 8 and 10 bit deep color and 6.75 Gbps bandwidth, up to 1920 x 1200. The HDMI plug is gold plated and the VGA, audio and Micro-USB power connectors are nickel plated. The converter measures 40 x 25 x 15 mm.

  • Best for: connecting HDMI laptops and PCs to VGA monitors and projectors in meeting rooms and classrooms.
  • System fit: HDMI sources to VGA displays; Windows, Linux and Mac OS.
  • Important to know: the converter is one way, HDMI in to VGA out; a Micro-USB power connector is provided for power.

Why teams choose it

Built for reliable networks

  • Keeps older displays in use

    HDMI in, VGA out.

  • Audio out

    3.5 mm jack carries the HDMI audio.

  • Up to 1920 x 1200

    supports Full HD and WUXGA.

  • Small body

    40 x 25 x 15 mm micro converter.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU151542
General
Brand Intellinet, Manhattan
Model 151542
Device Type HDMI to VGA converter
Interfaces
Input HDMI 19 pin male, gold plated
Video Output VGA 15 pin female
Audio Output 3.5 mm female
Power Connector Micro-USB female
Video
HDMI Standard HDMI 1.3
HDCP Supported
Deep Color 8 and 10 bit
Bandwidth 6.75 Gbps
Max Resolution 1920 x 1200
Physical
Dimensions 40 x 25 x 15 mm (1.6 x 1 x 0.6 in)
Weight 0.09 kg (0.2 lb)
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 60 °C (-4 to 140 °F)
Humidity 0 to 96%, noncondensing
Software and Management
OS Compatibility Windows XP to 10, Linux, Mac OS 9.x and 10.x
Listings and Approvals
Certifications UL20276, CE, RoHS2

In the box

  • HDMI to VGA micro converter
  • Quick instruction guide
