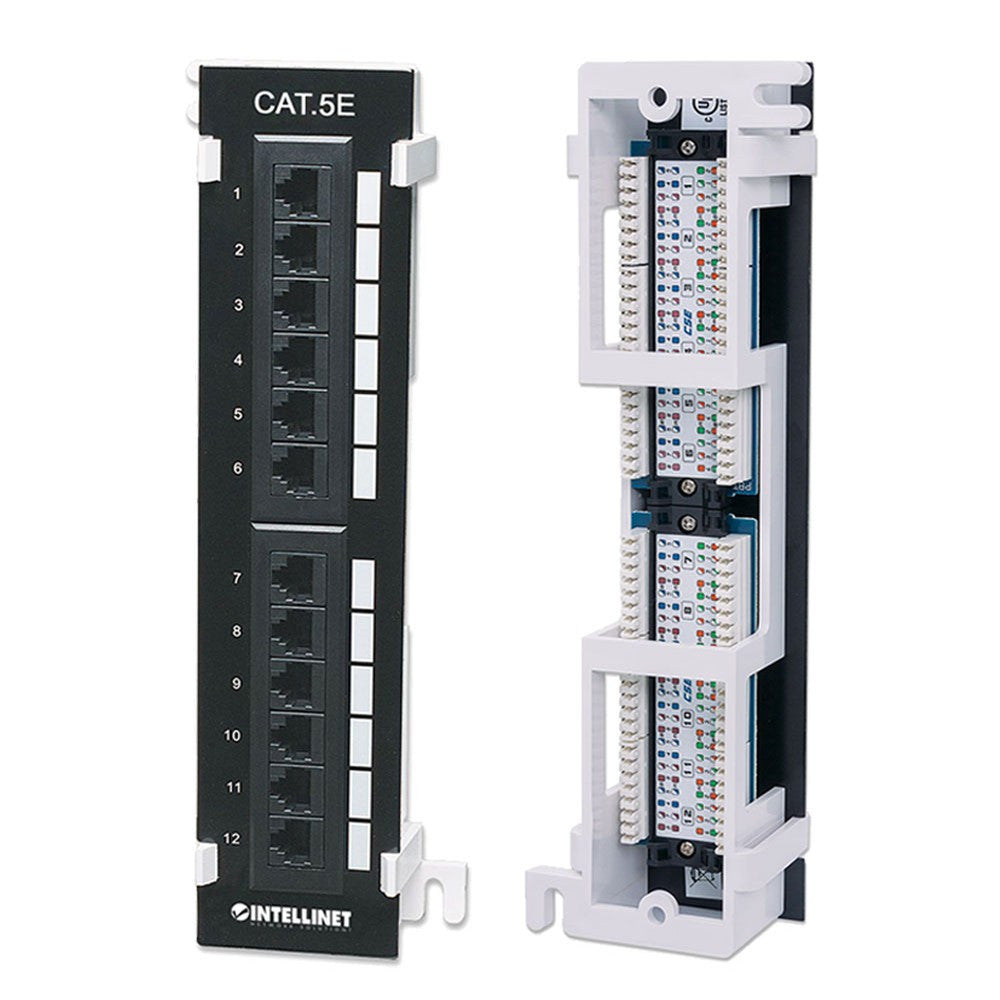

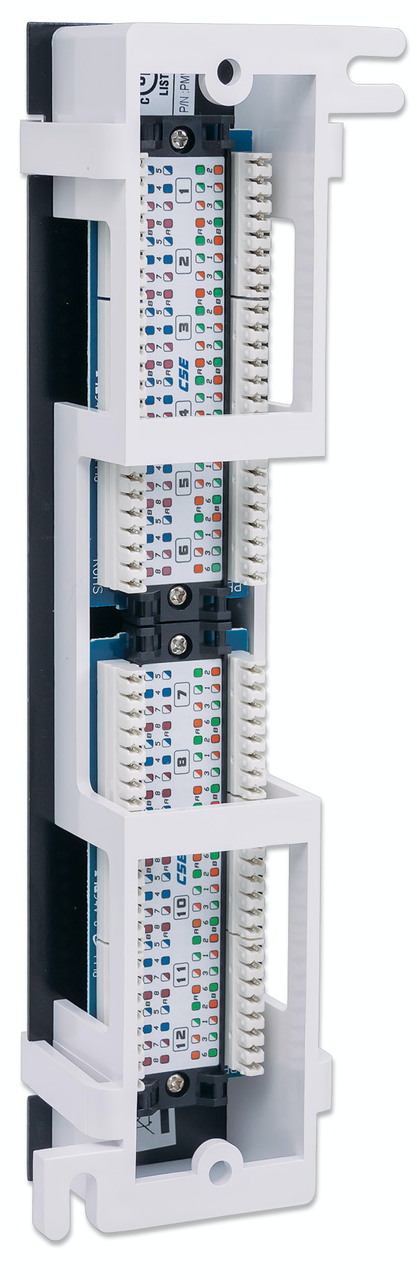

Intellinet 162470 Cat5e 12-Port RJ45 Patch Panel

PRODUCT OVERVIEW

The backbone of your network is central to your organization's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Our range of Patch Panels feature varying port densities across a complete range of specifications–from Cat5e to Cat6a in both Unshielded and Shielded varieties. All Patch Panels comply with current industry standards and are 19”-rack compliant.

PRODUCT TYPE

Networking Cable

KEY FEATURES

• Solid and reliable terminations for copper cabling featuring a minimum of 3mm, 50 micro-inch, gold-plated jack contacts
• Compatible with both 110 and Krone punch-down tools
• Data transfer rate: 100 Mbps
• Supports 22 to 26 AWG stranded and solid wire
• For use with unshielded twisted pair (UTP) Cat5e network cable
• Cat5e performance is in compliance with the ANSI/TIA/EIA 568 B.2 standard
• Connects RJ45 ports to a network
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• UL E157358
• RoHS
• Dimensions: 254 mm x 82 mm x 47 mm (W x H x D); 10 x 3.2 x 1.9 in.
• Weight: 0.337 kg (11.9 oz.)
• Operating temperature: -40°C – 80°C (-40°F – 176°F)
• Cat5e Mini Patch Panel
• 2 mounting screws
• Instructions

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 162470
• Product Type: Networking Cable
• Solid and reliable terminations for copper cabling featuring a minimum of 3mm, 50 micro-inch, gold-plated jack contacts
• Compatible with both 110 and Krone punch-down tools
• Data transfer rate: 100 Mbps
• Supports 22 to 26 AWG stranded and solid wire
• For use with unshielded twisted pair (UTP) Cat5e network cable
• Cat5e performance is in compliance with the ANSI/TIA/EIA 568 B.2 standard
• Connects RJ45 ports to a network
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• UL E157358
• RoHS
• Dimensions: 254 mm x 82 mm x 47 mm (W x H x D); 10 x 3.2 x 1.9 in.
• Weight: 0.337 kg (11.9 oz.)
• Operating temperature: -40°C – 80°C (-40°F – 176°F)
• Cat5e Mini Patch Panel
• 2 mounting screws
• Instructions

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
