PRODUCT SPECIFICATIONS

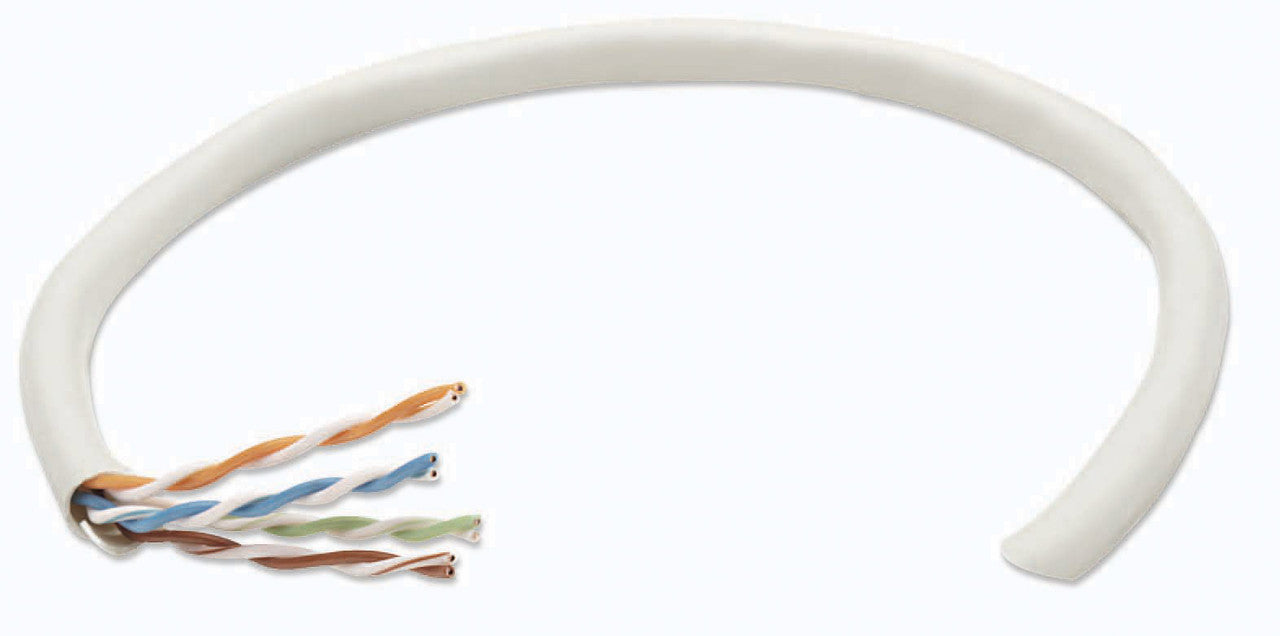

Intellinet 334136
INTELLINET TM NETWORK SOLUTIONS Cat6 Bulk Cable allows for better signal-to-noise ratio with minimal loss — which translates to faster and reliable networks for today’s applications. This Cat6 Bulk Cable meets EIA/TIA 568 standards and is flame retardant rated.
Key Features
- UTP (Unshielded Twisted Pair)
- Can be used in riser with raceway/fireproof shaft
- Standards tested
- Meets or exceeds current Cat6 proposed standards
- Length usage log on box
- Track remaining cable available for next job
- Lifetime Warranty
Technical Description
- Unshielded Twisted 4-Pair
- 23 AWG
- Solid core
- PVC jacket
- Rated to 250 MHz
- Meets or exceeds Cat6 specifications
- Ideal for for carrying data, audio and video
- Flame retardant rating: CM; in-wall rated; permitted in 1-and 2-family residential riser applications, or in riser with raceway/fireproof shaft; not permitted in plenums
- UL approved
- TIA Cat6 channel test 250 MHz:
- Return loss (db) = 17.32
- Attenuation (db/100) = 33.04
- Near-end crosstalk (db) = 38.3
- Power sum-NEXT (db) = 36.3
- Equal level-FEXT (db) = 19.8
- Power sum-ELFEXT (db) = 16.8
More Information
MFRPartNum:
334136
