Intellinet Manhattan 461474 Tilting Flat Panel TV Wall Mount, 32 to 55 in, VESA up to 400x400

Part number / SKU
461474

$48.97

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

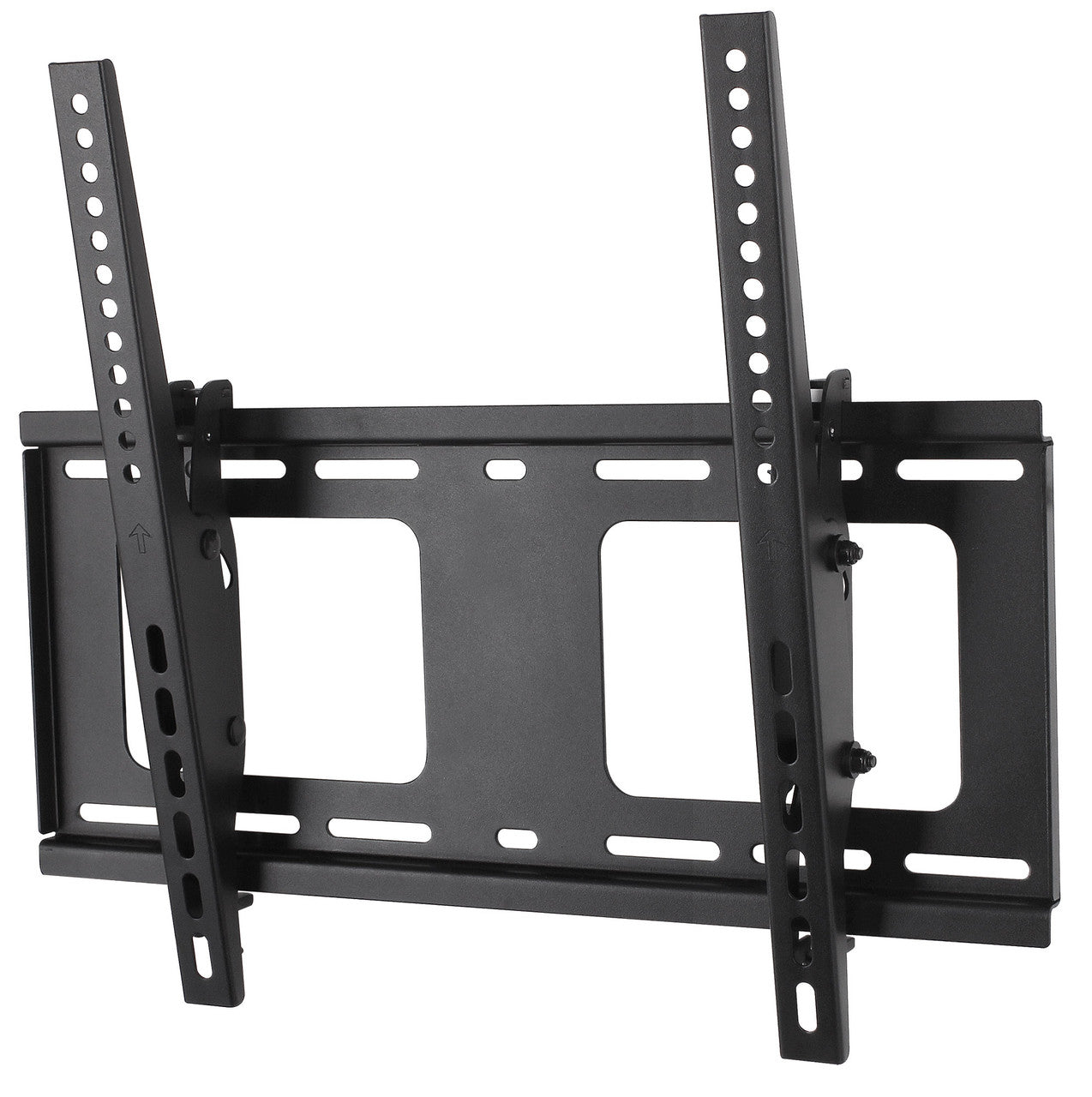

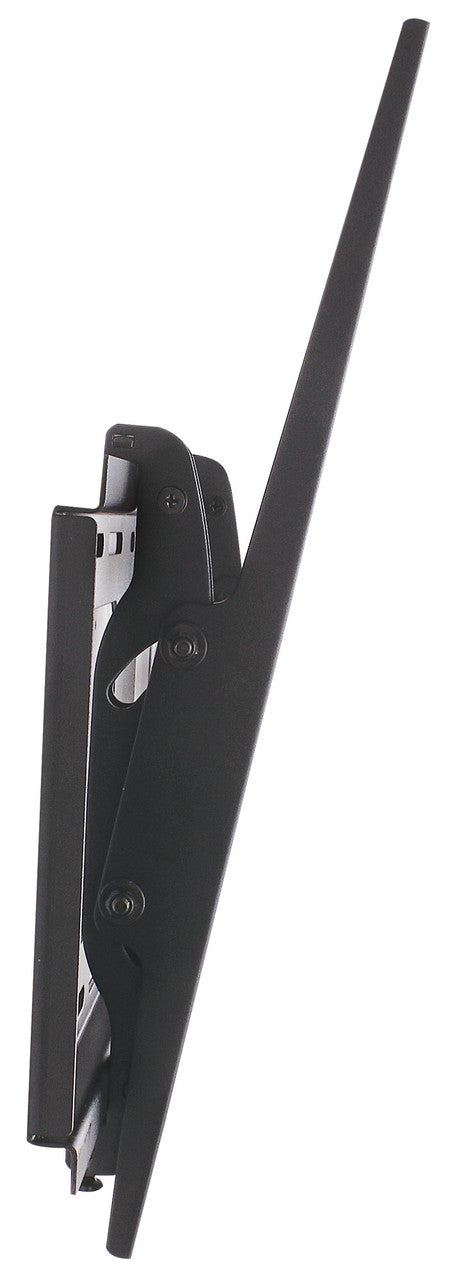

The Intellinet 461474 is a tilting wall mount for 32 to 55 inch LCD, LED and plasma flat panel TVs. It tilts from -10° to +5° and has post leveling adjustment to straighten the screen after it is hung.

It fits VESA patterns of 200 x 200, 400 x 200, 300 x 300 and 400 x 400 mm and is rated for 80 kg (176 lb). The steel mount sits 53 mm from the wall and measures 53 x 500 x 440 mm. Installation hardware and instructions are included.

  • Best for: hanging 32 to 55 in displays in lobbies, conference rooms, classrooms and homes with a slight tilt.
  • System fit: flat panel TVs with VESA 200x200, 400x200, 300x300 or 400x400 mounting holes.
  • Important to know: check the TV's VESA pattern and weight against the mount's listed values before installing.

Why teams choose it

Built for reliable networks

  • Tilt adjustment

    -10° to +5° to cut glare.

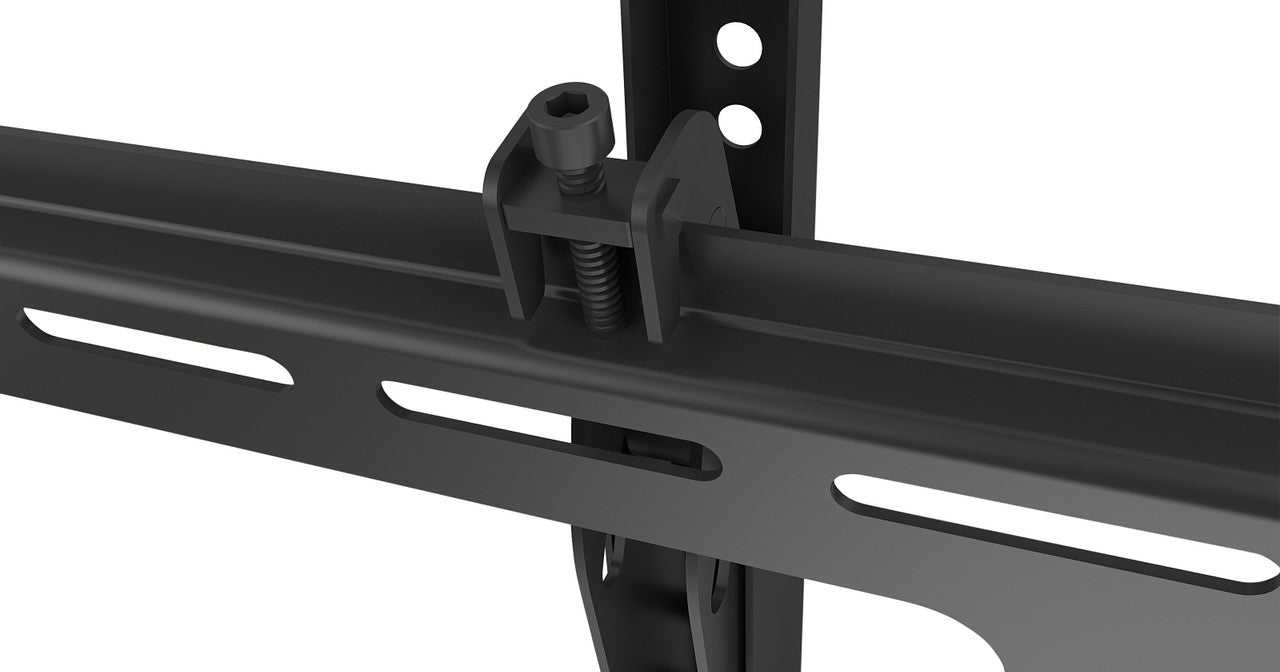

  • Level after install

    post leveling adjustment.

  • Low profile

    53 mm from the wall.

  • Steel build

    rated for 80 kg (176 lb).

Specifications

Technical specifications

Product identifiers
SKU461474
General
Brand Intellinet, Manhattan
Model 461474
Device Type Tilting flat panel wall mount
Screen Size 32 to 55 in
Display Types LCD, LED, plasma
Physical
VESA Patterns 200 x 200, 400 x 200, 300 x 300, 400 x 400 mm
Weight Capacity 80 kg (176 lb)
Tilt Range -10° to +5°
Post Leveling Yes
Wall Extension 53 mm (2.08 in)
Dimensions 53 x 500 x 440 mm (2.09 x 19.69 x 17.32 in)
Material Steel

In the box

  • Wall mount
  • Installation hardware
  • Instructions
