Intellinet Manhattan 461566 Quad Monitor Desk Mount, VESA 75 and 100, Clamp, No Drill

Part number / SKU
461566

$56.83

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

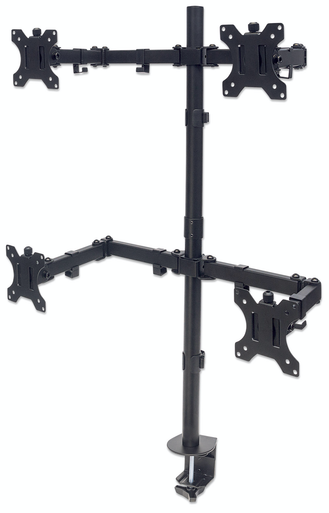

The Intellinet 461566 is a desk mount for four monitors, with a C-clamp and thumb screws that attach to a desk edge from 10 to 85 mm thick without drilling.

Each arm takes a VESA 75 x 75 or 100 x 100 monitor up to 8 kg (17 lb). The die cast metal mount has an 883 mm pole, 399 mm arm reach and 798 mm width with arms extended.

  • Best for: trading desks, control rooms and workstations that run four monitors side by side or stacked.
  • System fit: monitors with VESA 75 x 75 or 100 x 100 mounting holes, up to 8 kg each.
  • Important to know: the clamp needs a desk edge 10 to 85 mm thick.

Why teams choose it

Built for reliable networks

  • Four screens

    one mount holds four monitors.

  • No drill install

    C-clamp with thumb screws.

  • Per screen capacity

    up to 8 kg (17 lb) each.

  • Tall pole

    883 mm pole for stacked layouts.

Specifications

Technical specifications

Product identifiers
SKU461566
General
Brand Intellinet, Manhattan
Model 461566
Device Type Quad monitor desk mount
Monitors Supported 4
Physical
VESA Patterns 75 x 75, 100 x 100 mm
Weight Capacity Up to 8 kg (17 lb) per monitor
Mounting C-clamp with thumb screws, no drill
Desk Thickness 10 to 85 mm (up to 3.3 in)
Pole Height 883 mm (34.8 in)
Arm Reach 399 mm (15.7 in)
Width, Arms Extended 798 mm (31.4 in)
Material Die cast metal
