Intellinet 508360 240W 48VDC 5A Industrial Power Supply DIN Rail

PRODUCT OVERVIEW

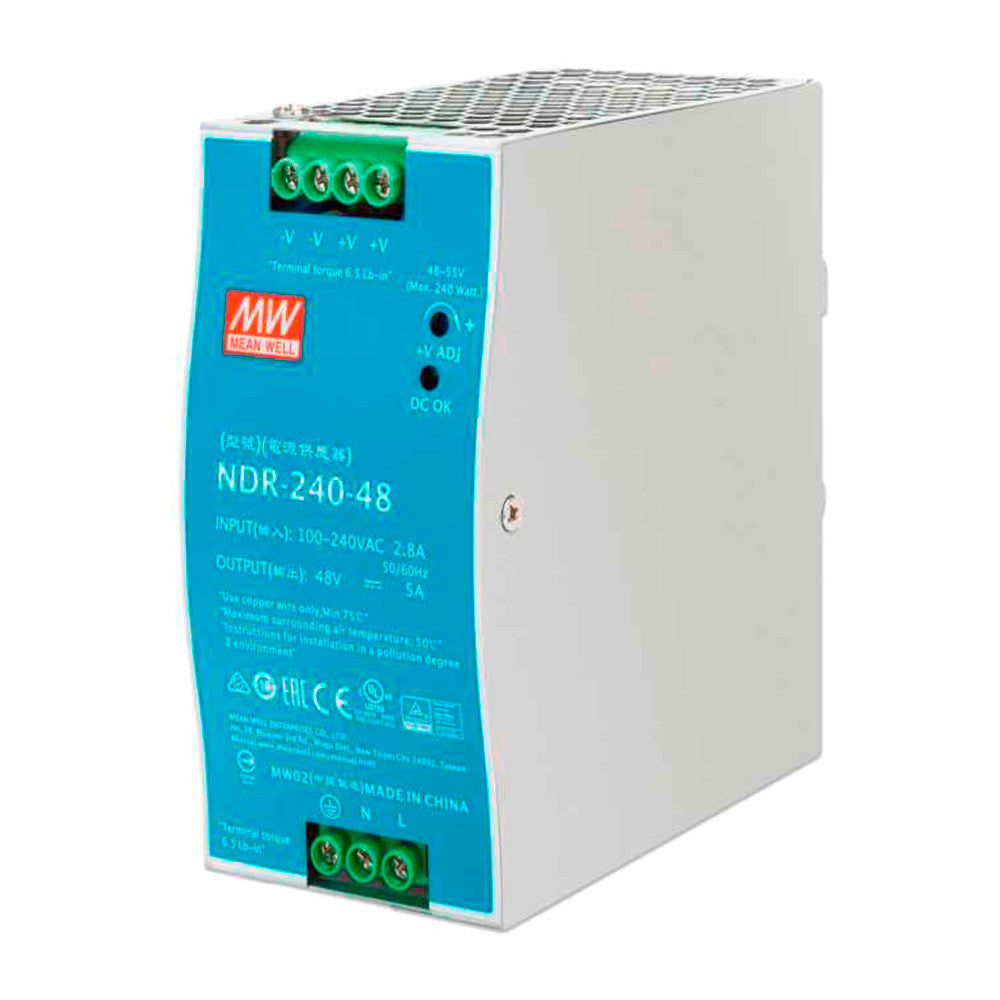

Intellinet 508360 Industrial DIN-Rail Mount Power Supply

PRODUCT TYPE

Power Adapters & Chargers

KEY FEATURES

• Highly reliable, energy efficient PSU for industrial applications and more
• Single output with 240 W and 48.0 VDC at 5 A

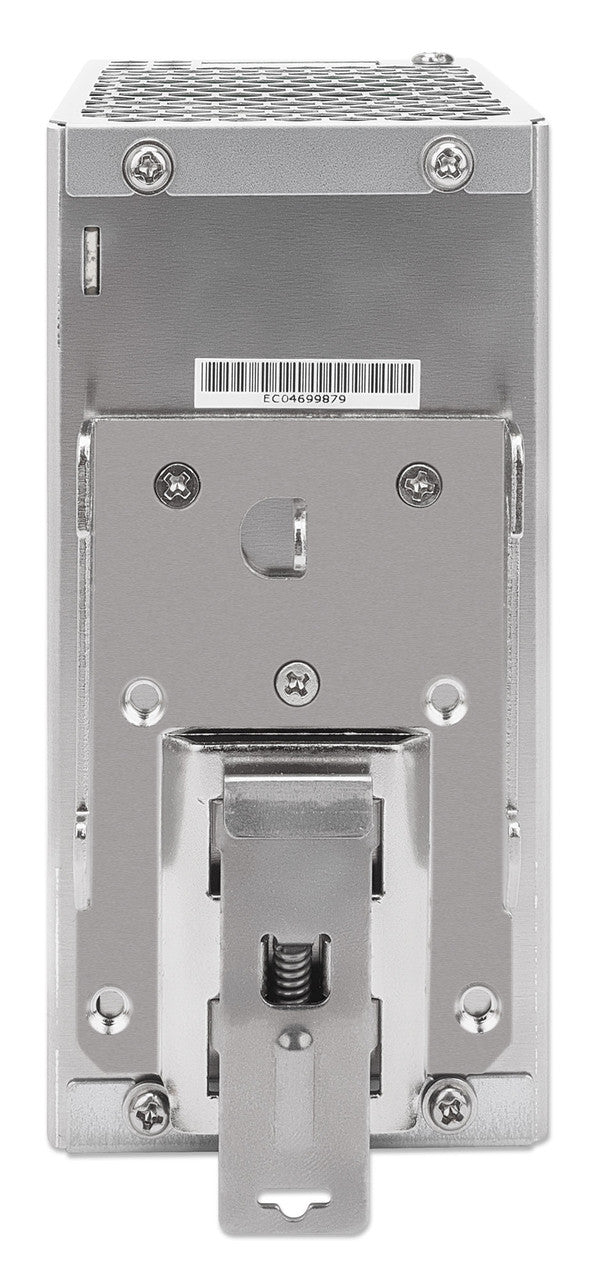

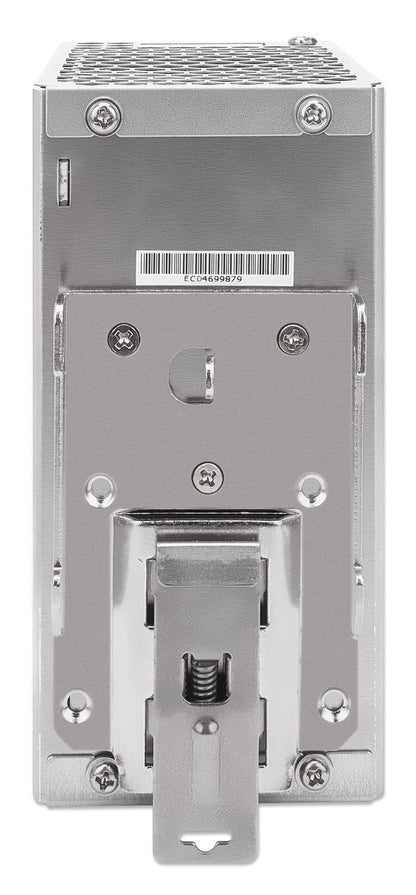

• Slim, space-saving metal housing designed for mounting on a TS 35/7.5 or TS 35/15 DIN rail
• Over-temperature, overload, and over-voltage protection
• Efficient heat dissipation for a wide operating temperature of -20 - 70°C (-4 - 158°F)
• Universal AC input with 90 - 264 VAC
• Minimized inrush current surge
• UL listed
• Output: DC voltage: 48.0 V
• Rated current: 5.0 A
• Rated power: 240.0 W
• Suitable systems: 1-phase
• Current range: 0 - 5.0 A
• Voltage adjustment range: 48.0 - 55.0 V
• Ripple and noise: 150.0 mV pp
• Voltage tolerance: ±1.0%Line regulation: ±0.5%
• Load regulation: ±1.0%
• Setup/rise/hold up time at : 3000/100/22 ms @ 115.0 VAC; 1500/100/28 ms @ 230.0 VAC

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 508360
• Product Type: Power Adapters & Chargers
• Highly reliable, energy efficient PSU for industrial applications and more
• Single output with 240 W and 48.0 VDC at 5 A
• Slim, space-saving metal housing designed for mounting on a TS 35/7.5 or TS 35/15 DIN rail
• Over-temperature, overload, and over-voltage protection
• Efficient heat dissipation for a wide operating temperature of -20 - 70°C (-4 - 158°F)
• Universal AC input with 90 - 264 VAC
• Minimized inrush current surge
• UL listed
• Output: DC voltage: 48.0 V
• Rated current: 5.0 A
• Rated power: 240.0 W
• Suitable systems: 1-phase
• Current range: 0 - 5.0 A
• Voltage adjustment range: 48.0 - 55.0 V
• Ripple and noise: 150.0 mV pp
• Voltage tolerance: ±1.0%Line regulation: ±0.5%
• Load regulation: ±1.0%
• Setup/rise/hold up time at : 3000/100/22 ms @ 115.0 VAC; 1500/100/28 ms @ 230.0 VAC
• Input: Voltage range: 90.0–264.0 VAC; 127.0–370.0 VDC [DC input possible by connecting AC/L(+), AC/N(-)]
• Frequency range: 47–63 Hz
• Power Factor: PF > 0.98 @ 115.0 VAC, PF > 0.95 @ 230 VAC
• Efficiency (typical): 89%
• AC current (typical): 2.5 A @ 115.0 VAC; 1.3 A @ 230.0 VAC
• Inrush current (typical): 20.0 A @ 115.0 VAC; 35.0 A @ 230.0 VAC
• Leakage current: <1.0 mA @ 240.0 VAC
• Protection: Overload: 105 - 130% rated output power; protection type: constant current limiting, recovers automatically after fault condition is removed
• Over-voltage: 29.0 - 33.0 V; protection type: shut down output voltage, repower on to recover
• Over-temperature: protection type: shut down output voltage, recovers automatically after temperature goes down
• Safety: Standards: UL 508, TÜV EN 62368-1, EAC TP TC 004, EN 60204-1

INTENDED USE / APPLICATIONS

• Backup or off-grid power systems
• Telecommunications and network equipment
• Professional installations requiring compatible DC power
