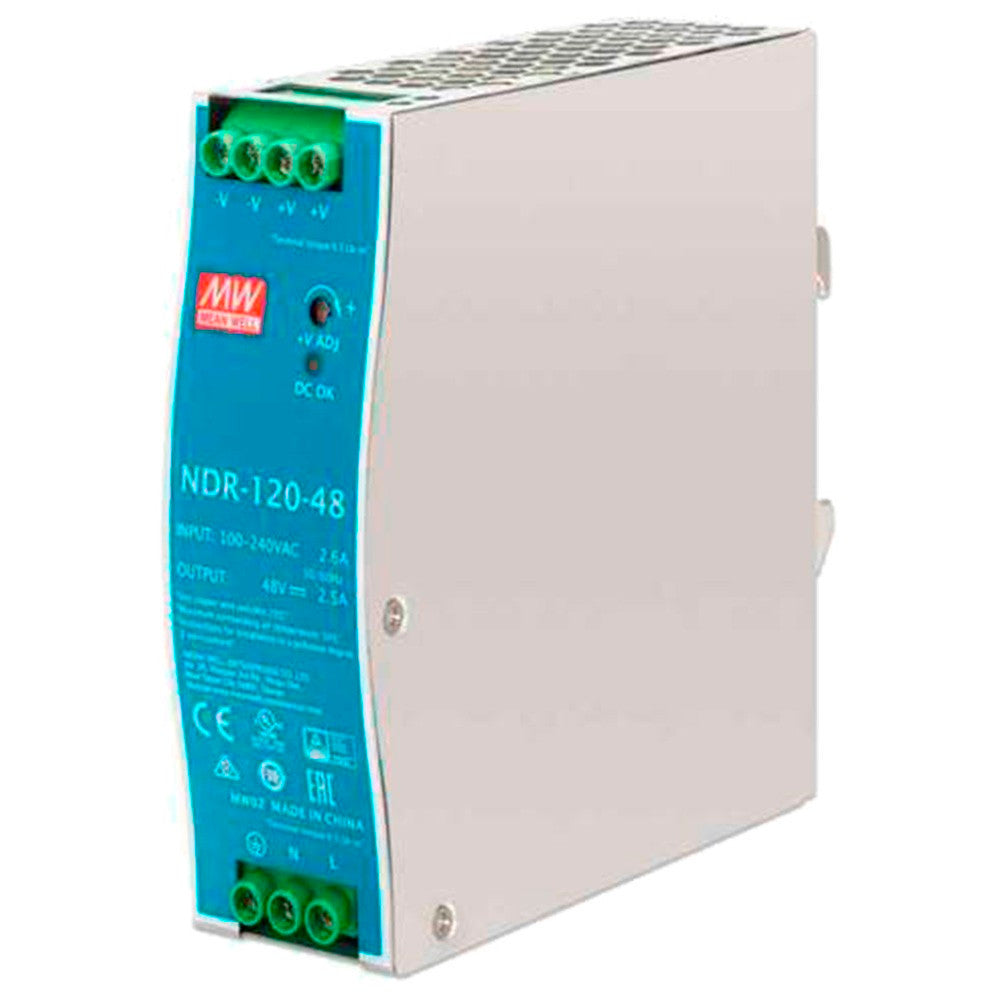

Intellinet 508728 48V 120W Industrial DIN-Rail Power Adapter UL 508
- EhubAmerica SKU
- 508728
$70.21
In stock
- Warranty
- Manufacturer warranty
Free Economy shipping available at checkout
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| Brand | Intellinet |
| SKU | 508728 |
| Power | |
| Output DC Voltage | 48.0 V |
| Rated Output Current | 2.5 A |
| Rated Output Power | 120 W |
| Current Range | 0 – 2.5 A |
| Voltage Adjustment Range | 48.0 – 55.0 V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Ripple and Noise | 150 mV p-p |
| Setup / Rise / Hold-Up Time | 2500 / 60 / 10 ms @ 115 VAC; 1200 / 60 / 16 ms @ 230 VAC |
| AC Input Voltage Range | 90 – 264 VAC |
| DC Input Voltage Range | 127 – 370 VDC (via AC/L+, AC/N- terminals) |
| Input Frequency Range | 47 – 63 Hz |
| Typical Efficiency | 89% |
| AC Input Current (typical) | 2.25 A @ 115 VAC; 1.3 A @ 230 VAC |
| Inrush Current (typical) | 20 A @ 115 VAC; 35 A @ 230 VAC |
| Leakage Current | < 1.0 mA @ 240 VAC |
| Suitable Systems | 1-phase |
| General | |
| Overload Protection | 105–130% rated output power; constant current limiting, auto-recovers after fault removal |
| Over-Voltage Protection | 56.0–65.0 V; shuts down output, repower to recover |
| Over-Temperature Protection | Shuts down output, repower to recover |
| Withstand Voltage | Input-Output: 3 kVAC; Input-FG: 2 kVAC; Output-FG: 0.5 kVAC |
| Isolation Resistance | > 100 MΩ @ 500 VDC, 25 °C, 70% RH (input-output, input-FG, output-FG) |
| Safety Standards | UL 508, TÜV EN 62368-1, EAC TP TC 004, EN 60204-1 |
| EMC Emission | EN 55032 (CISPR 32), EN 61204-3 Class B, EN 61000-3-2/-3, EAC TP TC 020 |
| EMC Immunity | EN 61000-4-2/3/4/5/6/8/11, EN 55024, EN 61000-6-2, EN 61204-3 heavy industry level criteria A, EAC TP TC 020 |
| Physical | |
| Dimensions | 113 × 40 × 125 mm (4.45 × 1.57 × 4.92 in.) |
| Weight | 600 g (21.2 oz.) |
| Housing Material | Metal |

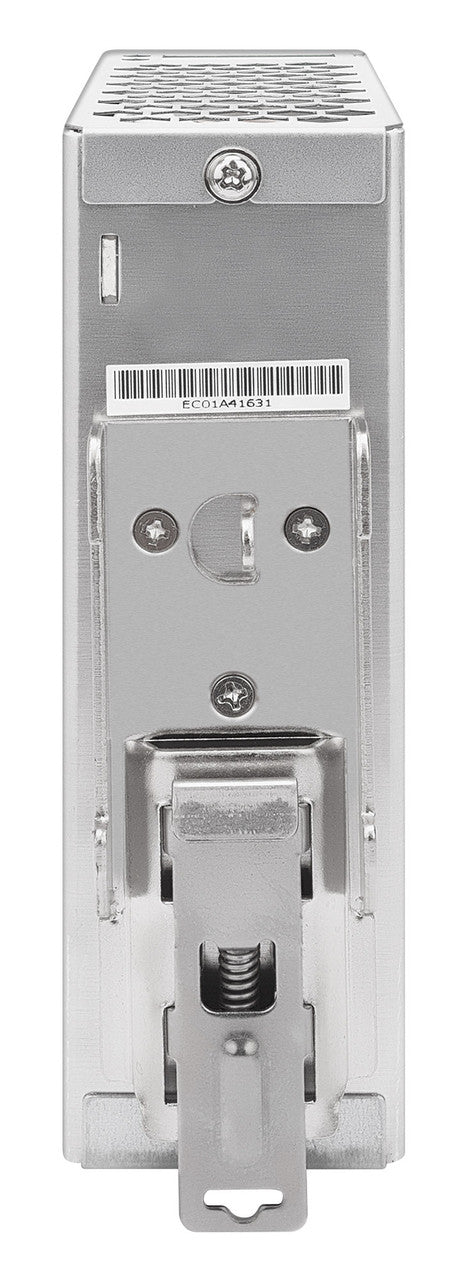

| DIN Rail Mounting | TS 35/7.5 or TS 35/15 |
| Vibration | IEC 60068-2-6 compliant |
| Environmental | |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Operating Humidity (non-condensing) | 20 – 90% RH |
| Storage Humidity (non-condensing) | 10 – 90% RH |
