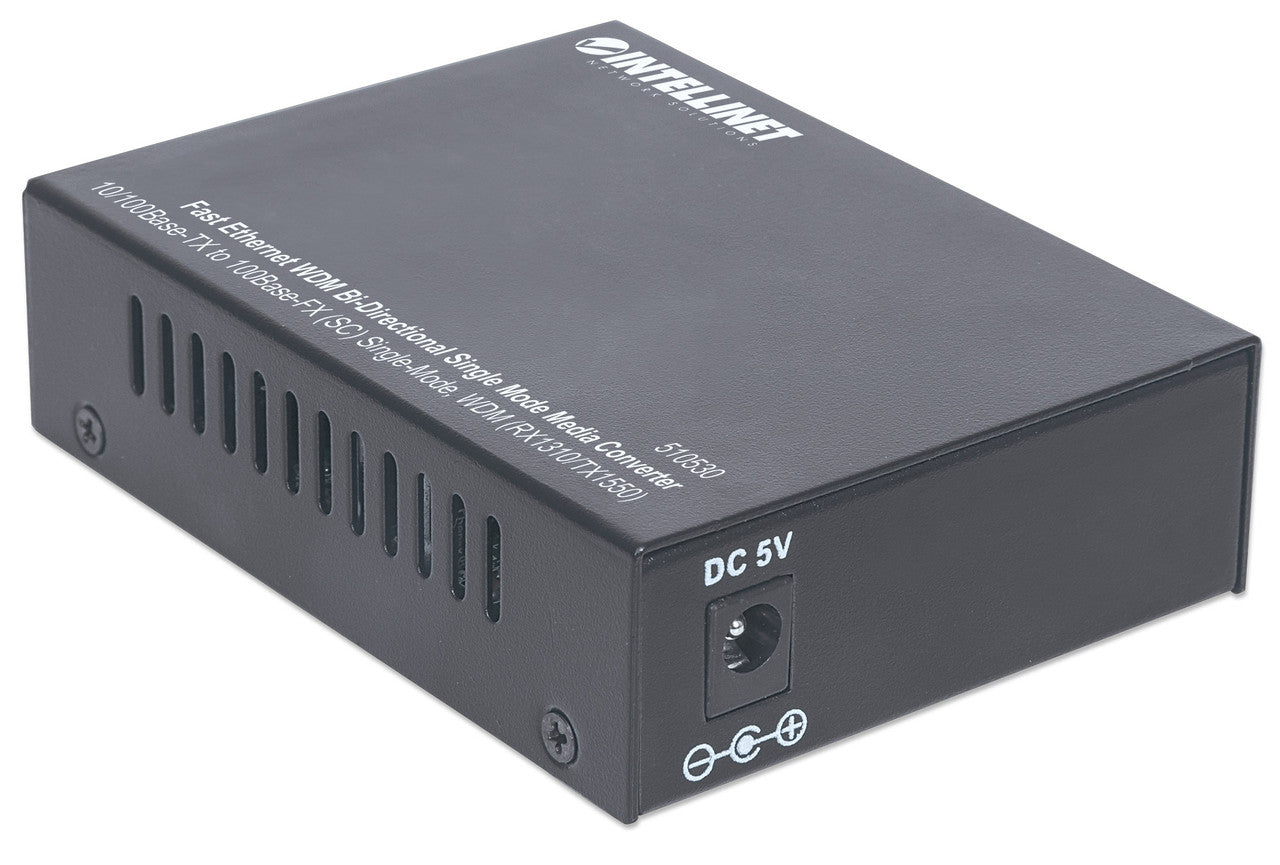

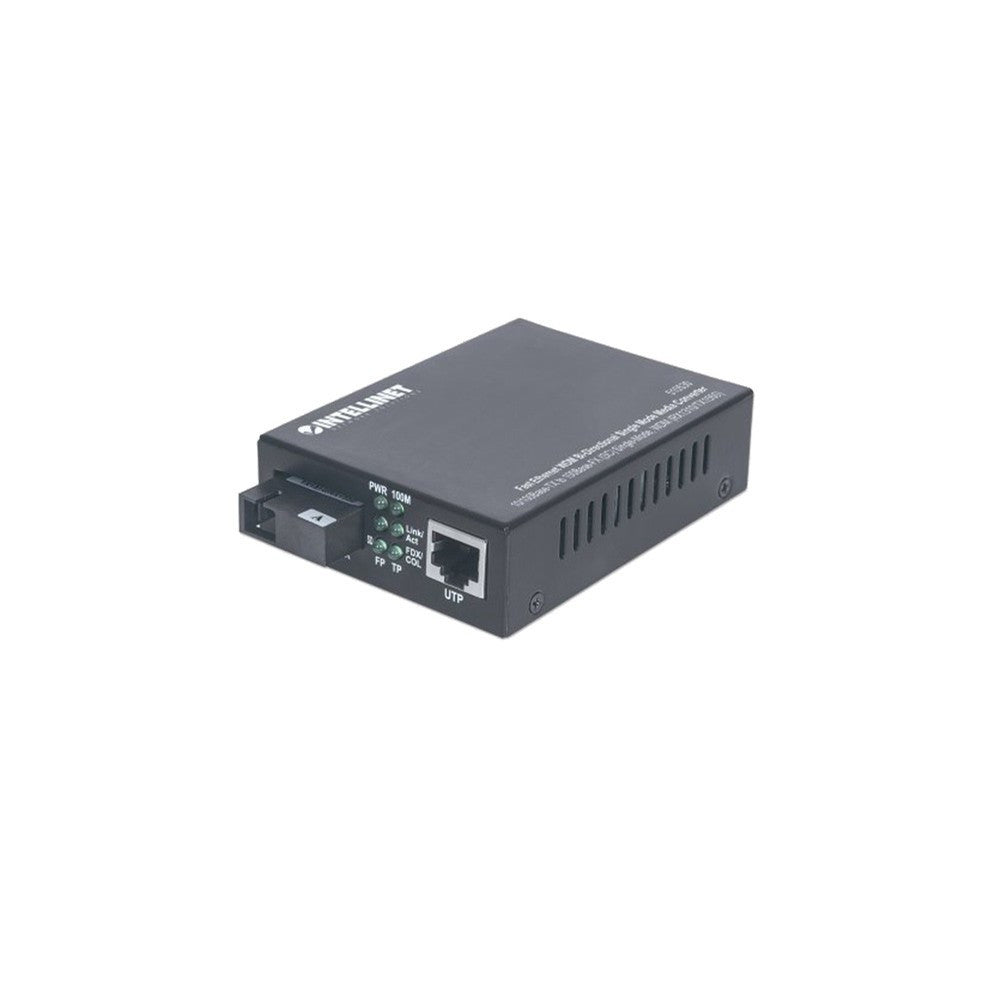

Intellinet 510530 100 Mbps WDM Media Converter Single-Mode SC Fiber 20km
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
The Intellinet Network Solutions Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fiber cable. The converter is completely transparent to the network so the network performs exactly the way it did before — only now it can support both copper and fiber mediums.
PRODUCT TYPE
Transceivers
KEY FEATURES
• Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
• Must be used with Fast Ethernet WDM Bi-Directional Single Mode Media Converter, model 510547
• Data transfer rate: 100 Mbps
• WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
• Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
• RJ45 port with Auto MDI/MDI-X support
• 100Base-FX single-mode fiber SC port
• Status LEDs for easy monitoring of device status
• Supports jumbo frames up to 1.6 KBytes
• Functions as a stand-alone converter or can be used with the 14-slot
• Media Converter Chassis, model 507356
• External power adapter, 5 VDC
• Fully NDAA-compliant
• Standards: IEEE 802.3 (Twisted Pair Ethernet)
• IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
• General: Media support: 10/100Base-TX Cat5e or higher UTP/STP RJ45
• 100Base-FX single-mode 9/125 µm fiber
• Connectors: RJ45 port, 10/100Base-TX
TECHNICAL SPECIFICATIONS
• Brand: Intellinet
• Model: 510530
• Product Type: Transceivers
• Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
• Must be used with Fast Ethernet WDM Bi-Directional Single Mode Media Converter, model 510547
• Data transfer rate: 100 Mbps
• WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
• Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
• RJ45 port with Auto MDI/MDI-X support
• 100Base-FX single-mode fiber SC port
• Status LEDs for easy monitoring of device status
• Supports jumbo frames up to 1.6 KBytes
• Functions as a stand-alone converter or can be used with the 14-slot
• Media Converter Chassis, model 507356
• External power adapter, 5 VDC
• Fully NDAA-compliant
• Standards: IEEE 802.3 (Twisted Pair Ethernet)
• IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
• General: Media support: 10/100Base-TX Cat5e or higher UTP/STP RJ45
• 100Base-FX single-mode 9/125 µm fiber
• Connectors: RJ45 port, 10/100Base-TX
• Fiber SC port, 100Base-FX
• Distances: 20 km / 12.4 mi. (9/125 µm fiber cable)
• 100 m / 300 ft. (RJ45 cable)
• Wavelengths: Receive (RX): 1310 nm
• Transmit (TX): 1550 nm
• Power output: -15 – -3 dBm
• RX sensitivity: ≤-32 dBm
• Signal loss: 0.2 dB/km
• MTBF: > 100,000 hours
• Certifications: FCC Class A, CE, UKCA, NDAA
• LEDs: Power
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
