INTELLINET

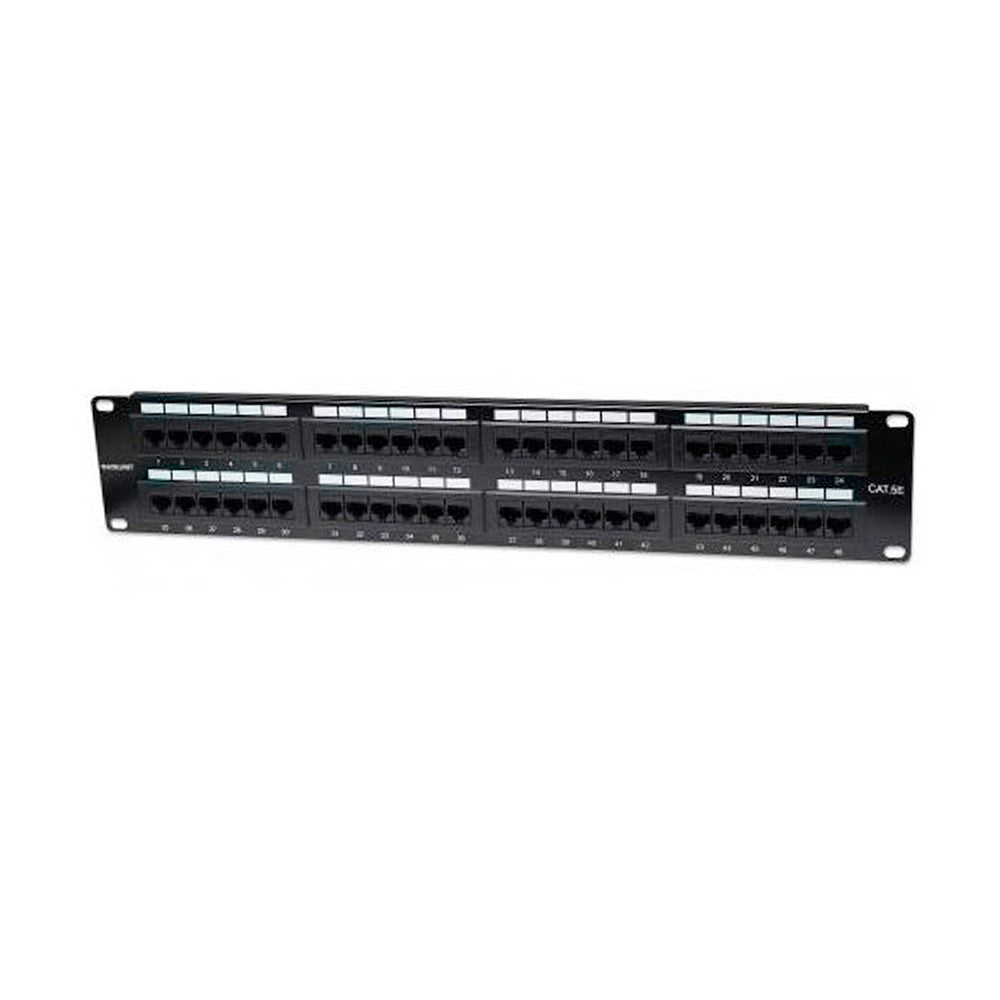

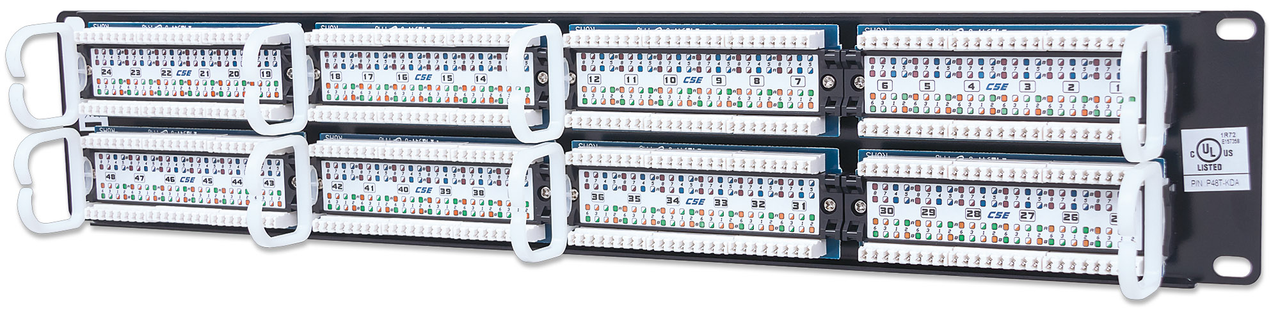

Intellinet 513579 48-Port Cat5e UTP Patch Panel 19-inch Rackmount
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
PRODUCT TYPE
Networking Cable
KEY FEATURES
• Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
• Compatible with both 110 and Krone punch-down tools
• Supports 22 to 26 AWG stranded and solid wire
• For use with unshielded twisted pair (UTP) Cat5e network cable
• Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
• Connects 48 RJ-45 ports to a network
• Occupies 2U rack height
• Meets 19' rackmount standards
• Standards IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• Certifications: UL E313857
• RoHS compliant
• Environmental: Dimensions: 482 mm (W) x 88 mm (H) x 48 mm (D) (19 x 3.5 x 1.9 in.)
• Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)
• Vertical distance between top and bottom mounting holes: 75.8 mm (3 in.)
• Weight: 1.27 kg (2.8 lbs.)
• Operating temperature: -40 – 80°C (-40 – 176°F)
TECHNICAL SPECIFICATIONS
• Brand: Intellinet
• Model: 513579
• Product Type: Networking Cable
• Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
• Compatible with both 110 and Krone punch-down tools
• Supports 22 to 26 AWG stranded and solid wire
• For use with unshielded twisted pair (UTP) Cat5e network cable
• Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
• Connects 48 RJ-45 ports to a network
• Occupies 2U rack height
• Meets 19' rackmount standards
• Standards IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• Certifications: UL E313857
• RoHS compliant
• Environmental: Dimensions: 482 mm (W) x 88 mm (H) x 48 mm (D) (19 x 3.5 x 1.9 in.)
• Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)
• Vertical distance between top and bottom mounting holes: 75.8 mm (3 in.)
• Weight: 1.27 kg (2.8 lbs.)
• Operating temperature: -40 – 80°C (-40 – 176°F)
• Package Contents: Cat5e Patch Panel
• 4 mounting screws
• Quick start guide
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
