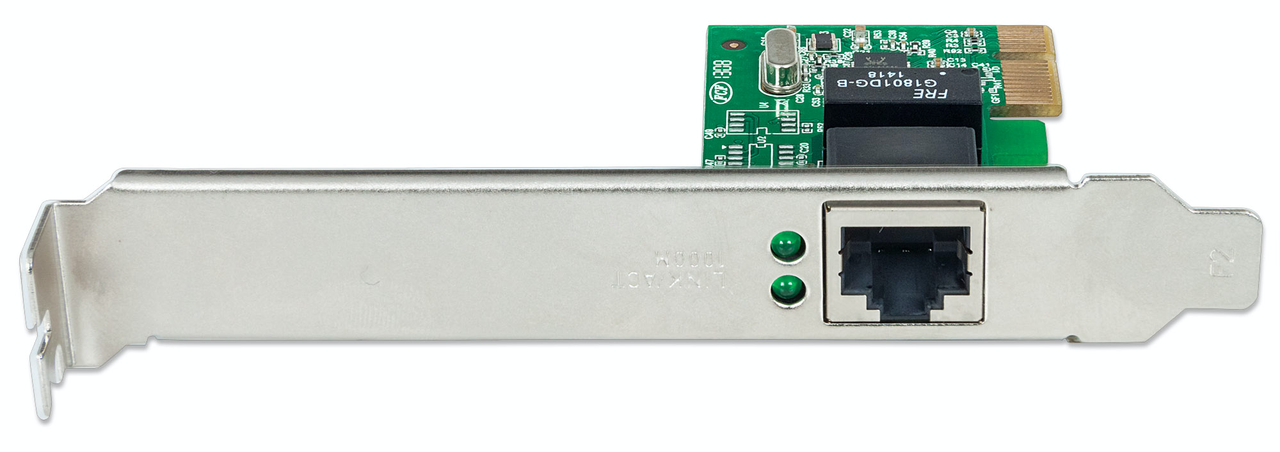

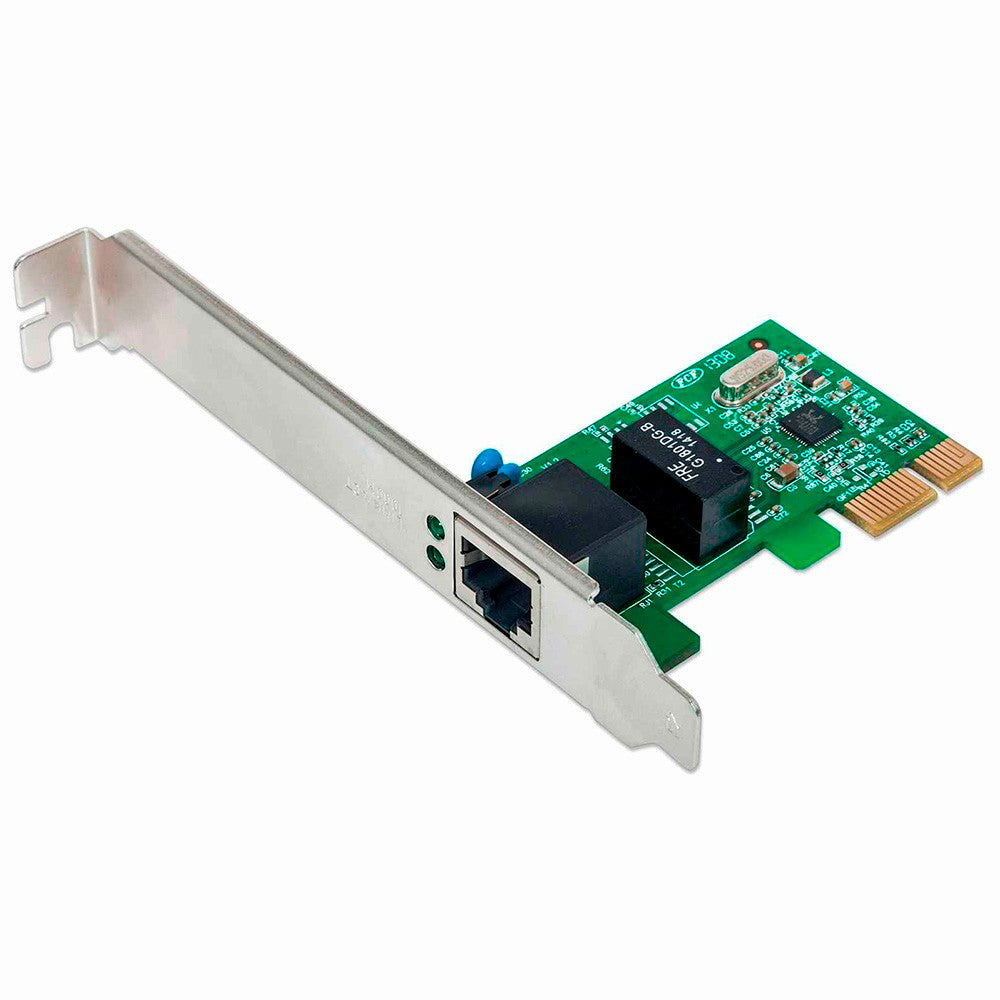

Intellinet 522533 Gigabit PCI Express Network Card 1000 Mbps Full Duplex

PRODUCT OVERVIEW

The Gigabit PCI Express Network Card is a high-performance network adapter. It supports the PCI Express bus architecture, which provides faster throughput than the current 32-and 64-bit PCI bus architectures. And there is no need to switch to fiber optic cable — the Intellinet Network Solutions Gigabit PCI Express Network Card allows you to run Gigabit speeds over your existing copper wire network cable.

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• Supports Gigabit speeds over existing network cable
• Does not require fiber optic cabling to run Gigabit speeds
• PCI Express 1.0a bus interface fits 1, 4, 8 and 16X PCI-E slots
• Single PCI Express lane (x1) 2.5 Gbps interface
• Full duplex flow control (IEEE 802.3x)
• Supports jumbo frames up to 9 kB
• Full duplex speeds (20 Mbps, 200 Mbps, 2000 Mbps)
• Includes low profile 8 cm bracket
• Wake-On-LAN (WOL) support
• Supports the most popular operating systems: Windows XP, Vista and Windows 7/8
• Network: IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet
• Hardware: FCC & CE compliance
• Compliant with PCI-E 1.1 X1 Serial PCI Express
• 10 Mbps Link/Act LED

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 522533
• Product Type: Networking Accessories
• Supports Gigabit speeds over existing network cable
• Does not require fiber optic cabling to run Gigabit speeds
• PCI Express 1.0a bus interface fits 1, 4, 8 and 16X PCI-E slots
• Single PCI Express lane (x1) 2.5 Gbps interface
• Full duplex flow control (IEEE 802.3x)
• Supports jumbo frames up to 9 kB
• Full duplex speeds (20 Mbps, 200 Mbps, 2000 Mbps)
• Includes low profile 8 cm bracket
• Wake-On-LAN (WOL) support
• Supports the most popular operating systems: Windows XP, Vista and Windows 7/8
• Network: IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet
• Hardware: FCC & CE compliance
• Compliant with PCI-E 1.1 X1 Serial PCI Express
• 10 Mbps Link/Act LED
• 100 Mbps Link/Act LED
• 1000 Mbps Link/Act LED
• Environmental: Dimensions: 25.4 (H) x 122 (W) x 89 (D) mm (1 x 4.8 x 3.5 in.)
• Weight: 39.6 g (1.4 oz.)
• Operating temperature: 0 – 40°C (32 – 104°F)
• Storage temperature: 0 – 65°C (32 – 149°F)
• Operating humidity: 10 – 90%, non-condensing
• Storage humidity: 5 – 95%, non-condensing
• Supported OS Windows XP
• Windows Vista
• Windows 7

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
