Intellinet 545013 Gigabit SFP Transceiver 1000Base-LX 10km LC Duplex

PRODUCT OVERVIEW

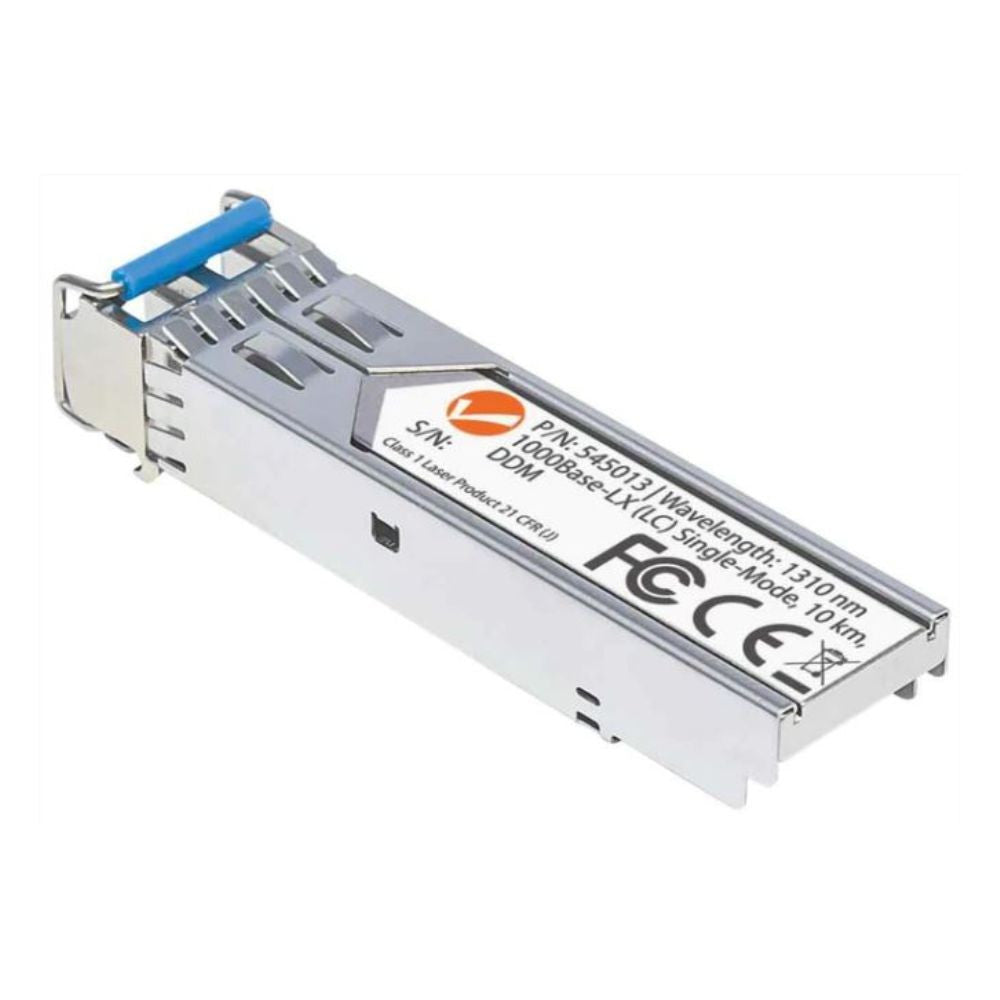

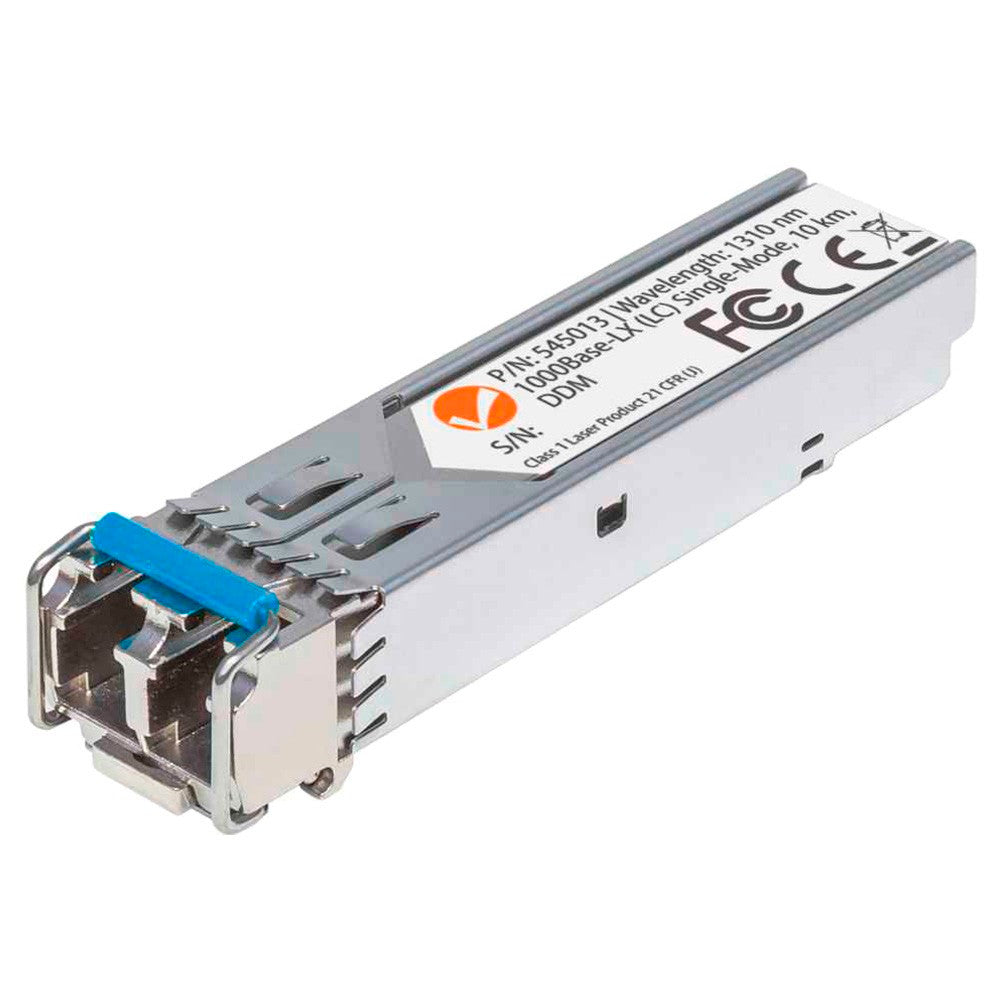

Intellinet 545013 Gigabit Fiber SFP Optical Transceiver Module

PRODUCT TYPE

Transceivers

KEY FEATURES

• Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
• Data transfer rate: 1000 Mbps
• One 1000Base-LX single-mode Fiber LC duplex port
• Fiber distance support: up to 10 km (6.2 mi.)
• Wavelength: 1310 nm
• Compliant with the SFP Multi-Source Agreement (MSA)
• Equivalent to the Cisco GLC-LH-SM transceiver
• SFP standard form factor
• Supports digital diagnostics monitoring (DDM)
• Low EMI due to fully metallic housing
• Supports hot-plugging
• Standards: IEEE 802.3z (Fiber Optic Gigabit Ethernet)
• General: Media support: 1000Base-LX single-mode 9/125 µm Fiber
• Connector: Fiber LC duplex port, 1000Base-LX
• Distance: 10 km
• Fiber power budget: Maximum TX power: -3 dB, Minimum TX power: -8 dB, Sensitivity: -22 dB, Power budget: 14 dB
• Design: SFP (small form factor pluggable)Certifications: FCC Class B, CE Mark, RoHS
• Power: Power requirement: 3.3 V

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 545013
• Product Type: Transceivers
• Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
• Data transfer rate: 1000 Mbps
• One 1000Base-LX single-mode Fiber LC duplex port
• Fiber distance support: up to 10 km (6.2 mi.)
• Wavelength: 1310 nm
• Compliant with the SFP Multi-Source Agreement (MSA)
• Equivalent to the Cisco GLC-LH-SM transceiver
• SFP standard form factor
• Supports digital diagnostics monitoring (DDM)
• Low EMI due to fully metallic housing
• Supports hot-plugging
• Standards: IEEE 802.3z (Fiber Optic Gigabit Ethernet)
• General: Media support: 1000Base-LX single-mode 9/125 µm Fiber
• Connector: Fiber LC duplex port, 1000Base-LX
• Distance: 10 km
• Fiber power budget: Maximum TX power: -3 dB, Minimum TX power: -8 dB, Sensitivity: -22 dB, Power budget: 14 dB
• Design: SFP (small form factor pluggable)Certifications: FCC Class B, CE Mark, RoHS
• Power: Power requirement: 3.3 V
• Power consumption: 1.0 Watt (maximum)
• Environmental: Dimensions: 57 (L) x 14 (W) x 12 (H) mm (2.24 x 0.55 x 0.5 in.)
• Weight: 37 g (1.3 oz.)
• Operating temperature: 0 – 70°C (32 – 158°F)
• Operating humidity: 10 – 85% RH, non-condensing
• Storage temperature: -40 – 85°C (-40 – 185°F)
• Physical Specifications: Weight: 0.02 kg
• Dimensions: 57 (L) x 14 (W) x 12 (H) [mm]
• Package Contents: Gigabit Fiber SFP Optical Transceiver Module

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
