Intellinet 560641 8-Port Gigabit PoE+ Switch, 140 W PoE Budget, 16 Gbps, Rack Brackets

Part number / SKU
560641
  • 8x 1 GbE RJ45 PoE+
  • 100 to 240 VAC internal PSU
  • Desktop, rack brackets included

$150.07

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

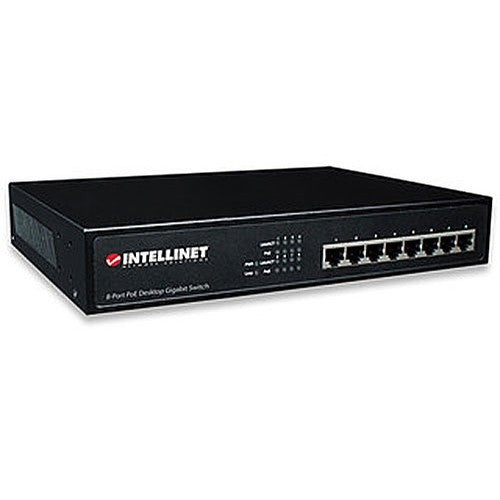

The Intellinet 560641 is an 8-port Gigabit Ethernet PoE+ switch that passes data and power to PoE devices over standard Cat5e or Cat6 cable. It powers devices such as wireless access points and bridges, VoIP phones and IP cameras on all eight ports, with IEEE 802.3af and 802.3at support.

Each 10/100/1000 RJ45 port supplies up to 30 W within a 140 W total PoE budget, with short circuit, overload and high-voltage protection and 4 kV surge protection on the PoE ports. The store-and-forward switch has a 16 Gbps backplane, an 8K MAC address table, 256 kB buffer and jumbo frames up to 9 kB.

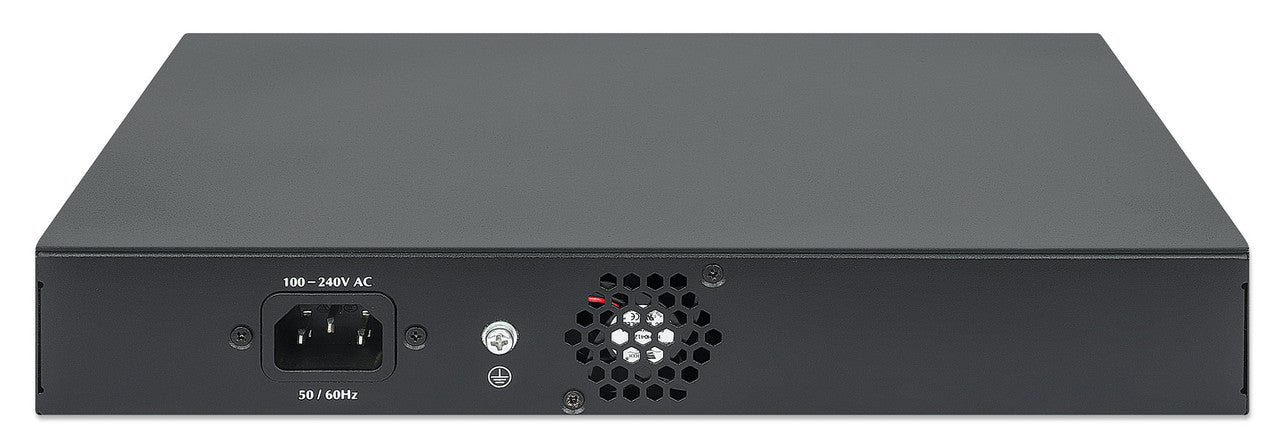

The metal desktop-size housing has a cooling fan, runs from 100 to 240 VAC with a 150 W maximum consumption, and comes with 19 inch rackmount brackets. It operates from 0 to 40 C.

  • Best for: powering IP cameras, VoIP phones and wireless access points from one 8-port Gigabit switch.
  • System fit: unmanaged plug and play switch; IEEE 802.3af and 802.3at PoE devices.
  • Important to know: the 140 W budget is shared (17.5 W average per port); devices that are not IEEE 802.3af/at compliant need a PoE splitter.

Why teams choose it

Built for reliable networks

  • PoE+ on all ports

    up to 30 W per port on eight Gigabit ports.

  • 140 W budget

    shared across eight ports, 17.5 W average per port.

  • Port protection

    short circuit, overload and high-voltage protection with 4 kV surge protection.

  • Desk or rack

    desktop housing with 19 inch rackmount brackets included.

Specifications

Technical specifications

Product identifiers
SKU560641
General
Brand Intellinet
Model 560641
Device Type Unmanaged Gigabit PoE+ switch
Form Factor Desktop, rack brackets included
Interfaces
Ethernet Ports 8x 1 GbE RJ45 PoE+
Auto-MDIX Yes, all ports
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3x
Performance
Switching Capacity 16 Gbps backplane
Forwarding Rate 11.9 Mpps
Architecture Store and forward
MAC Address Table 8K entries
Buffer Memory 256 kB
Jumbo Frames Up to 9 kB
Power
PoE Standard IEEE 802.3af and 802.3at
PoE Budget 140 W
PoE Per Port Up to 30 W; 17.5 W average
PoE Pinout IEEE Alternative A, pins 1/2 +, 3/6 -
PoE Protection Short circuit, overload, high voltage; 4 kV surge
Power Method 100 to 240 VAC internal PSU
Max Power Consumption 150 W
Physical
Dimensions 280 x 180 x 44 mm
Weight 2.55 kg
Housing Metal, cooling fan
LEDs PoE, Power, Link/Activity
Environmental
Operating Temperature 0 to 40 C
Operating Humidity 10 to 90% RH, non-condensing
Storage Temperature -20 to 70 C
Listings and Approvals
Certifications FCC Class B, VCCI Class B, CE, RoHS, EN 60950-1, UKCA, NDAA

In the box

  • Switch
  • Power cable
  • User manual
  • 19 inch mounting brackets
