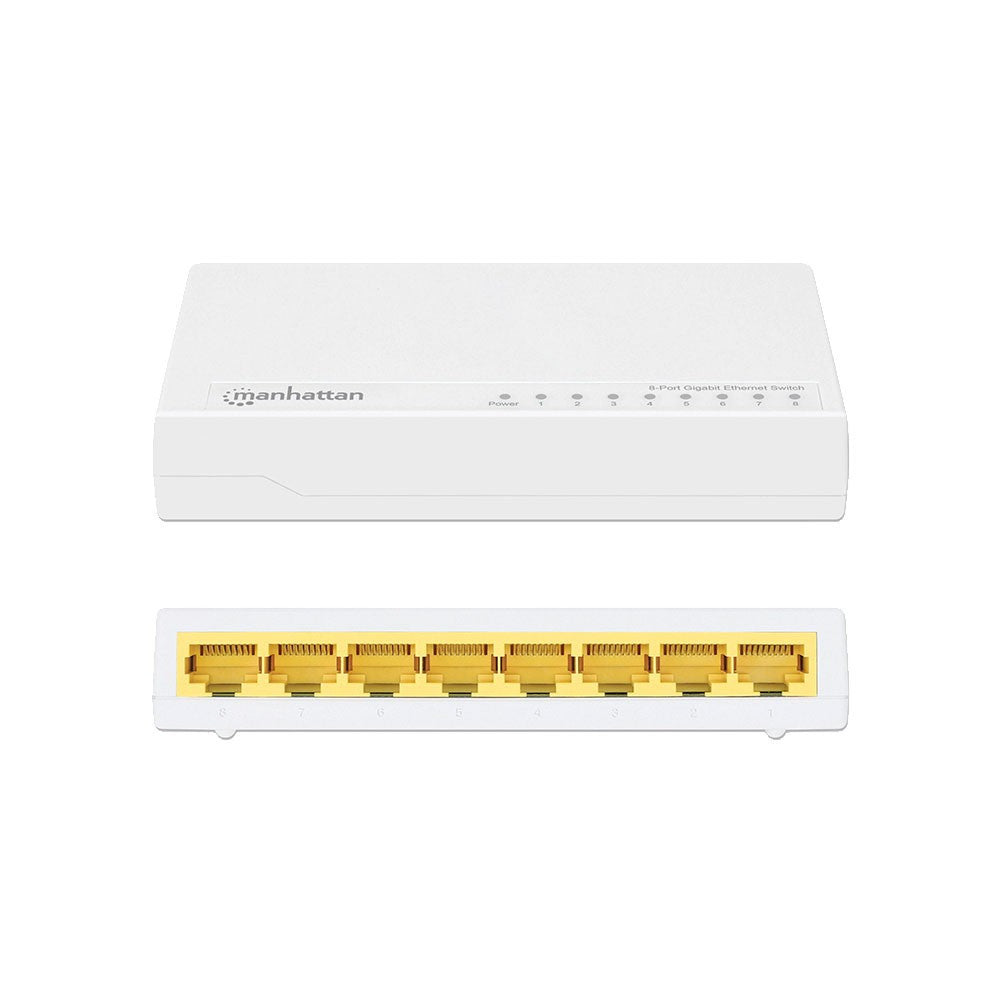

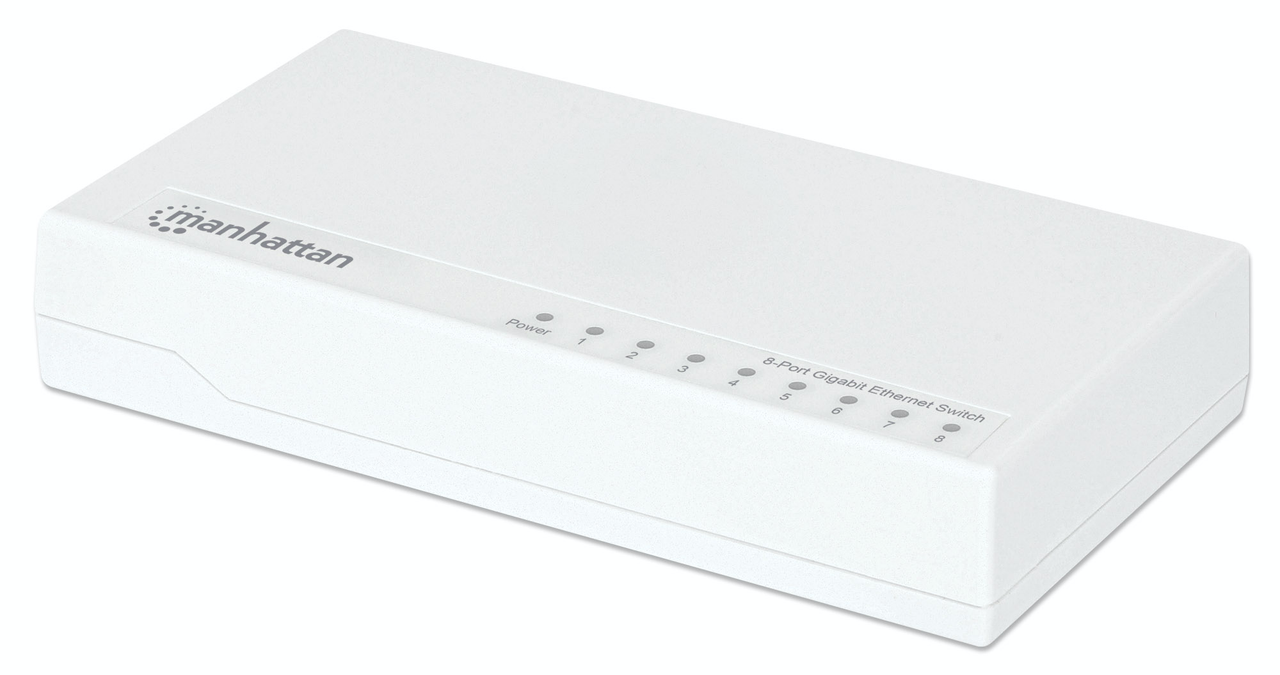

Manhattan 560702 8-Port Gigabit Ethernet Switch, 16 Gbps, Fanless Desktop

Part number / SKU
560702
  • 8x 1 GbE RJ45
  • External AC adapter, 5 V 1 A
  • Desktop

$53.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Manhattan 560702 is an 8-port Gigabit Ethernet switch for home office, entertainment systems and small office networks. It connects up to eight Ethernet devices, such as computers, network printers, NAS units and smart TVs, at up to 1000 Mbps over standard network cable, with plug and play setup.

All eight 10/100/1000 RJ45 ports auto-sense speed and support Auto MDI/MDX. The store-and-forward switch has a 16 Gbps switch fabric, a 2,048-entry MAC table, 256 kB buffer and 9 kB jumbo frames, and Green Ethernet (IEEE 802.3az) turns off unused ports. The fanless plastic housing measures 65 x 125 x 22 mm and runs from an external 5 V adapter rated 1 A.

  • Best for: home offices, entertainment systems and small offices adding several wired Gigabit devices.
  • System fit: unmanaged plug and play Gigabit switch; works with any 10, 100 or 1000 Mbps Ethernet device.
  • Important to know: this is an unmanaged switch with no PoE and no VLAN or management features.

Why teams choose it

Built for reliable networks

  • Gigabit on every port

    eight 10/100/1000 auto-sensing RJ45 ports.

  • Store-and-forward switching

    16 Gbps switch fabric with 9 kB jumbo frames.

  • Energy saving

    Green Ethernet and IEEE 802.3az turn off unused ports.

  • Silent and compact

    fanless 65 x 125 x 22 mm desktop housing.

Specifications

Technical specifications

Product identifiers
SKU560702
General
Brand Manhattan
Model 560702
Device Type Unmanaged Gigabit switch
Form Factor Desktop
Interfaces
Ethernet Ports 8x 1 GbE RJ45
Auto MDI/MDX Yes, all ports
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Performance
Switching Capacity 16 Gbps
Forwarding Rate 1,488,000 pps at 1000 Mbps
Architecture Store and forward
MAC Address Table 2,048 entries
Buffer Memory 256 kB
Jumbo Frames 9 kB
Power
Power Method External AC adapter, 5 V 1 A
Physical
Dimensions 65 x 125 x 22 mm
Weight 0.33 kg
Housing Plastic, fanless
LEDs Power, Link/Activity
Environmental
Operating Temperature 0 to 40 C
Operating Humidity 10 to 90%, non-condensing
Listings and Approvals
Certifications FCC Class B, CE, RoHS
