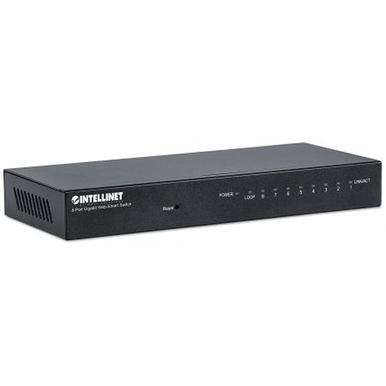

Intellinet 561099 8-Port Gigabit Web-Smart Switch, VLAN, QoS, Loop Detection

Part number / SKU
561099
  • 8x 1 GbE RJ45
  • Desktop

$76.80

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Intellinet 561099 is an 8-port Gigabit Web-Smart switch with a browser-based management interface. It adds VLANs, QoS, trunking, port mirroring and loop protection to a small network while keeping the low power draw of a desktop switch, with Green Ethernet and IEEE 802.3az Energy Efficient Ethernet.

All eight 10/100/1000 RJ45 ports auto-sense speed and support Auto-MDIX. The switch has a 16 Gb/s switching bandwidth, an 8,192-entry MAC table, 256 kB packet buffer and jumbo frames up to 9 kB. VLAN modes are MTU, port-based and IEEE 802.1Q, with 802.1Q VLAN IDs 1 to 4094, and QoS uses four priority queues with IEEE 802.1p.

Other features include one two-port trunk group, port mirroring, ingress and egress rate limiting, storm control, IGMP snooping v1/v2/v3, DHCP snooping, loop detection and prevention with a front LOOP LED, and cable diagnostics. The default management address is 192.168.2.1, and firmware updates by HTTP or TFTP.

  • Best for: small offices that need VLANs, QoS and loop protection without a fully managed switch.
  • System fit: web GUI management with IEEE 802.1Q VLANs and IEEE 802.1p QoS.
  • Important to know: change the default login after setup; loop detection cannot be used while a trunk group is active.

Why teams choose it

Built for reliable networks

  • VLAN support

    MTU, port-based and IEEE 802.1Q VLANs, with 802.1Q IDs 1 to 4094.

  • Loop protection

    loop detection and automatic port blocking with a front LOOP LED.

  • Traffic control

    four QoS queues, rate limiting and storm control.

  • Low power

    3.57 W active draw with IEEE 802.3az Energy Efficient Ethernet.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU561099
General
Brand Intellinet
Model 561099
Device Type Web-smart Gigabit switch
Form Factor Desktop
Interfaces
Ethernet Ports 8x 1 GbE RJ45
Auto-MDIX Yes, all ports
Cabling Cat5e or Cat6 for 1000Base-T, up to 100 m
Performance
Switching Capacity 16 Gb/s
Architecture Store and forward
MAC Address Table 8,192 entries
Buffer Memory 256 kB
Jumbo Frames Up to 9 kB
Software and Management
Management Web GUI; default IP 192.168.2.1
Layer L2
VLAN MTU, port-based, IEEE 802.1Q
802.1Q VLAN IDs 1 to 4094
QoS 4 priority queues, IEEE 802.1p
Trunking 1 group, 2 ports, ports 1 to 4
Port Mirroring 1 rule; Rx, Tx or both
Traffic Control Ingress and egress rate limiting; storm control
Bandwidth Control Per port, 6 levels
Flow Control IEEE 802.3x full duplex; backpressure half duplex
Multicast IGMP snooping v1, v2, v3
Security DHCP snooping, loop detection and prevention
Diagnostics Cable diagnostics with fault distance
Firmware Update HTTP and TFTP; config backup and restore
Energy Saving IEEE 802.3az, can be turned off
Power
Power Draw 3.57 W active
Physical
Dimensions 19.3 x 8.4 x 2.6 cm
LEDs Power, Loop, Link/Activity per port
Listings and Approvals
Certifications FCC Part 15 Class B, CE, RoHS
