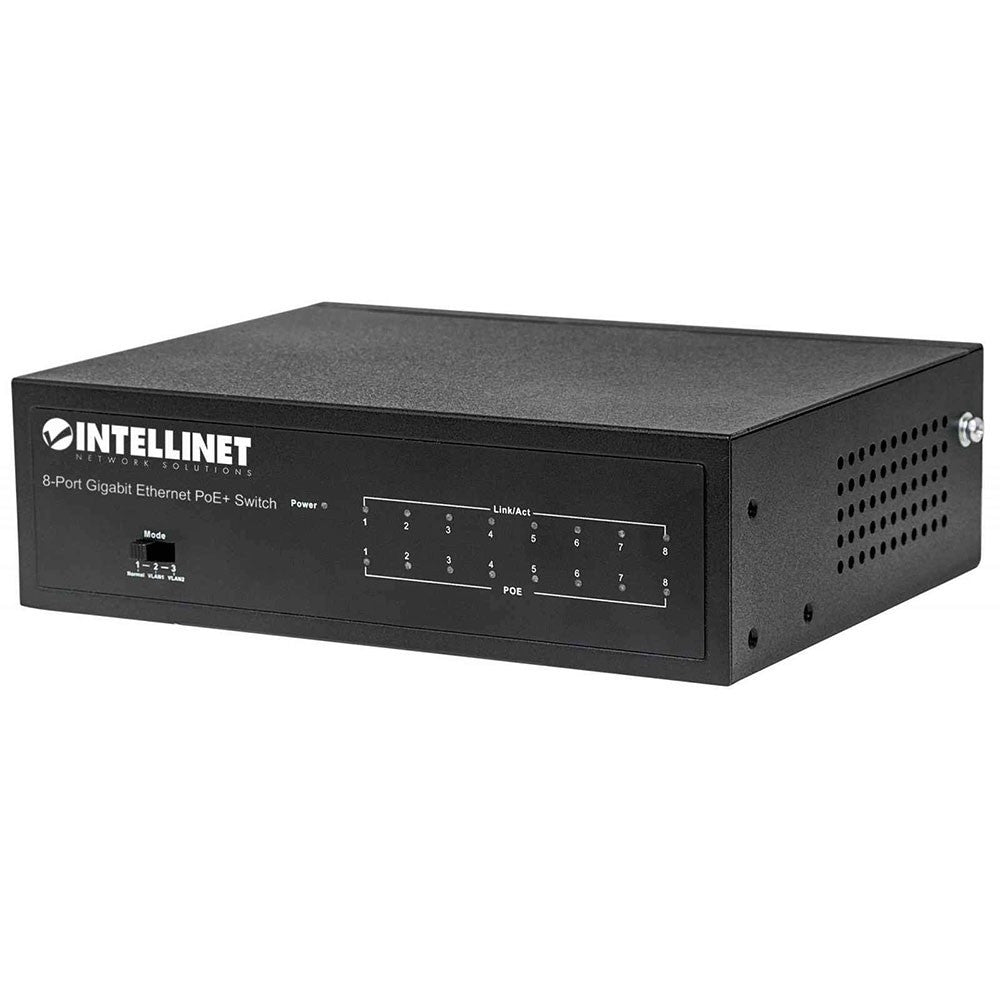

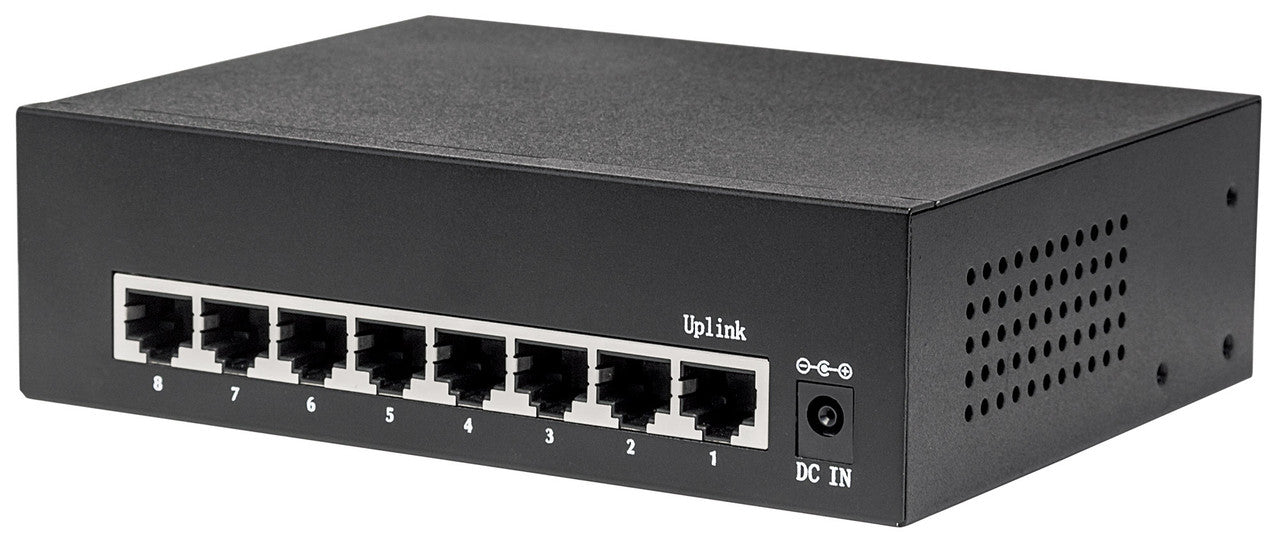

Intellinet 561204 8-Port Gigabit PoE+ Switch, 60 W PoE Budget, Desktop, Fanless

Part number / SKU
561204
  • 8x 1 GbE RJ45 PoE+
  • External 53.5 V DC adapter
  • Desktop

$118.55

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Intellinet 561204 is an 8-port Gigabit Ethernet PoE+ switch for passing data and power over standard Cat5e or Cat6 cable to wireless access points, VoIP phones and IP cameras. All eight 10/100/1000 RJ45 ports are IEEE 802.3af and 802.3at PoE outputs.

Each port supplies up to 30 W within a 60 W total PoE budget, with short circuit, overload and high-voltage protection. The store-and-forward switch has a 16 Gbps switch fabric, a 4096-entry MAC address table and a 1.5 Mb buffer, and a front panel button turns on private VLAN (port isolation) so every port except the uplink is isolated.

The fanless metal desktop housing measures 118 x 155 x 46 mm and runs from an external 53.5 V DC adapter rated 1.2 A (100 to 240 VAC input). Green Ethernet turns off power to unused ports and adjusts power by cable length.

  • Best for: small camera, VoIP or access point installations that need a quiet desktop PoE+ switch.
  • System fit: unmanaged plug and play switch for IEEE 802.3af and 802.3at PoE devices.
  • Important to know: the total PoE budget is 60 W, so plan device power (7.5 W average across eight ports).

Why teams choose it

Built for reliable networks

  • PoE+ ports

    up to 30 W per port on all eight Gigabit ports.

  • Port isolation

    front panel private VLAN button isolates ports from each other.

  • Silent operation

    fanless metal desktop housing.

  • Port protection

    short circuit, overload and high-voltage protection.

Specifications

Technical specifications

Product identifiers
SKU561204
General
Brand Intellinet
Model 561204
Device Type Unmanaged Gigabit PoE+ switch
Form Factor Desktop
Interfaces
Ethernet Ports 8x 1 GbE RJ45 PoE+
Auto-MDIX Yes, all ports
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3x
Performance
Switching Capacity 16 Gbps
Forwarding Rate 1,488,000 pps at 1000 Mbps
Architecture Store and forward
MAC Address Table 4096 entries
Buffer Memory 1.5 Mb
Private VLAN Port isolation via front panel button
Power
PoE Standard IEEE 802.3af and 802.3at
PoE Budget 60 W
PoE Per Port Up to 30 W; 7.5 W average
PoE Pinout IEEE Alternative A, pins 1/2 +, 3/6 -
PoE Protection Short circuit, overload, high voltage
Power Method External 53.5 V DC adapter
Adapter Rating 53.5 V DC, 1.2 A, 62.4 W; 100 to 240 VAC in
Max Power Consumption 67.3 W
Physical
Dimensions 118 x 155 x 46 mm
Weight 0.93 kg
Housing Metal, fanless
LEDs PoE, Power, Link/Activity
Environmental
Operating Temperature 0 to 40 C
Operating Humidity 10 to 90% RH, non-condensing
Listings and Approvals
Certifications FCC Class B, CE, RoHS, UKCA, NDAA

In the box

  • Switch
  • Power adapter
  • Power cable
  • User manual
