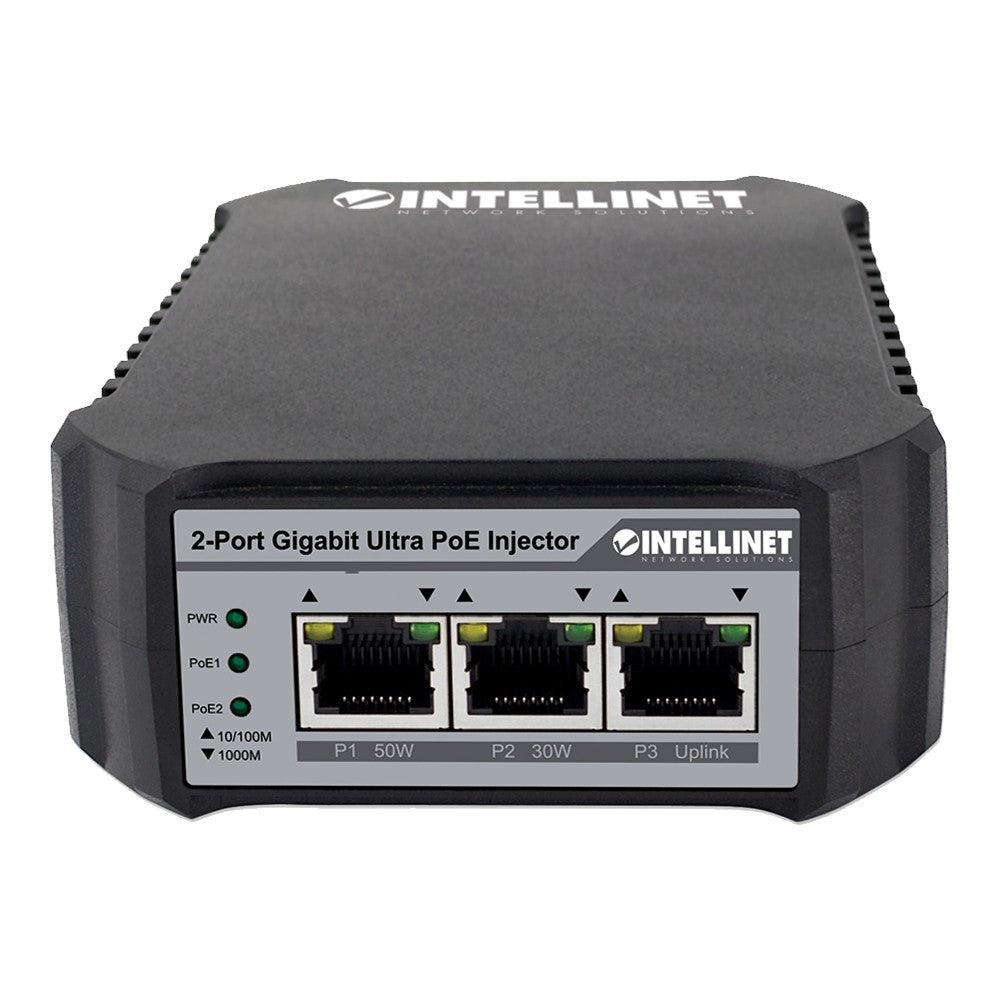

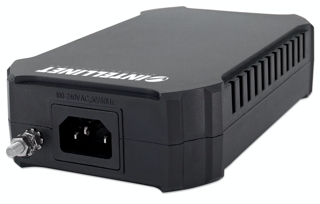

Intellinet 561488 2-Port Gigabit Ultra PoE Injector, 80W, 802.3af/at

Part number / SKU
561488
  • 10/100/1000 Mbps
  • 1x data in, 2x PoE out, RJ45
  • AC in, 100 to 240 VAC

$110.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Intellinet 561488 is a two output Gigabit PoE injector. It takes one data input and supplies power and data on two outputs, one up to 50 W and one up to 30 W, for an 80 W total, so two PoE devices can run from one switch port and one outlet.

All three RJ45 ports run 10/100/1000 Mbps with 6 Gbps backplane, store and forward switching and a 2,048 entry MAC table, over cable runs up to 100 m. The internal supply takes 100 to 240 VAC. Power is fed on pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-), with short circuit, over current and over voltage protection. The fanless, wall mountable housing measures 190 x 100 x 40 mm and operates from 0 to 40 °C.

  • Best for: powering two PoE devices, such as a high power access point and a camera, from one network port.
  • System fit: IEEE 802.3af/at powered devices on Gigabit Ethernet.
  • Important to know: port 1 supplies up to 50 W and port 2 up to 30 W; the total is 80 W.

Why teams choose it

Built for reliable networks

  • Two powered outputs

    50 W and 30 W, 80 W total.

  • Gigabit data

    10/100/1000 Mbps on all three ports, 6 Gbps backplane.

  • Internal supply

    100 to 240 VAC, no external brick.

  • Protected

    short circuit, over current and over voltage protection.

Specifications

Technical specifications

Product identifiers
SKU561488
General
Brand Intellinet
Model 561488
Device Type 2 port Gigabit Ultra PoE injector
Interfaces
Ethernet Ports 1x data in, 2x PoE out, RJ45
Data Rate 10/100/1000 Mbps
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Performance
Backplane 6 Gbps
Switching Store and forward
MAC Address Table 2,048 entries
Max Cable Distance 100 m (328 ft)
Power
Power Method AC in, 100 to 240 VAC
Input Frequency 50 to 60 Hz
PoE Output, Port 1 Up to 50 W
PoE Output, Port 2 Up to 30 W
PoE Budget 80 W
PoE Pinout Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Protection Short circuit, over current, over voltage
Power Supply Internal
Physical
Dimensions 190 x 100 x 40 mm (7.48 x 3.94 x 1.57 in)
Weight 0.416 kg (0.92 lb)
Housing Plastic
Cooling Fanless
Mounting Wall mountable
Indicators Power, data and PoE LEDs
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -40 to 70 °C (-40 to 158 °F)
Operating Humidity 10 to 90% RH, noncondensing
Listings and Approvals
Certifications CE, FCC Class A, RoHS

In the box

  • 2-Port Gigabit Ultra PoE Injector
  • Power cable
  • Instructions
