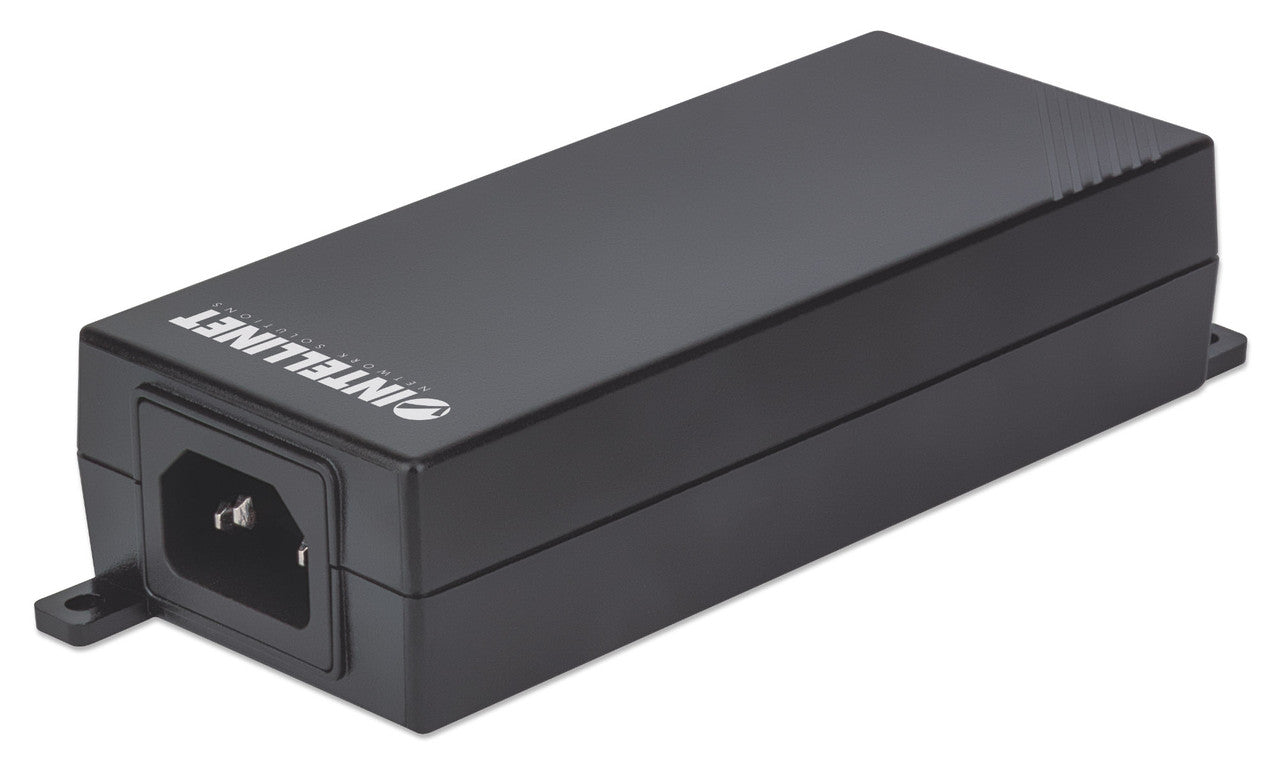

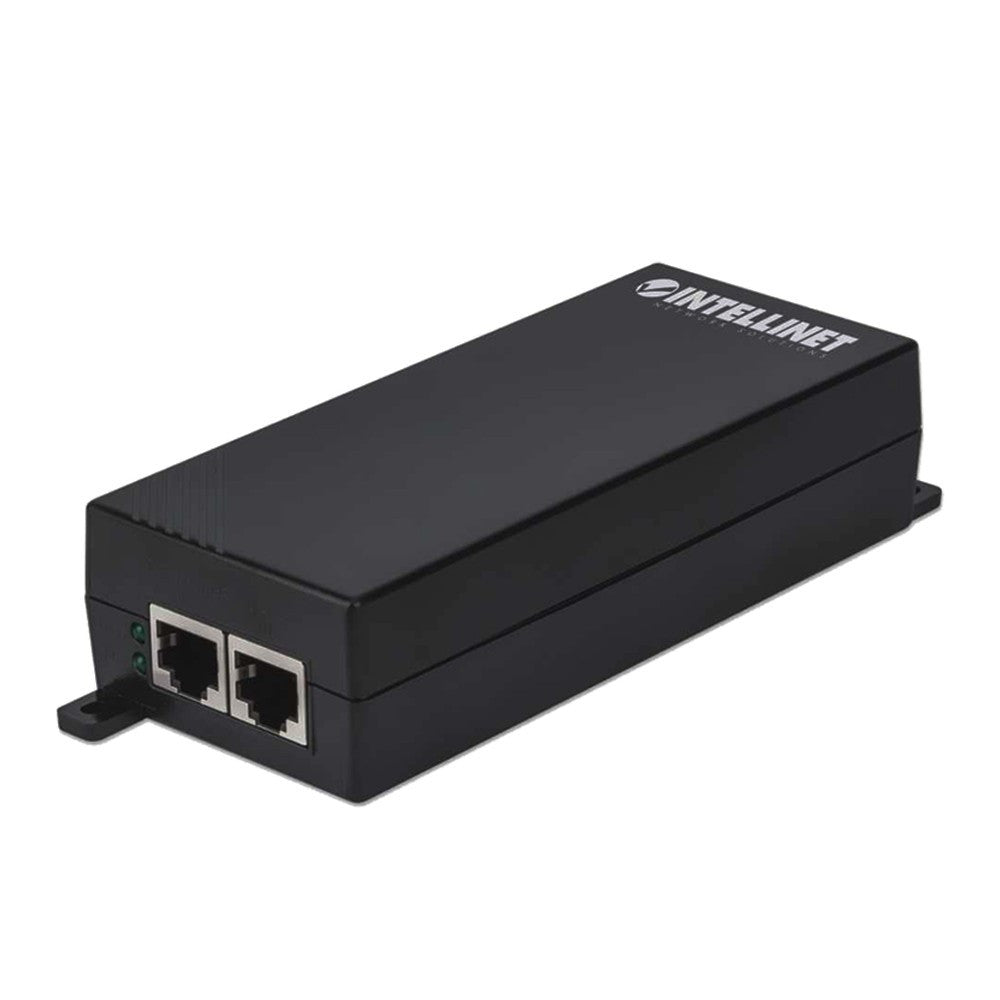

Intellinet 561518 Gigabit PoE Injector 30W 802.3af/at

PRODUCT OVERVIEW

The Intellinet Network Solutions Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant product to a non-PoE LAN switch port. The Power over Ethernet Injector can power and supply a network connection to a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered PD. This injector has an output power rating up to 30 watts. That's enough for even power-hungry PoE devices.

PRODUCT TYPE

PoE & Power Injectors

KEY FEATURES

• Saves time and money by delivering data and power via existing network cables
• IEEE 802.3at compliant (PoE+)
• Power output up to 30 watts
• Distance support: up to 100 m (328 ft.)
• Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless
• LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras and more)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Internal power supply
• Fanless design ideal for silent operation
• Standards: IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)
• General: Media support: 100Base-TX Cat5 UTP/STP RJ45, 8 pin
• 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• Ports: One RJ45 10/100/1000 Mbps input port

TECHNICAL SPECIFICATIONS

• Brand: Intellinet
• Model: 561518
• Product Type: PoE & Power Injectors
• Saves time and money by delivering data and power via existing network cables
• IEEE 802.3at compliant (PoE+)
• Power output up to 30 watts
• Distance support: up to 100 m (328 ft.)
• Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless
• LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras and more)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Internal power supply
• Fanless design ideal for silent operation
• Standards: IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)
• General: Media support: 100Base-TX Cat5 UTP/STP RJ45, 8 pin
• 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• Ports: One RJ45 10/100/1000 Mbps input port
• One RJ45 10/100/1000 Mbps data and power output port
• Protection functions: Short circuit protection for short GND
• Overload protection for currents over 0.6 A
• PoE Pinout: IEEE 802.3af/at Standard Mode A: Pin 1: DC (+)
• Pin 2: DC (+)
• Pin 3: DC (-)
• Pin 6: DC (-)
• Certifications: FCC Class A, CE, RoHS
• LED: Dual-color power and PoE LED
• Power: Input: 100 – 240 V AC, 50 – 60 Hz
• Power consumption: 35 watts (maximum)

INTENDED USE / APPLICATIONS

• Backup or off-grid power systems
• Telecommunications and network equipment
• Professional installations requiring compatible DC power
