Rbtec IROC-2Z-1000-V2 IRONCLAD Perimeter Alarm Sensor 2-Zone 1000ft
Product identifier
SKU
IROC-2Z-1000-V2
$4,849.30
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
IRONCLAD is a fully shielded sensor by a steel mesh, the ideal solution for its installation in chain link fenced and concertina wire. The sensor line can be easily adjusted to the desired length of the detection zone without overabundance of the sensor across the fence.
The IRONCLAD perimeter alarm system is the ideal solution for the protection of:
- Commercial and industrial areas.
- Condominiums or gated communities.
- Data centers.
- Water, electrical, and police substations.
- Car, RV, boat, or equipment warehouses.
- Solar farms and photovoltaic plants.
- Self-storage warehouses.
- Radio and cellular communication antennas.
- Any fenced location.
How is a real alert detected?
IRONCLAD offers a solution for intruder detection through a vibration pattern analysis that matches a break-in.
The system uses 3 alarm filtering levels
- Detection algorithm.
- 11 sensitivity levels, easy configuration.
- Automatic climate compensation unit for system autocalibration.
6 Kit Configurations
Ready for Quick Installation

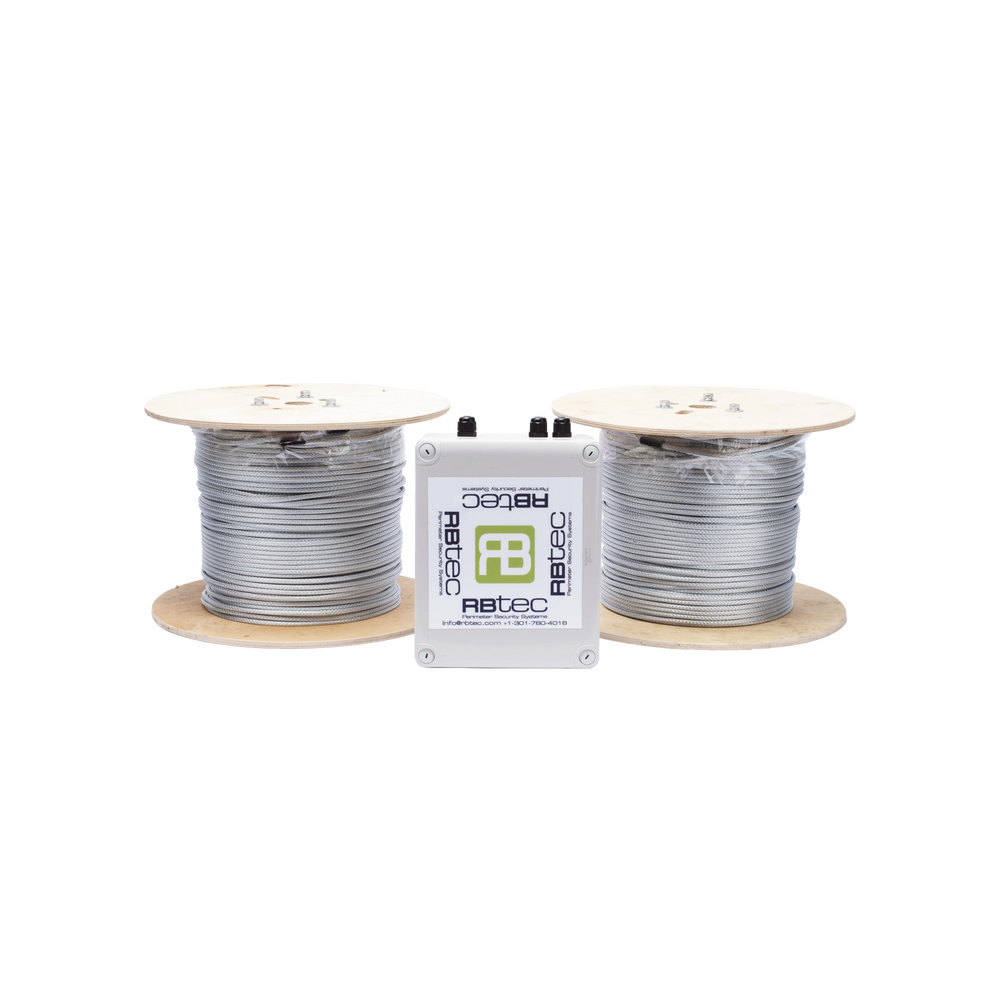

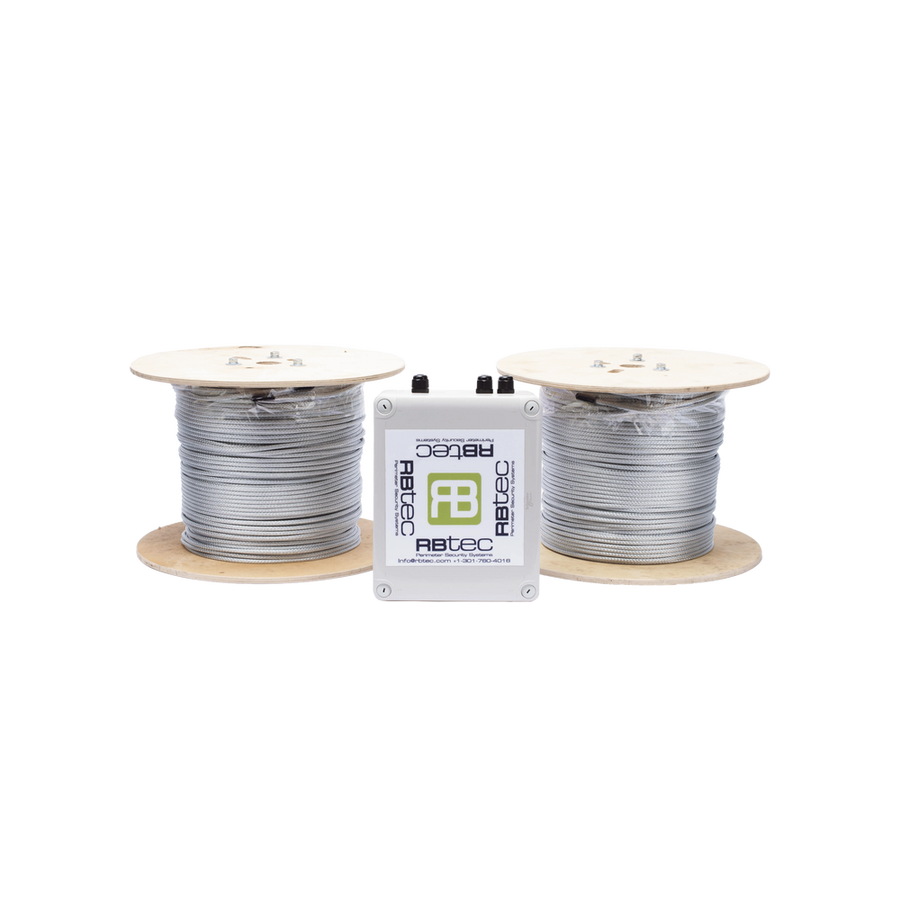

Each kit includes a field analyzer with the sensor cable reel
Optional:
- 75 m / 250 ft sensor line (1 zone).
- 152 m / 500 ft sensor cable (2 zones) in length, 152 m / 500” sensor line (1 zone).
- 305 m / 1,000 ft sensor cable (2 zones) in length, 305 m / 1,000” sensor line (1 zone).
- 610 m / 2,000 ft sensor cable (2 zones) in length.
System Layout
Technical Specifications
- Operates with 12-24 Vdc, 40 mA to 12 Vcc.
- Dry contact relays with N.O. and N.C. contacts per zone.
- Housing: NEMA 4x, IP-66.
- LPU400 card for 2 protection zones up to 305m / 1000 ft.
- Calibration software for the zones.
Key Features
- Steel Mesh Armored Cable for Maximum Physical Protection
- Vibration Pattern Analysis for Intrusion Force Detection
- 3-Level Alarm Filtering Algorithm Reduces False Alarms
- Automatic Weather Compensation for Consistent Performance
- NEMA 4X/IP66 Rated Enclosure for Extreme Outdoor Conditions
- 12-24 VDC Operation With 40 mA at 12 VDC Power Consumption
Product support
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
