POLYPHASER

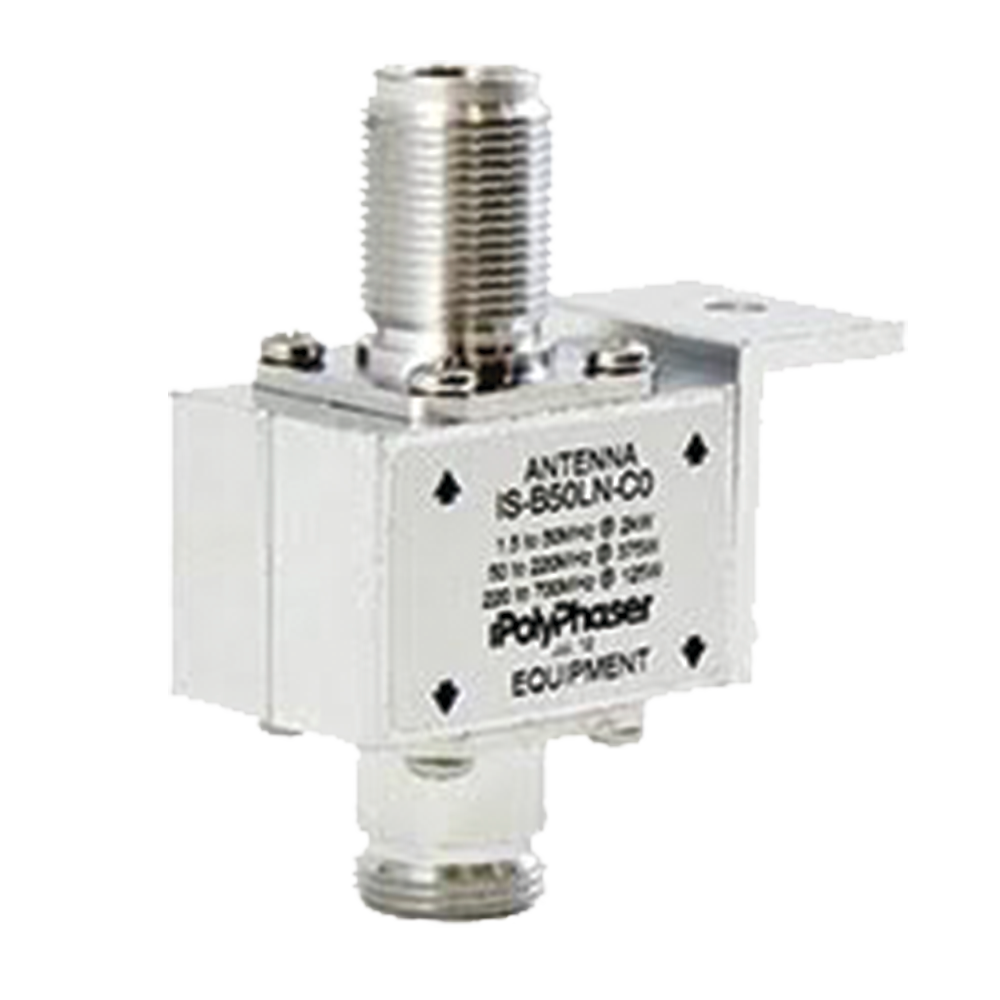

PolyPhaser IS-B50LN-C0 Coaxial Protector 10MHz-1GHz N Female
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Bulkhead mount, dc block, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors
Type
DC Block
Mount Type
Bulkhead mount
PIM Rated
N
Standards
CE Compliant, RoHS Compliant
Connector
N
Surge Side Connector
N Female
Protected Side Connector
N Female
Frequency Range
10MHz to 1GHz
Turn On Voltage
600 Vdc ±20%
RF Power
1.5kW @ 10 to 50MHz, 375W @ 50 to 220MHz, 125W @ 220 to 700MHz, 50W @ 700 to 1000MHz
VSWR
≤ 1.1 to 1 OVER FREQUENCY RANGE
Insertion Loss
≤ 0.1dB OVER FREQUENCY RANGE
Protocol/Application
Two Way Radio and Scada
Key Features
- DC Blocking Prevents Power Surge Damage to Equipment
- 20 kA Surge Protection Rating for Maximum Safety
- Low 0.1 dB Insertion Loss Maintains Signal Integrity
- Excellent 1.1:1 VSWR Across Entire Frequency Range
- Panel Mount Design for Easy Installation in Racks
- Stainless Steel Construction for Durability and Reliability
