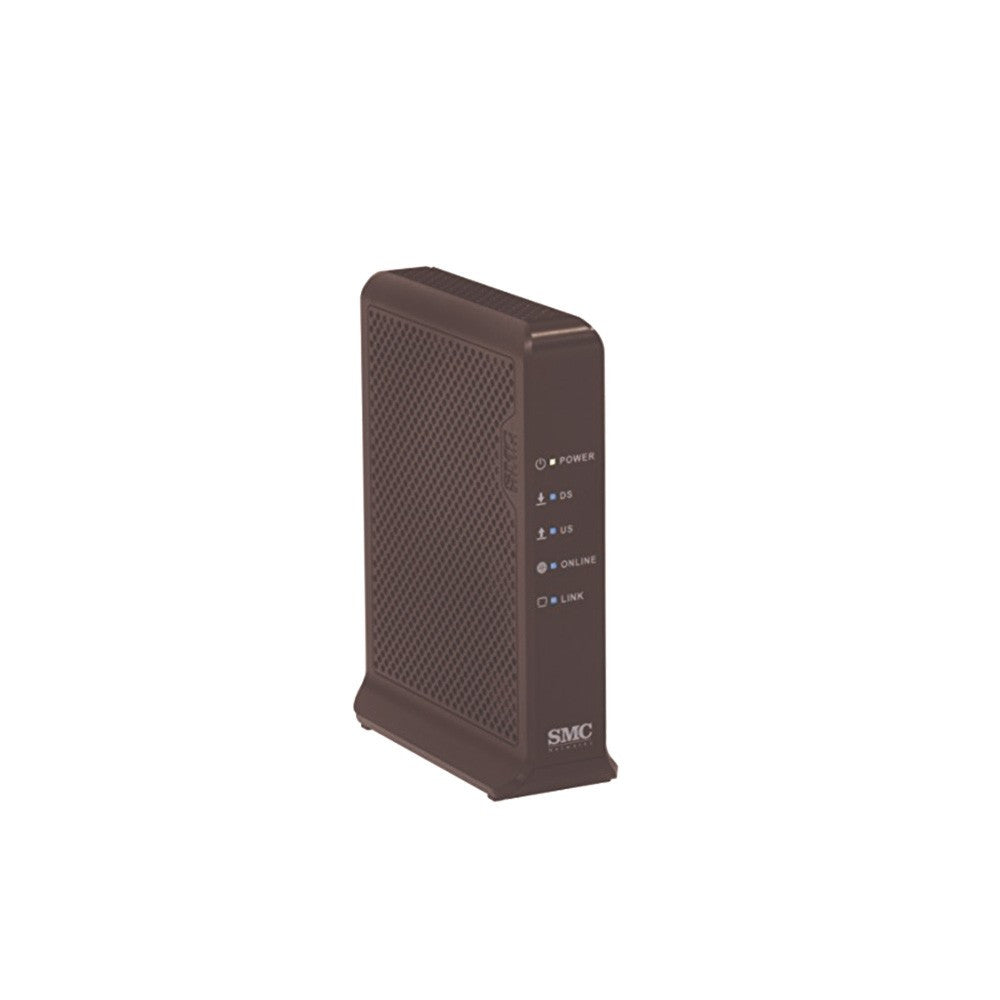

SMC Veloxite D3G0804W-033 DOCSIS 3.0 8x4 Wi-Fi Gateway, 3x3 Dual Band 802.11n, 4x Gigabit LAN

Part number / SKU
D3G0804W-033
  • 802.11n
  • 2.4 and 5 GHz, concurrent
  • 4x 1 GbE RJ45
  • 3x3
  • External AC adapter

$30.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The D3G0804W-033 is the North America version of the SMC Networks Veloxite D3G0804W, a DOCSIS 3.0 cable data gateway that bonds up to 8 downstream and 4 upstream channels and adds a router and Wi-Fi access point. SMC rates the cable modem at speeds in excess of 320 Mbps downstream and 120 Mbps upstream. It is built for cable operators, with TR-069 and TR-181i2 remote management, full MIB support and a CLI.

Downstream runs from 88 to 1002 MHz with 64 or 256 QAM, at 30.34 Mbps (64 QAM) or 42.88 Mbps (256 QAM) per 6 MHz channel. The 802.11n radio on this version is 3x3 dual band dual concurrent at 2.4 and 5 GHz, with Wi-Fi connections of up to 450 Mbps, at least 24 dBm conducted output and six internal antennas. The rear has four Gigabit Ethernet ports, one USB 2.0 host port and an F-type RF connector.

The gateway uses an external power supply on 100 to 240 V AC and consumes 24 W. Software includes IPv4/IPv6 dual stack with IPv6 Rapid Deployment, router or bridge mode, NAT, a stateful packet inspection firewall, VPN termination and pass-through, WMM QoS, and up to 16 SSIDs with WPA2.

  • Best for: cable operators deploying a DOCSIS 3.0 modem, router and dual band Wi-Fi in one device.
  • System fit: DOCSIS 3.0 cable networks; TR-069 and TR-181i2 management, SNMP MIB support and CLI.
  • Important to know: this is the -033 North America version with 3x3 dual band Wi-Fi; it must be provisioned on a DOCSIS 3.0 cable network by the operator.

Why teams choose it

Built for reliable networks

  • Channel bonding

    up to 8 downstream and 4 upstream DOCSIS 3.0 channels.

  • Dual band Wi-Fi

    3x3 802.11n on 2.4 and 5 GHz at the same time, up to 16 SSIDs.

  • Wired ports

    four Gigabit Ethernet ports with auto MDI/MDIX plus a USB 2.0 host port.

  • Operator management

    TR-069, TR-181i2, full MIB support and a secure CLI.

Specifications

Technical specifications

Product identifiers
SKUD3G0804W-033
General
Brand SMC Networks
Model D3G0804W-033
Product Family Veloxite D3G0804W
Device Type DOCSIS 3.0 Wi-Fi data gateway
Region Version North America (-033-NA)
Interfaces
Ethernet Ports 4x 1 GbE RJ45
Ethernet Port Detail 10/100/1000BASE-T, auto MDI/MDIX
RF Connector F-type
USB 1x USB 2.0 Type A host

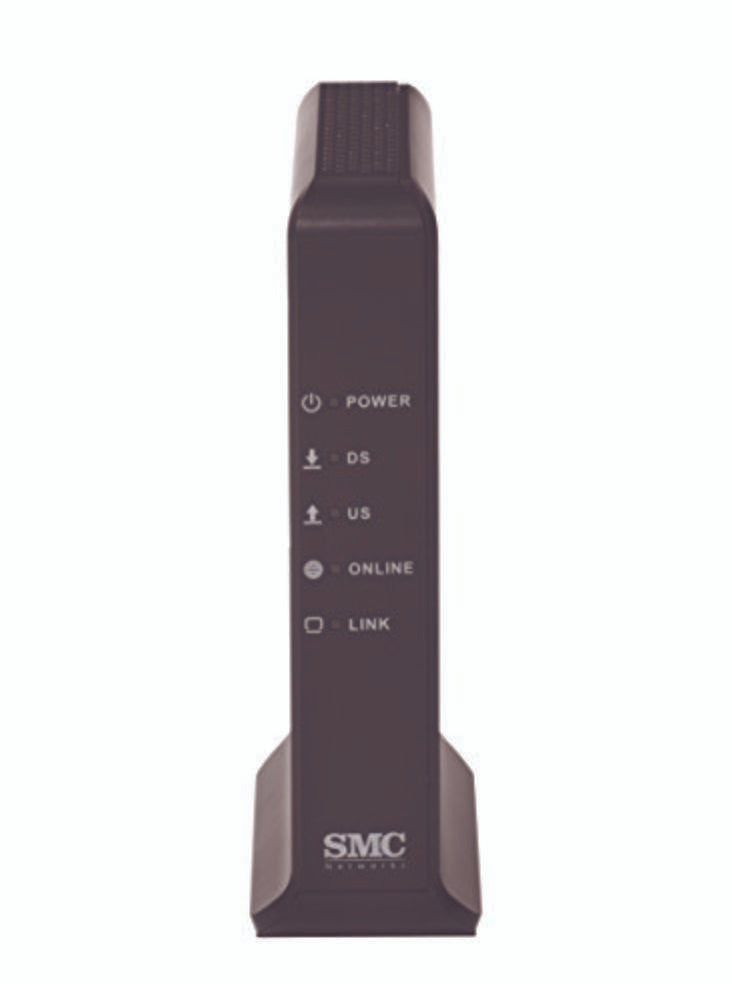

Front LEDs Power, DS, US, Online, Link, 2.4G, 5G, WPS
Buttons WPS, On/Off (front); Reset (rear)
Performance
DOCSIS Channels Up to 8 downstream, 4 upstream
Downstream Speed Over 320 Mbps
Upstream Speed 120 Mbps
Downstream Modulation 64/256 QAM
Downstream Rate per Channel 30.34 Mbps (64 QAM), 42.88 Mbps (256 QAM), 6 MHz
Downstream Frequency Range 88 to 1002 MHz
Downstream Input Level -15 to +15 dBmV
Output Return Loss -6 dB
Upstream Frequency Range 5 to 42 MHz (North America)
Upstream Modulation TDMA QPSK to 64 QAM; S-CDMA QPSK to 128 QAM
Wireless
Wireless Standard 802.11n
Frequency Band 2.4 and 5 GHz, concurrent
MIMO Configuration 3x3
Wi-Fi Data Rate Up to 450 Mbps
Wi-Fi QoS WMM
Tx Output Power 24 dBm or more, conducted
Antennas 6 internal
SSIDs Up to 16
Wireless Security WEP, WPA, WPA2-PSK, WPA2-AES, WPS
Power
Power Method External AC adapter
AC Input 100 to 240 V
Power Consumption 24 W
Physical
Dimensions 198.5 x 177.5 x 47 to 62 mm
Weight 550 g
Environmental
Operating Temperature 0 to 40 °C
Storage Temperature -20 to 70 °C
Humidity 10 to 90%, non-condensing
Software and Management
Management TR-069, TR-181i2, full MIB, CLI
IP Stack IPv4/IPv6 dual stack, IPv6 Rapid Deployment
Operating Modes Router or bridge
Security SPI firewall, DoS prevention, intrusion detection
VPN IPsec, PPTP, L2TP, IKE, GRE termination and pass-through
Listings and Approvals
Compliance DOCSIS 3.0, IEEE 802.11n
Safety UL/cUL
EMC FCC Part 15 Class B and C
Environmental RoHS
