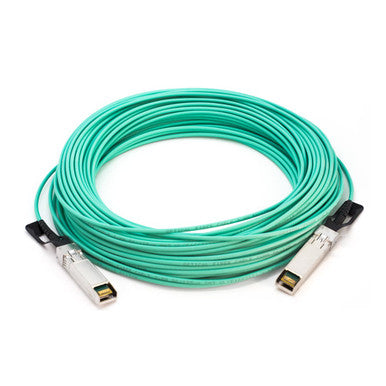

Iuron IU-CAB-AOC-10GSFP-P30M 10G SFP+ to SFP+ Active Optical Cable, 30 m

Part number / SKU
IU-CAB-AOC-10GSFP-P30M
  • SFP+ MSA
  • 10 Gbps per direction
  • SFP+ to SFP+

$65.98

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Iuron IU-CAB-AOC-10GSFP-P30M is a 30 m SFP+ to SFP+ active optical cable (AOC) for 10 Gigabit links between switches, routers, servers and network interface cards. It is built to the SFP+ MSA and is hot pluggable.

The cable carries 10 Gbps in each direction over loose tube fiber and operates from 1 to 10.5 Gb/s, covering 10GbE, 8G Fibre Channel, FCoE and InfiniBand QDR, DDR and SDR uses. ESD protection and an enhanced EMI skirt are built into the ends.

  • Best for: 10 Gigabit links in data centers, storage area networks, NAS and storage servers.
  • System fit: SFP+ ports built to the SFP+ MSA on switches, routers, servers and NICs.
  • Important to know: fixed 30 m length with the optics built into both ends; some switches only accept coded optics, so check the host platform first.

Why teams choose it

Built for reliable networks

  • 10 Gbps each direction

    full duplex 10G link over fiber.

  • Wide rate range

    works from 1 to 10.5 Gb/s for Ethernet, Fibre Channel and InfiniBand.

  • Hot pluggable

    SFP+ MSA ends with ESD protection and an EMI skirt.

  • Single assembly

    30 m cable with both SFP+ ends attached.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CAB-AOC-10GSFP-P30M
General
Brand Iuron
Model IU-CAB-AOC-10GSFP-P30M
Device Type Active optical cable
Form Factor SFP+ to SFP+
Standard SFP+ MSA
Hot Pluggable Yes
Optical
Data Rate 10 Gbps per direction
Operating Rate Range 1 to 10.5 Gb/s
Cable Length 30 m
Cable Construction Loose tube fiber
Protocols 10GbE, 8GFC, FCoE, InfiniBand QDR/DDR/SDR
Physical
ESD Protection Yes
EMI Protection Enhanced EMI skirt
