Iuron IU-CEN-CP-DUP-LCAPC-P-SC LC/APC Duplex Single-Mode Fiber Optic Adapter, SC Footprint, Long Ear

Part number / SKU
IU-CEN-CP-DUP-LCAPC-P-SC

$15.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

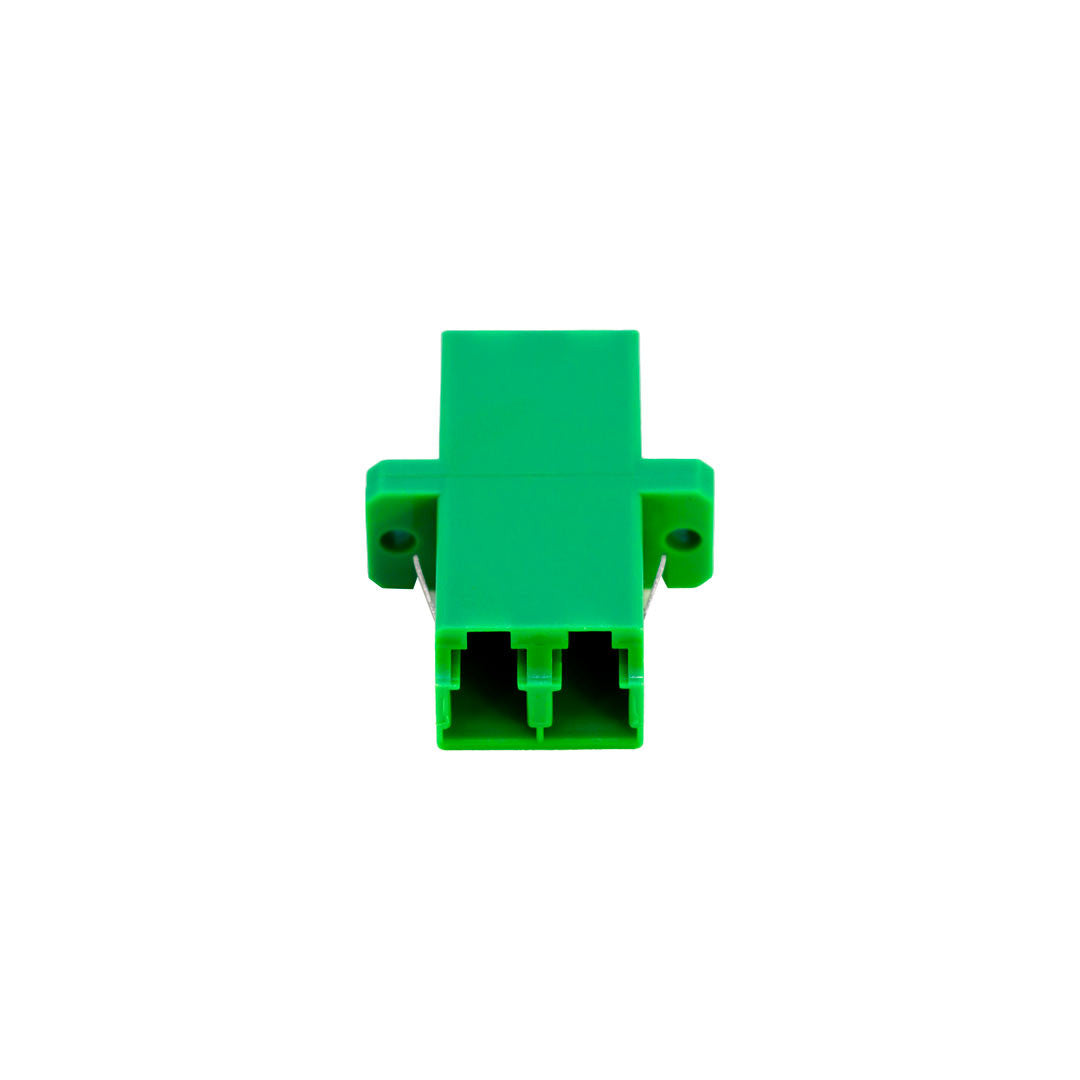

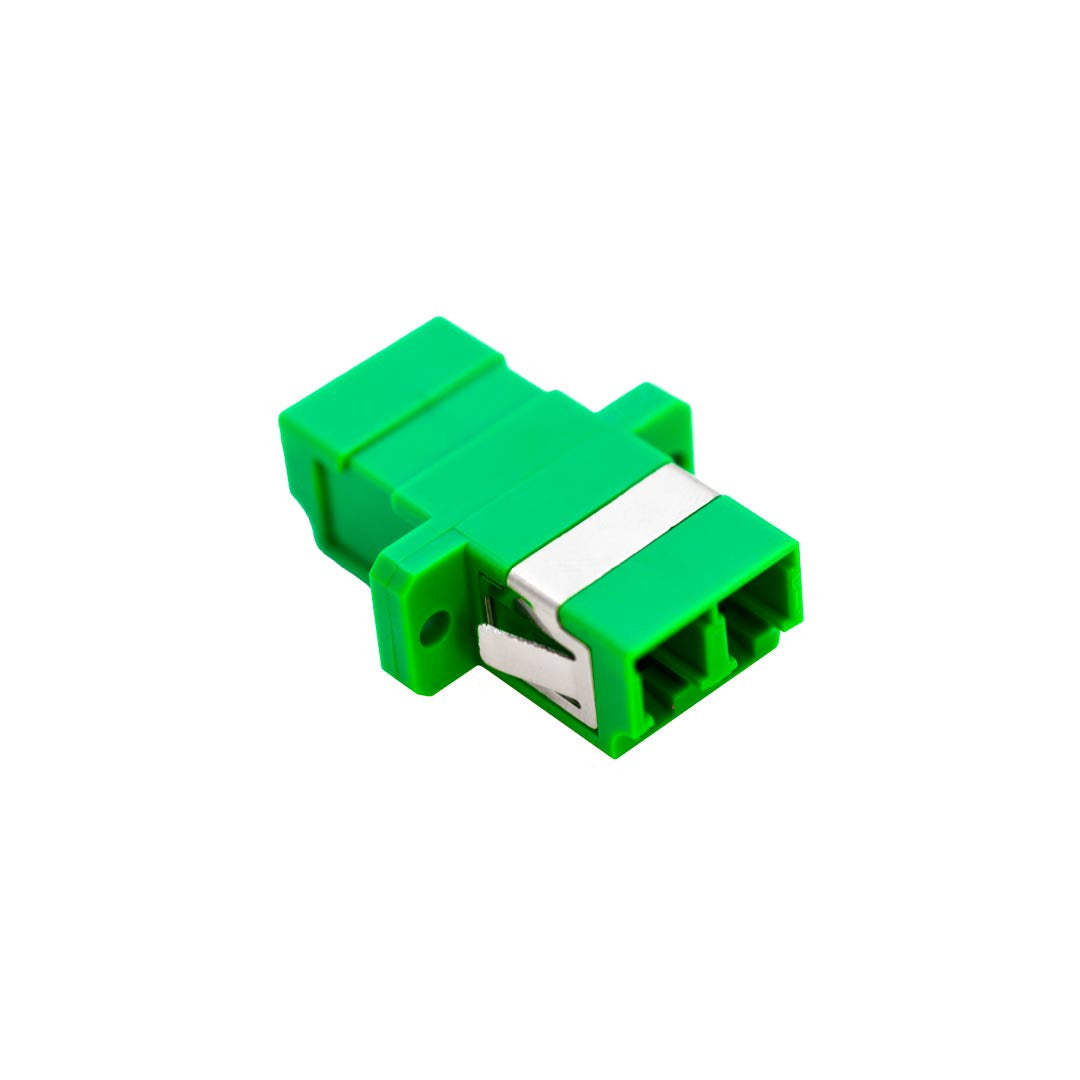

The Iuron IU-CEN-CP-DUP-LCAPC-P-SC is an LC/APC duplex single-mode fiber optic adapter that joins two pairs of LC/APC terminated fibers. It aligns both connector pairs for low loss and uses a plastic housing with an SC type footprint and long ear flange, so it fits panels and enclosures cut for SC simplex adapters.

The adapter is rated for 0.2 dB maximum insertion loss, 60 dB minimum return loss (APC), 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. It operates from -40 to +60 °C and stores from -40 to +85 °C at up to 95% relative humidity.

  • Best for: patch panels, splice enclosures and test setups that join LC duplex single-mode patch cords and pigtails.
  • System fit: LC/APC duplex single-mode connectors; panels and enclosures with SC type cutouts.
  • Important to know: APC polish; mate only APC connectors to keep return loss in spec.

Why teams choose it

Built for reliable networks

  • Duplex LC

    joins two LC fiber pairs in one SC size cutout.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-DUP-LCAPC-P-SC
General
Brand Iuron
Model IU-CEN-CP-DUP-LCAPC-P-SC
Device Type LC/APC duplex fiber optic adapter
Fiber Mode Single-mode
Interfaces
Connector LC duplex to LC duplex
Polish APC
Configuration Duplex
Panel Fit SC type footprint
Mounting Long ear flange
Performance
Insertion Loss 0.2 dB max
Return Loss 60 dB min, APC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Physical
Housing Material Plastic
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
