Iuron · Fiber

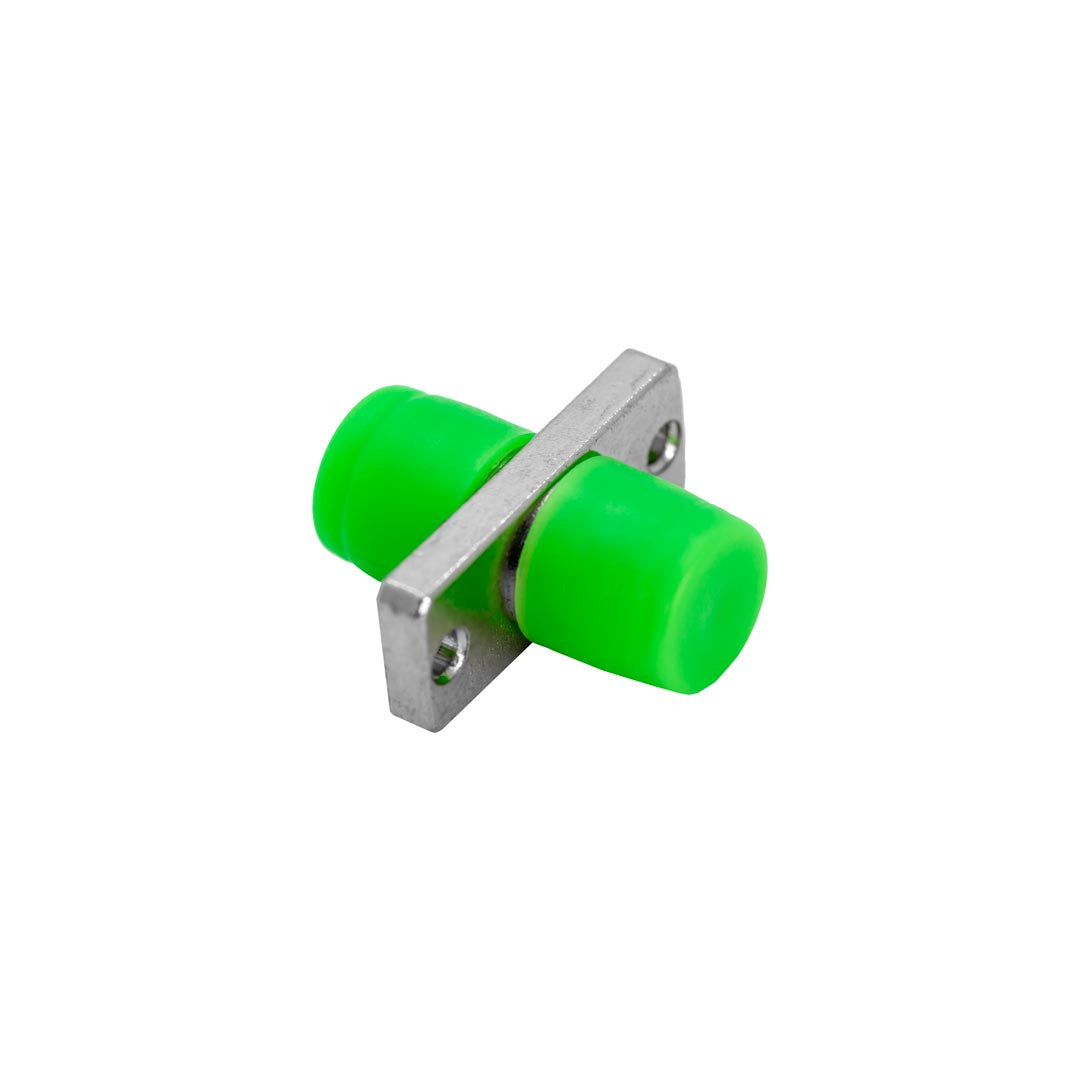

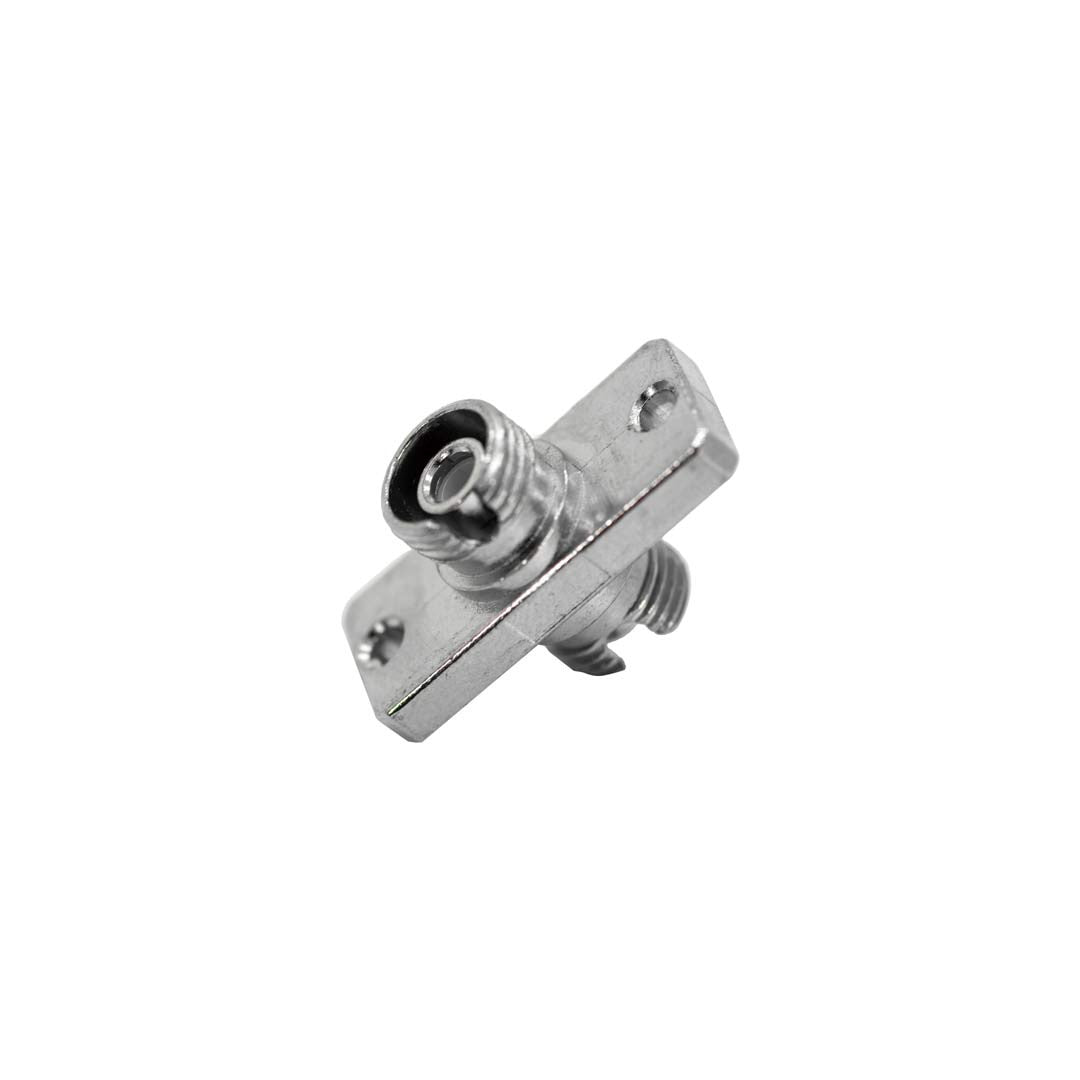

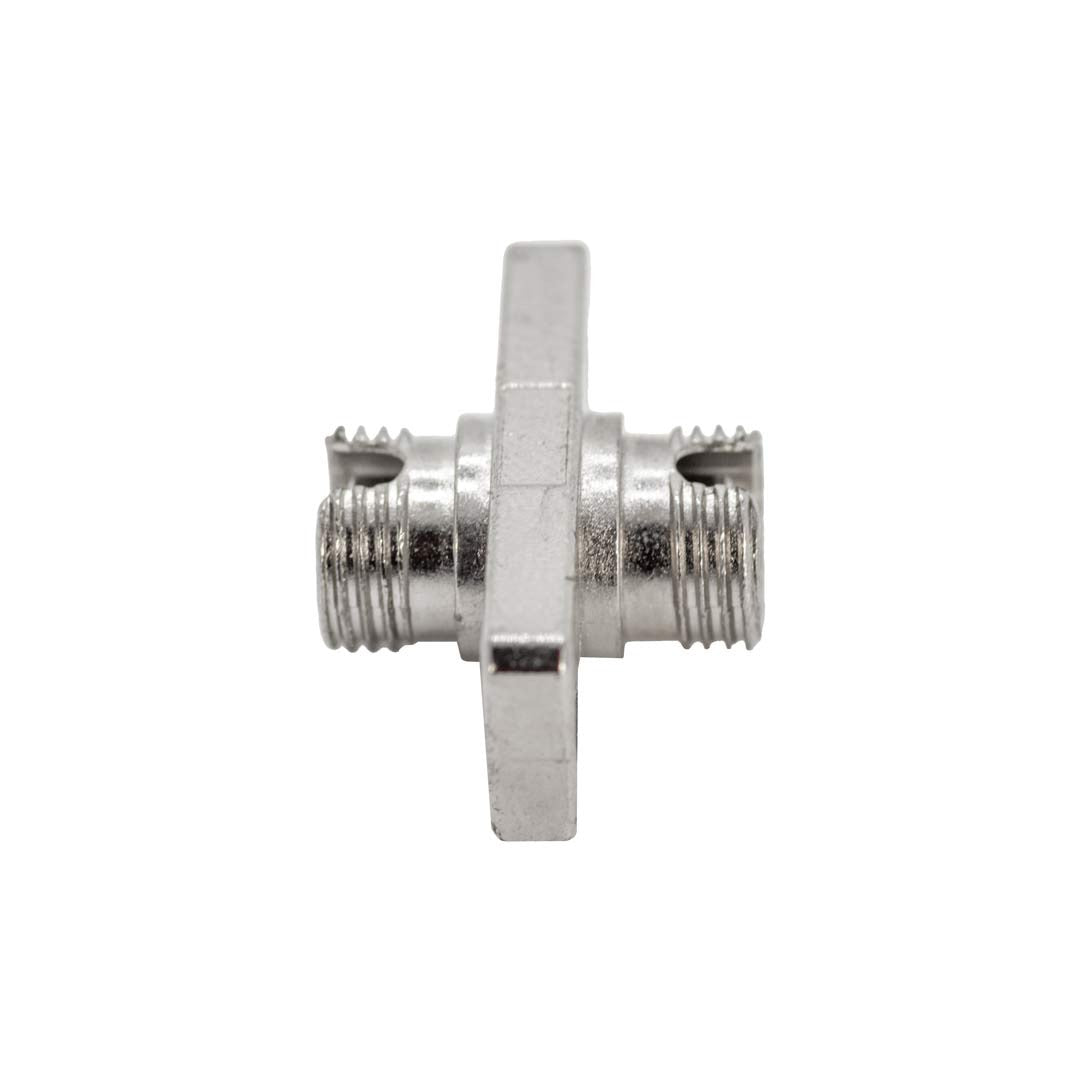

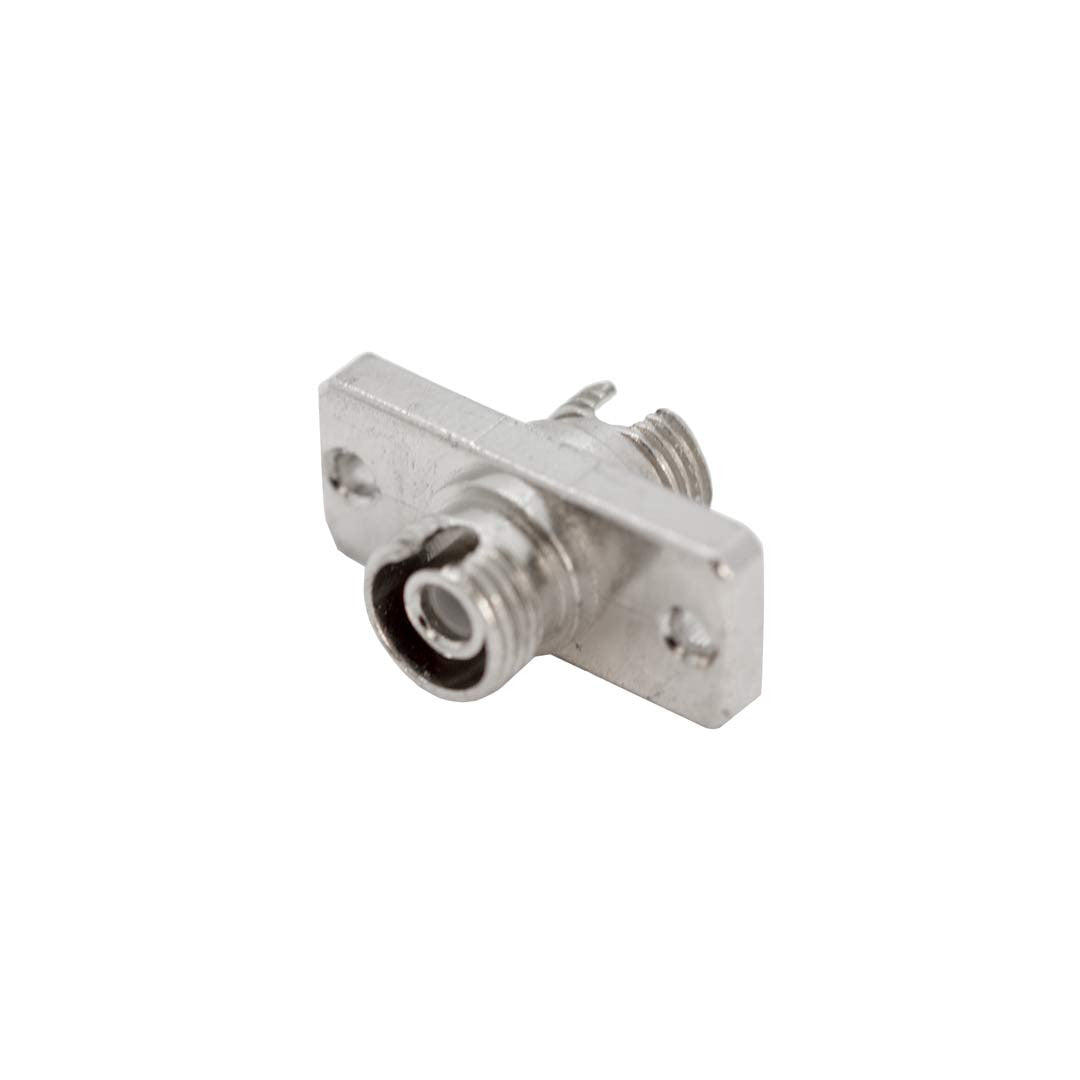

Iuron IU-CEN-CP-FCAPC-M FC/APC Fiber Optic Adapter, Rectangular Flange

Part number / SKU
IU-CEN-CP-FCAPC-M

$17.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Iuron IU-CEN-CP-FCAPC-M is an FC/APC fiber optic adapter with a rectangular flange. It joins two FC/APC connectors, aligning the fibers for a low loss connection in patch panels, fiber enclosures and test equipment.

It is rated for 0.2 dB maximum insertion loss, 60 dB minimum return loss for APC, 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: telecom networks, LANs, data processing networks and fiber test equipment that use FC connectors.
  • System fit: FC/APC patch cords and pigtails; panels with FC adapter cutouts.
  • Important to know: APC polish; mate only angled APC connectors.

Why teams choose it

Built for reliable networks

  • FC/APC coupling

    joins two FC connectors in one adapter.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-FCAPC-M
General
Brand Iuron
Model IU-CEN-CP-FCAPC-M
Device Type FC/APC fiber optic adapter
Interfaces
Connector FC to FC
Polish APC
Configuration Simplex
Flange Rectangular
Performance
Insertion Loss 0.2 dB max
Return Loss 60 dB min, APC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
