Iuron IU-CEN-CP-FCPC-M-D FC/PC Fiber Optic Adapter, Rectangular D Type, Metal

Part number / SKU
IU-CEN-CP-FCPC-M-D

$17.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

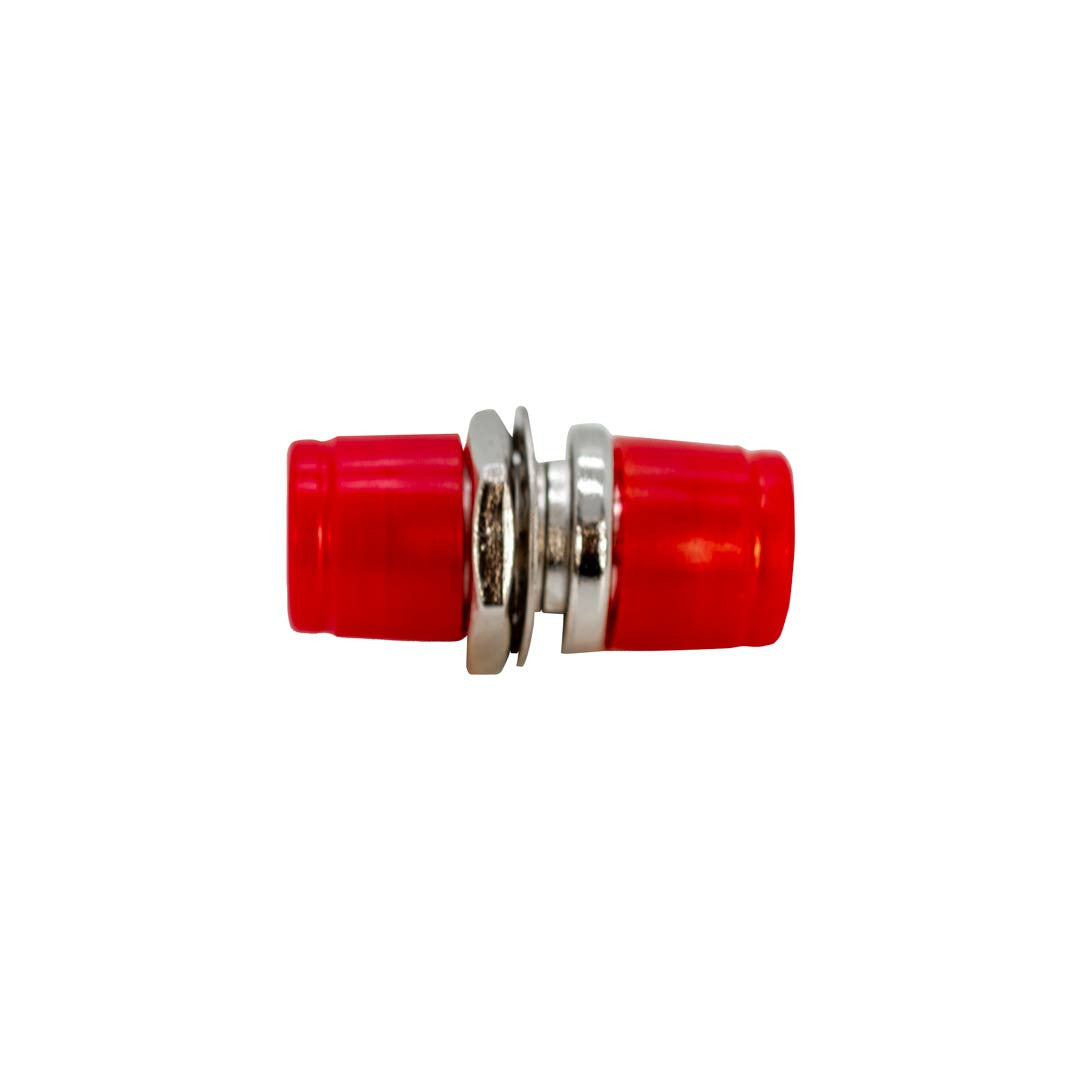

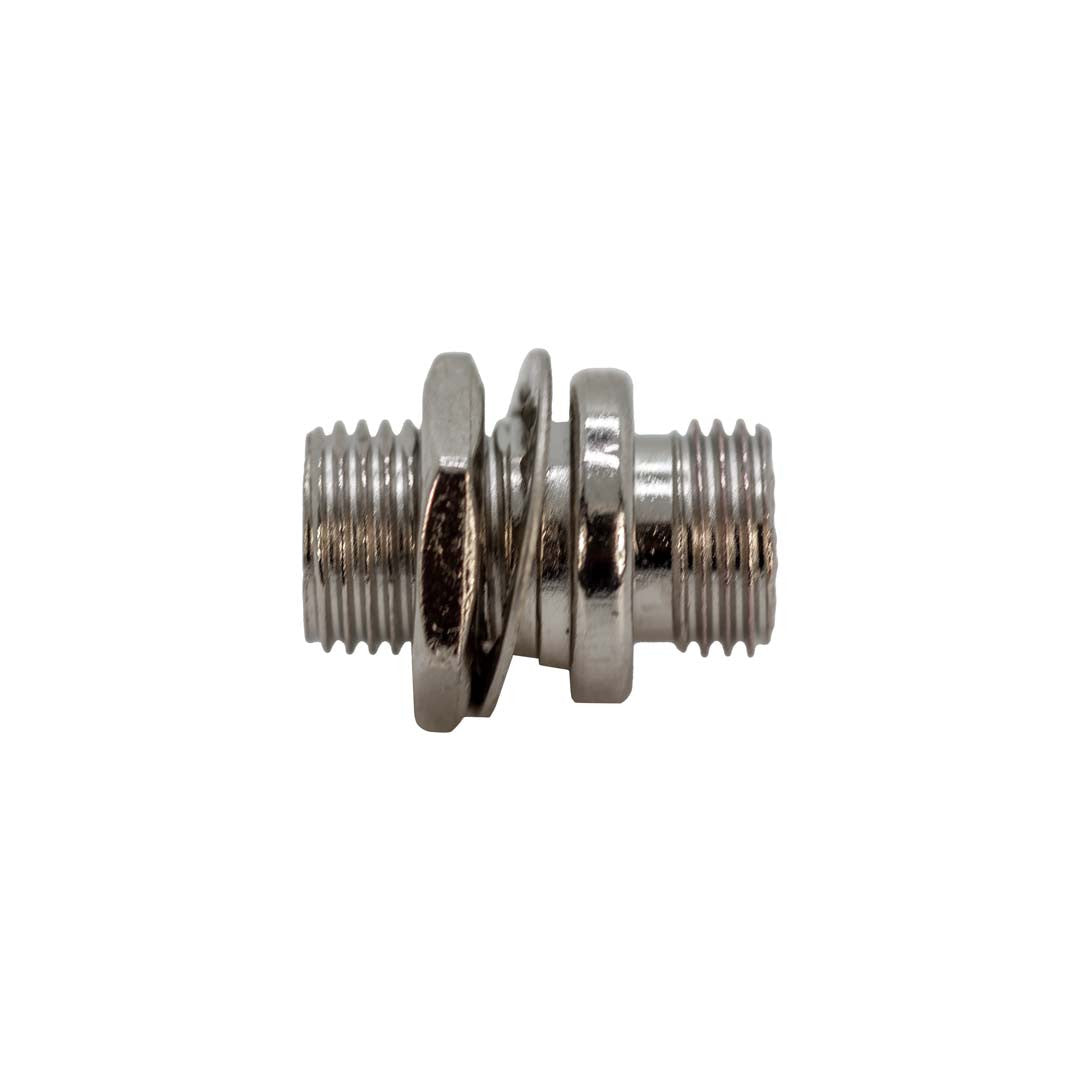

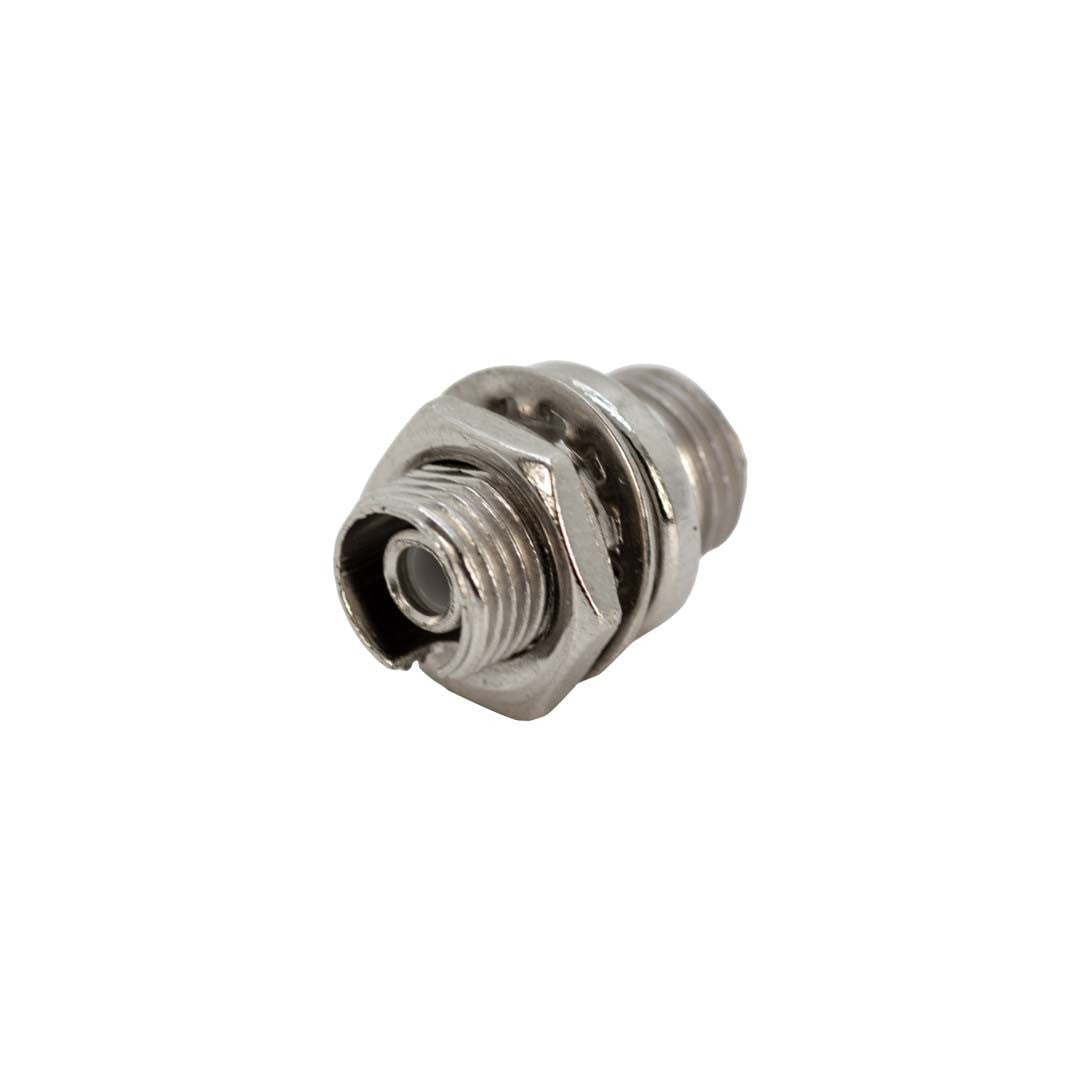

The Iuron IU-CEN-CP-FCPC-M-D is an FC/PC fiber optic adapter with a rectangular D type flange and metal body. It joins two FC/PC connectors, aligning the fibers for a low loss connection in patch panels, fiber enclosures and test equipment.

It is rated for 0.2 dB maximum insertion loss, 50 dB minimum return loss (UPC rating), 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: telecom networks, LANs, data processing networks and fiber test equipment that use FC connectors.
  • System fit: FC/PC patch cords and pigtails; panels with FC adapter cutouts.
  • Important to know: PC polish; use with flat polish PC or UPC connectors, not APC.

Why teams choose it

Built for reliable networks

  • FC/PC coupling

    joins two FC connectors in one adapter.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-FCPC-M-D
General
Brand Iuron
Model IU-CEN-CP-FCPC-M-D
Device Type FC/PC fiber optic adapter
Interfaces
Connector FC to FC
Polish PC
Configuration Simplex
Flange Rectangular, D type
Performance
Insertion Loss 0.2 dB max
Return Loss 50 dB min, UPC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Physical
Body Material Metal
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
