Iuron IU-CEN-CP-LCLC-SM-P LC/LC Single-Mode Fiber Optic Adapter

Part number / SKU
IU-CEN-CP-LCLC-SM-P

$15.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

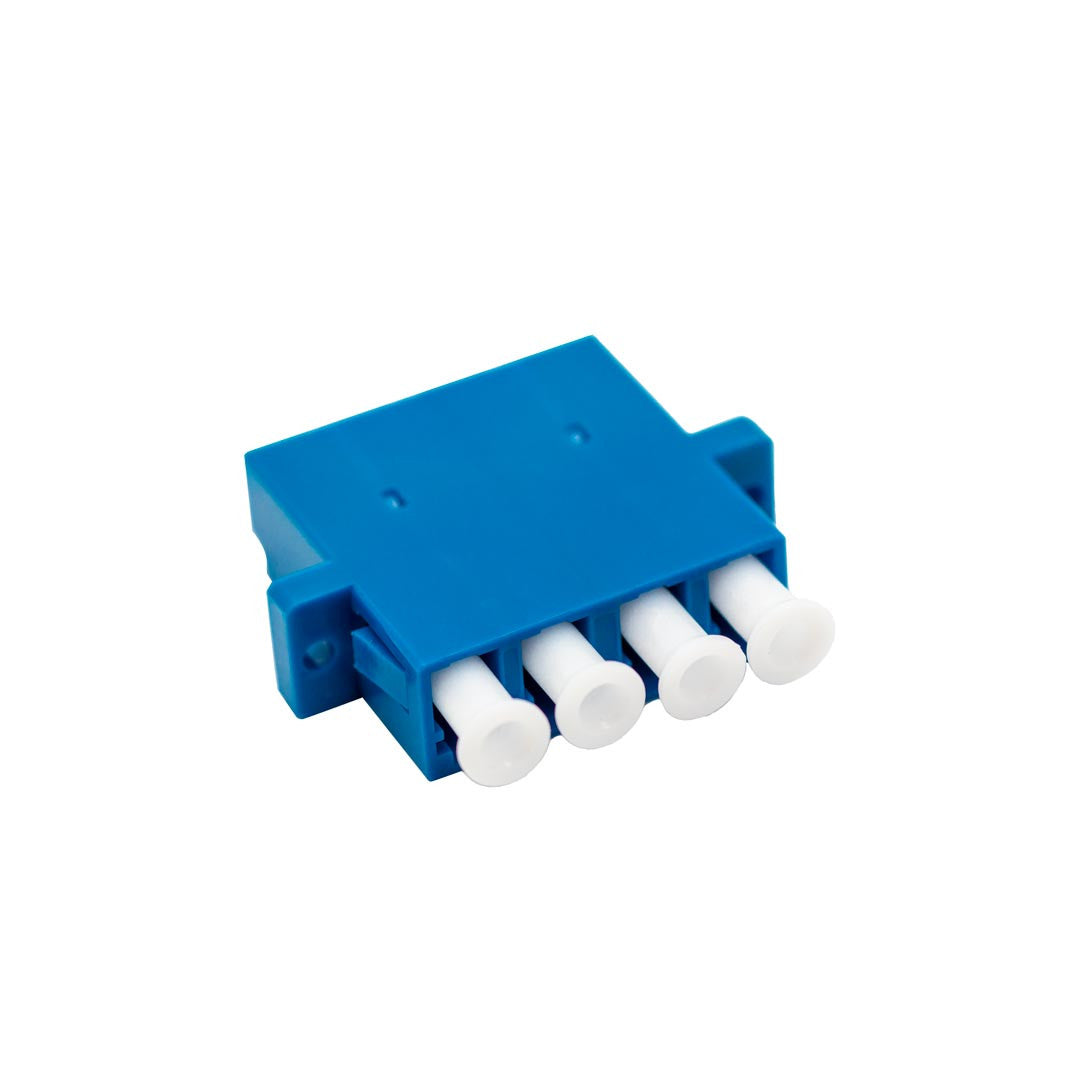

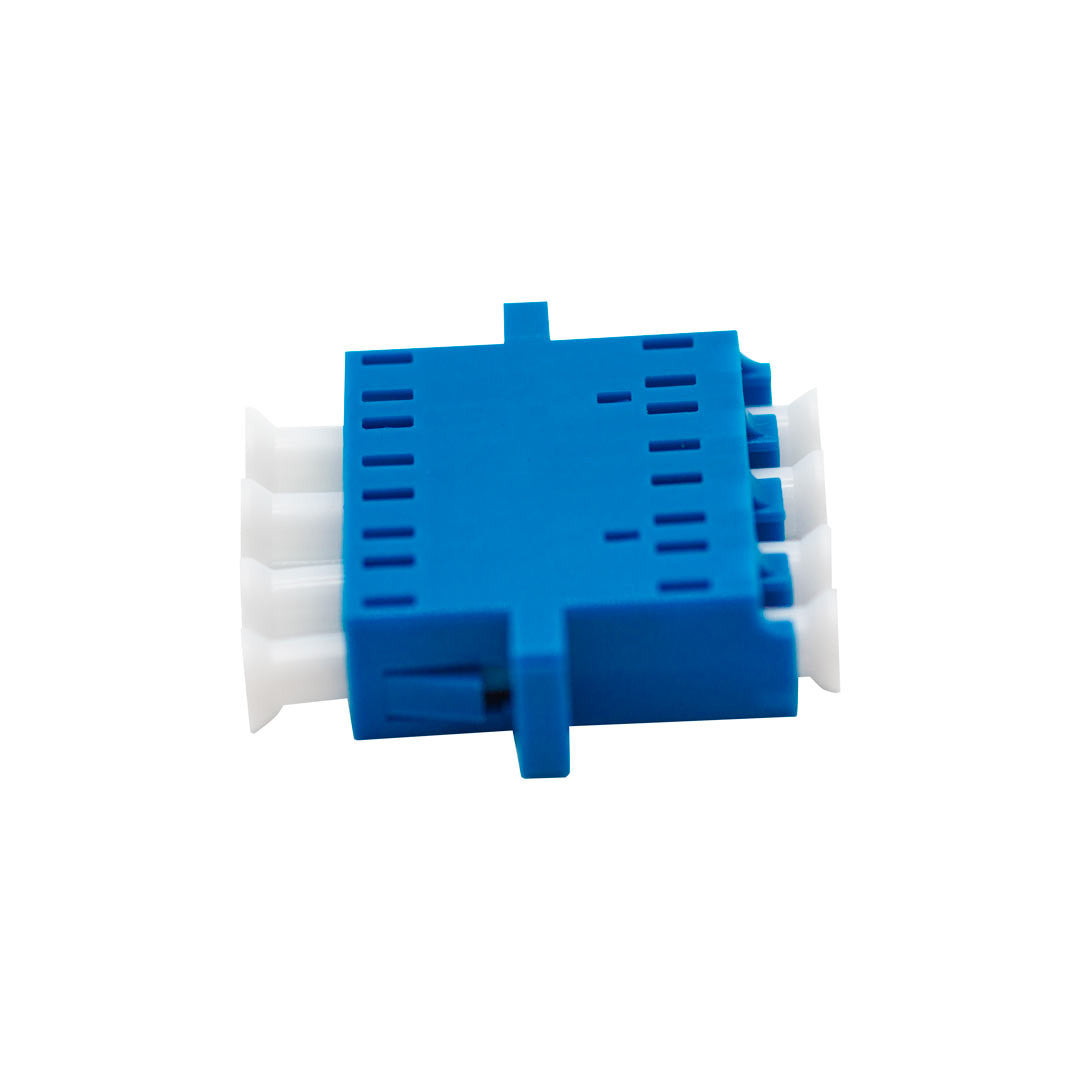

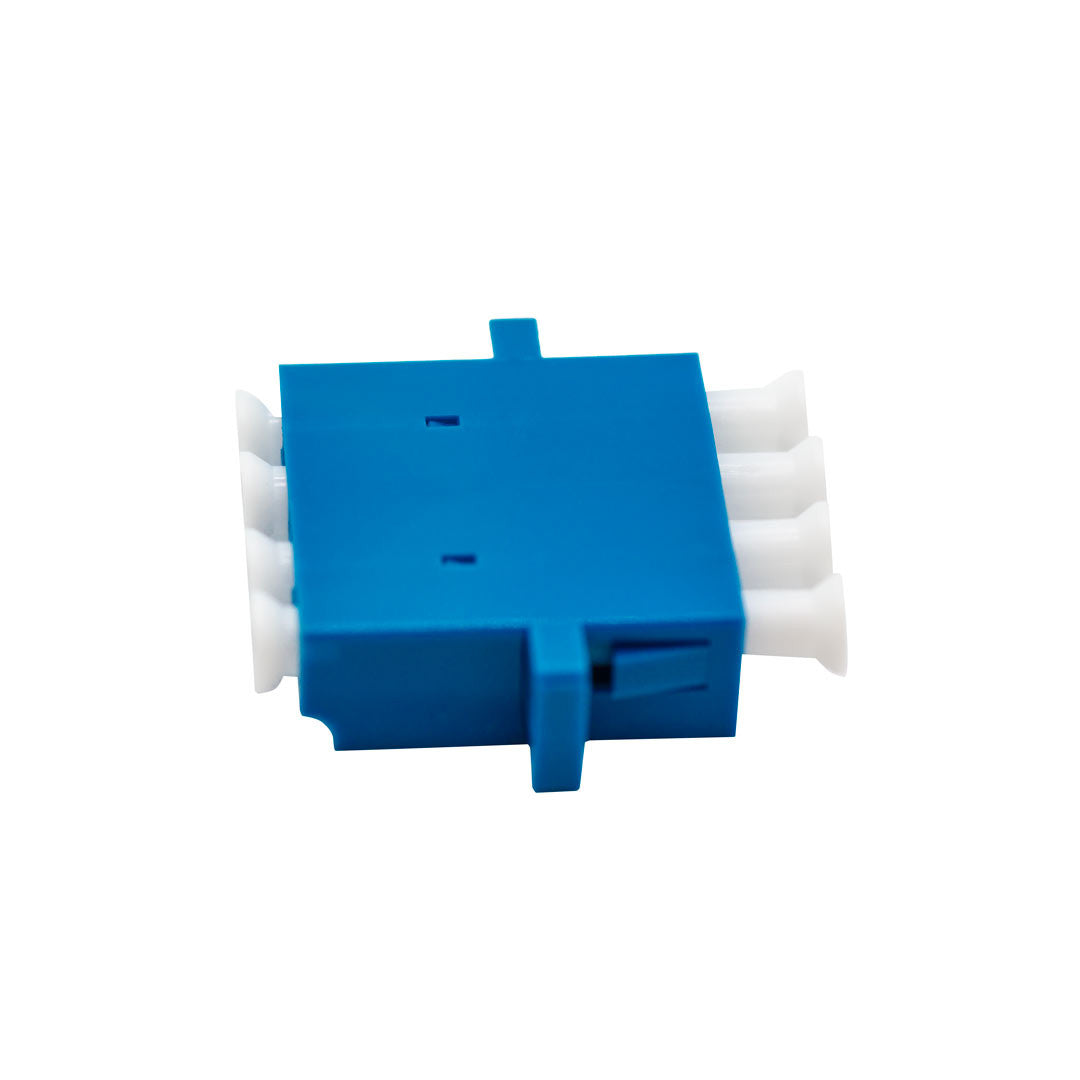

The Iuron IU-CEN-CP-LCLC-SM-P is an LC to LC single-mode fiber optic adapter with a plastic housing. It joins LC terminated patch cords and pigtails in patch panels, splice enclosures and test setups.

It is rated for 0.2 dB maximum insertion loss, return loss of 50 dB minimum for UPC and 60 dB minimum for APC, 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: single-mode LC connections in patch panels, enclosures and fiber test work.
  • System fit: LC single-mode patch cords and pigtails.
  • Important to know: check the port count and panel cutout against your panel before ordering.

Why teams choose it

Built for reliable networks

  • LC coupling

    joins LC single-mode connectors.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-LCLC-SM-P
General
Brand Iuron
Model IU-CEN-CP-LCLC-SM-P
Device Type LC/LC single-mode fiber optic adapter
Fiber Mode Single-mode
Interfaces
Connector LC to LC
Performance
Insertion Loss 0.2 dB max
Return Loss 50 dB min, UPC; 60 dB min, APC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Physical
Housing Material Plastic
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
