Iuron · Fiber

IURON IU-CEN-CP-SIMP-APC-P-4 Simplex APC Fiber Optic Adapter with Plastic Spring Cap, Pack of 5

Part number / SKU
IU-CEN-CP-SIMP-APC-P-4

$15.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

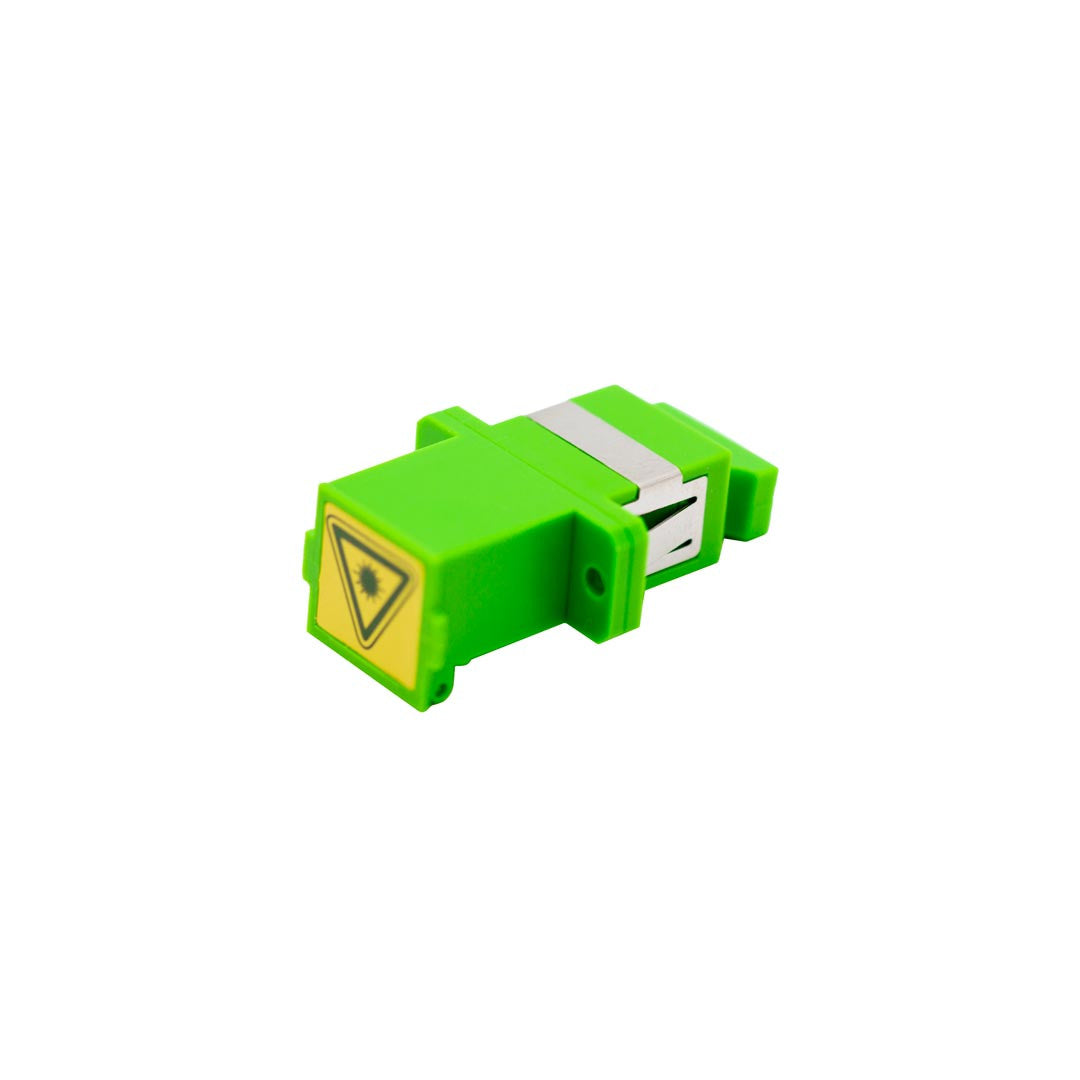

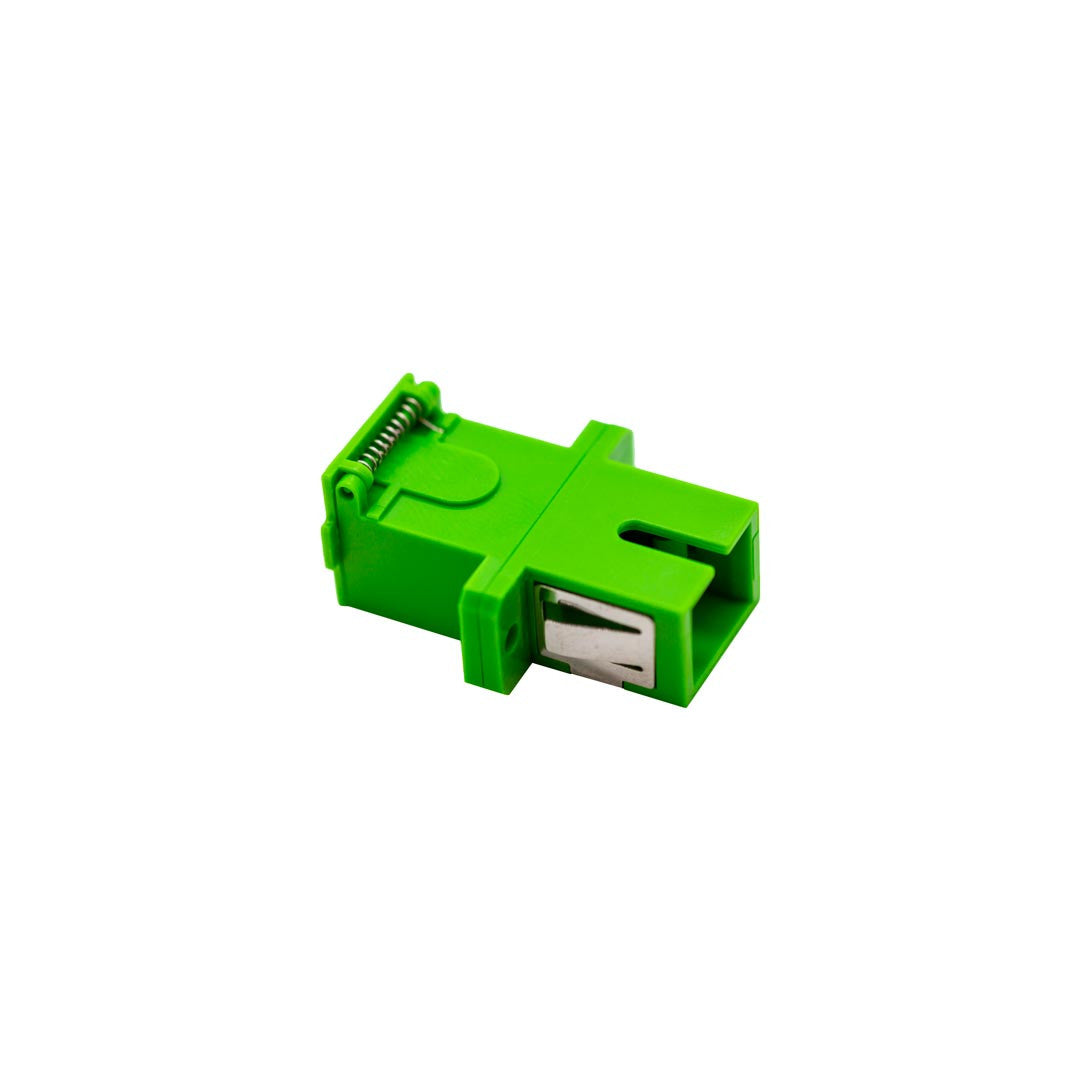

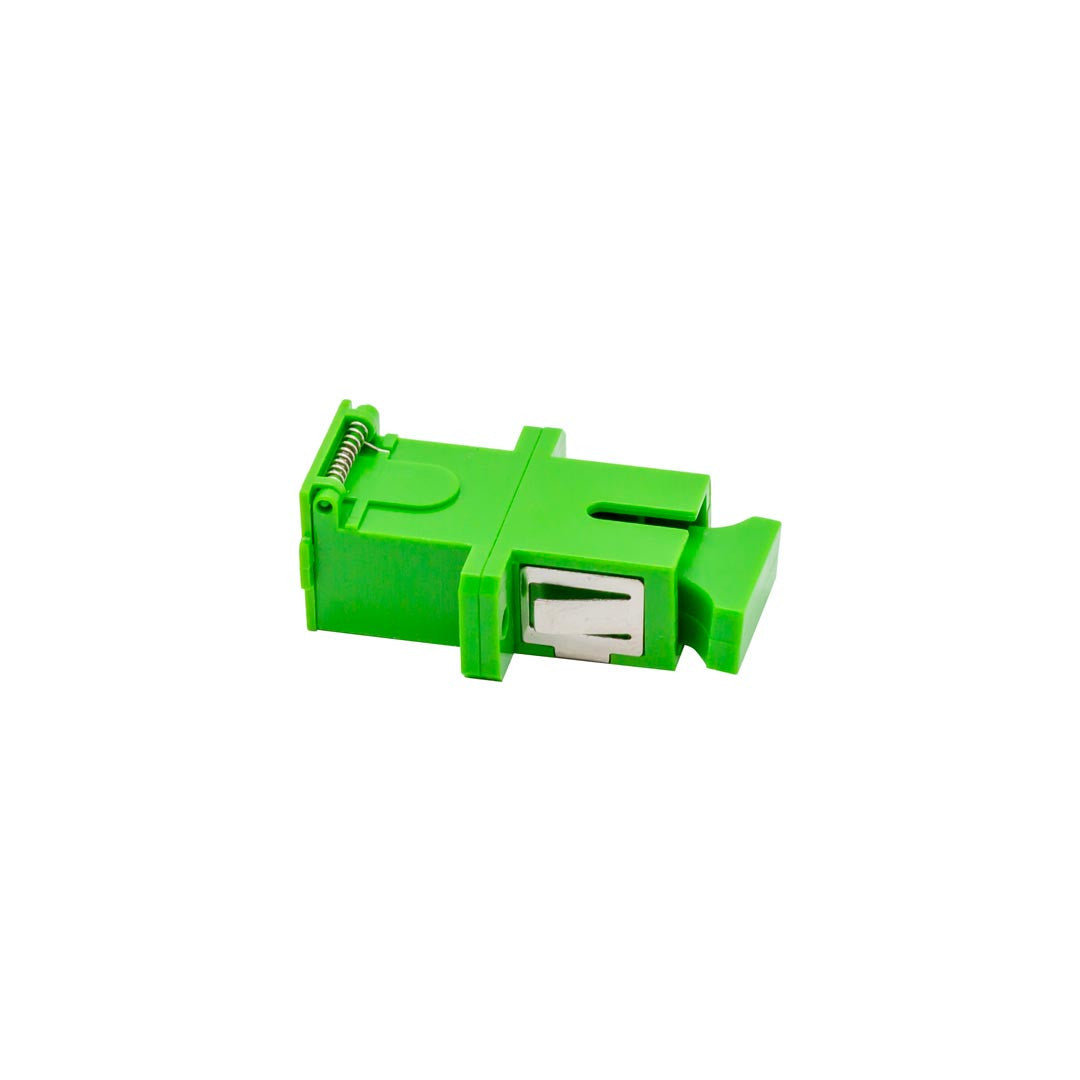

The IURON IU-CEN-CP-SIMP-APC-P-4 is a simplex fiber optic adapter for APC (angled physical contact) connectors, fitted with a plastic spring cap that covers the port when it is not in use.

It is rated for insertion loss of 0.2 dB or less, APC return loss of 60 dB or more and polarization dependent loss of 0.1 dB or less, with 0.2 dB or less change over 500 mating cycles. It operates from -40 to 75 °C.

  • Best for: joining APC patch cords and pigtails where low back reflection is needed.
  • System fit: APC polished connectors of the matching style on both sides.
  • Important to know: APC adapters mate APC connectors only; do not mix them with UPC connectors.

Why teams choose it

Built for reliable networks

  • Low back reflection

    APC return loss 60 dB or more.

  • Low loss

    insertion loss 0.2 dB or less.

  • Port protection

    plastic spring cap closes the unused port.

  • Wide temperature

    operates from -40 to 75 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-SIMP-APC-P-4
General
Brand IURON
Model IU-CEN-CP-SIMP-APC-P-4
Device Type Fiber optic adapter, simplex
Pack Quantity 5
Interfaces
Polish Type APC
Cap Type Plastic spring cap
Optical
Insertion Loss 0.2 dB or less
Return Loss 60 dB or more, APC
Polarization Dependent Loss 0.1 dB or less
Mechanical Endurance 0.2 dB or less change, 500 mating cycles
Exchangeability 0.2 dB or less
Environmental
Operating Temperature -40 to 75 °C
Storage Temperature -40 to 85 °C
Relative Humidity 95%
