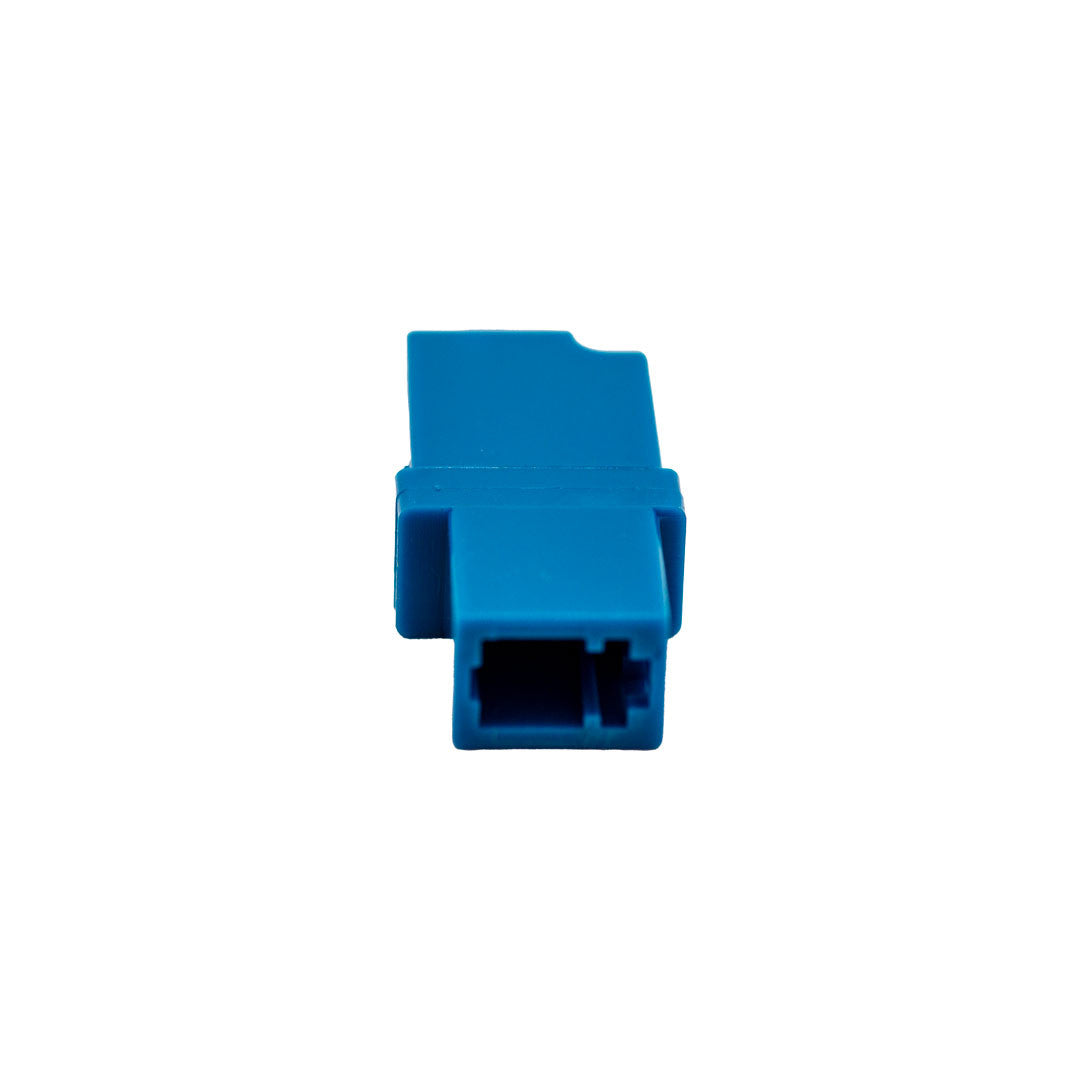

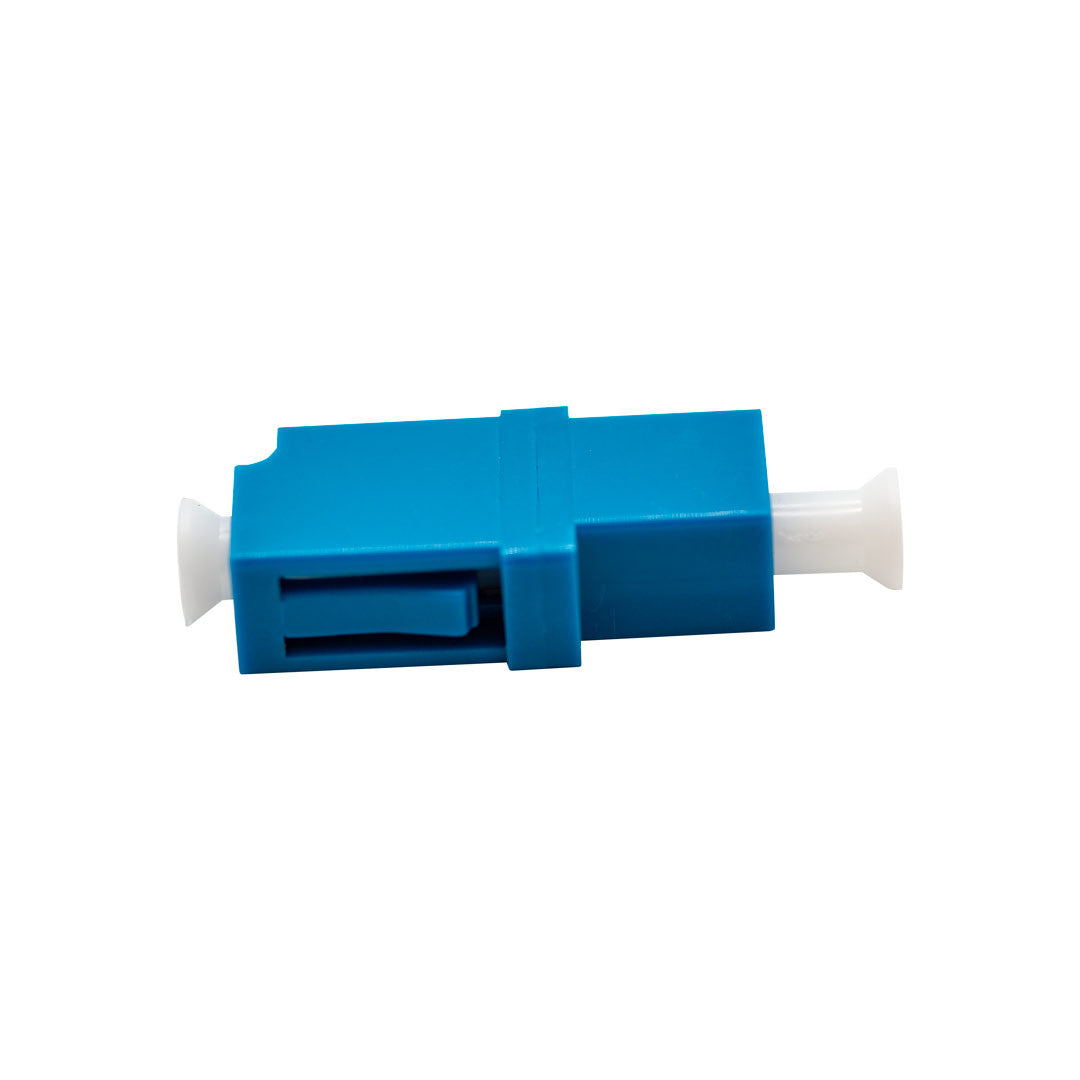

Iuron IU-CEN-CP-SIMP-LCUPC-P LC/UPC Simplex Fiber Optic Adapter, Long Ear

Part number / SKU
IU-CEN-CP-SIMP-LCUPC-P

$14.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Iuron IU-CEN-CP-SIMP-LCUPC-P is an LC/UPC simplex fiber optic adapter with a plastic housing and long ear flange. It joins two LC/UPC connectors in patch panels, fiber enclosures and test equipment.

It is rated for 0.2 dB maximum insertion loss, 50 dB minimum return loss (UPC), 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: LC simplex connections in telecom networks, LANs and fiber test work.
  • System fit: LC/UPC simplex patch cords and pigtails; panels cut for LC simplex adapters.
  • Important to know: UPC polish; do not mate APC connectors.

Why teams choose it

Built for reliable networks

  • LC/UPC coupling

    joins two LC simplex connectors.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-SIMP-LCUPC-P
General
Brand Iuron
Model IU-CEN-CP-SIMP-LCUPC-P
Device Type LC/UPC simplex fiber optic adapter
Interfaces
Connector LC to LC
Polish UPC
Configuration Simplex
Mounting Long ear flange
Performance
Insertion Loss 0.2 dB max
Return Loss 50 dB min, UPC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Physical
Housing Material Plastic
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
