Iuron IU-CEN-CP-SIMP-SCPC-M SC/PC Simplex Fiber Optic Adapter, Metal Housing, Long Ear

Part number / SKU
IU-CEN-CP-SIMP-SCPC-M

$15.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

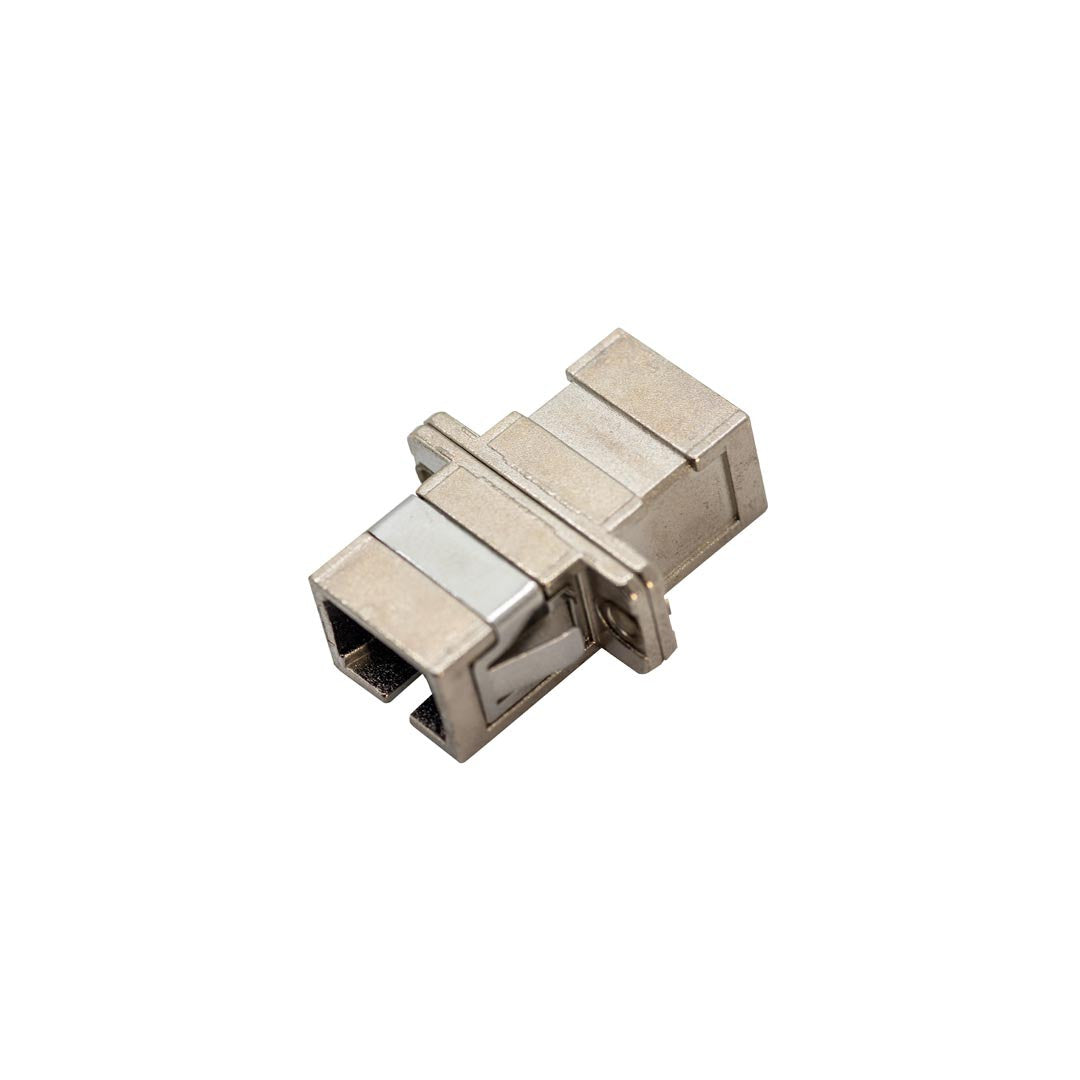

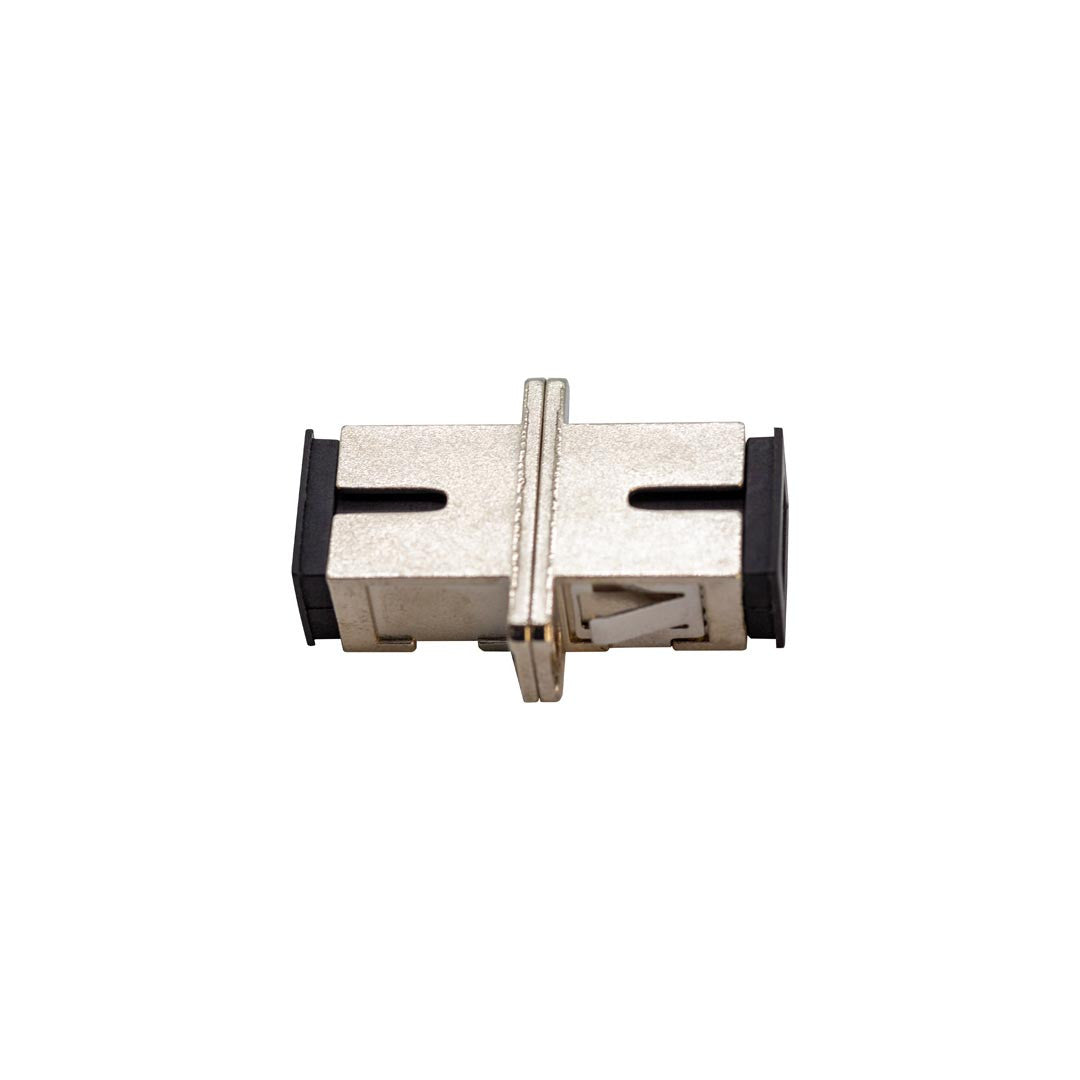

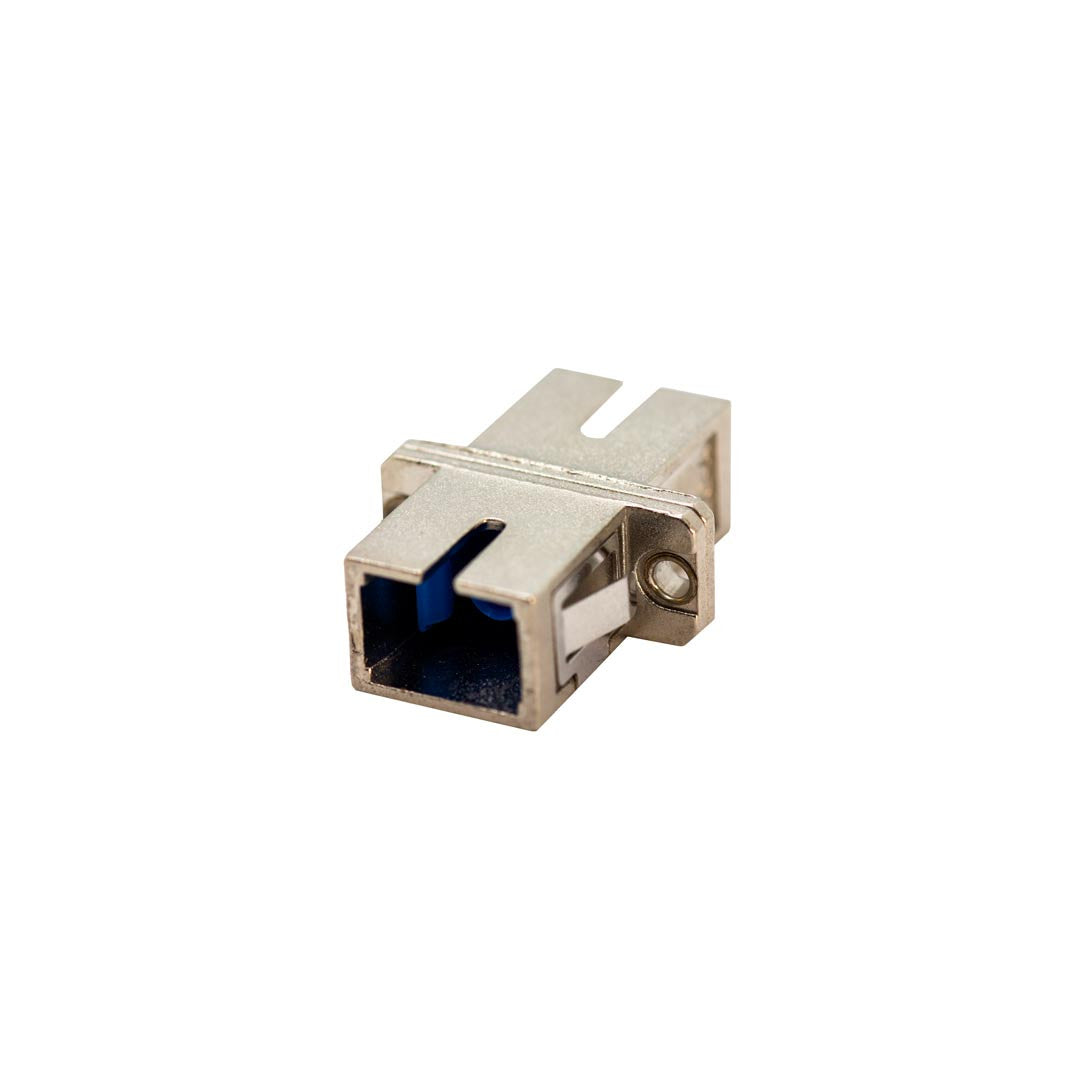

The Iuron IU-CEN-CP-SIMP-SCPC-M is an SC/PC simplex fiber optic adapter with a metal housing and long ear flange. It joins two SC connectors with flat PC or UPC polish in patch panels, fiber enclosures and test equipment.

It is rated for 0.2 dB maximum insertion loss, 50 dB minimum return loss (UPC rating), 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: SC simplex connections in telecom networks, LANs and fiber test work.
  • System fit: SC/PC or SC/UPC patch cords and pigtails; panels with SC simplex cutouts.
  • Important to know: PC polish; use with PC or UPC connectors, not APC.

Why teams choose it

Built for reliable networks

  • Metal housing

    SC simplex adapter in a metal body.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-SIMP-SCPC-M
General
Brand Iuron
Model IU-CEN-CP-SIMP-SCPC-M
Device Type SC/PC simplex fiber optic adapter
Interfaces
Connector SC to SC
Polish PC
Configuration Simplex
Mounting Long ear flange
Performance
Insertion Loss 0.2 dB max
Return Loss 50 dB min, UPC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Physical
Housing Material Metal
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
