Iuron · Fiber

Iuron IU-CEN-CP-STST-MM-M ST/ST Multimode Fiber Optic Adapter

Part number / SKU
IU-CEN-CP-STST-MM-M

$17.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

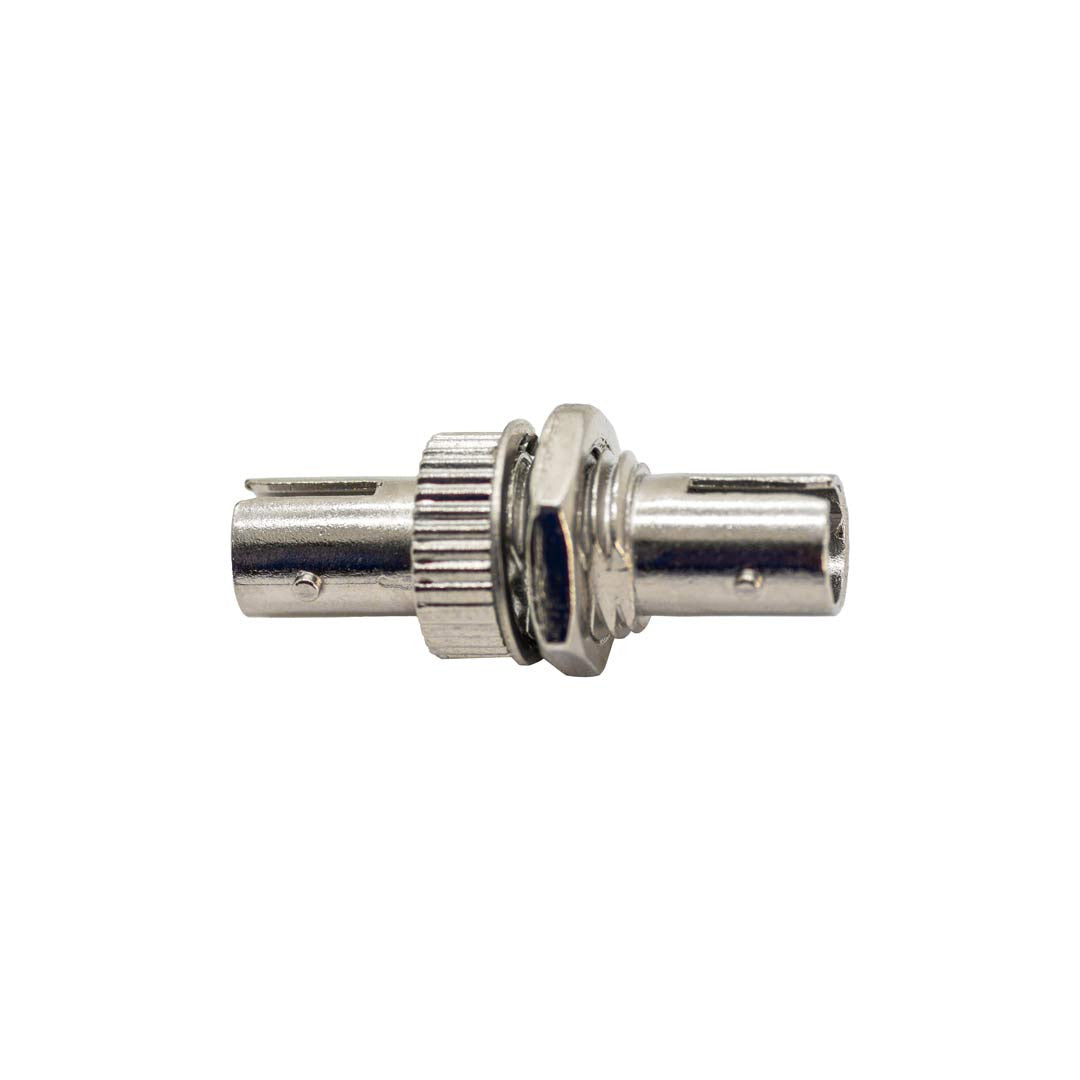

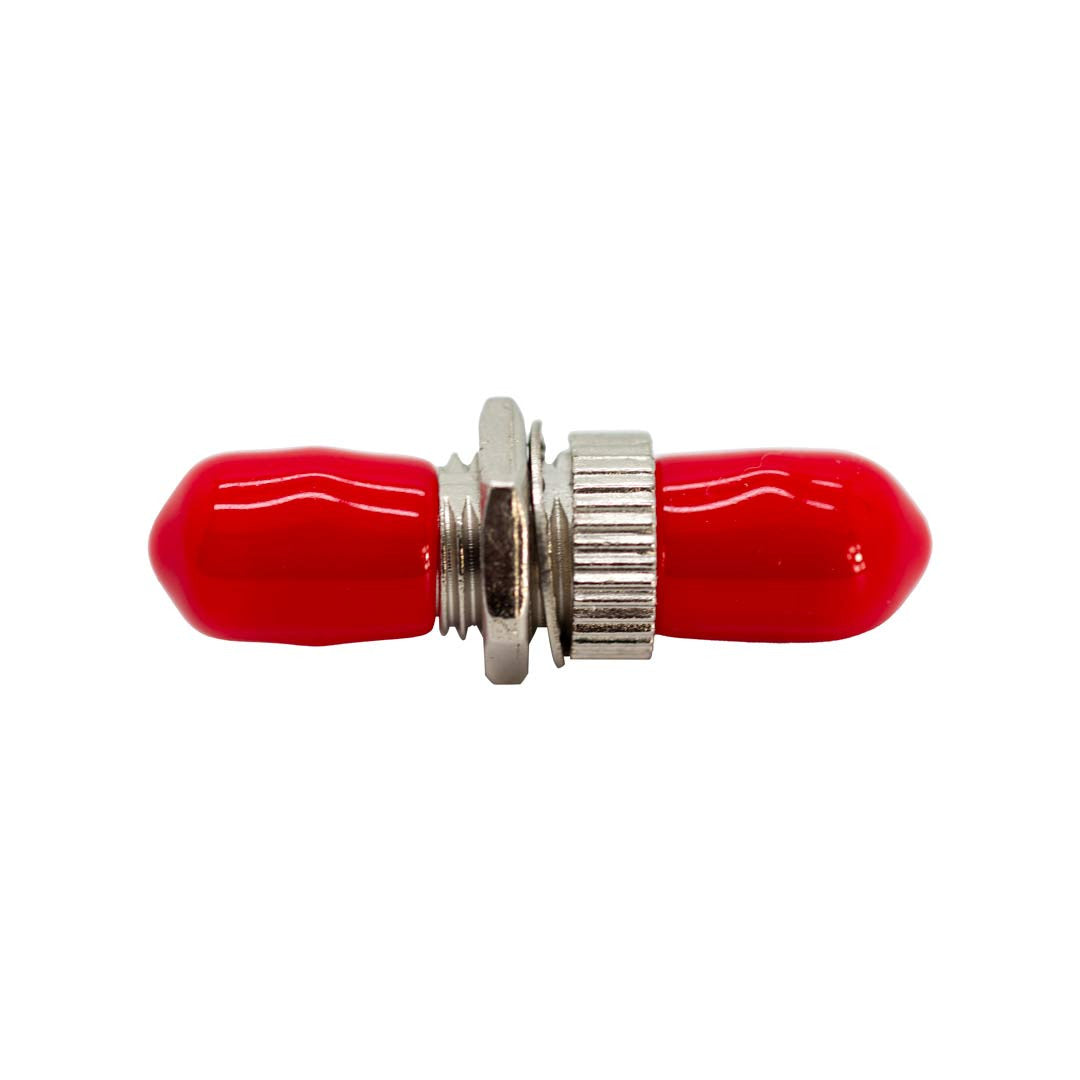

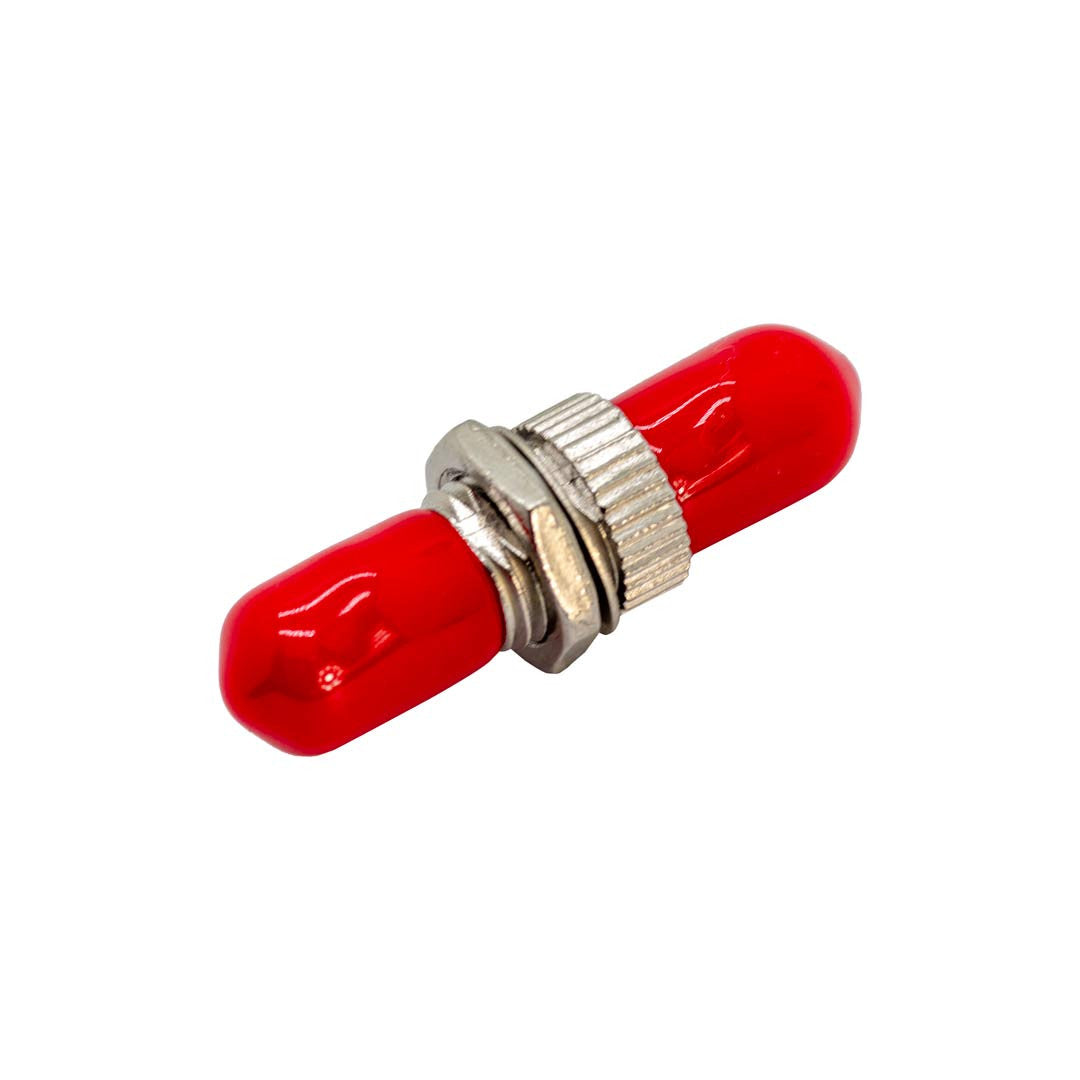

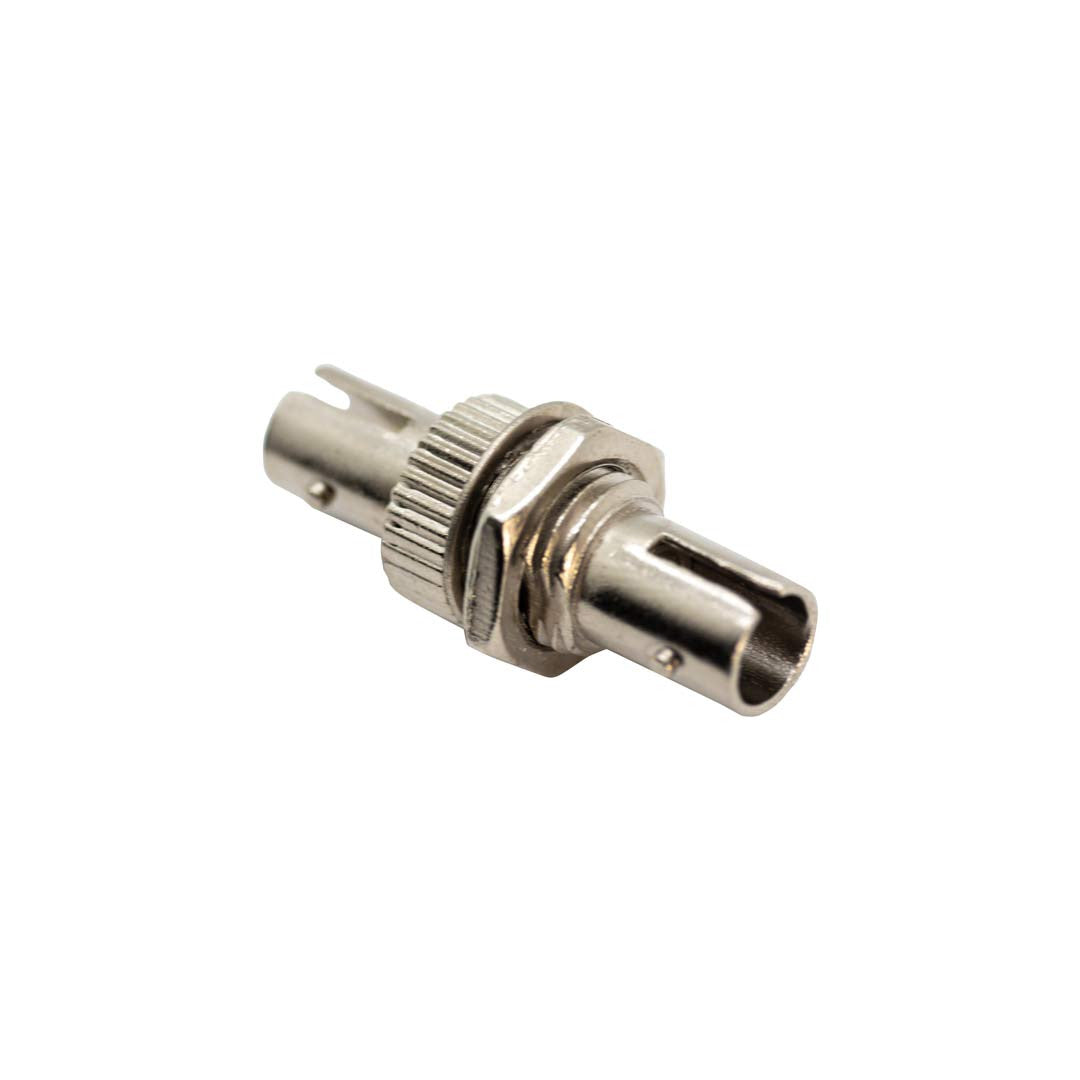

The Iuron IU-CEN-CP-STST-MM-M is an ST to ST multimode fiber optic adapter. It joins two ST connectors, aligning the fibers for a low loss connection in patch panels, fiber enclosures and test equipment.

It is rated for 0.2 dB maximum insertion loss, 50 dB minimum return loss (UPC rating), 0.2 dB maximum exchangeability and 0.1 dB maximum polarization dependent loss, with no more than 0.2 dB change after 500 mating cycles. Operating range is -40 to +60 °C, storage -40 to +85 °C, at up to 95% relative humidity.

  • Best for: ST multimode connections in telecom networks, LANs, data processing networks and test equipment.
  • System fit: ST multimode patch cords and pigtails; panels with ST adapter cutouts.
  • Important to know: multimode adapter; match it to multimode cable and connectors.

Why teams choose it

Built for reliable networks

  • ST coupling

    joins two ST multimode connectors.

  • Low loss

    0.2 dB max insertion loss and 0.2 dB max exchangeability.

  • Rated endurance

    0.2 dB max change over 500 mating cycles.

  • Wide temperature range

    operates from -40 to +60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-CEN-CP-STST-MM-M
General
Brand Iuron
Model IU-CEN-CP-STST-MM-M
Device Type ST/ST multimode fiber optic adapter
Fiber Mode Multimode
Interfaces
Connector ST to ST
Configuration Simplex
Performance
Insertion Loss 0.2 dB max
Return Loss 50 dB min, UPC
Exchangeability 0.2 dB max
Polarization Dependent Loss 0.1 dB max
Mechanical Endurance 0.2 dB max change over 500 mating cycles
Environmental
Operating Temperature -40 to +60 °C
Storage Temperature -40 to +85 °C
Relative Humidity 95%
