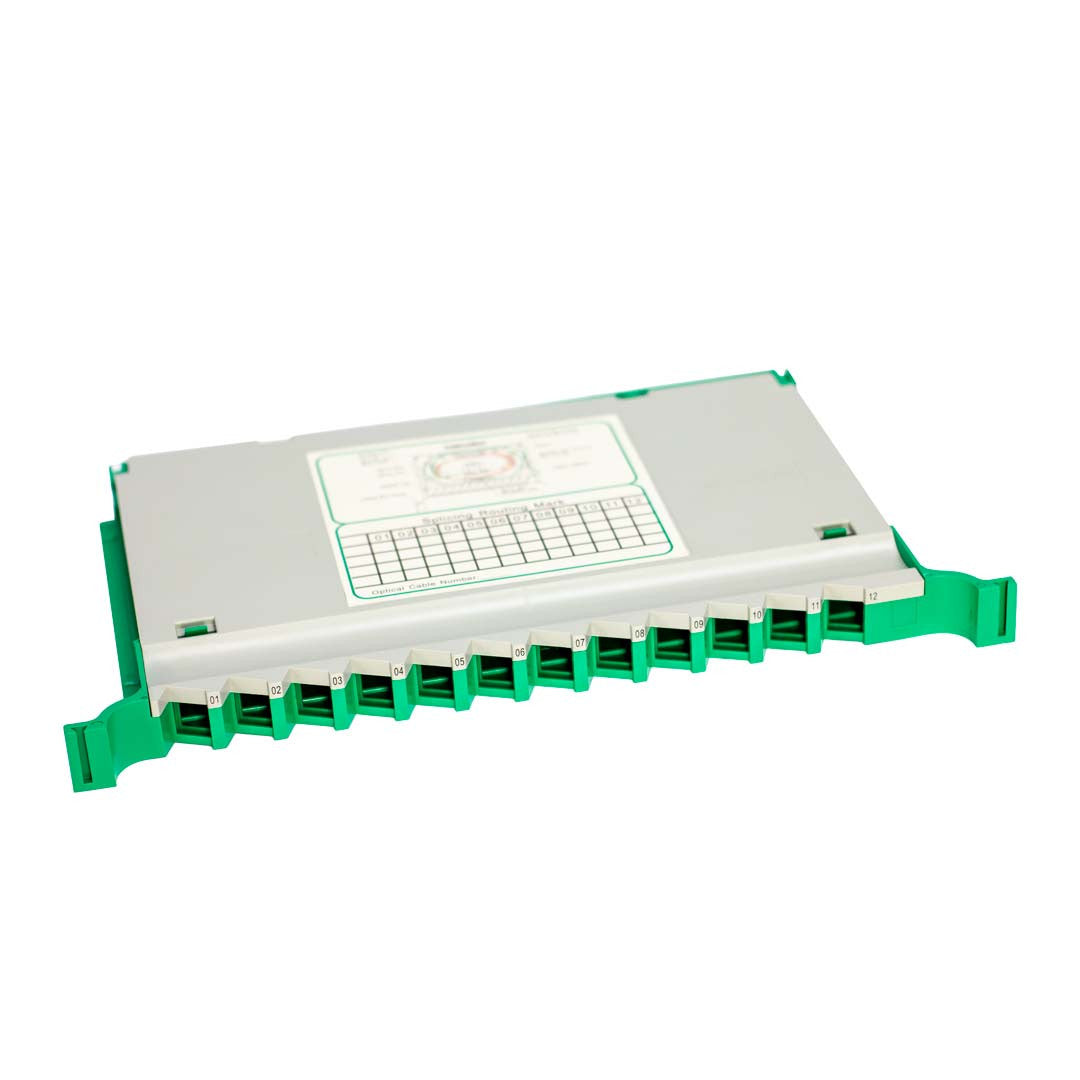

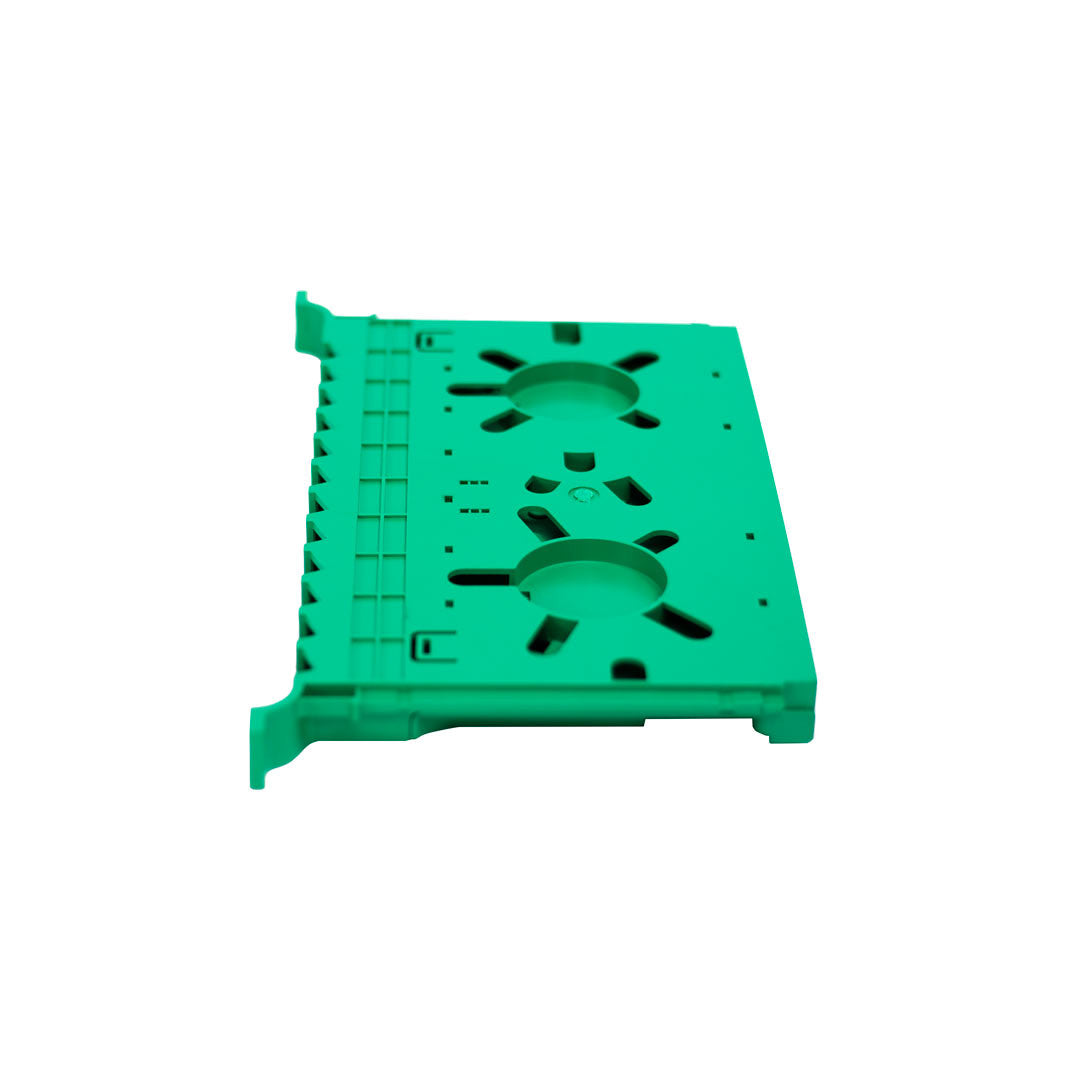

Iuron Optical Fiber Patch Panel 12 Core Splice Tray V2 Empty

PRODUCT TITLE

Iuron Optical Fiber Patch Panel 12 Core Splice Tray V2 Empty

PRODUCT OVERVIEW

IU-CEN-ODF-12-TRAY-V2 - 12 Core Fiber Optic Splice Tray V2.0

PRODUCT TYPE / CATEGORY

• Networking
• Fiber

KEY FEATURES

• Welding Plate : Suitable for high-density wiring boxes and outdoor optical cable transfer boxes. It facilitates the welding of light adapters and pigtail installations.
• Disk-Line Channels : Each 12-core unit, pigtail, cable, and beam tube has dedicated disk-line channels for hierarchical management and effective protection against damage.

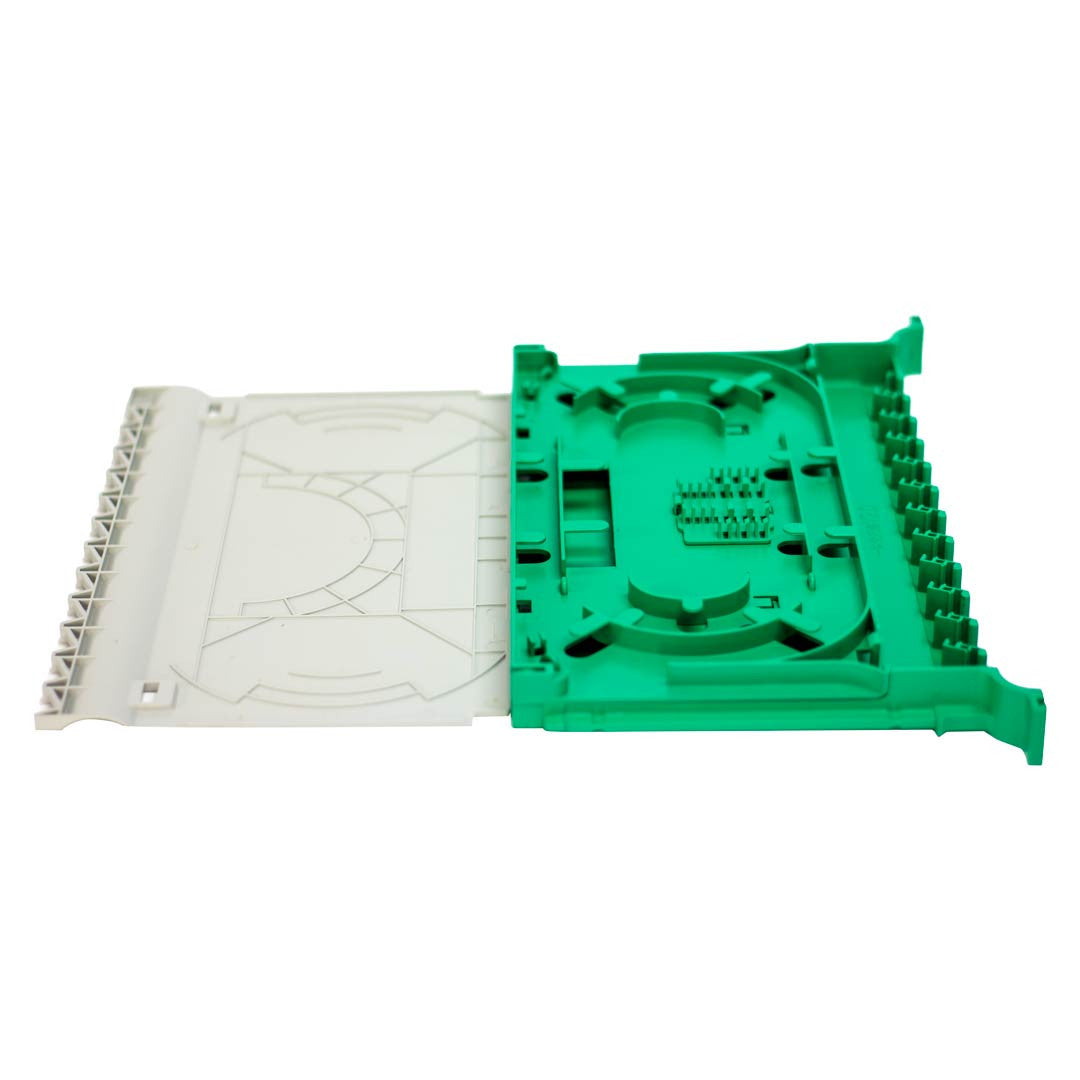

• Three-Tier Structure : Consists of a bottom plate for wiring, a middle plate for welding, and a top cover for integration, ensuring ease of operation.
• Bend Radius Protection : Maintains a bend radius greater than 40mm for optical fibers at any position.
• Adapter Positioning : Adapters are angled at 30 degrees to ensure adequate bending radius for jump fibers and prevent laser eye injuries.
• Welding and Wiring Instructions : Simplifies record-keeping for welding and wiring activities.
• Adapter Compatibility : Supports SC, FC, LC, and ST adapters.
• Fiber Suitability : Suitable for both ribbon and bunchy optical fibers.
• Installation Versatility : Can be installed in ODFs and terminal boxes.
• High-Density Wiring Boxes
• Outdoor Optical Cable Transfer Boxes
• Optical Distribution Frames (ODF)
• Terminal Boxes
• Installation Dimensions : 304mm x 182mm x 25mm (excluding slides and cable guiding parts)
• Design : Disk mode ensures fiber bending radius and redundancy
• Material : Made of durable ABS plastic

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-CEN-ODF-12-TRAY-V2
• Product Type: Fiber
• Welding Plate : Suitable for high-density wiring boxes and outdoor optical cable transfer boxes. It facilitates the welding of light adapters and pigtail installations.
• Disk-Line Channels : Each 12-core unit, pigtail, cable, and beam tube has dedicated disk-line channels for hierarchical management and effective protection against damage.
• Three-Tier Structure : Consists of a bottom plate for wiring, a middle plate for welding, and a top cover for integration, ensuring ease of operation.
• Bend Radius Protection : Maintains a bend radius greater than 40mm for optical fibers at any position.
• Adapter Positioning : Adapters are angled at 30 degrees to ensure adequate bending radius for jump fibers and prevent laser eye injuries.
• Welding and Wiring Instructions : Simplifies record-keeping for welding and wiring activities.
• Adapter Compatibility : Supports SC, FC, LC, and ST adapters.
• Fiber Suitability : Suitable for both ribbon and bunchy optical fibers.
• Installation Versatility : Can be installed in ODFs and terminal boxes.
• High-Density Wiring Boxes
• Outdoor Optical Cable Transfer Boxes
• Optical Distribution Frames (ODF)
• Terminal Boxes
• Installation Dimensions : 304mm x 182mm x 25mm (excluding slides and cable guiding parts)
• Design : Disk mode ensures fiber bending radius and redundancy
• Material : Made of durable ABS plastic
