Iuron IU-CEN-ODF-12-TRAY-V3 12-Core Optical Fiber Splice Tray SC/FC/LC/ST

PRODUCT OVERVIEW

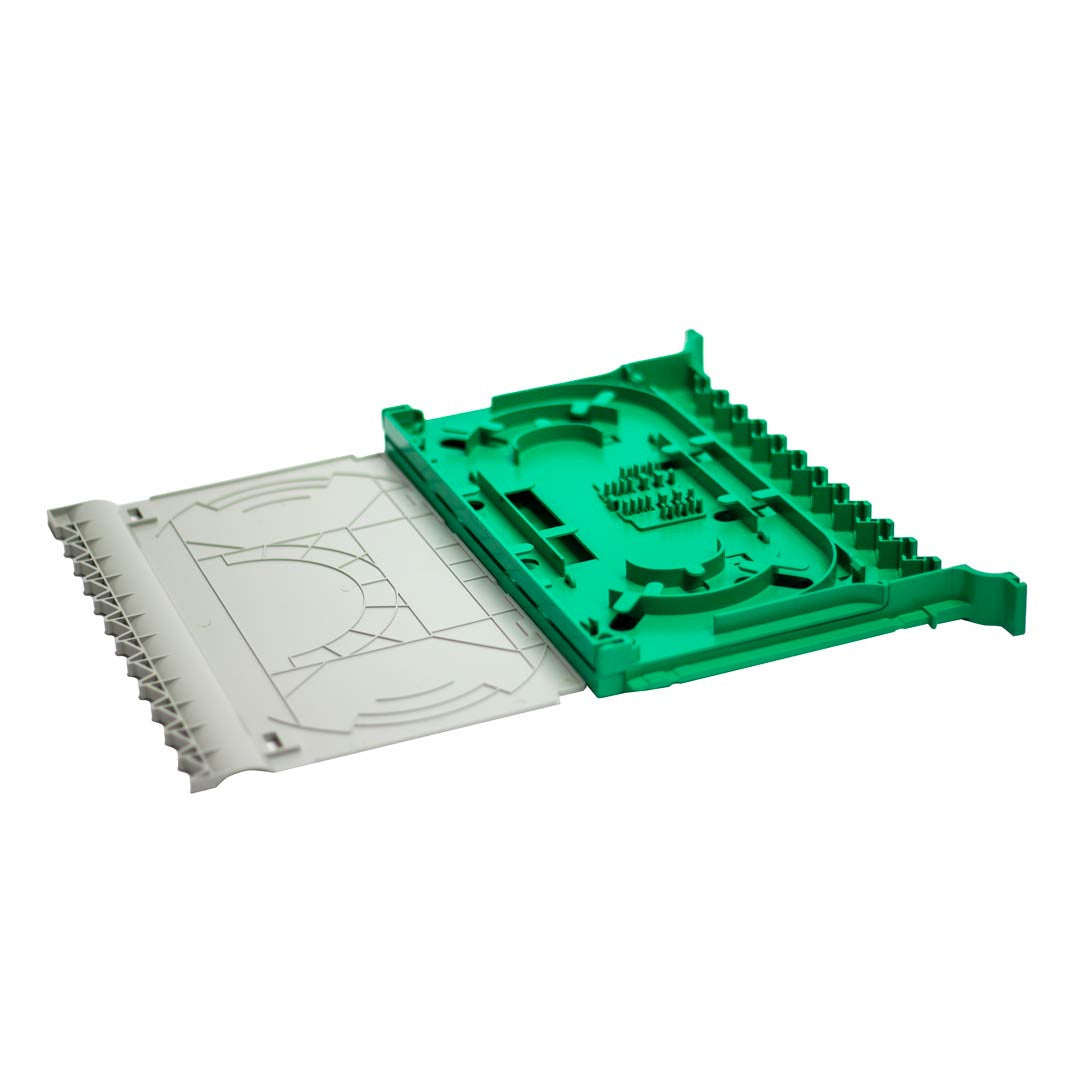

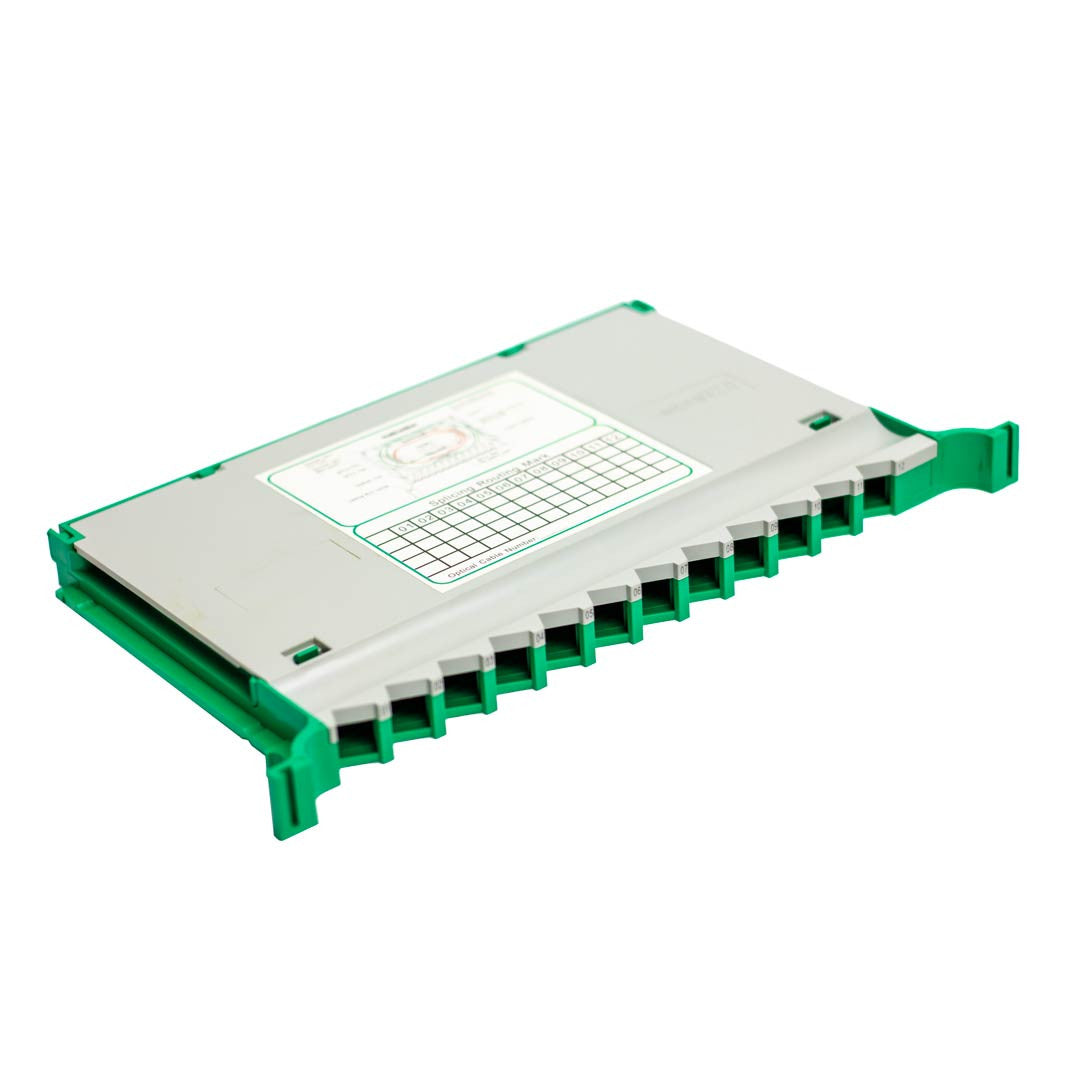

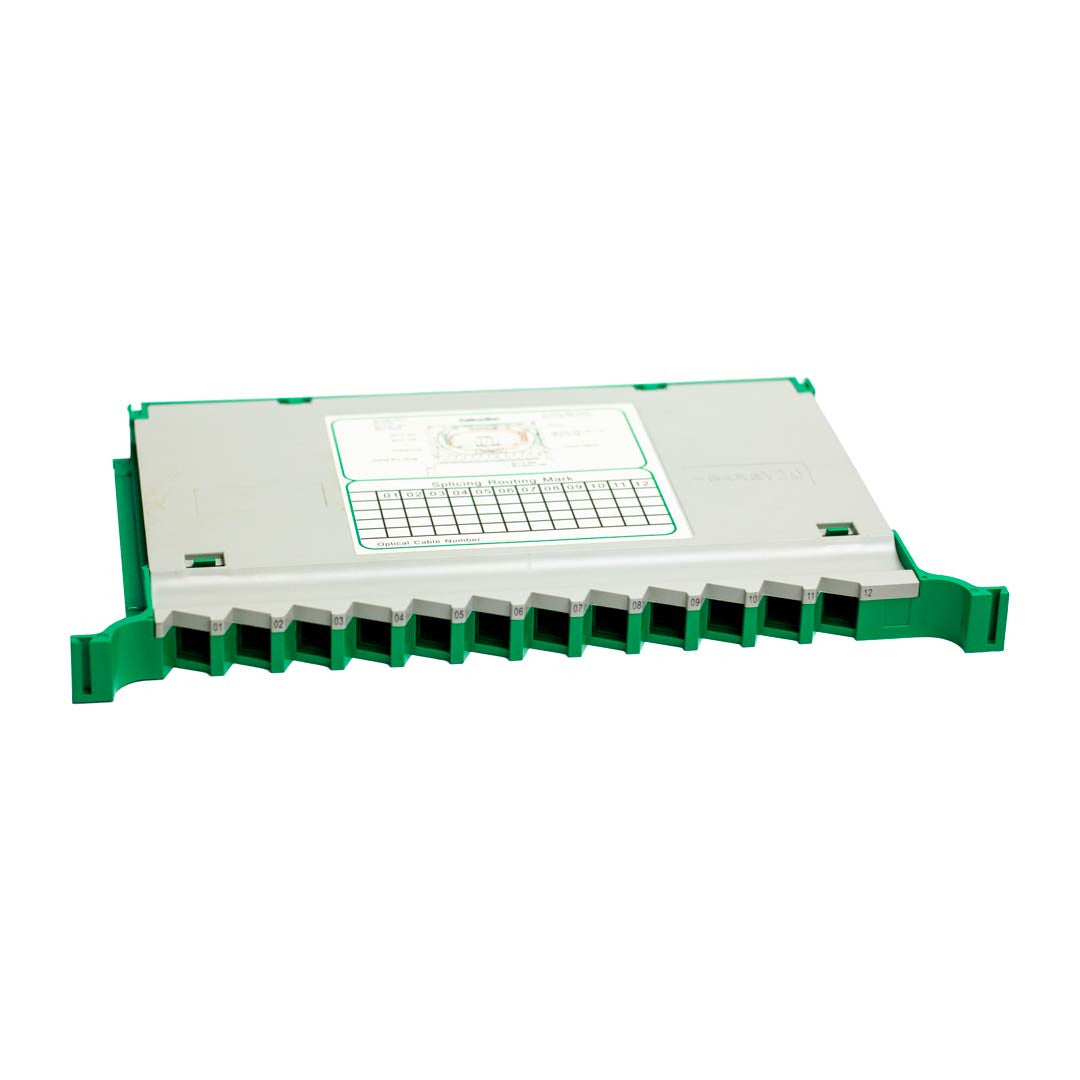

IU-CEN-ODF-12-TRAY-V3 - 12 Core Fiber Optic Splice Tray V3.0

PRODUCT TYPE

Networking Cable

KEY FEATURES

• Welding Plate: Widely used in high-density wiring boxes and outdoor optical cable transfer boxes. Supports light welding, adapter pigtail installation, and a small number of asylums.
• 12-Core Unit: Each unit accommodates pigtails, cables, and beam tubes, providing hierarchical management and effective protection from damage.
• Three-Tier Structure: Includes a bottom plate for wiring, a middle plate for welding, and a top cover for integration, making the process easy to operate.
• Optimal Bend Radius: Ensures that the bend radius of optical fiber at any position is greater than 40mm.
• Adapter Positioning: Adapters are positioned at a 30-degree angle to guarantee the bend radius and prevent laser eye injuries.
• Welding and Wiring Instructions: Facilitates easy welding and wiring records.
• Adapter Compatibility: Suitable for SC, FC, LC, and ST adapters.
• Fiber Types: Suitable for both ribbon and bunchy optical fibers.
• Installation: Can be installed in ODF and terminal boxes.
• High-Density Wiring Boxes
• Outdoor Optical Cable Transfer Boxes
• ODF and Terminal Boxes
• Installation Dimensions: 304mm x 182mm x 25mm (slides and cable guiding parts not included)
• Disk Mode Design: Ensures the fiber bending radius and redundancy
• Material: ABS

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-CEN-ODF-12-TRAY-V3
• Product Type: Fiber
• Welding Plate: Widely used in high-density wiring boxes and outdoor optical cable transfer boxes. Supports light welding, adapter pigtail installation, and a small number of asylums.
• 12-Core Unit: Each unit accommodates pigtails, cables, and beam tubes, providing hierarchical management and effective protection from damage.
• Three-Tier Structure: Includes a bottom plate for wiring, a middle plate for welding, and a top cover for integration, making the process easy to operate.
• Optimal Bend Radius: Ensures that the bend radius of optical fiber at any position is greater than 40mm.
• Adapter Positioning: Adapters are positioned at a 30-degree angle to guarantee the bend radius and prevent laser eye injuries.
• Welding and Wiring Instructions: Facilitates easy welding and wiring records.
• Adapter Compatibility: Suitable for SC, FC, LC, and ST adapters.
• Fiber Types: Suitable for both ribbon and bunchy optical fibers.
• Installation: Can be installed in ODF and terminal boxes.
• High-Density Wiring Boxes
• Outdoor Optical Cable Transfer Boxes
• ODF and Terminal Boxes
• Installation Dimensions: 304mm x 182mm x 25mm (slides and cable guiding parts not included)
• Disk Mode Design: Ensures the fiber bending radius and redundancy
• Material: ABS

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
