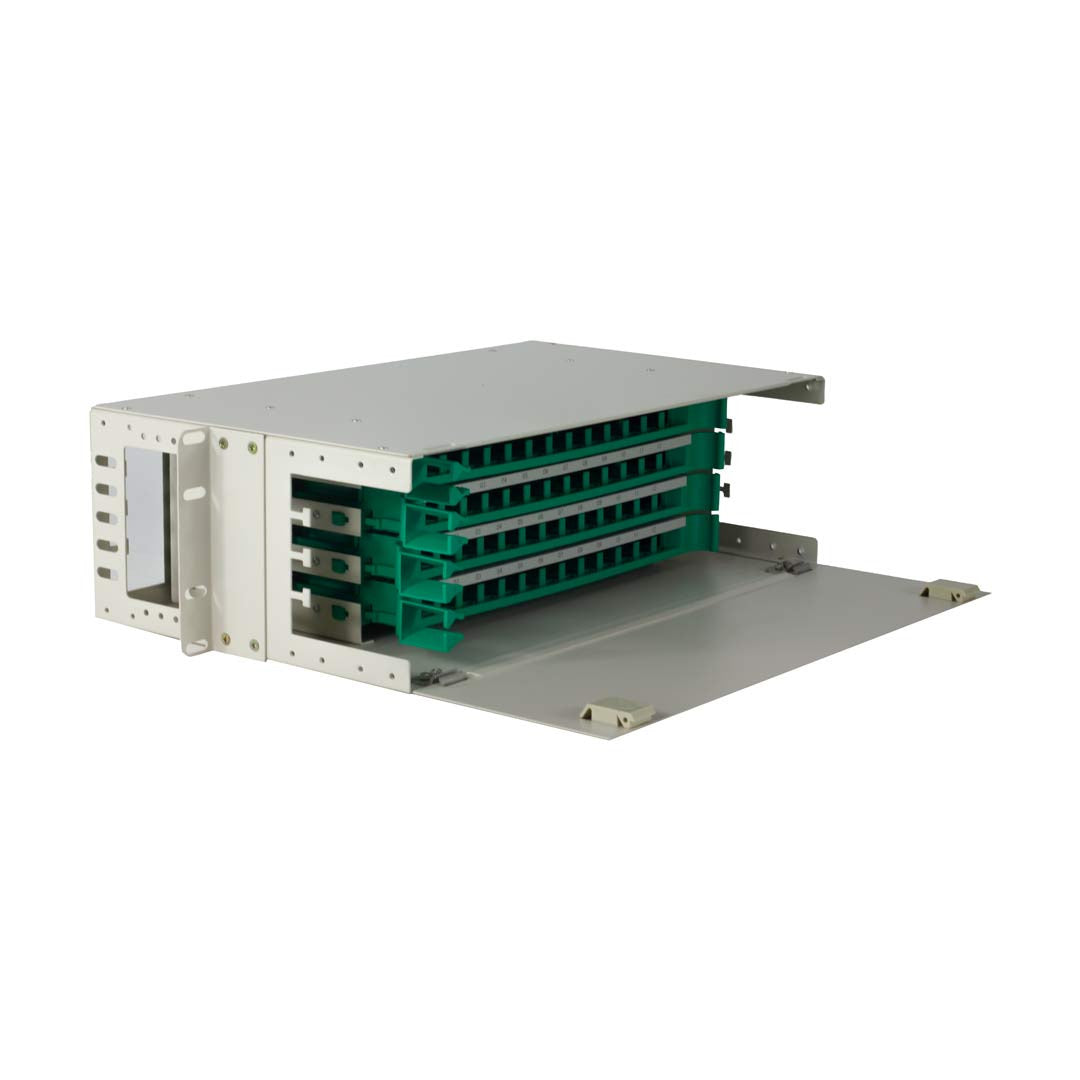

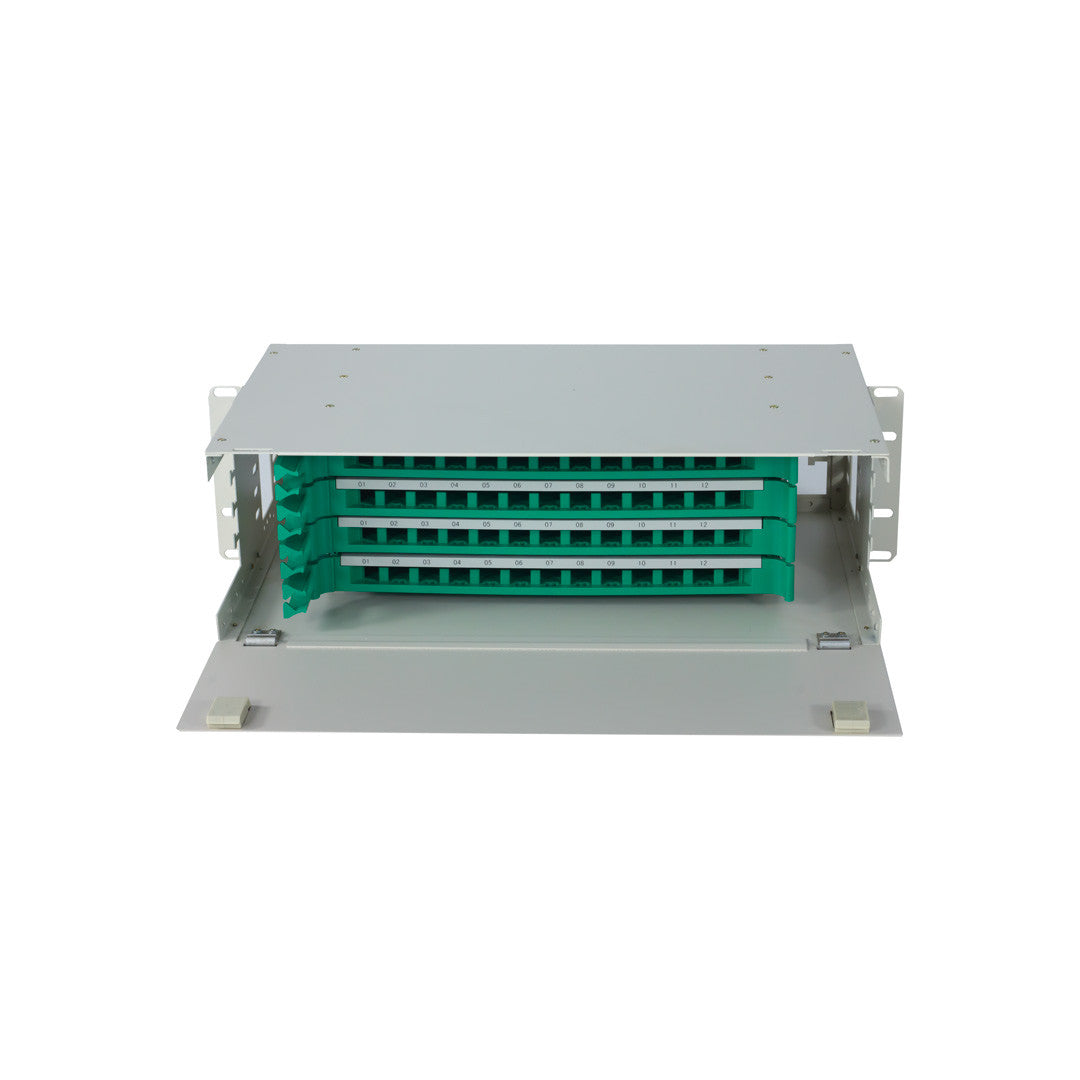

Iuron IU-CEN-ODF-48-E 48-Core Rack Mount Fiber Optic Patch Panel

PRODUCT OVERVIEW

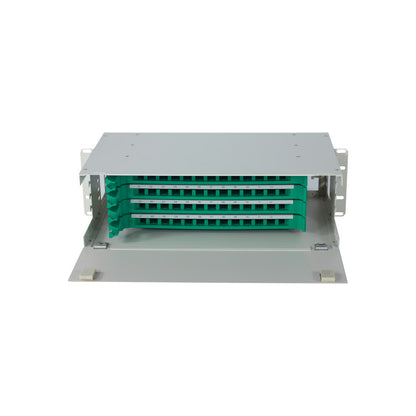

IU-CEN-ODF-48-E - Optical Fiber Patch Panel 48 Core Rack Mount Empty

PRODUCT TYPE

Networking Cable

KEY FEATURES

• Durable Construction: Made of cold-rolled steel sheets with electrostatic coating for durability and an attractive appearance.
• Flexible Installation: Supports multiple heights and fiber capacities (12-core, 24-core, 48-core, 60-core, 72-core, and 96-core).
• Efficient Design: Adapter installation at a 45° angle to maintain optimal curvature and save cabinet space.
• Modular Design: Combines fiber splicing, storage, and distribution with detachable doors for easy installation.
• Environmental Resilience: Operates within a wide temperature range and provides excellent dust-proof, anti-interference, and antiseptic properties.
• High Performance: Ensures low connector consumption rate, high return loss, and strong insulation resistance.
• Outdoor Fiber Terminal Connections: Ideal for fiber optic cable connection, distribution, and adjustment in outdoor environments.
• Telecommunication Networks: Suitable for use in telecom infrastructure for reliable fiber connections.
• Data Centers: Supports high-density fiber distribution in data centers.
• Local Area Networks (LANs): Effective for network cabling and distribution in LAN environments.
• Working Temperature: -5℃ to +40℃
• Storage Temperature: -25℃ to +55℃
• Relative Humidity: ≤85% (at +30℃)
• Atmospheric Pressure: 70Kpa—106Kpa
• Connector Consumption Rate: ≤0.5dB (insert, interchange, and repeat)
• Return Loss: ≥45dB
• Insert Durability: >500 cycles
• Insulation Resistance: 1000MΩ/500V (DC)

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-CEN-ODF-48-E
• Product Type: Networking Accessories
• Durable Construction: Made of cold-rolled steel sheets with electrostatic coating for durability and an attractive appearance.
• Flexible Installation: Supports multiple heights and fiber capacities (12-core, 24-core, 48-core, 60-core, 72-core, and 96-core).
• Efficient Design: Adapter installation at a 45° angle to maintain optimal curvature and save cabinet space.
• Modular Design: Combines fiber splicing, storage, and distribution with detachable doors for easy installation.
• Environmental Resilience: Operates within a wide temperature range and provides excellent dust-proof, anti-interference, and antiseptic properties.
• High Performance: Ensures low connector consumption rate, high return loss, and strong insulation resistance.
• Outdoor Fiber Terminal Connections: Ideal for fiber optic cable connection, distribution, and adjustment in outdoor environments.
• Telecommunication Networks: Suitable for use in telecom infrastructure for reliable fiber connections.
• Data Centers: Supports high-density fiber distribution in data centers.
• Local Area Networks (LANs): Effective for network cabling and distribution in LAN environments.
• Working Temperature: -5℃ to +40℃
• Storage Temperature: -25℃ to +55℃
• Relative Humidity: ≤85% (at +30℃)
• Atmospheric Pressure: 70Kpa—106Kpa
• Connector Consumption Rate: ≤0.5dB (insert, interchange, and repeat)
• Return Loss: ≥45dB
• Insert Durability: >500 cycles
• Insulation Resistance: 1000MΩ/500V (DC)
• Withstand Voltage: >3000V (DC) for 1 minute without breakdown or arcing

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
