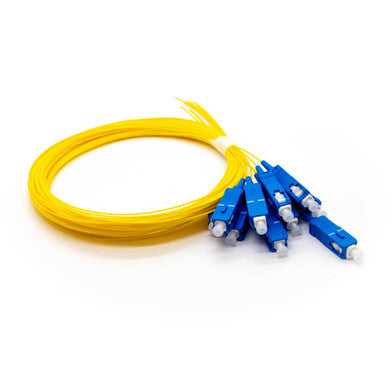

Iuron IU-CEN-PIG-01-UPC-2M Single-Mode Fiber Optic Pigtail SC/UPC 2M

PRODUCT OVERVIEW

Fiber pigtails are a great solution for fusion splicing . The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space. It comes with an SC/UPC connector.

PRODUCT TYPE

Fiber

KEY FEATURES

• Low insertion and back reflection loss
• Good exchange ability
• Good durability
• High temperature stability.
• Fiber type G657A1 G657A2 or G652D
• Out jacket material PVC OR LSZH
• Length: 0.5M/1M/2M/3M OR customized
• CATV: Active device termination
• Telecommunication networks
• Data processing networks
• Local Area Networks
• Model: IU-CEN-PIG-01-UPC-2M Connector Type: SC/UPC
• Single mode: Insertion Loss: PC/UPC/APC: <0.3dB
• Return Loss: PC: ≥45dB
• UPC: ≥50dB
• APC: ≥60dB
• Insertion Loss: <0.3dB
• Durability: <0.1dB typical change, 500 matings

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-CEN-PIG-01-UPC-2M
• Product Type: Networking Accessories
• Low insertion and back reflection loss
• Good exchange ability
• Good durability
• High temperature stability.
• Fiber type G657A1 G657A2 or G652D
• Out jacket material PVC OR LSZH
• Length: 0.5M/1M/2M/3M OR customized
• CATV: Active device termination
• Telecommunication networks
• Data processing networks
• Local Area Networks
• Model: IU-CEN-PIG-01-UPC-2M Connector Type: SC/UPC
• Single mode: Insertion Loss: PC/UPC/APC: <0.3dB
• Return Loss: PC: ≥45dB
• UPC: ≥50dB
• APC: ≥60dB
• Insertion Loss: <0.3dB
• Durability: <0.1dB typical change, 500 matings
• Operating Temperature: -40°C to +75°C

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
