Iuron IU-ODN-DT120E-M-8 8-Core Fiber Optic Distribution Box SC LC
Product identifier
SKU
IU-ODN-DT120E-M-8
$21.47
Out of stock
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

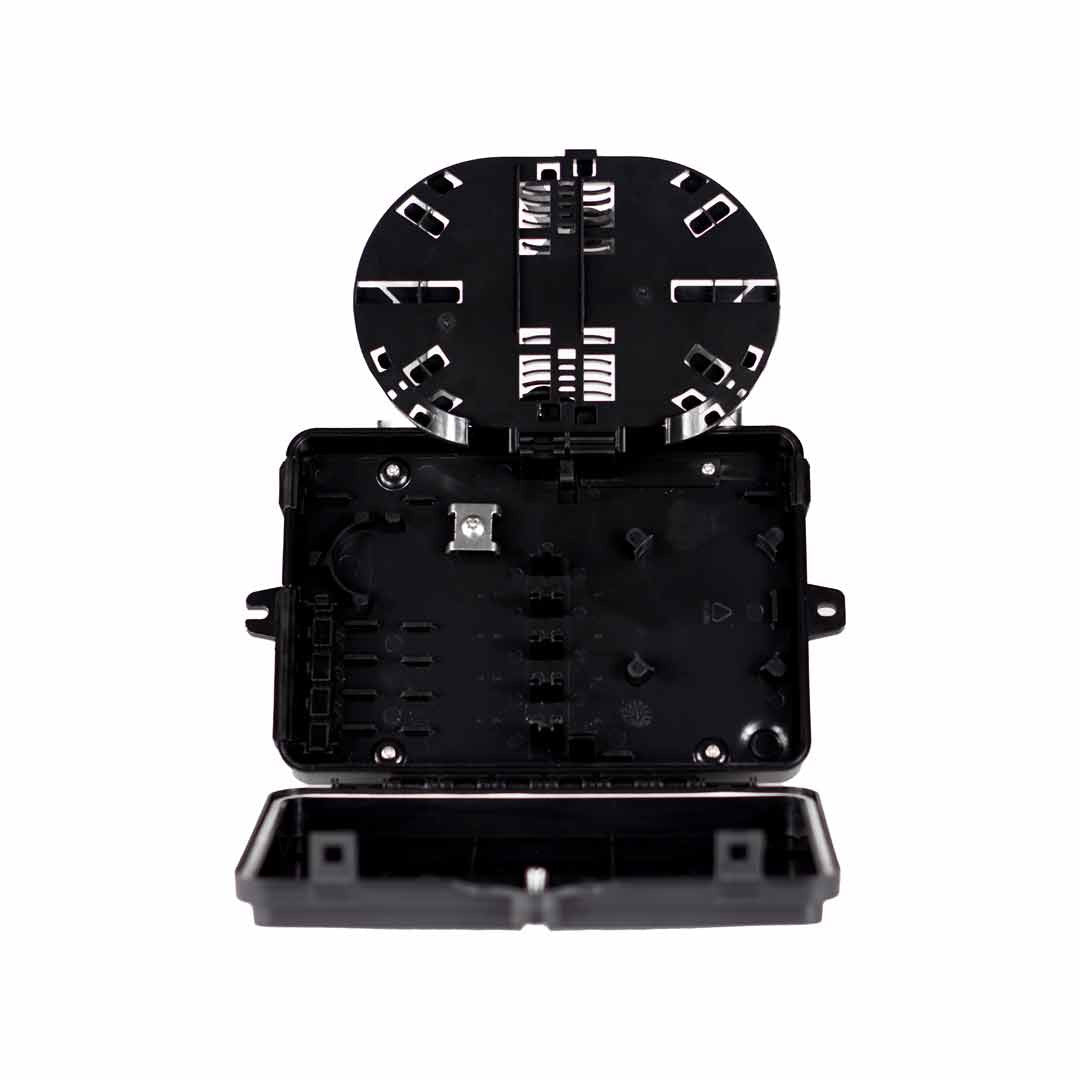

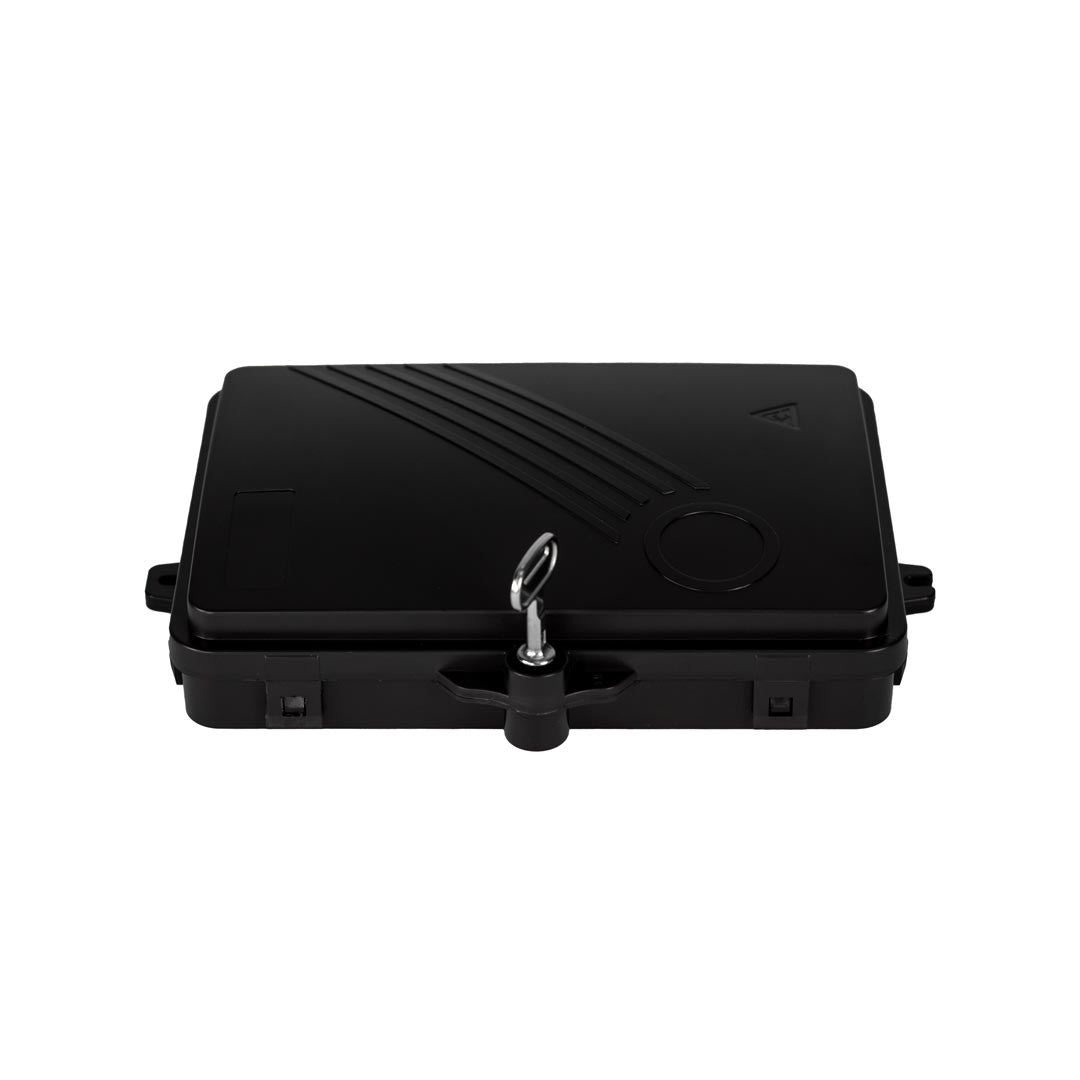

IU-ODN-DT120E-M-8 - FIBER OPTIC TERMINATION BOX
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Features
- Suitable for SC and LC duplex adaptor and pigtail
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
- Protects and manages cable effectively
- Secured with anti-theft locking mechanism
Application
- Telecommunication subscriber loop
- Fiber to the home(FTTH)
- LAN/WAN
Technical Description
- Work Temperature: 40 ℃ ~ +85 ℃
- Relative Humidity: ≤ 85% (+30 ℃)
- Atmospheric Pressure: 70Kpa ~ 106Kpa
- Insert Loss: ≤ 0.2dB
- UPC Return Loss: ≥ 50dB
- APC Return Loss: ≥ 60dB
- Insert and Pull out Life: ≥1000 times
- Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
- Withstand Voltage: Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
More Information
MFRPartNum:
IU-ODN-DT120E-M-8
