IURON

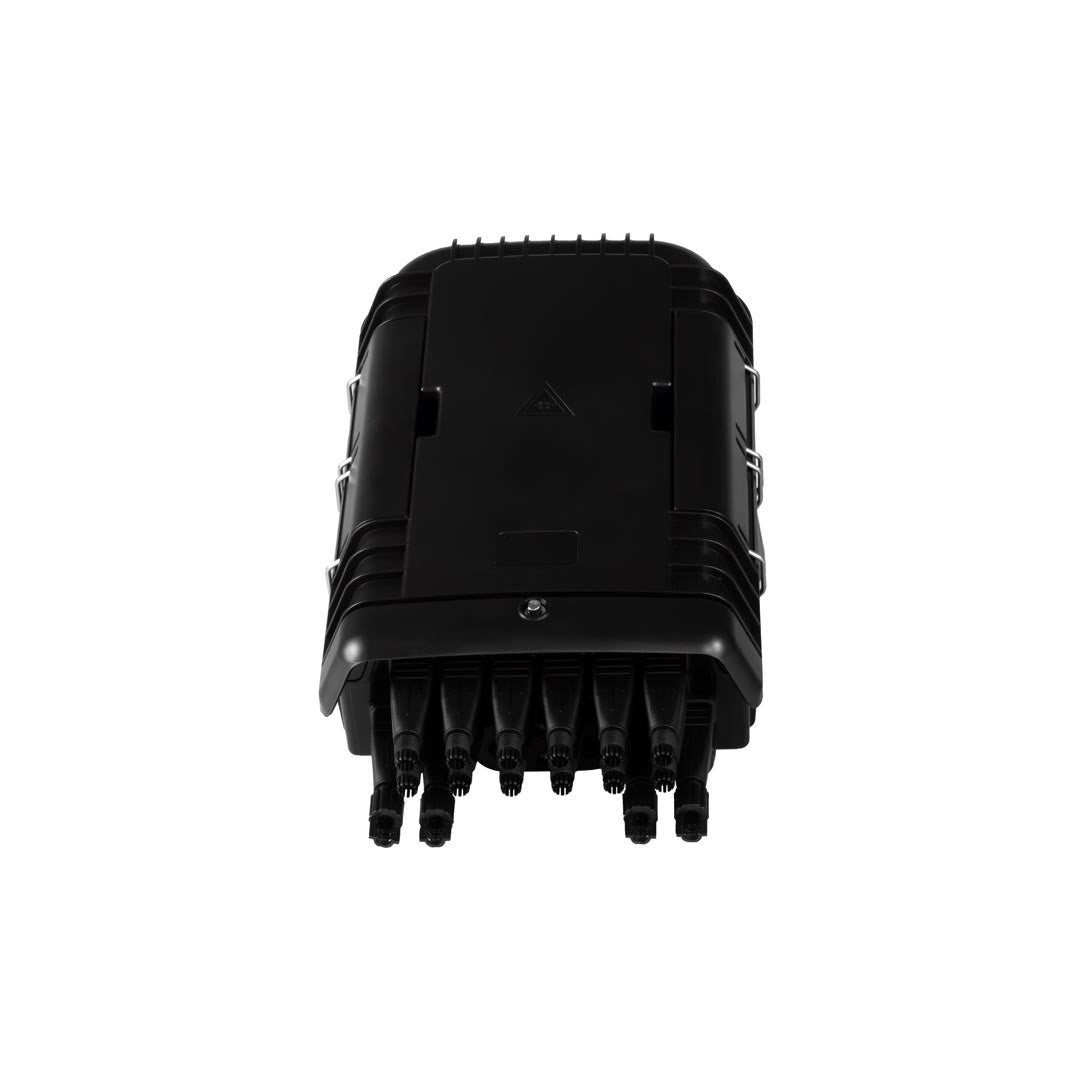

Iuron IU-ODN-DT130A-M-16 16-Port Fiber Optic Distribution Box IP65
Product identifier
SKU
IU-ODN-DT130A-M-16
$56.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
Iuron IU-ODN-DT130A-M-16 Fiber Optical Distribuition Box
This model IU-ODN-DT130A-M-16 is a fiber optical distribution box that provides a cost-effective secure solution for the feeder cable to connect with a drop cable in the FTTx communication network system. It is designed to accommodate one mid-span cable as feeder cable and 2 glands, it uses common drop cable, common SC connectors as outlets and uses a T connector cover as a protection of the outlet connectors.
Key Features
- Fiber storage/splicing areas designed
- Positive fiber management (30mm min bend radius)
- IP65 rating
- Secure, with anti-theft locking mechanism
- Pole or building facade mounting features
- Range of colors
- Grounding strap provided
- Adapter version available
Technical Description
- Dimensions: 353 x 212 x 106 (only the box)
- Number of ports: 1 Min-span inlet port, 2 glands and 16 outlet ports
- Maximum number of splices: 12 each
- Number of Splice tray: 3 or 12
- Suitable connector type: SC/ LC/FC
- Maximum number of: 16
- Color: Black
- Maximum inlet cable diameter (single port): 14 mm
- IP rating: IP 65
More Information
MFRPartNum:
IU-ODN-DT130A-M-16
