PRODUCT SPECIFICATIONS

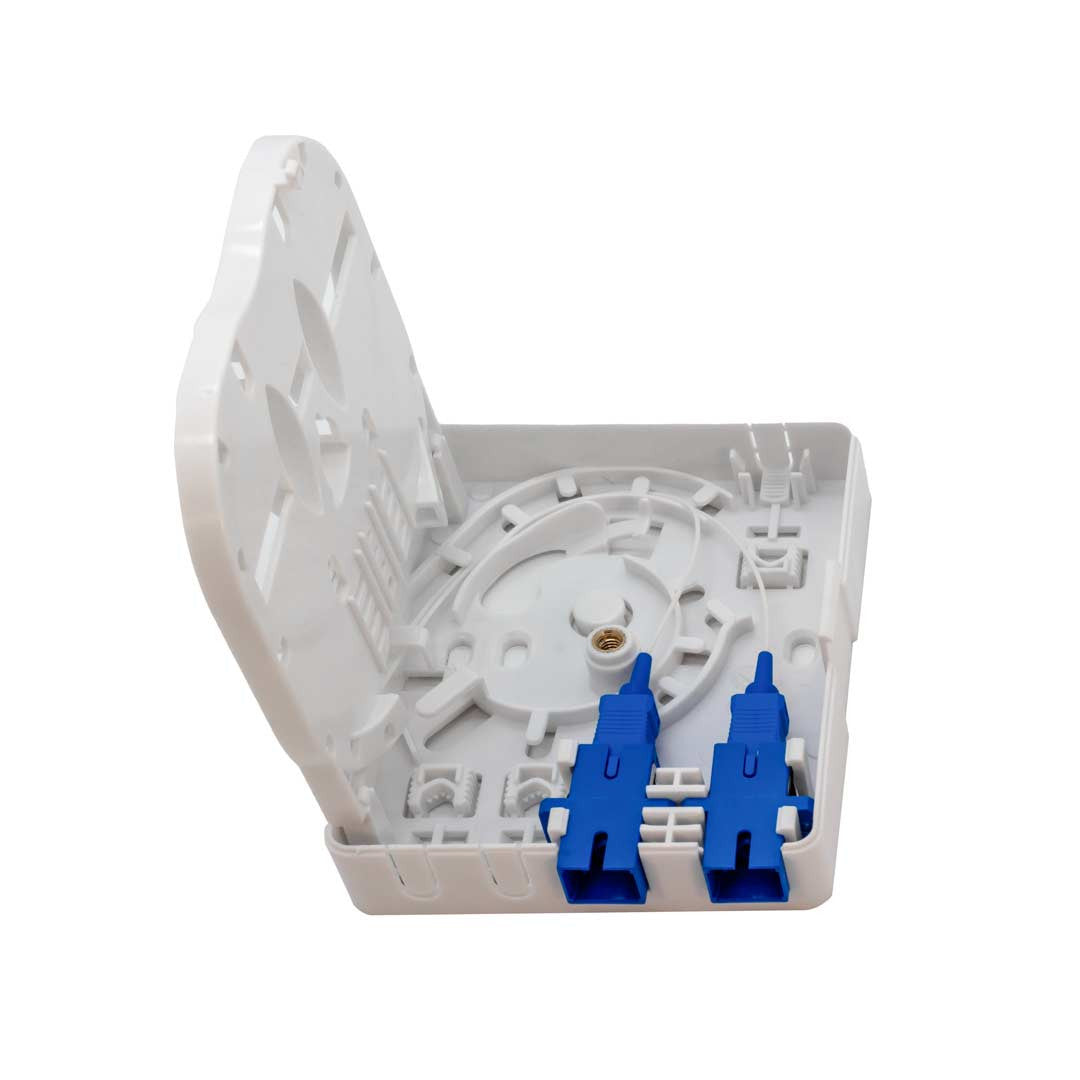

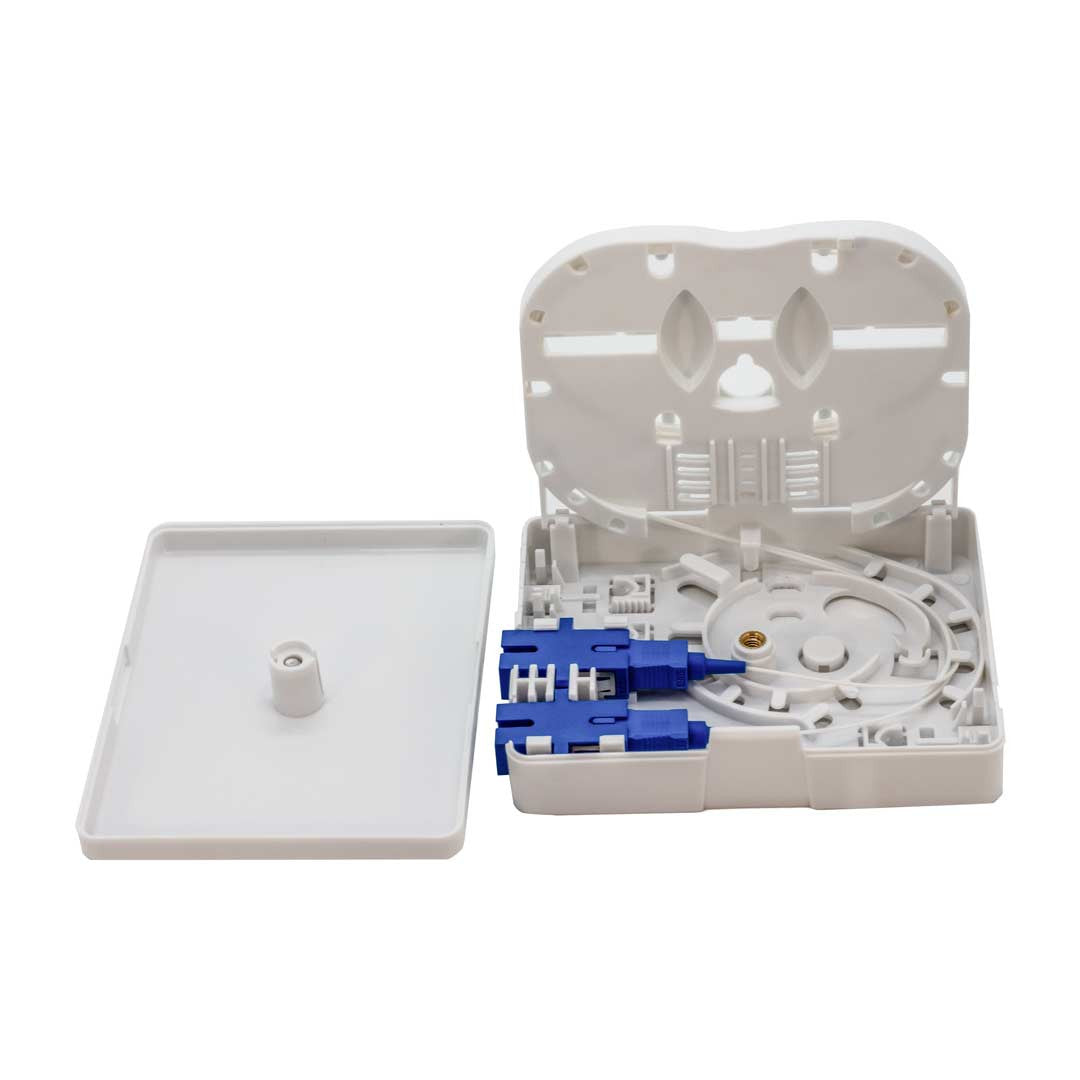

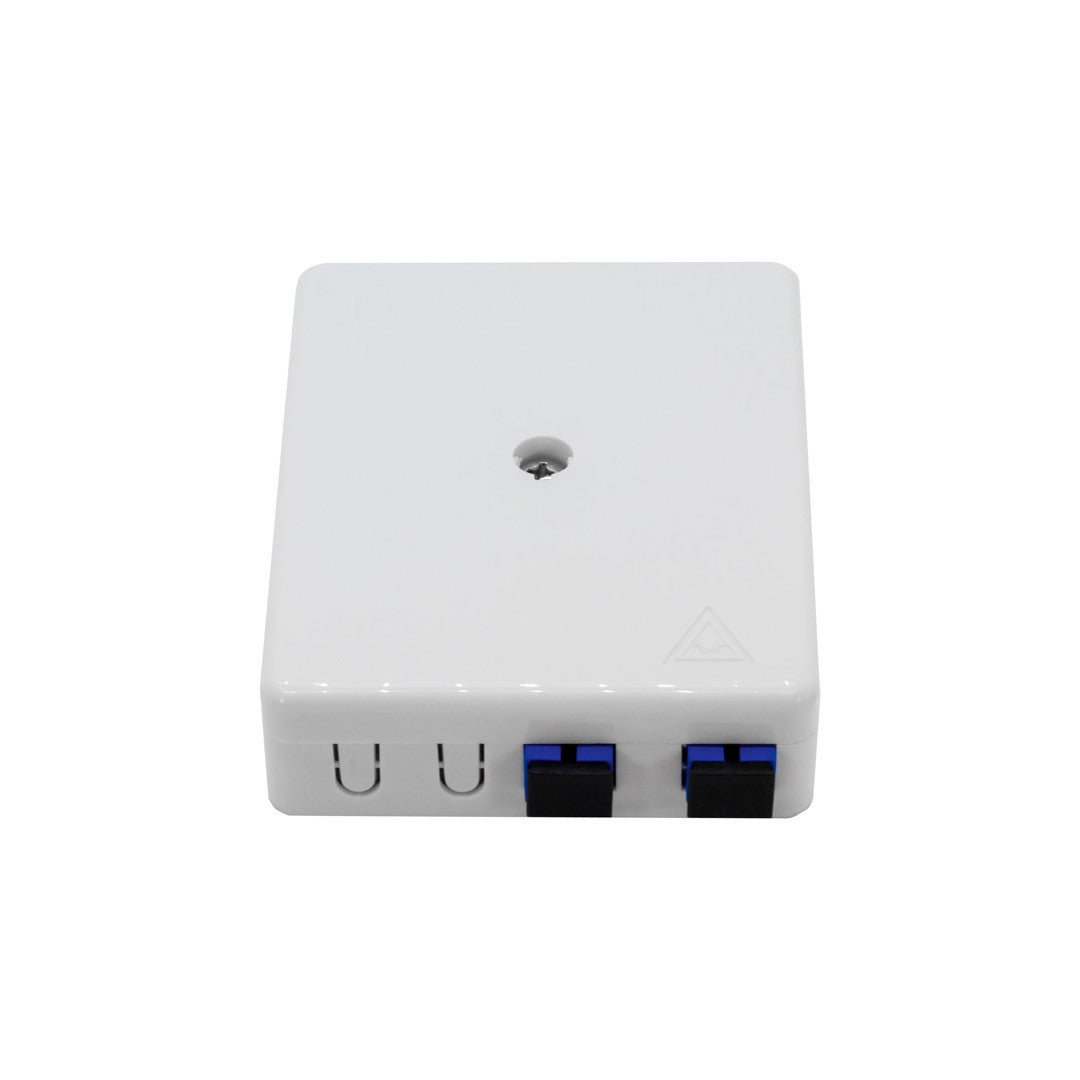

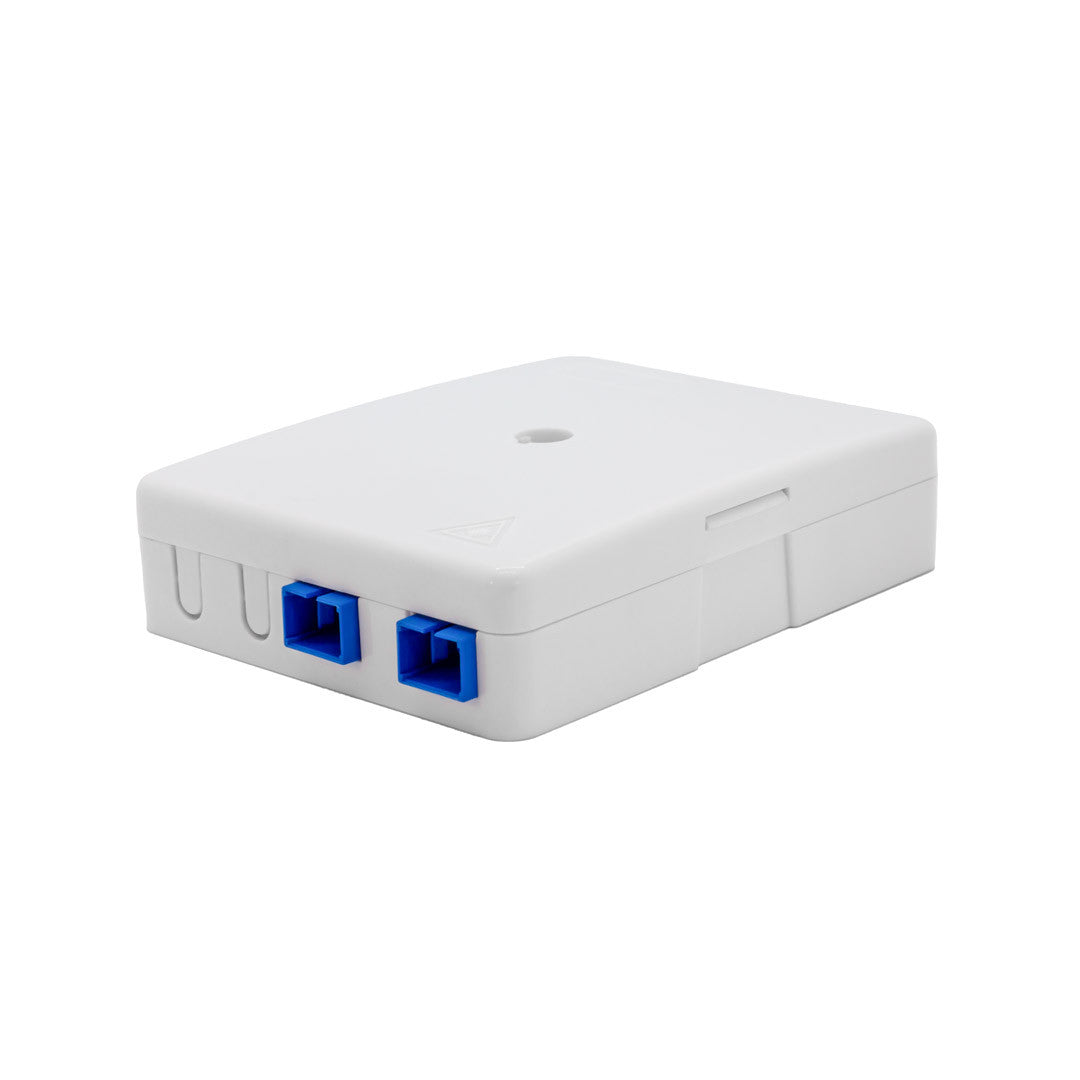

IU-ODN-DT44Q-M-2-U-2 - FIBER OPTIC TERMINATION BOX
Suitable for various types of modules, used in the cabling work area subsystem. Surface type embedded, easy to install and remove. Available for SC simplex or LC duplex optical fiber and can be used in both surface-mounted and concealed panel installations. It comes with an SC/UPC connector.
Features
- Suitable for many types of modules, used in cabling work area subsystem
- Embedded type surface, easy for installation and removal
- Available for fiber optic SC Duplex Adaptor
Application
- Optical fiber communication system
- Fiber optic CATV, FTTH Fiber to the Home
- Optical fiber access network
- Testing instruments, fiber optical sensors
Dimensions
- 124 x 80 x 26.5mm
Technical Description
- Connector Type: SC/UPC
- Scope of application: 3.0 x 2.0 mm drop cable or indoor cable
- Fiber Cladding Diameter: 125μm ( 652 & 657 )
- TBF Diameter: 250μm & 900μm
- Applicable Mode: Singlemode & Multimode
- Adapter: SC
- Insertion loss: ≤0.2dB（1310nm & 1550nm）
More Information
MFRPartNum:
IU-ODN-DT44Q-M-2-U-2
