Iuron IU-ODN-DT52-M-2-A-2 2-Core 1×2 Mini PLC Splitter SC/APC
Product identifier
SKU
IU-ODN-DT52-M-2-A-2
$16.40
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

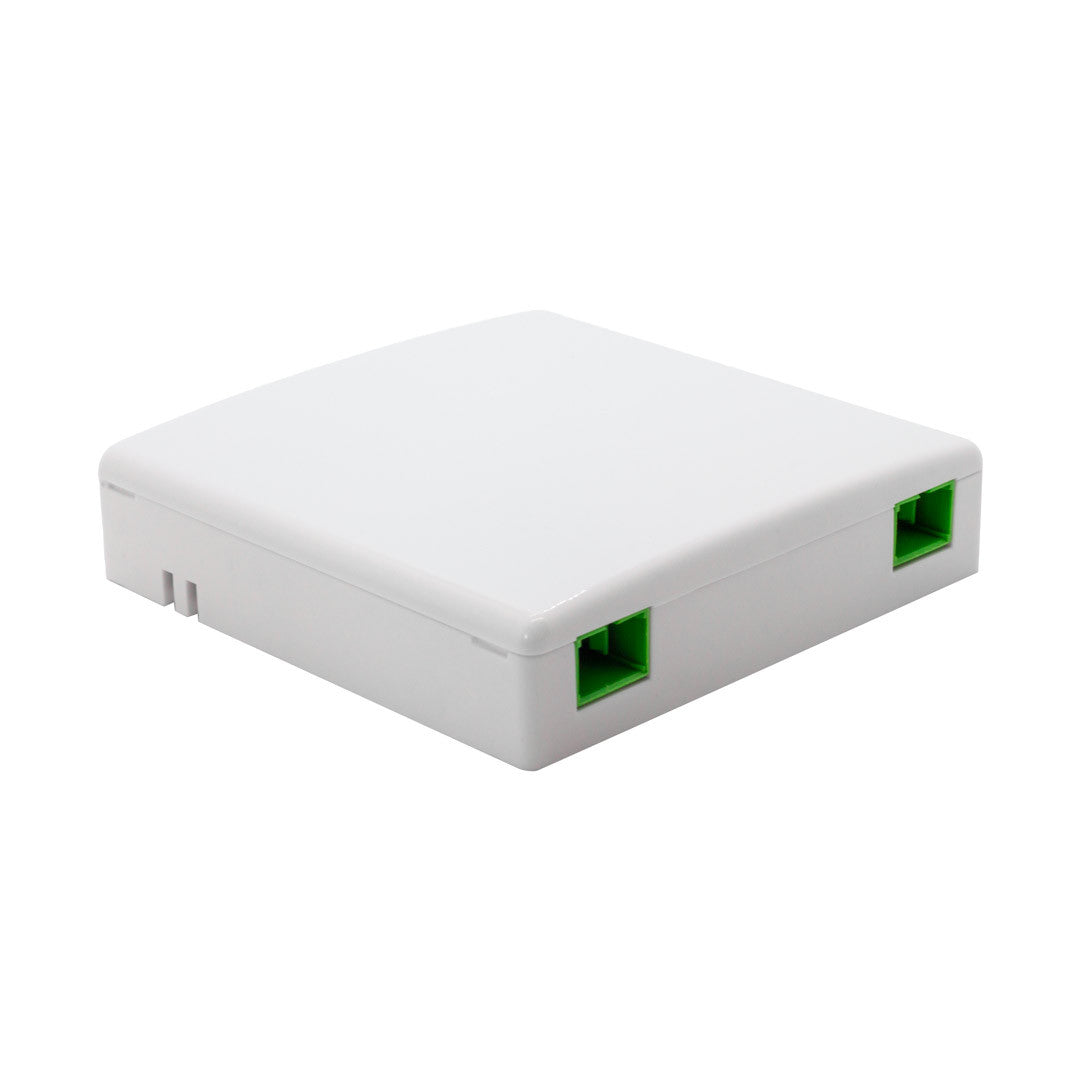

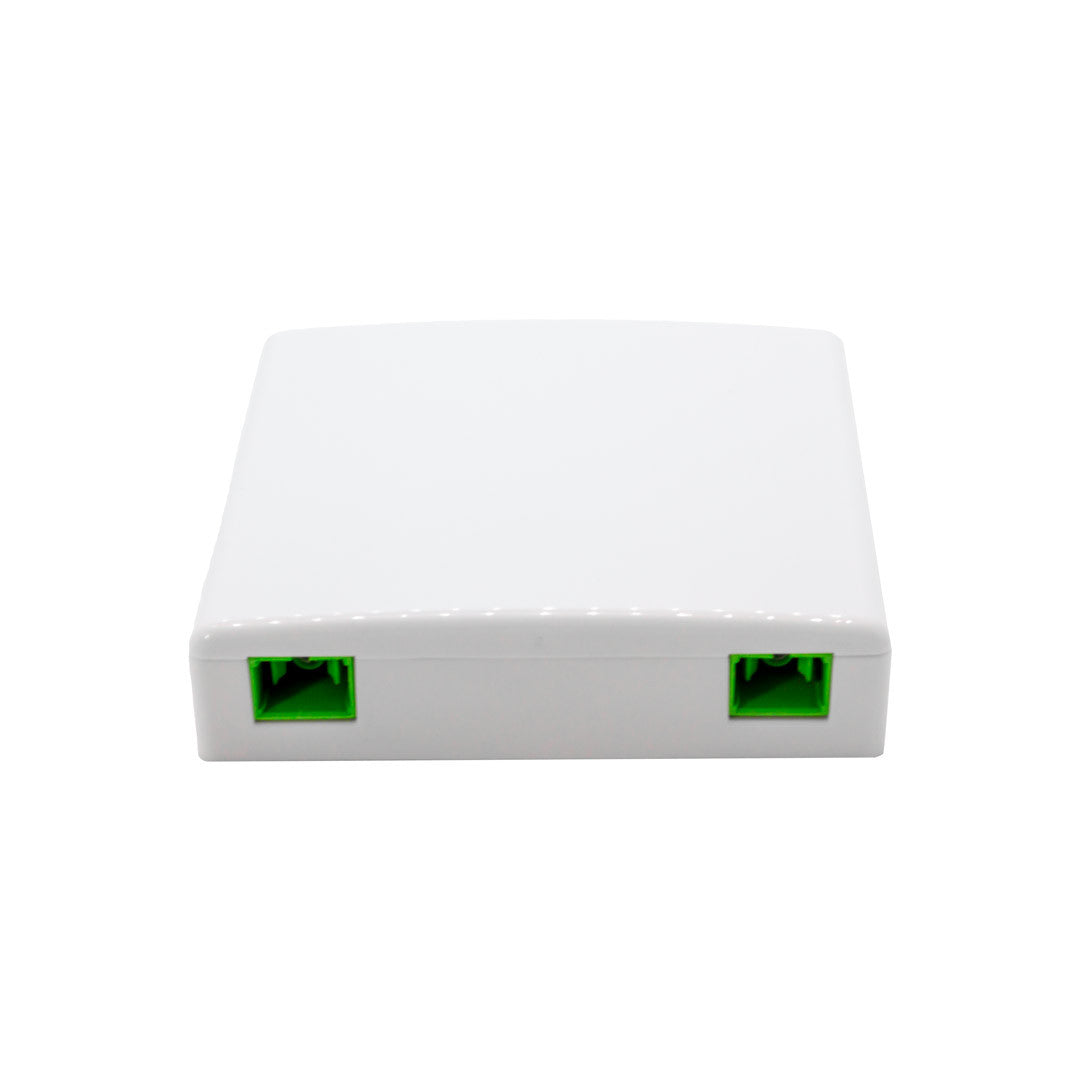

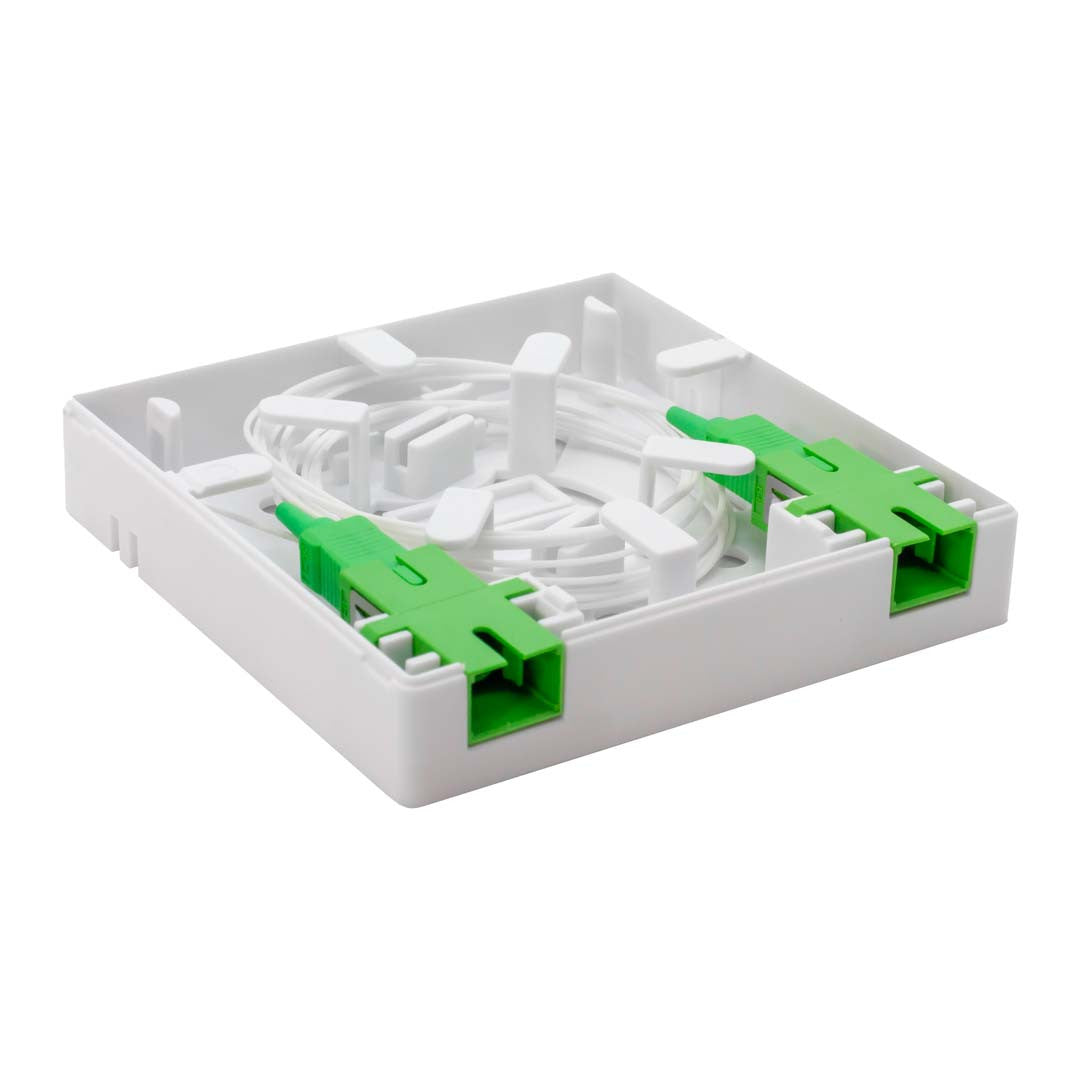

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building. It comes with an SC/APC connector.
PRODUCT TYPE
Fiber
KEY FEATURES
- Suitable for SC and LC duplex adaptor and pigtail
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
- Protects and manages cable effectively
- Secured with anti-theft locking mechanism
- Telecommunication subscriber loop
- Fiber to the home(FTTH)
- LAN/WAN
- Connector Type: SC/APC
- Work Temperature: 40 ℃ ~ +85 ℃
- Relative Humidity: ≤ 85% (+30 ℃)
- Atmospheric Pressure: 70Kpa ~ 106Kpa
- Insert Loss: ≤ 0.2dB
- APC Return Loss: ≥ 60dB
- Insert and Pull out Life: ≥1000 times
- Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
- Withstand Voltage: Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
TECHNICAL SPECIFICATIONS
- Brand: APC
- Model: IU-ODN-DT52-M-2-A-2
- Product Type: Fiber
- Suitable for SC and LC duplex adaptor and pigtail
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
- Protects and manages cable effectively
- Secured with anti-theft locking mechanism
- Telecommunication subscriber loop
- Fiber to the home(FTTH)
- LAN/WAN
- Connector Type: SC/APC
- Work Temperature: 40 ℃ ~ +85 ℃
- Relative Humidity: ≤ 85% (+30 ℃)
- Atmospheric Pressure: 70Kpa ~ 106Kpa
- Insert Loss: ≤ 0.2dB
- APC Return Loss: ≥ 60dB
- Insert and Pull out Life: ≥1000 times
- Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
- Withstand Voltage: Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
