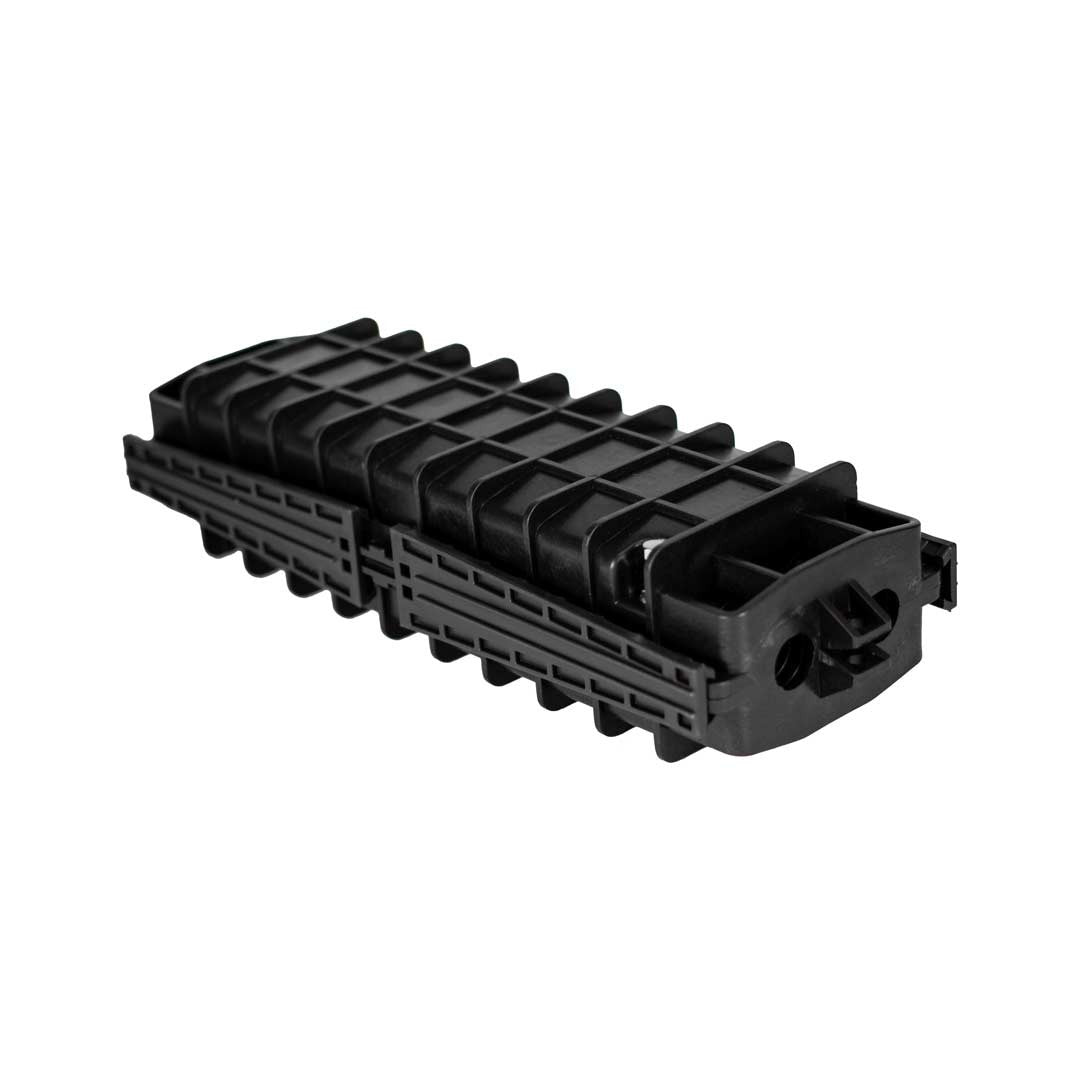

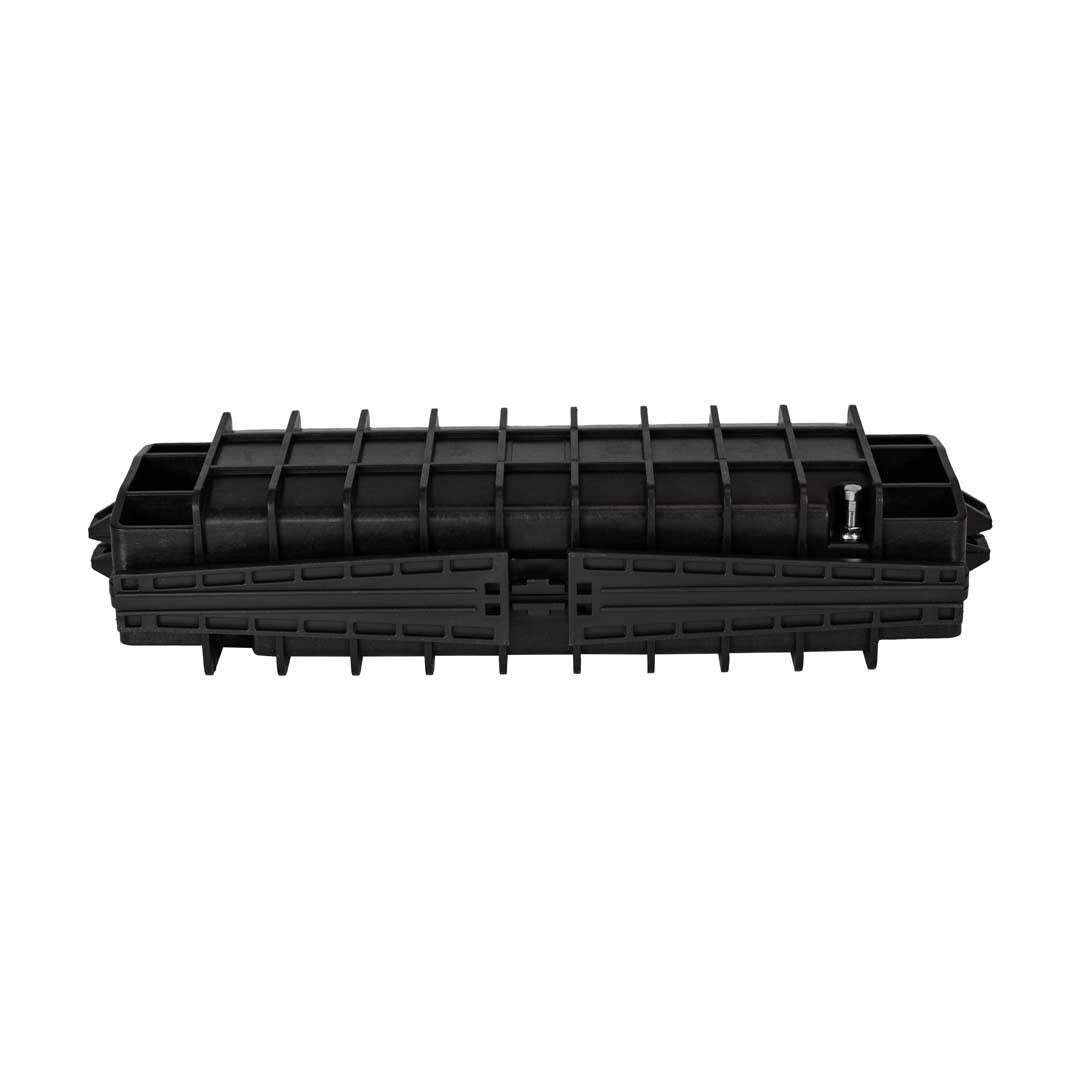

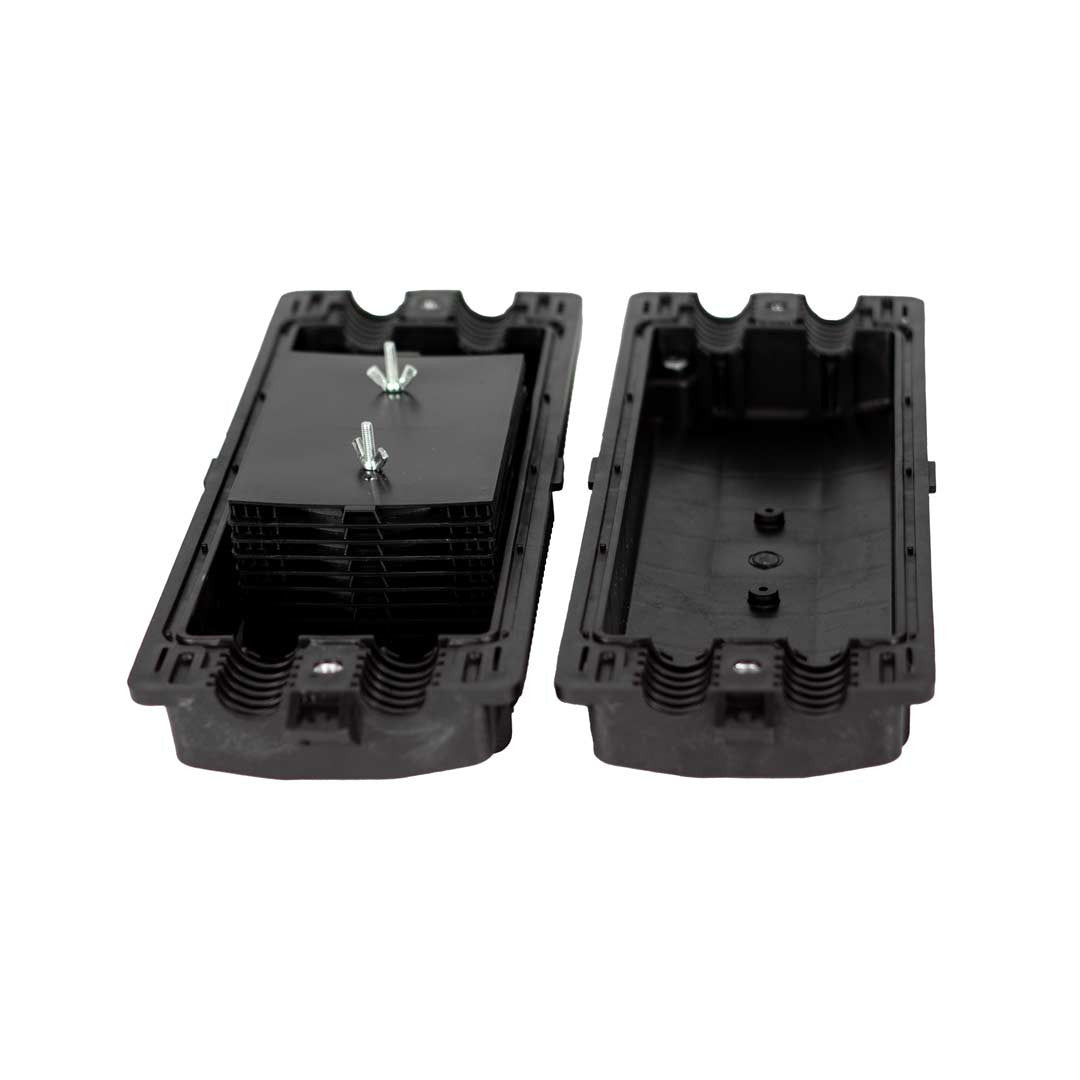

Iuron IU-ODN-FOSC-H-096 96-Core Horizontal Fiber Optic Splice Enclosure
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
The Splice closure is an indispensable equipment used in Fiber Communication System, play the roles in sealing, protection, installation of fiber connector head and storage. It is applicable well in cable splicing and with the protection function on fiber optic connect head.
PRODUCT TYPE
Fiber
KEY FEATURES
• Suitable for straight-through, diverging and connection of FTTH, FTTB passive network
• Use material of high-strength plastics
• Corrosion resistant, aging resistant
• Trays can be increased and reduced according to the application.
• Good properties of dust, and moisture proofing
• Telecommunication subscriber loop
• Fiber to the home(FTTH)
• LAN/WAN
• 470 x 155 x 105mm
• Work Temperature: - 40 ⁰C ~ + 75 ⁰C
• Relative Humidity: ≤ 85 %
• Atmospheric Pressure: 70Kpa ~ 106Kpa
• Standard: Y D / T 8 1 4 . 1 - 2 0 0 4
• Tension: 800N/1min
• Impact: 1m/1kg Steel Ball/ three times
• Bending: 150N/±45°/10 cycles
• Torsion: 50N.m/+90°/10 cycles
• Insulation Resistance: 2x10 4 MΩ/500V
TECHNICAL SPECIFICATIONS
• Brand: Iuron
• Model: IU-ODN-FOSC-H-096
• Product Type: Fiber
• Suitable for straight-through, diverging and connection of FTTH, FTTB passive network
• Use material of high-strength plastics
• Corrosion resistant, aging resistant
• Trays can be increased and reduced according to the application.
• Good properties of dust, and moisture proofing
• Telecommunication subscriber loop
• Fiber to the home(FTTH)
• LAN/WAN
• 470 x 155 x 105mm
• Work Temperature: - 40 ⁰C ~ + 75 ⁰C
• Relative Humidity: ≤ 85 %
• Atmospheric Pressure: 70Kpa ~ 106Kpa
• Standard: Y D / T 8 1 4 . 1 - 2 0 0 4
• Tension: 800N/1min
• Impact: 1m/1kg Steel Ball/ three times
• Bending: 150N/±45°/10 cycles
• Torsion: 50N.m/+90°/10 cycles
• Insulation Resistance: 2x10 4 MΩ/500V
• Compression Strength: 15kv/1min/10mA
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
