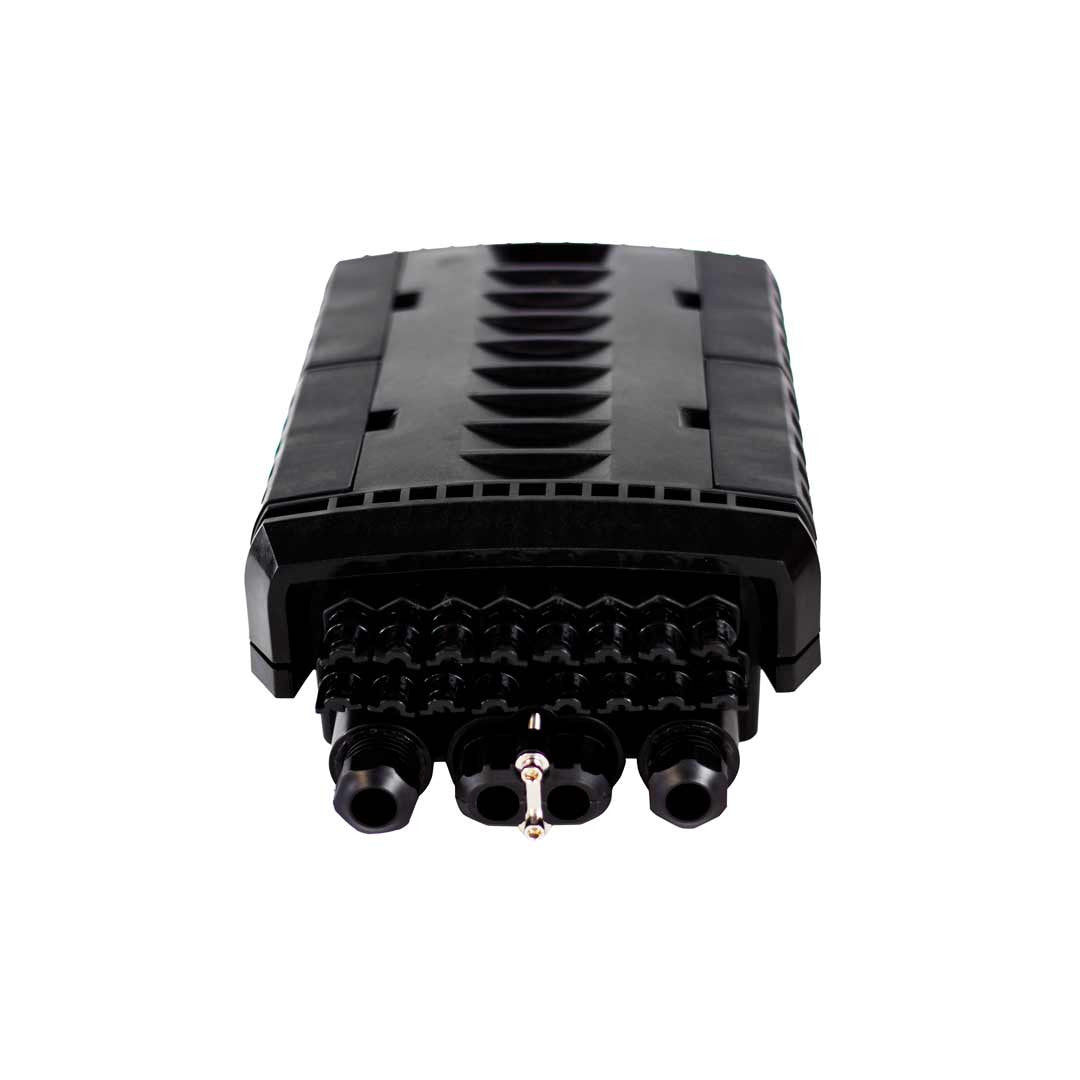

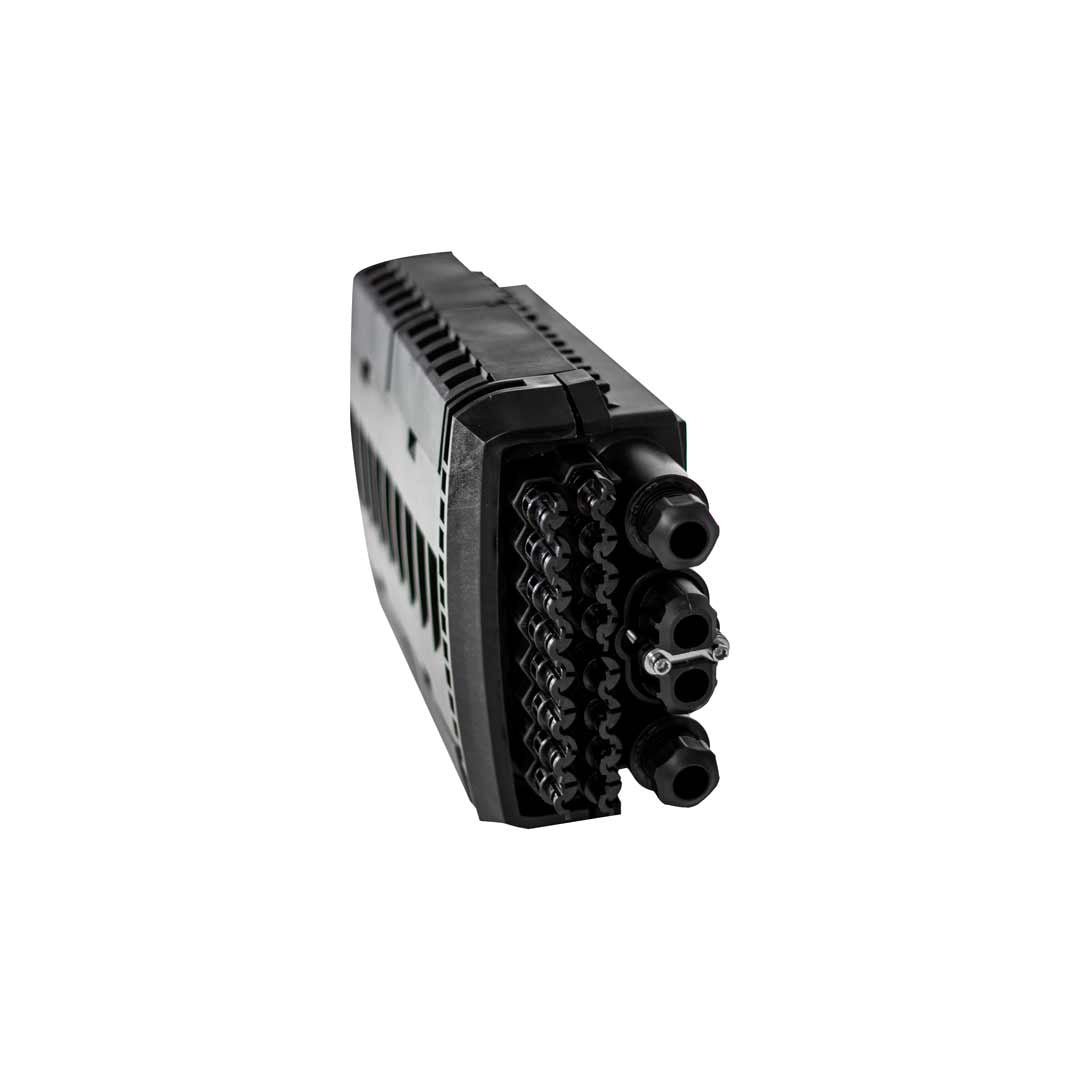

Iuron IU-ODN-FOSC-H-16 16-Port Fiber Optic Splice Closure IP67

PRODUCT OVERVIEW

Widely used in FTTH access network, telecommunication networks, CATV networks, data communications network, local area networks, indoor and outdoor application. Waterproof, dustproof, anticorrosive.

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• Industry standard user interface, made of high impact PP+GF plastic
• Box open angle is 180°, easy for maintenance and installation, can be opened and closed repeatedly

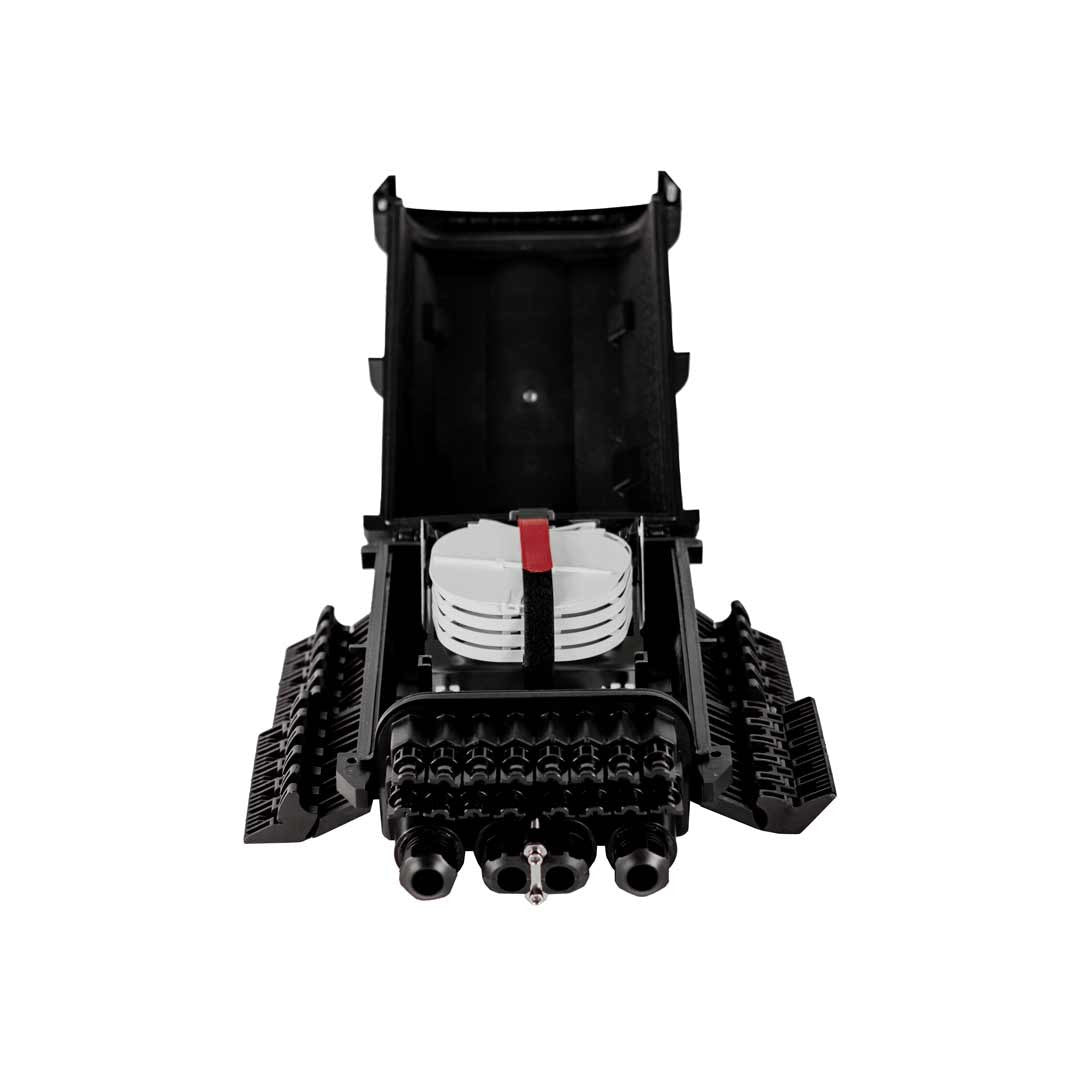

• Fiber splicing, fixation, storage and distribution in one box
• Distribution panel can be flipped up; feeder cable can be placed in a mid-span acess way.
• 1:8 splitters installation, max 4 pieces
• 4 inlet ports,16 outlet ports for normal cables or drop cables
• On pole or wall mounted
• Open and close in vertical way
• Telecommunication subscriber loop
• Fiber to the home(FTTH)
• LAN/WAN
• 385(L)x240(W)x130(H)
• Max adapters no.: 16pcs
• Tray: 4 tray
• Splitter: Max 1*8 mini splitter
• Adapter type: SC LC
• Box material: PP+GF
• IP Degree: IP67

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-ODN-FOSC-H-16
• Product Type: Fiber
• Industry standard user interface, made of high impact PP+GF plastic
• Box open angle is 180°, easy for maintenance and installation, can be opened and closed repeatedly
• Fiber splicing, fixation, storage and distribution in one box
• Distribution panel can be flipped up; feeder cable can be placed in a mid-span acess way.
• 1:8 splitters installation, max 4 pieces
• 4 inlet ports,16 outlet ports for normal cables or drop cables
• On pole or wall mounted
• Open and close in vertical way
• Telecommunication subscriber loop
• Fiber to the home(FTTH)
• LAN/WAN
• 385(L)x240(W)x130(H)
• Max adapters no.: 16pcs
• Tray: 4 tray
• Splitter: Max 1*8 mini splitter
• Adapter type: SC LC
• Box material: PP+GF
• IP Degree: IP67
• Inlet and outlet no.: 4 in 16 out
• Cable gland: 2PCS
• Mid span: Support
• Max cable diameter of mid-span port(mm): 18mm
• Inlet cable diameter: Max 18mm
• Output cable type: 2*3mm drop cable or ≤4mm round cable or upon customized
• Fiber bending diameter: ＞60mm
• Color: black, or other color
• Mounting method: Wall mounting or pole mounting

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
