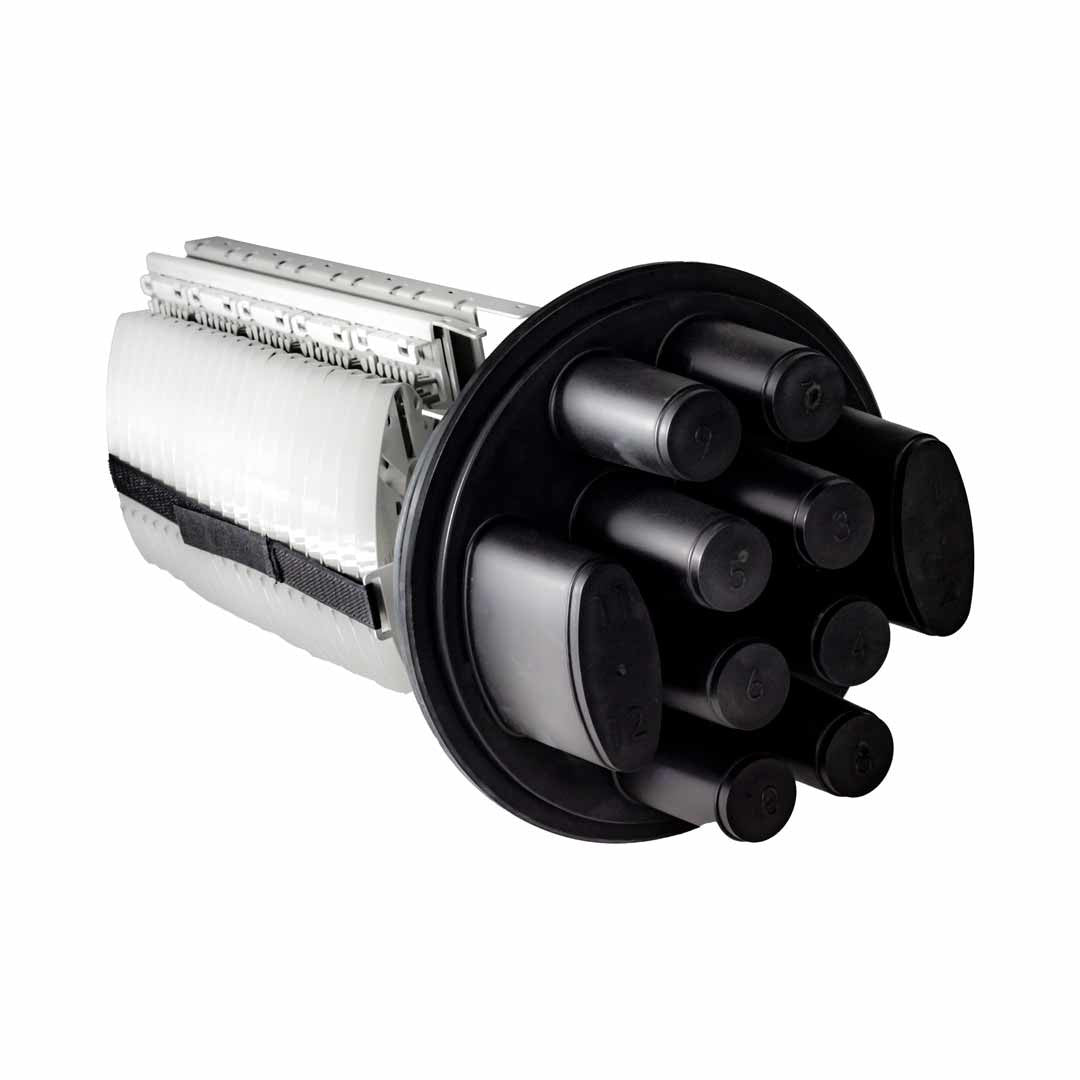

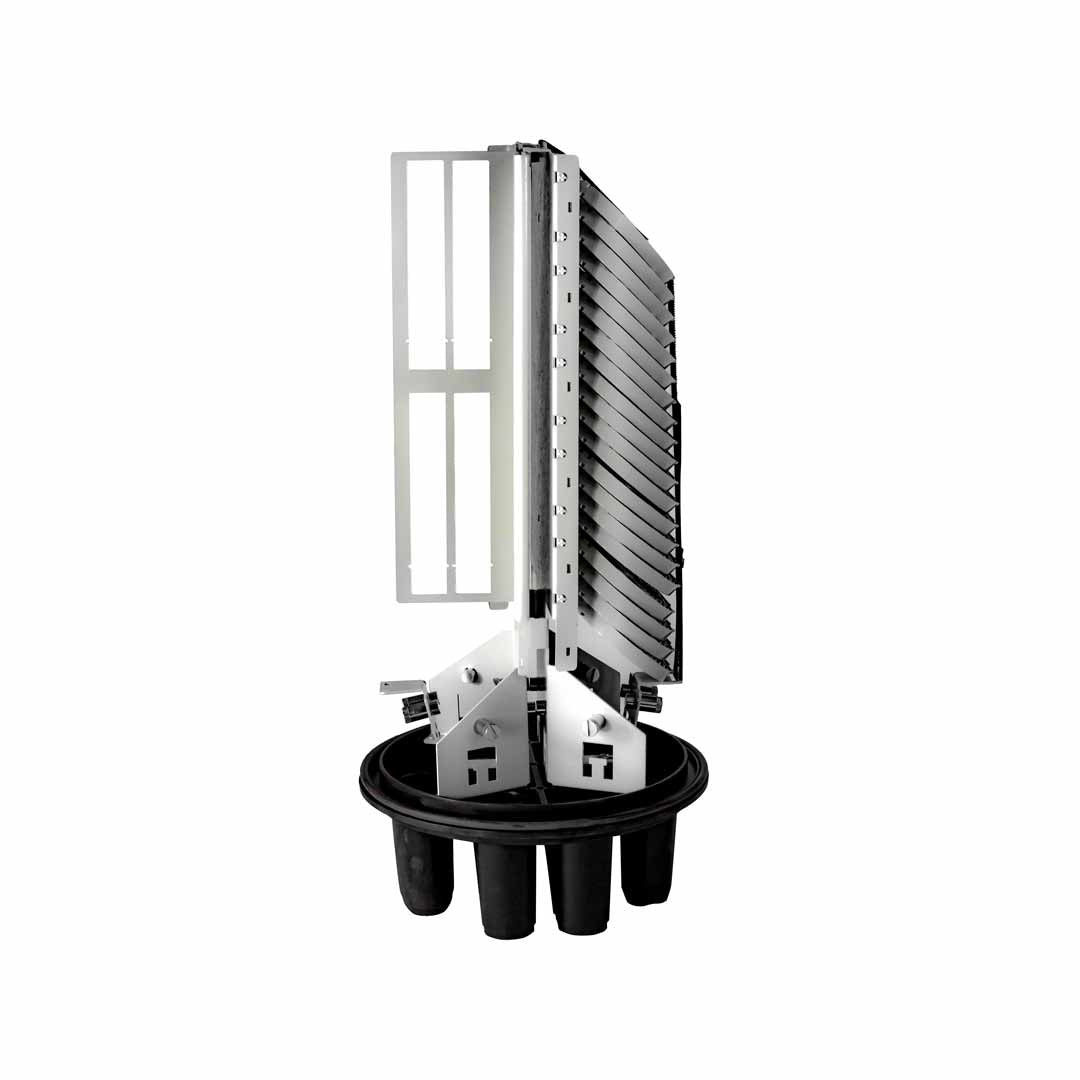

Iuron Vertical FOSC Optical Splice Enclosure Box 240 Core Heat Shrink Sealing
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

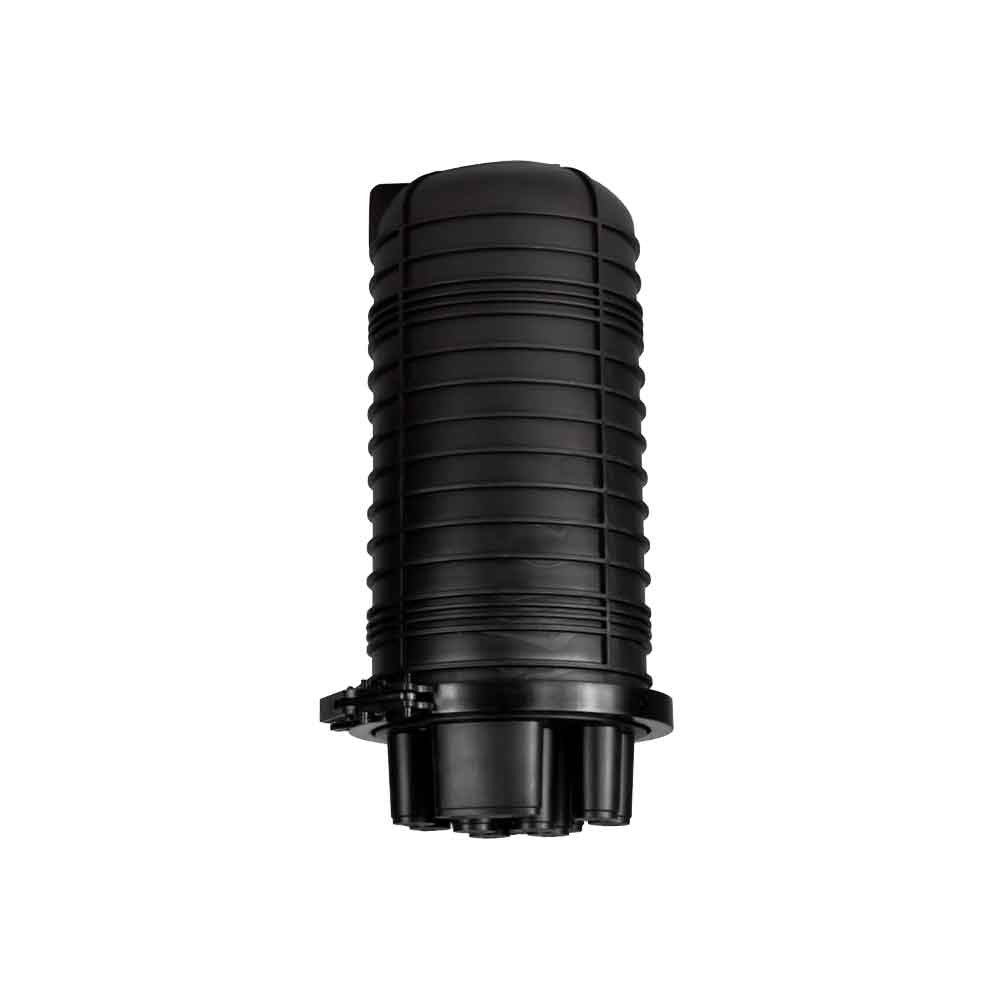

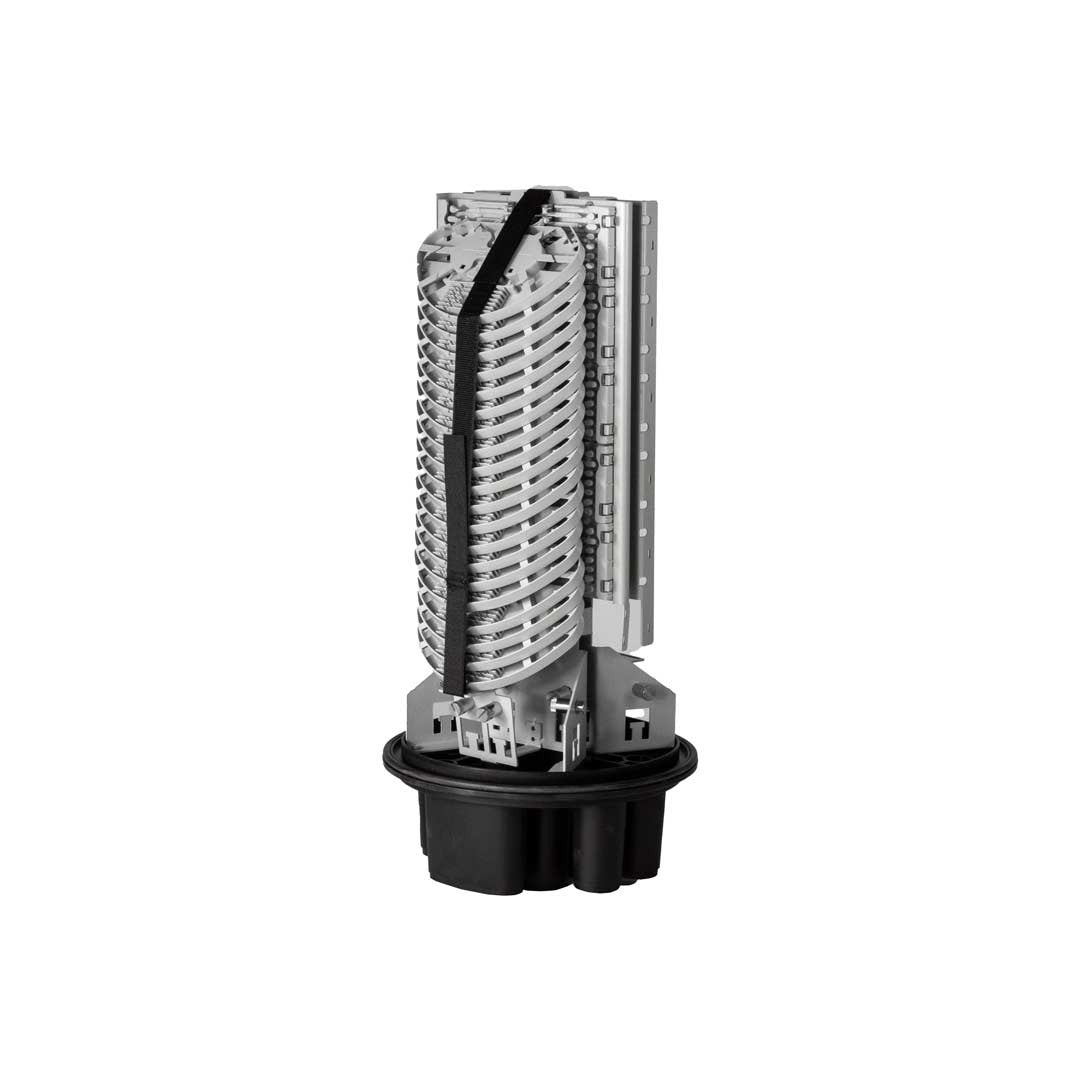

IU-ODN-FOSC-V-240-H - Vertical Aerial Optical Fiber Splice Closure 240p
The optical fiber splice closure is mainly used to protect the junction of optical fiber between two cables and reserve a section of optical fiber for maintenance in the closure. The closure features good leak-proof, anti-water, and moisture-resistant properties, and its power line is corrosion-resistant.
There are two types of splice closures, central and terminal. The central type is used in the middle part of the line to protect the two interconnected cables, while the terminal type is used at the end of the line for branching in the cable line or to protect the optical fiber connection in the cable and jumper.
Features
- Cover design - vertical
- Easy to assemble
- Only double-sided splice trays are allowed
- The high-quality ABS body material ensures durability
- Suitable for cables from 5mm to 18mm
- Suitable for aerial, underground, duct, and handrail mounting
Dimensions
- 530(H)x223(φ)mm
Weight
- 5KG
Technical Description
- Work Temperature: 40 ℃ ~ +85 ℃
- Relative Humidity: ≤ 85% (+30 ℃)
- Atmospheric Pressure: 70Kpa ~ 106Kpa
- Cable Port: 6-6
- Cable Diameter: φ7-35mm
- Max Cores: 12cores*4(single)
- Max Quantity: 40(12cores)/80(4cores)
- Max Capacity: Single:480(12 cores)/320(4 cores);Strap:720(6 cores)/960(8 cores)/1440(12 cores)
- Application: Aerial-Hanging, Wall-Mounting, Direct Buried
- Sealing way: heat shrink sleeve
- Closure Sealing way: silicone rubber
