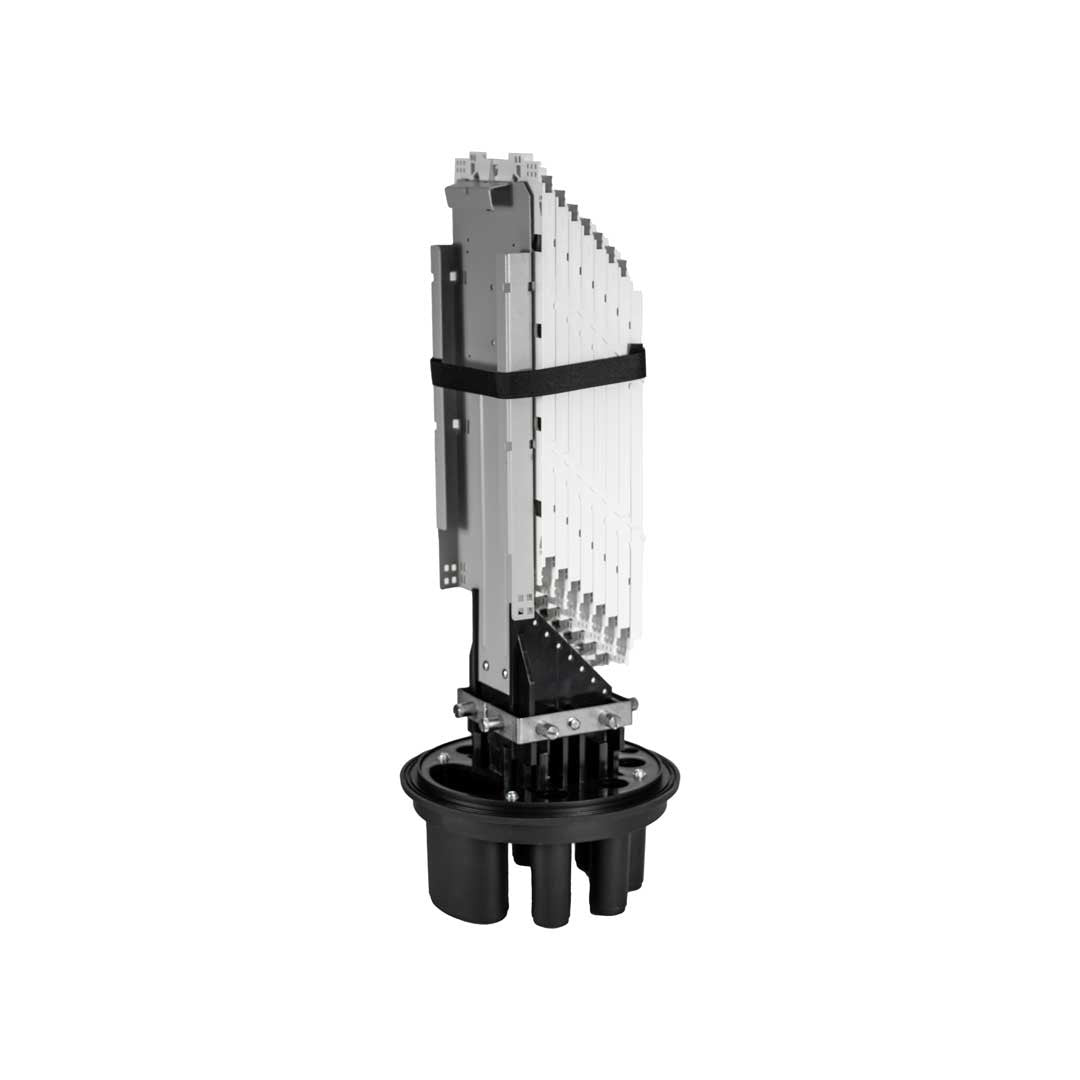

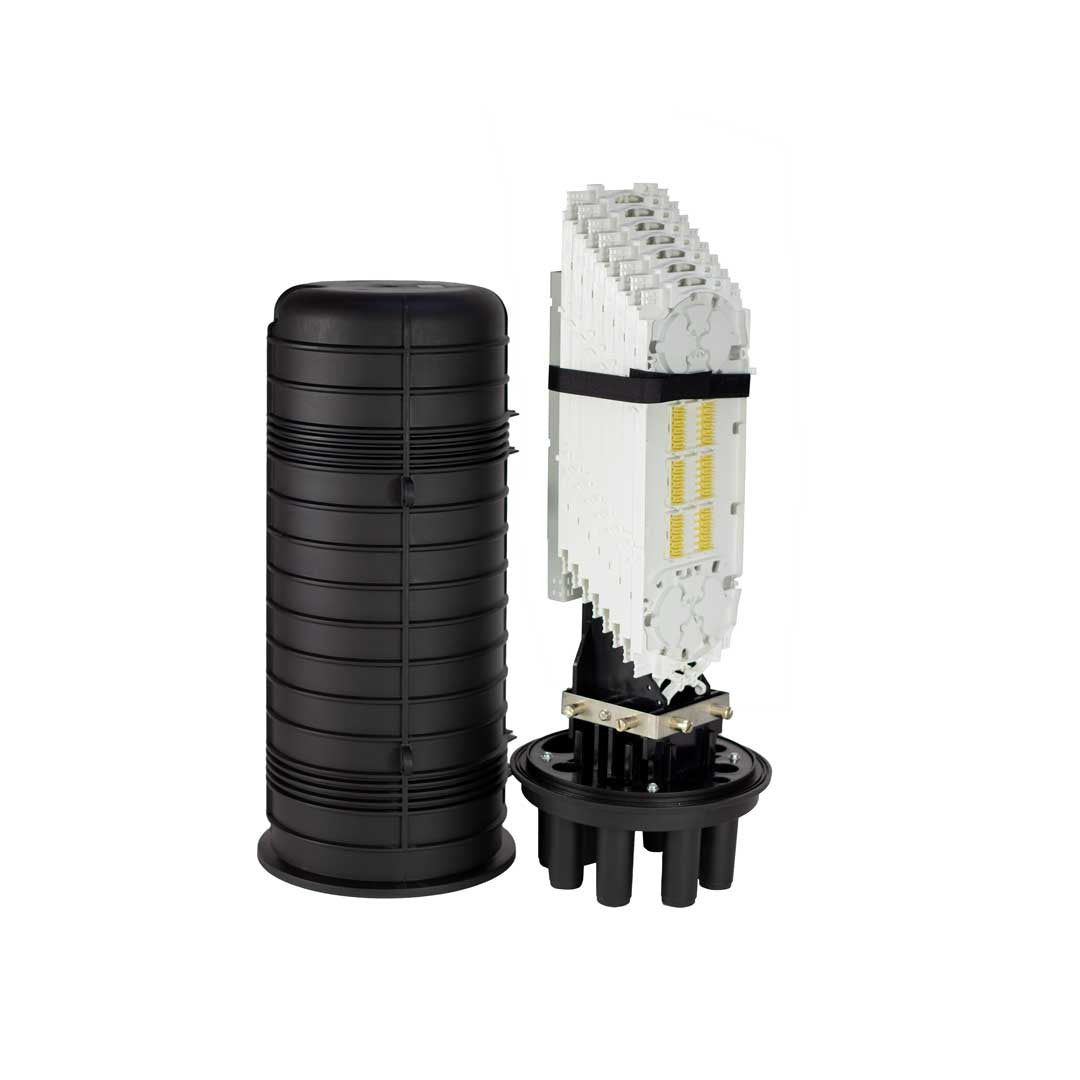

Iuron IU-ODN-FOSC-V-288-H Vertical Fiber Optic Splice Closure 288-Core

PRODUCT OVERVIEW

The IU-ODN-FOSC-V-288-H Fiber Optic Splice Closure is an essential component in fiber communication systems, providing sealing, protection, fiber connector installation, and storage. This closure is ideal for cable splicing and offers robust protection for fiber optic connectors.

PRODUCT TYPE

Fiber

KEY FEATURES

• Versatile Applications: Suitable for straight-through, diverging, and connection of FTTH, FTTB passive networks.
• Durable Materials: Constructed from high-strength PC or PP plastics and high-quality stainless steel.
• Corrosion and Aging Resistance: Designed to withstand harsh environmental conditions, ensuring long-term reliability.
• Expandable Trays: Trays can be added or removed based on specific application needs.
• Dust and Moisture Proof: Provides excellent protection against dust and moisture.
• Enhanced Shell: Thickness of ≥4mm, offering superior insulation and heat resistance.
• Flame Resistance: Excellent flame resistance ensures safety and durability.
• Telecommunication Subscriber Loop: Essential for maintaining subscriber loop integrity.
• Fiber to the Home (FTTH): Ideal for residential fiber optic installations.
• LAN/WAN: Suitable for local and wide area network applications.
• Cable Diameter: φ7mm ~φ25mm
• Dimension: φ250mm*620mm
• Weight: 3.25kg
• Work Temperature: - 4 0 ⁰ C ~ + 6 5 ⁰ C
• Relative Humidity: ≤ 8 5 %
• Atmospheric Pressure: ≤ 8 5 %
• Standard: Y D / T 8 1 4 . 1 - 2 0 0 4
• No. of Cable Inlet/Outlet: One oval Inlets, Six round Outlets

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-ODN-FOSC-V-288-H
• Product Type: Fiber
• Versatile Applications: Suitable for straight-through, diverging, and connection of FTTH, FTTB passive networks.
• Durable Materials: Constructed from high-strength PC or PP plastics and high-quality stainless steel.
• Corrosion and Aging Resistance: Designed to withstand harsh environmental conditions, ensuring long-term reliability.
• Expandable Trays: Trays can be added or removed based on specific application needs.
• Dust and Moisture Proof: Provides excellent protection against dust and moisture.
• Enhanced Shell: Thickness of ≥4mm, offering superior insulation and heat resistance.
• Flame Resistance: Excellent flame resistance ensures safety and durability.
• Telecommunication Subscriber Loop: Essential for maintaining subscriber loop integrity.
• Fiber to the Home (FTTH): Ideal for residential fiber optic installations.
• LAN/WAN: Suitable for local and wide area network applications.
• Cable Diameter: φ7mm ~φ25mm
• Dimension: φ250mm*620mm
• Weight: 3.25kg
• Work Temperature: - 4 0 ⁰ C ~ + 6 5 ⁰ C
• Relative Humidity: ≤ 8 5 %
• Atmospheric Pressure: ≤ 8 5 %
• Standard: Y D / T 8 1 4 . 1 - 2 0 0 4
• No. of Cable Inlet/Outlet: One oval Inlets, Six round Outlets
• Max capacity: 36 cores x 8 cassettes=244 Core (Single)
• Tension: 800N/1min
• Bending: 150N/±45°/10 cycles
• Torsion: 50N.m/+90°/10 cycles
• Insulation Resistance: 2x10^4MΩ/500V
• Compression Strength: 15kv/1min/10mA

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
