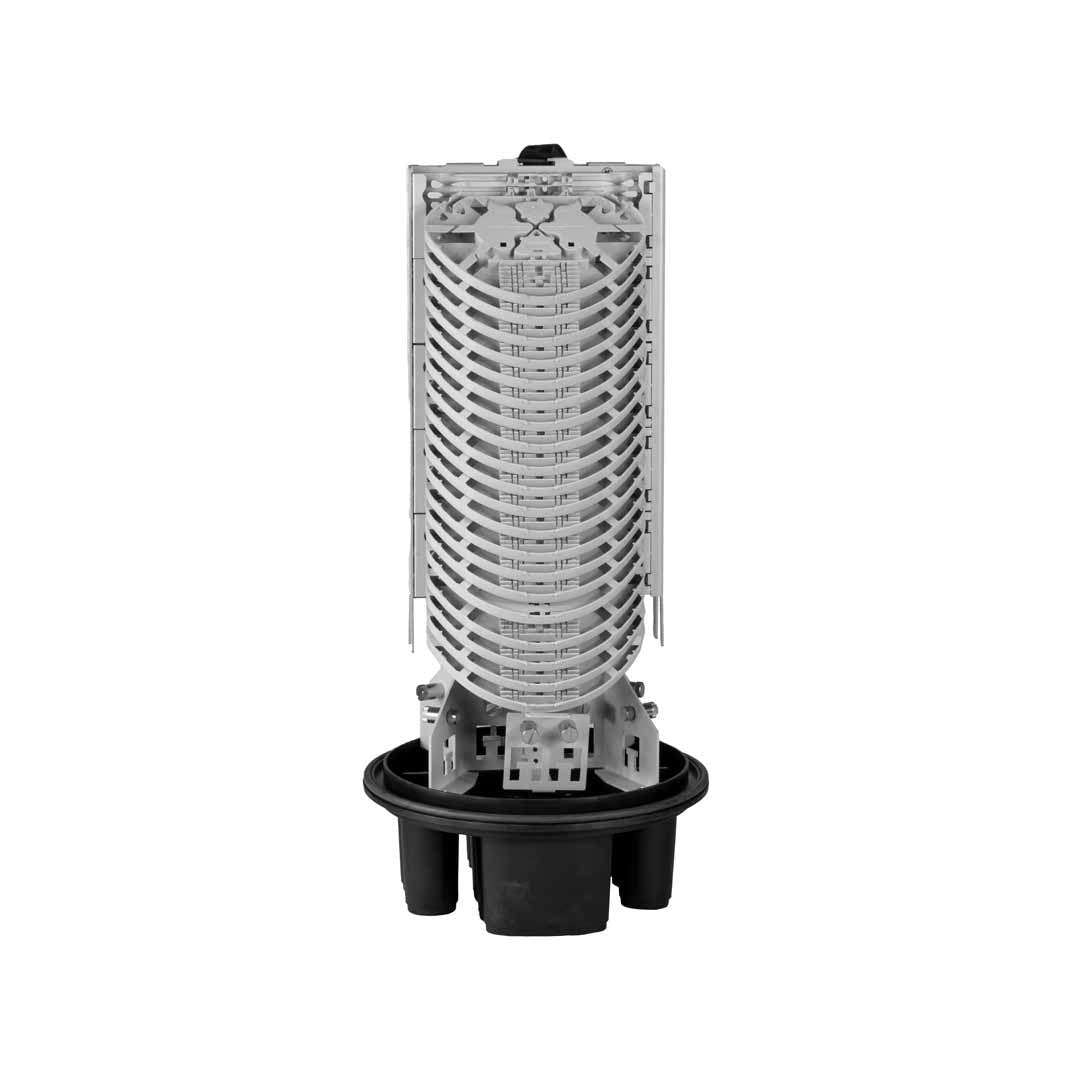

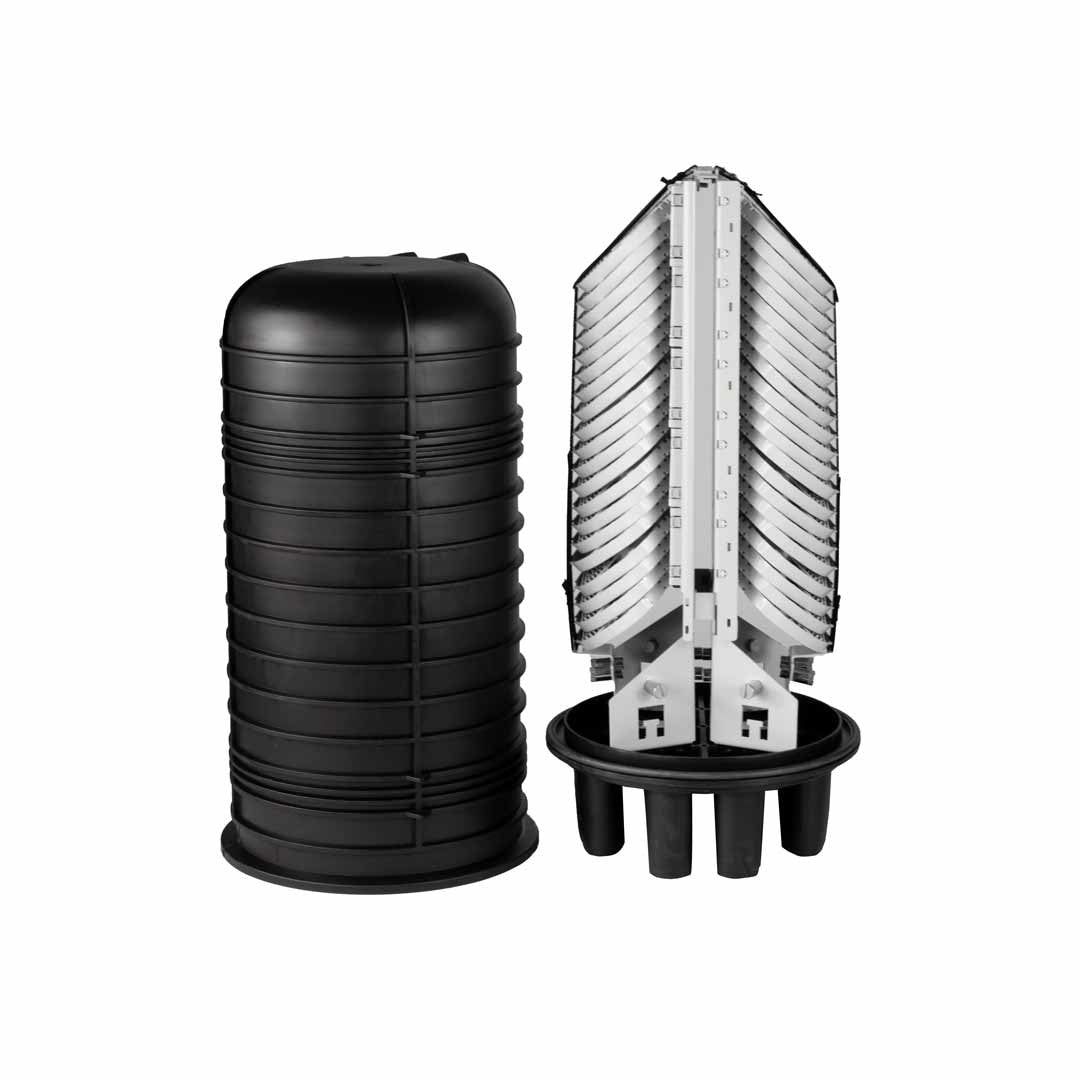

Iuron IU-ODN-FOSC-V-480-H 480-Core Fiber Optic Splice Closure

PRODUCT OVERVIEW

IU-ODN-FOSC-V-480-H - Vertical Aerial Optical Fiber Splice Closure 480p

PRODUCT TYPE

Fiber

KEY FEATURES

• Cover design - vertical
• Easy to assemble
• Only double-sided splice trays are allowed
• The high-quality ABS body material ensures durability
• Suitable for cables from 5mm to 18mm
• Suitable for aerial, underground, duct, and handrail mounting
• 530(H)x223(φ)mm
• 5KG
• Work Temperature: 40 ℃ ~ +85 ℃
• Relative Humidity: ≤ 85% (+30 ℃)
• Atmospheric Pressure: 70Kpa ~ 106Kpa
• Cable Port: 6-6
• Cable Diameter: φ7-35mm
• Max Cores: 12cores*4(single)
• Max Quantity: 40(12cores)/80(4cores)
• Max Capacity: Single:480(12 cores)/320(4 cores);Strap:720(6 cores)/960(8 cores)/1440(12 cores)
• Application: Aerial-Hanging, Wall-Mounting, Direct Buried
• Sealing way: heat shrink sleeve

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-ODN-FOSC-V-480-H
• Product Type: Networking Accessories
• Cover design - vertical
• Easy to assemble
• Only double-sided splice trays are allowed
• The high-quality ABS body material ensures durability
• Suitable for cables from 5mm to 18mm
• Suitable for aerial, underground, duct, and handrail mounting
• 530(H)x223(φ)mm
• 5KG
• Work Temperature: 40 ℃ ~ +85 ℃
• Relative Humidity: ≤ 85% (+30 ℃)
• Atmospheric Pressure: 70Kpa ~ 106Kpa
• Cable Port: 6-6
• Cable Diameter: φ7-35mm
• Max Cores: 12cores*4(single)
• Max Quantity: 40(12cores)/80(4cores)
• Max Capacity: Single:480(12 cores)/320(4 cores);Strap:720(6 cores)/960(8 cores)/1440(12 cores)
• Application: Aerial-Hanging, Wall-Mounting, Direct Buried
• Sealing way: heat shrink sleeve
• Closure Sealing way: silicone rubber

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
