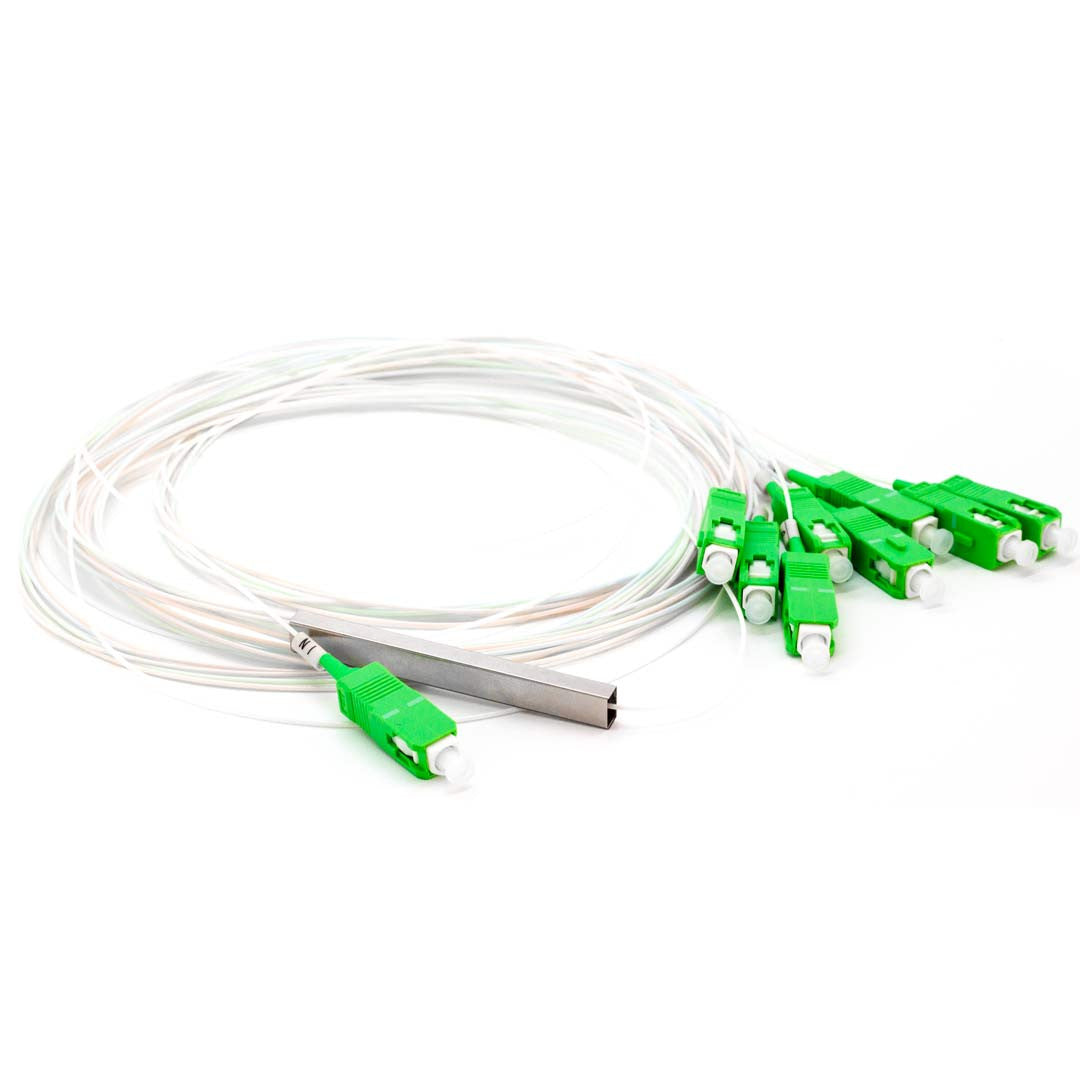

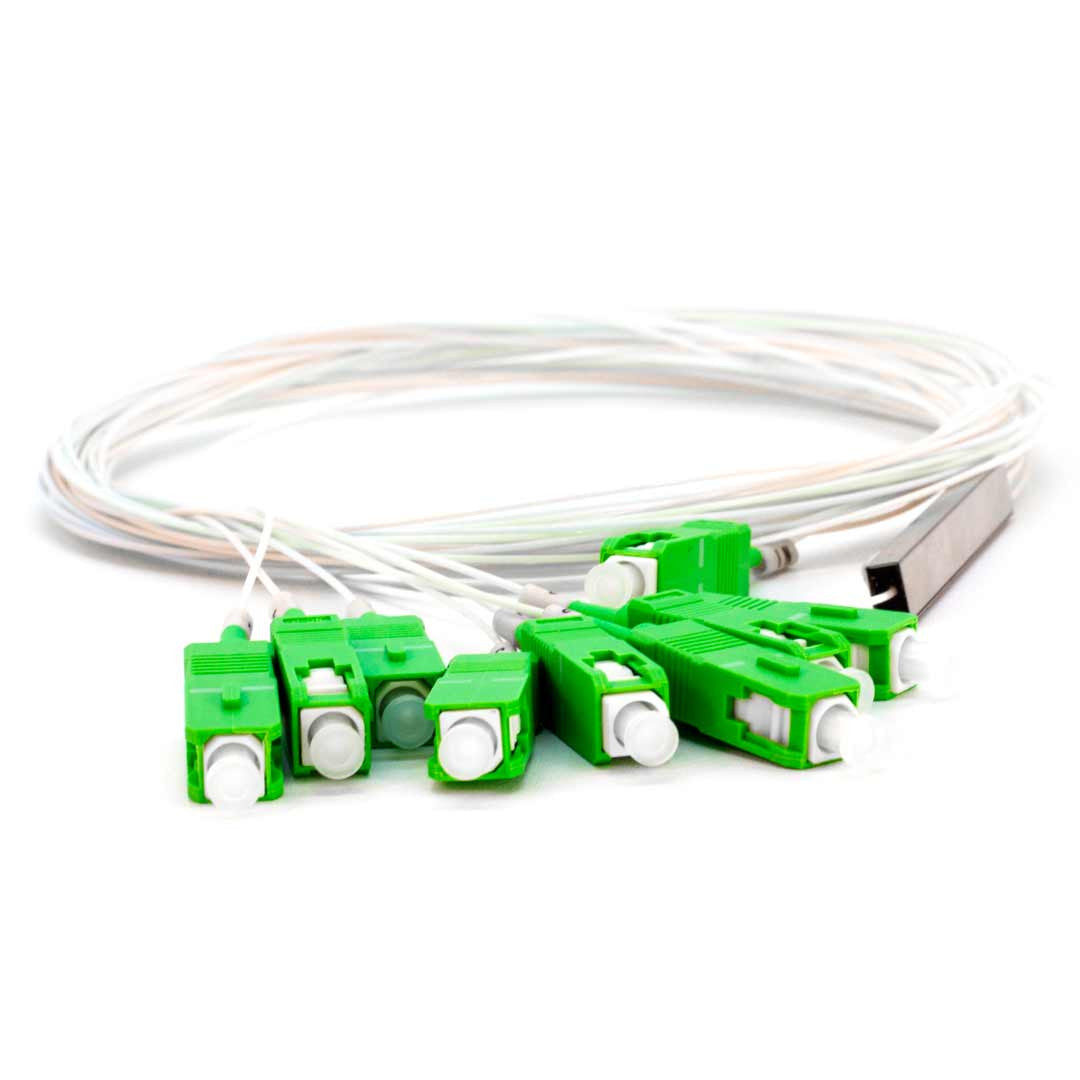

Iuron IU-ODN-SP-1x8-M-A 1x8 PLC Fiber Optic Splitter SC/APC

PRODUCT OVERVIEW

Planar Lightwave Circuit Splitter, input 0.9mm loose tube, output 0.9mm loose tube,1m with connector. It comes with an SC/APC connector.

PRODUCT TYPE

Fiber

KEY FEATURES

• High Uniformity
• Low Insert Loss
• Compact and Small Size
• High Reliability and Stability
• Optional input and output
• FTTH / FTTC / FTTB
• Passive Optic Network
• CATV Networks and Data Communications
• Fiber Optic Equipment and System
• Connector Type : SC/APC
• Operation Wavelength (nm): 1260-1650
• Fiber type: G657A or customized
• Insertion Loss (dB) (P/): Max 10.5 (P)
• Uniformity (dB): Max 0.8
• PDL (dB): Max 0.2
• Return Loss: Max 55
• Directivity (dB): Min 55
• WDL (dB): Man 0.5

TECHNICAL SPECIFICATIONS

• Brand: APC
• Model: IU-ODN-SP-1x8-M-A
• Product Type: Networking Accessories
• High Uniformity
• Low Insert Loss
• Compact and Small Size
• High Reliability and Stability
• Optional input and output
• FTTH / FTTC / FTTB
• Passive Optic Network
• CATV Networks and Data Communications
• Fiber Optic Equipment and System
• Connector Type : SC/APC
• Operation Wavelength (nm): 1260-1650
• Fiber type: G657A or customized
• Insertion Loss (dB) (P/): Max 10.5 (P)
• Uniformity (dB): Max 0.8
• PDL (dB): Max 0.2
• Return Loss: Max 55
• Directivity (dB): Min 55
• WDL (dB): Man 0.5
• Temperature stability (-40～85) (℃) (dB): Max 0.5
• Operation Temperature (℃): -40～85
• Storage Temperature (℃): -40～85
• Bare device size (mm) (LxWxH): 40×4×4
• Mini type (mm) (LxWxH): 60×7×4
• Module type (mm) (LxWxH): 100×80×10

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
