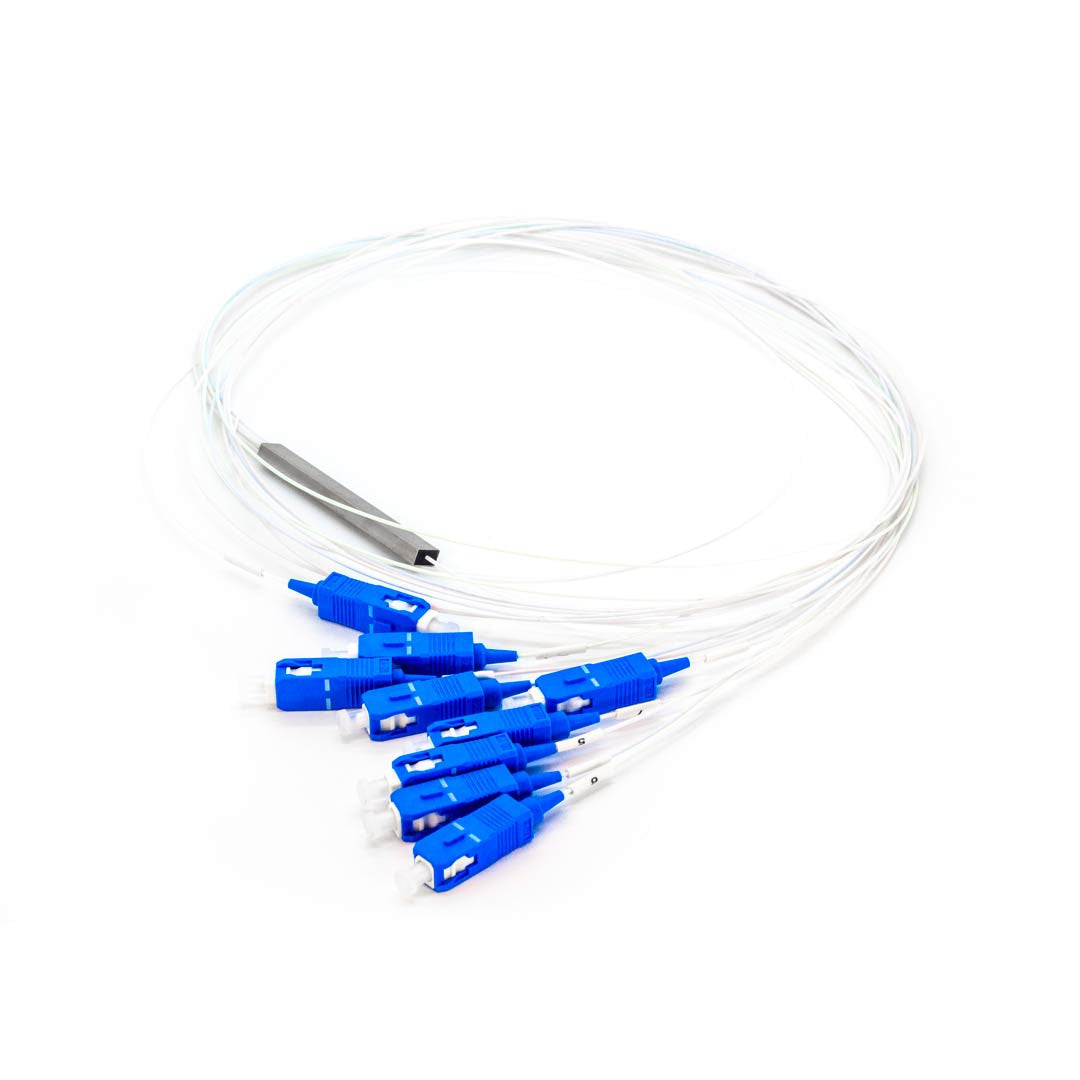

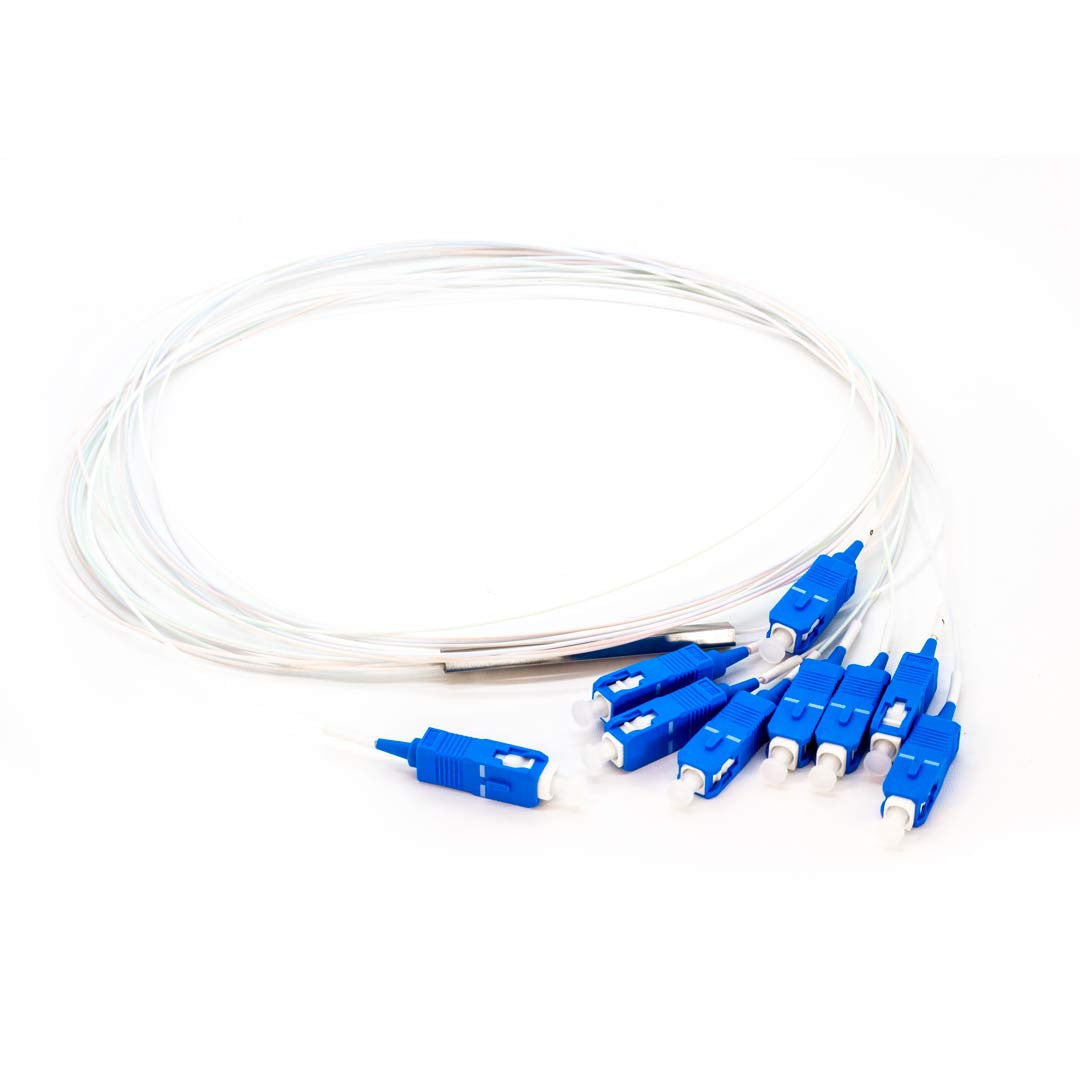

Iuron Mini Optical Fiber Splitter 1x8 SC/UPC Connector
Product identifier
SKU
IU-ODN-SP-1x8-M-U
$17.39
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
IU-ODN-SP-1x8-M-U - PLANAR LIGHTWAVE CIRCUIT SPLITTER
Planar Lightwave Circuit Splitter, input 0.9mm loose tube, output 0.9mm loose tube,1m with connector. It comes with an SC/UPC connector.
Features
- High Uniformity
- Low Insert Loss
- Compact and Small Size
- High Reliability and Stability
- Optional input and output
Application
- FTTH / FTTC / FTTB
- Passive Optic Network
- CATV Networks and Data Communications
- Fiber Optic Equipment and System
Technical Description
- Connector Type: SC/UPC
- Operation Wavelength (nm): 1260-1650
- Fiber type: G657A or customized
- Insertion Loss (dB) (P/): Max 10.5 (P)
- Uniformity (dB): Max 0.8
- PDL (dB): Max 0.2
- Return Loss: Max 55
- Directivity (dB): Min 55
- WDL (dB): Man 0.5
- Temperature stability (-40～85) (℃) (dB): Max 0.5
- Operation Temperature (℃): -40～85
- Storage Temperature (℃): -40～85
- Bare device size (mm) (LxWxH): 40×4×4
- Mini type (mm) (LxWxH): 60×7×4
- Module type (mm) (LxWxH): 100×80×10
More Information
MFRPartNum:
IU-ODN-SP-1x8-M-U
