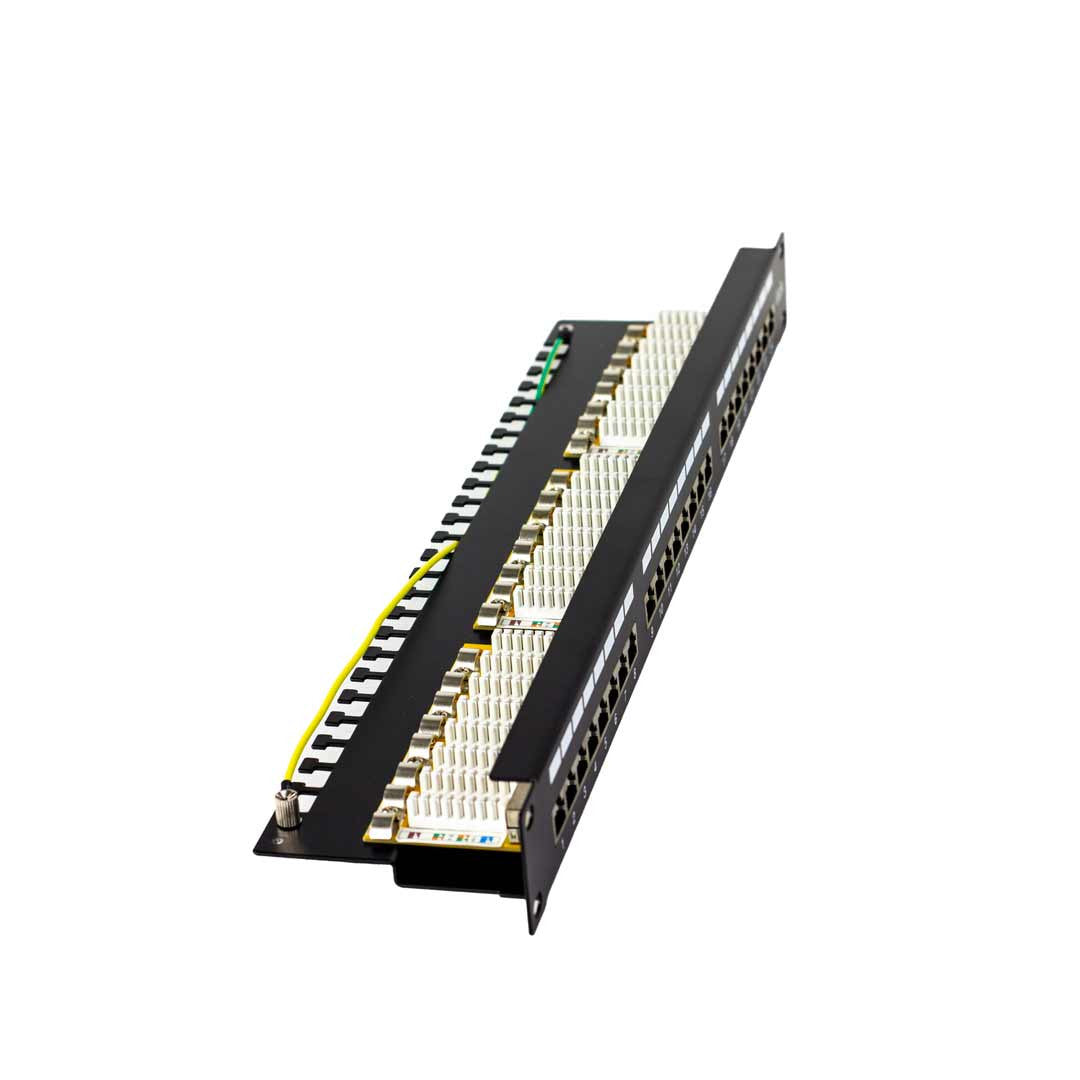

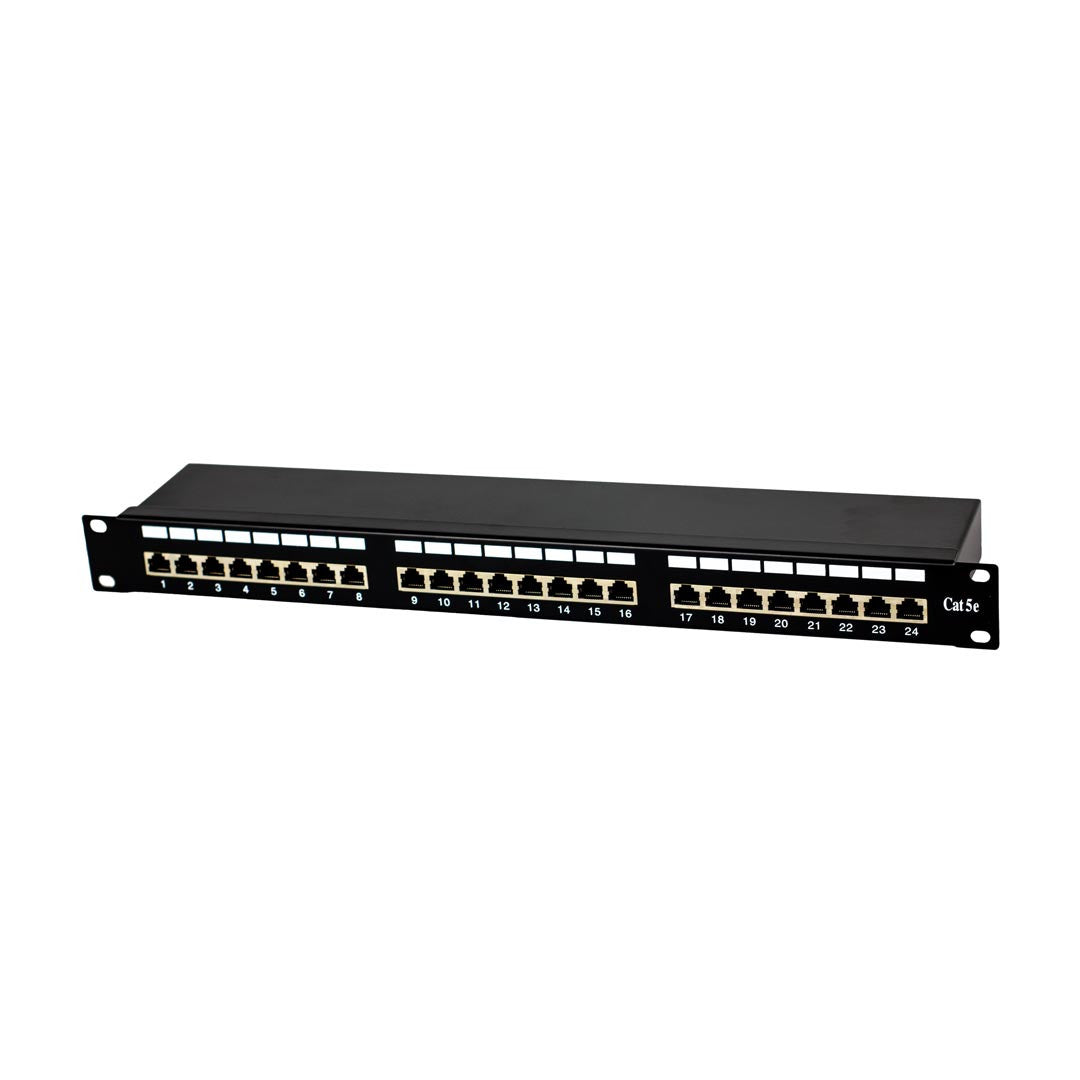

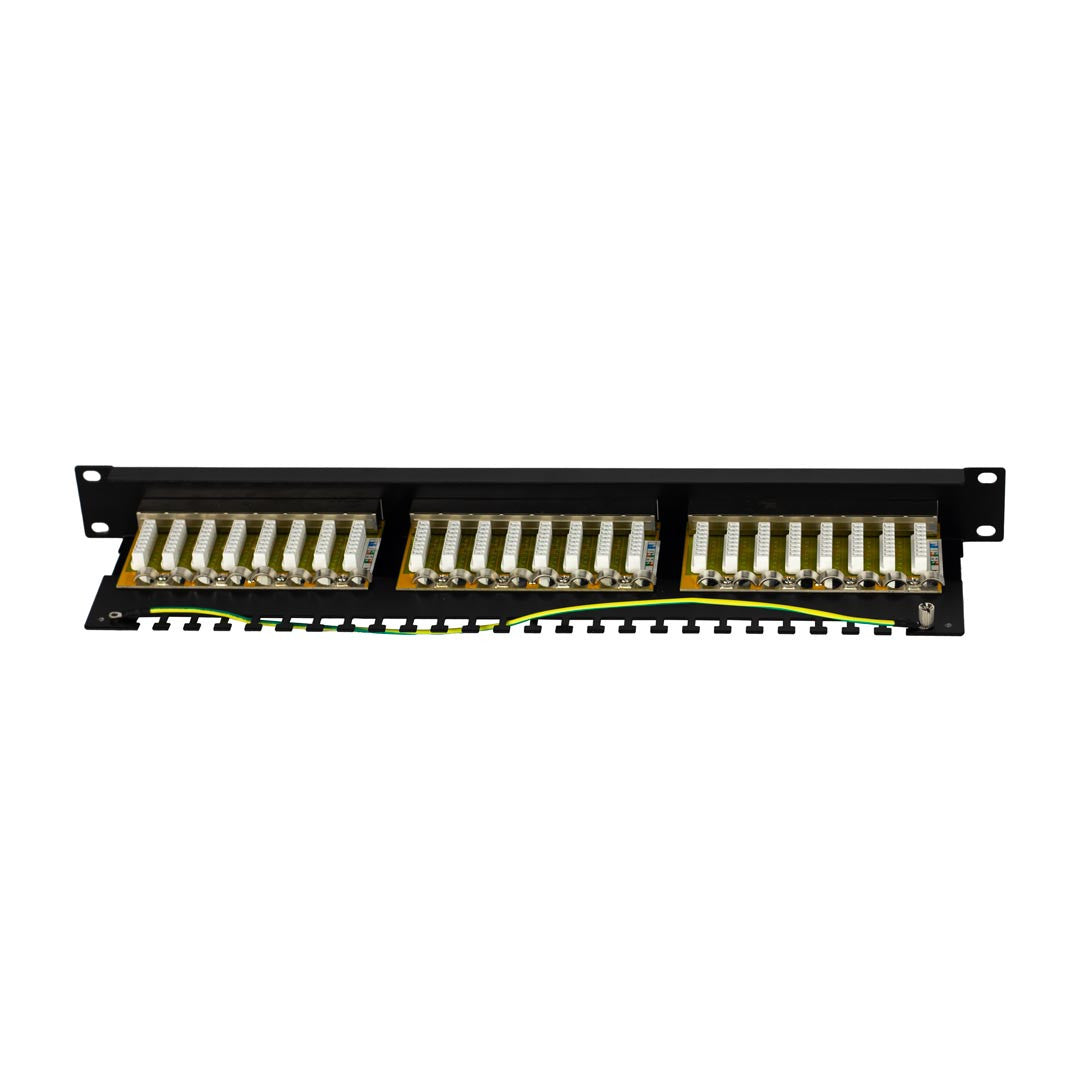

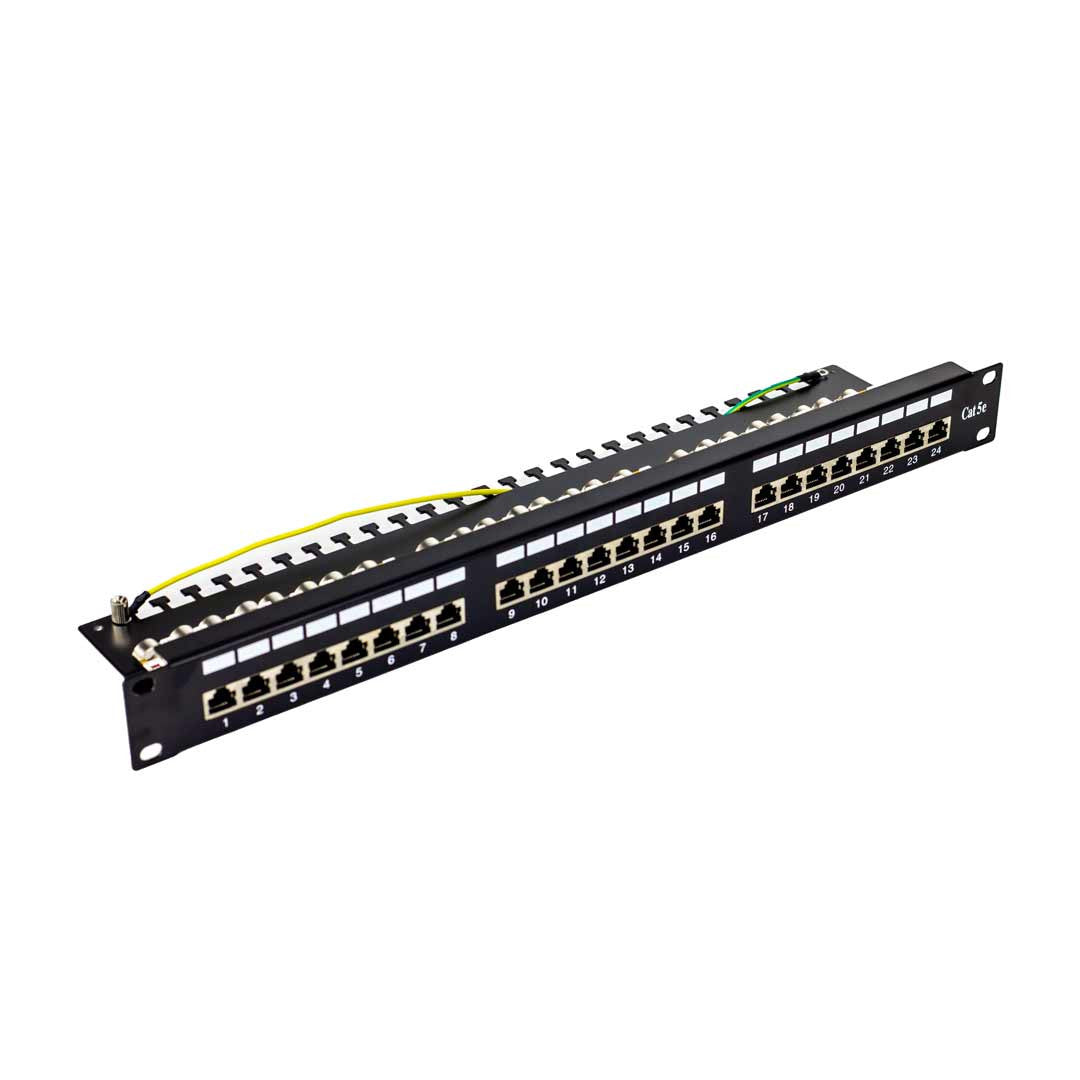

Iuron IU-PP-24-5e-F 24-Port Cat5e FTP Patch Panel 1U Rack

PRODUCT OVERVIEW

IU-PP-24-5e-F - Cat5e Patch Panel FTP 24 Ports Surge Protection and Grounding

PRODUCT TYPE

Networking Cable

KEY FEATURES

• Standard Compatibility: Designed to mount on any standard 19' rack or cabinet.
• Space-Saving Design: High-density 1U design for efficient use of rack space.
• Durable Construction: Electrostatic black powder-coated steel with phosphor bronze and tin-coated over nickel contacts.
• Versatile Configuration: Utilizes keystone jacks and inserts for flexible network configurations.
• Color-Coded Wiring: TIA/EIA 568A (international) and 568B (AT&T standard) color-coded for easy installation.
• Wide Termination Acceptance: Supports 22, 24, and 26 AWG solid wires.
• Corrosion Resistance: Metal sheet construction is corrosion-resistant.
• High-Strength Materials: Made with high-strength plastic for enhanced durability.
• Enterprise Networks: Ideal for structured cabling in enterprise networks.
• Data Centers: Suitable for high-density cabling solutions in data centers.
• Telecom Rooms: Perfect for organizing network cables in telecommunications rooms.
• Home Networks: Reliable for home networking setups requiring organized cabling.
• Standards Compliance: Meets TIA/EIA-568-A, TIA/EIA-568-B, TIA/EIA TSB-40, ISO/IEC 11801 requirements.
• Angle: 180-degree angle type (horizontal).
• Termination Types: 110, KRONE, DUAL types (compatible with 3 types).
• Electrical Standards: Compliant with UL 1863.
• Current Rating: 1.5 Amp Max.
• Voltage Rating: 150 Volts.

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-PP-24-5e-F
• Product Type: Networking Cable
• Standard Compatibility: Designed to mount on any standard 19' rack or cabinet.
• Space-Saving Design: High-density 1U design for efficient use of rack space.
• Durable Construction: Electrostatic black powder-coated steel with phosphor bronze and tin-coated over nickel contacts.
• Versatile Configuration: Utilizes keystone jacks and inserts for flexible network configurations.
• Color-Coded Wiring: TIA/EIA 568A (international) and 568B (AT&T standard) color-coded for easy installation.
• Wide Termination Acceptance: Supports 22, 24, and 26 AWG solid wires.
• Corrosion Resistance: Metal sheet construction is corrosion-resistant.
• High-Strength Materials: Made with high-strength plastic for enhanced durability.
• Enterprise Networks: Ideal for structured cabling in enterprise networks.
• Data Centers: Suitable for high-density cabling solutions in data centers.
• Telecom Rooms: Perfect for organizing network cables in telecommunications rooms.
• Home Networks: Reliable for home networking setups requiring organized cabling.
• Standards Compliance: Meets TIA/EIA-568-A, TIA/EIA-568-B, TIA/EIA TSB-40, ISO/IEC 11801 requirements.
• Angle: 180-degree angle type (horizontal).
• Termination Types: 110, KRONE, DUAL types (compatible with 3 types).
• Electrical Standards: Compliant with UL 1863.
• Current Rating: 1.5 Amp Max.
• Voltage Rating: 150 Volts.
• Contact Resistance: 20 mΩ.
• Insulation Resistance: 500MΩ.
• Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz for 1 minute.
• Materials: Housing: PC UL94V-0.
• IDC: PC UL94V-0, accepts 22-26 AWG solid wire.
• PCB: FR4 1.6mm (0.04') thickness, 2 layers.
• Contacts: PC UL94V-0, 0.45mm (0.018') diameter phosphor bronze with 3 μ' to 50 μ' gold plating on contact area.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
