Iuron IU-PP-24-6-U 24-Port Cat6 UTP Patch Panel 110 IDC

PRODUCT OVERVIEW

The IU-PP-24-6-U Cat6 Patch Panel is a reliable and efficient solution for organizing network cables, ensuring high-quality connections and easy management in various network environments.

PRODUCT TYPE

Networking Cable

KEY FEATURES

• Rack-Mount Design: Compatible with any EIA 19' rack or cabinet in enterprise networks and data centers.

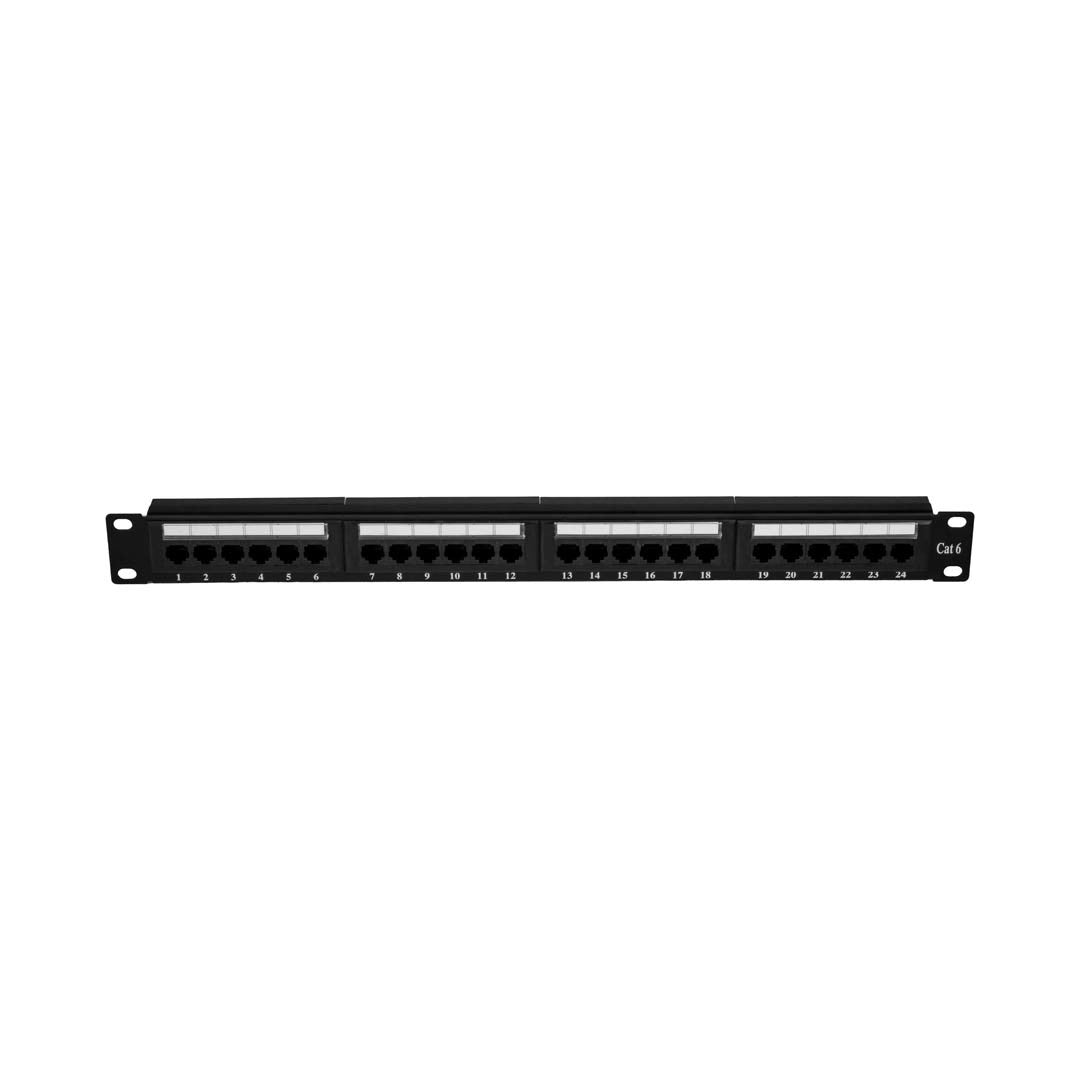

• 24-Port Cat6 Panel: Accommodates 24 CAT6 (backwards compatible with CAT5e and CAT5) RJ45 ports on the front.

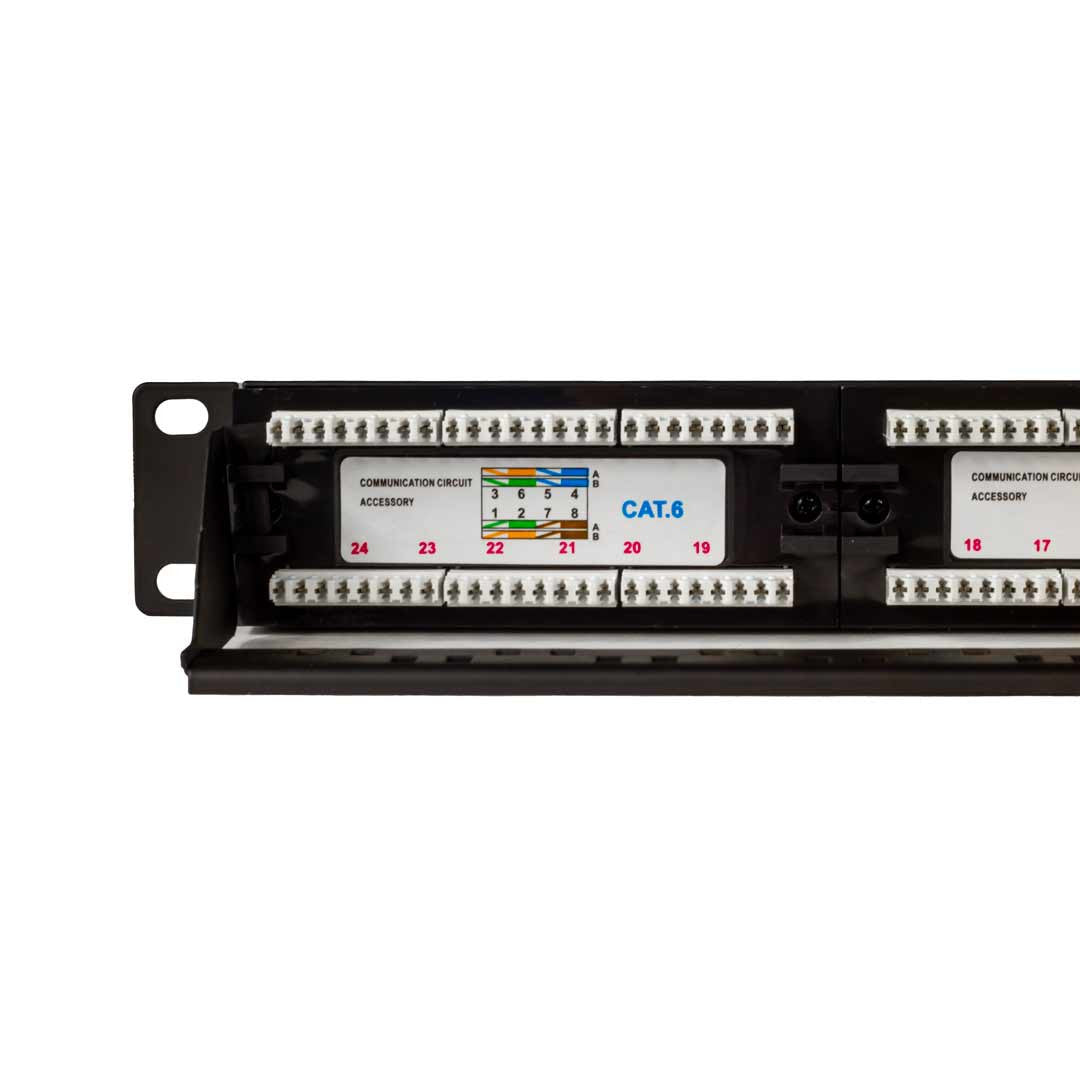

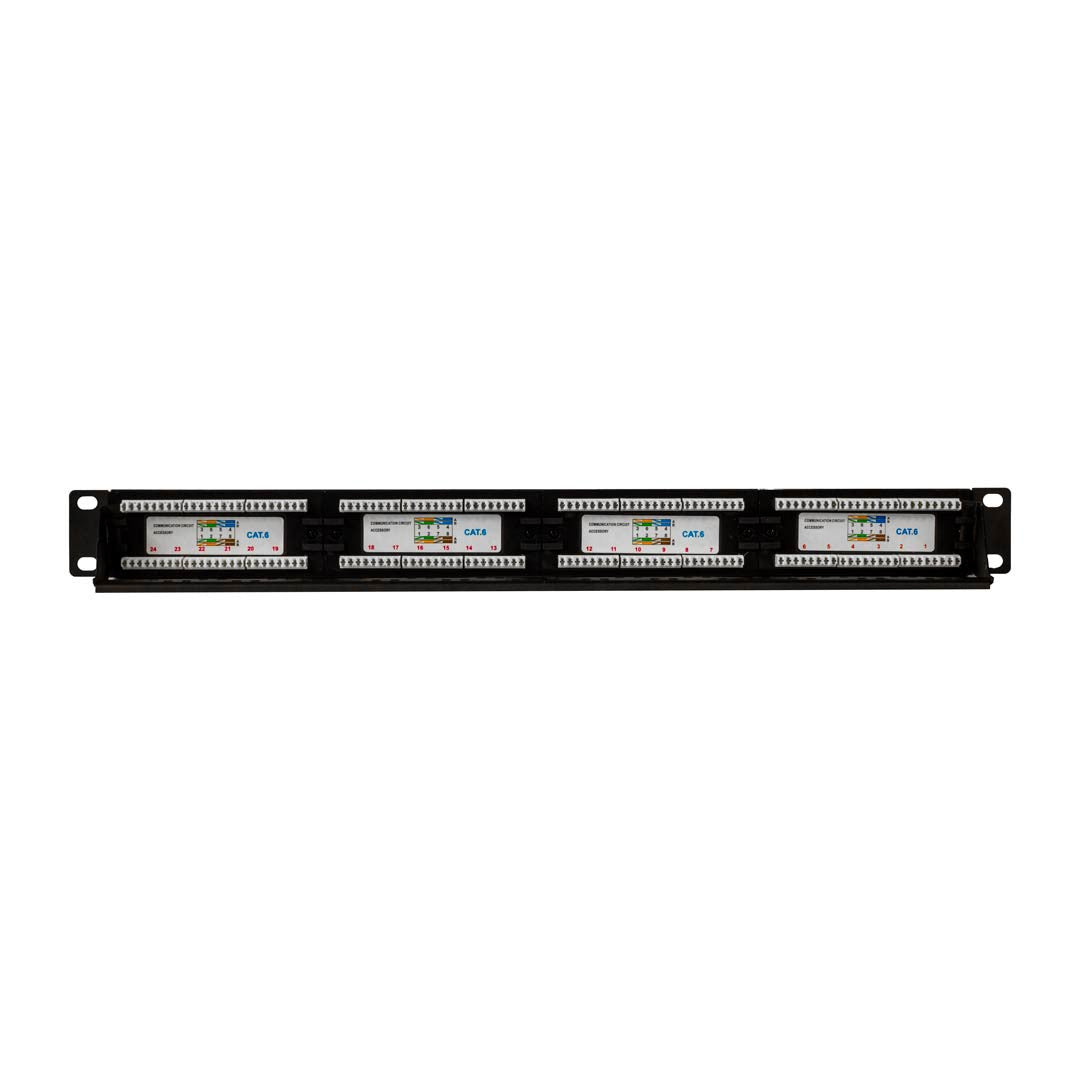

• Easy Termination: 110 punch-down on rear IDC contacts for simple and quick wiring.
• Gold-Plated Terminals: Ensures high-quality connections and durability.
• Supports POE/POE+: Compliant with IEEE 802.3af/at standards.

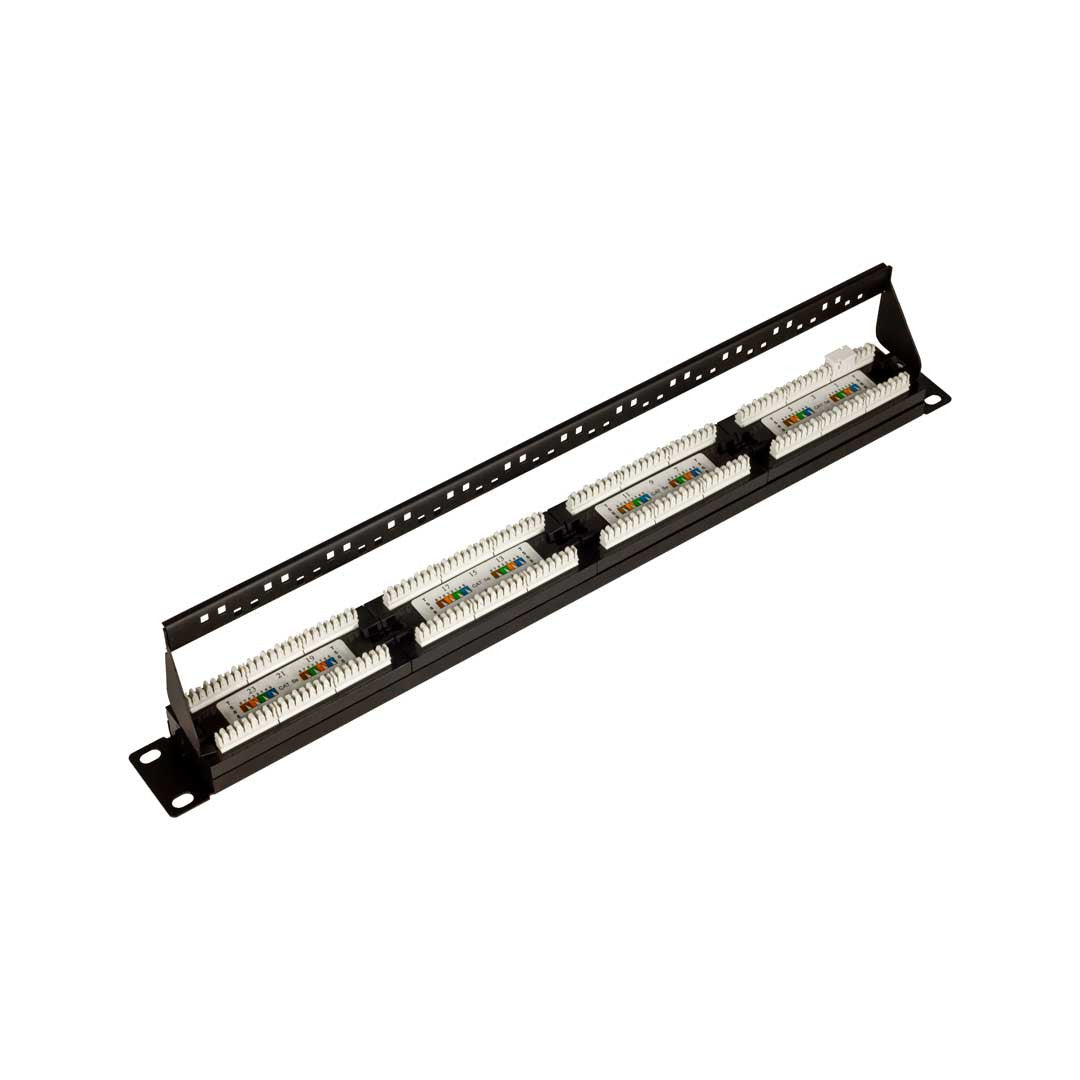

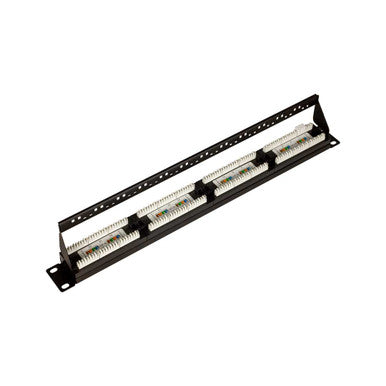

• Detachable Rear Strain Relief Bars: Helps support and manage cables effectively.
• Ideal for use in home, hotel, office, and building network wiring.
• Suitable for enterprise networks and data centers.
• Application Certification: ISO9001,CE, RoHS
• Standard: ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part68);IEC 60603-7
• Wiring Standards: T568A/T568B
• Application: for home ,hotel, office and buildings network wiring
• Specification Material: Panel: SPCC 1.5mm
• Housing: PC/ABS
• Spring Wire: Phosphor Bronze with Gold-plated 3u-50u'
• IDC Contact: Phosphor Bronze with tinned
• Working life: 750 times Min for RJ45 jack; 200times min for IDC
• Current Rating: 1.5 Amps

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-PP-24-6-U
• Product Type: Networking Cable
• Rack-Mount Design: Compatible with any EIA 19' rack or cabinet in enterprise networks and data centers.
• 24-Port Cat6 Panel: Accommodates 24 CAT6 (backwards compatible with CAT5e and CAT5) RJ45 ports on the front.
• Easy Termination: 110 punch-down on rear IDC contacts for simple and quick wiring.
• Gold-Plated Terminals: Ensures high-quality connections and durability.
• Supports POE/POE+: Compliant with IEEE 802.3af/at standards.
• Detachable Rear Strain Relief Bars: Helps support and manage cables effectively.
• Ideal for use in home, hotel, office, and building network wiring.
• Suitable for enterprise networks and data centers.
• Application Certification: ISO9001,CE, RoHS
• Standard: ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part68);IEC 60603-7
• Wiring Standards: T568A/T568B
• Application: for home ,hotel, office and buildings network wiring
• Specification Material: Panel: SPCC 1.5mm
• Housing: PC/ABS
• Spring Wire: Phosphor Bronze with Gold-plated 3u-50u'
• IDC Contact: Phosphor Bronze with tinned
• Working life: 750 times Min for RJ45 jack; 200times min for IDC
• Current Rating: 1.5 Amps
• Contact Resistance: 2.5mΩ max
• Insulation Resistance: 500mΩ minimum
• Dielectric Strength: 1000V RMS at 60Hz for 1 minute
• Flammability rating: UL 94V-0 QC:100% broken circuit testing
• Humidity: 10% ~ 90%RH
• Temperature: -20℃~ 60℃
• OEM / ODM: Available
• Feature Unique design is essential to manage any additions, and changes efficiently and effectively.
• The front identification design can be ease to identify the port and manage the wiring.
• The rear cable guider can control the bending radius of the cable, maintain the cable direction, and makes the wiring system more stable.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
